- - 7. COV ER COM PON EN TS ( 1) 3 5 5 7 4 8 4 9 5 4 5 4 5 1 5 5 5 9 5 6 5 3 6 0 5 0 5 8 5 2 1 5 5 4 3 2 1 0 7 8 9 1 0 1 1 1 5 1 9 1 9 2 0 2 1 2 2 2 7 2 8 3 0 2 9 3 2 3 4 3 3 3 1 2 5 2 6 3 7 3 7 3 8 3 9 4 0 4 1 4 2 4 3…
- -

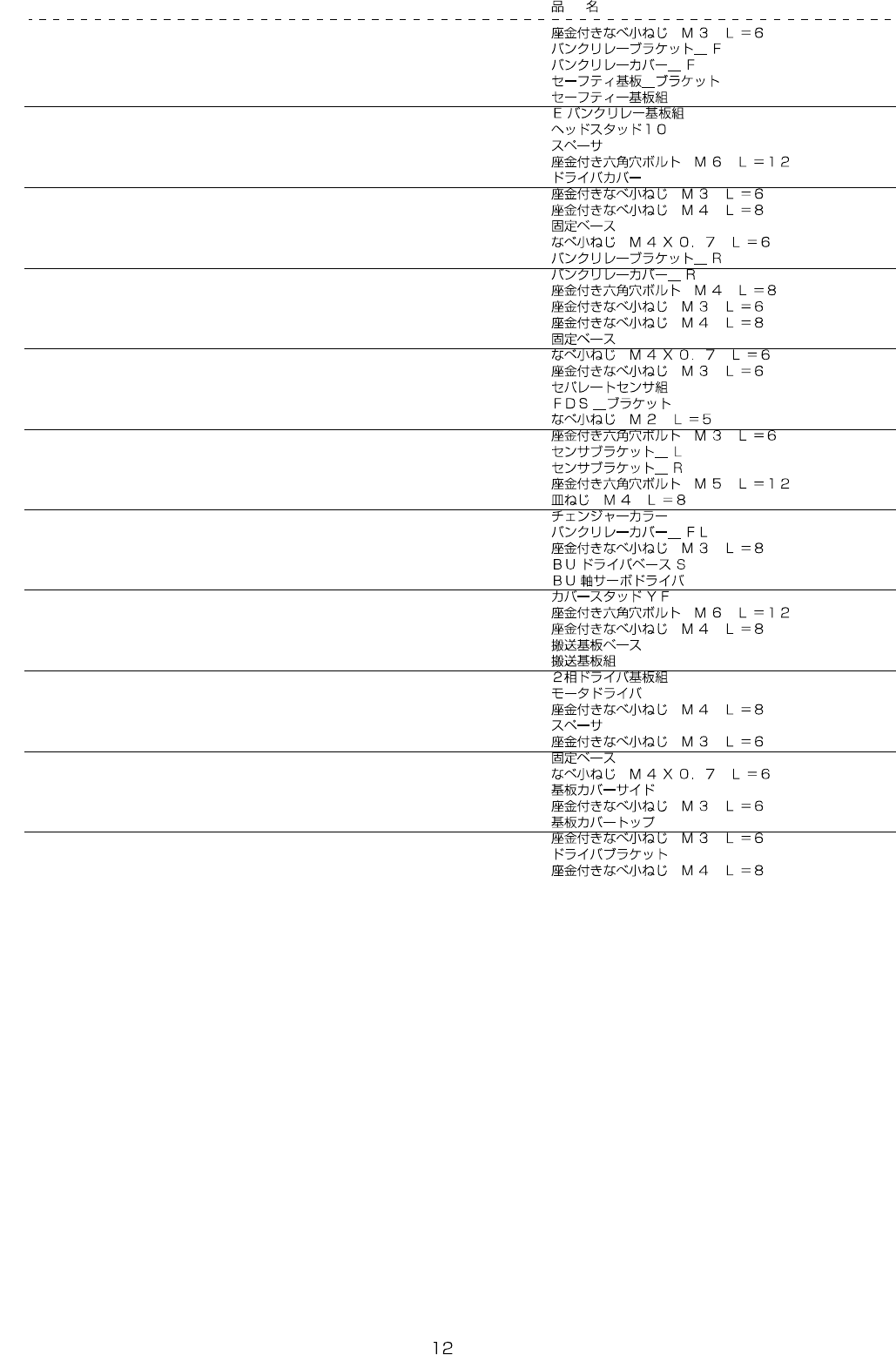

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 SL-4030691-SC SCREW M3 L=6 16
2 401-83016 BANK_RELAY_BR_F 1
3 401-83017 BANK_RELAY_COVER_F 1
4 401-83020 SAFETY_PWB_BR 1
5 401-28872 SAFETY PCB ASM 1
6 401-28876 E BANK RELAY PCB ASM 2
7 400-46040 HEAD STUD 10 6
8 HX-0033900-0N SPACER 1
9 SL-6061292-TN SCREW M6 L=12 6
10 401-83074 DRIVER_COVER 2
11 SL-4030691-SC SCREW M3 L=6 6
12 SL-4040891-SC SCREW M4X8 9
13 HX-0029400-00 FIXED BASE 13
14 SM-4040601-SC SCREW M4X0.7 L=6 13
15 401-83018 BANK_RELAY_BR_R 1
16 401-83019 BANK_RELAY_COVER_R 1
17 SL-6040892-TN SCREW M4 L=8 3
18 SL-4030691-SC SCREW M3 L=6 6
19 SL-4040891-SC SCREW M4X8 2
20 HX-0029400-00 FIXED BASE 6
21 SM-4040601-SC SCREW M4X0.7 L=6 6
22 SL-4030691-SC SCREW M3 L=6 4
23 401-86919 SEPARATE SENSOR ASM 6
24 401-84970 FDS_BR 12
25 SM-4020501-SC SCREW M2 L=5 24
26 SL-6030692-TN SCREW M3 L=6 24
27 401-83196 SENSOR_BR_L 2
28 401-83197 SENSOR_BR_R 2
29 SL-6051292-TN SCREW M5 L=12 4
30 SM-1040852-TP DISH SCREW 4
31 401-53419 CHANGER_COLLAR 12
32 401-83497 BANK_RELAY_COVER_FL 1
33 SL-4030891-SC SCREW M3 L=8 2
34 401-83071 BU_DRIVER_BASE_S 1
35 401-29636 BU AXIS SERVO AMP 1
36 400-01512 COVER STUD YF 2
37 SL-6061292-TN SCREW M6 L=12 2
38 SL-4040891-SC SCREW M4X8 2
39 401-83072 CONVEYOR_PWB_BASE 2
40 401-28875 CONVEYOR PCB ASM 2
41 401-54209 2PHASE DRIVER PCB ASM 4
42 HM-0013200-00 STEPPING MOTOR 1
43 SL-4040891-SC SCREW M4X8 4
44 HX-0035400-0F SPACER 10
45 SL-4030691-SC SCREW M3 L=6 10
46 HX-0029400-00 FIXED BASE 20
47 SM-4040601-SC SCREW M4X0.7 L=6 20
48 401-83075 PWB_COVER_SIDE 2
49 SL-4030691-SC SCREW M3 L=6 10
50 401-83076 PWB_COVER_TOP 2
51 SL-4030691-SC SCREW M3 L=6 8
52 401-83073 DRIVER_BRACKET 2
53 SL-4040891-SC SCREW M4X8 4
- -

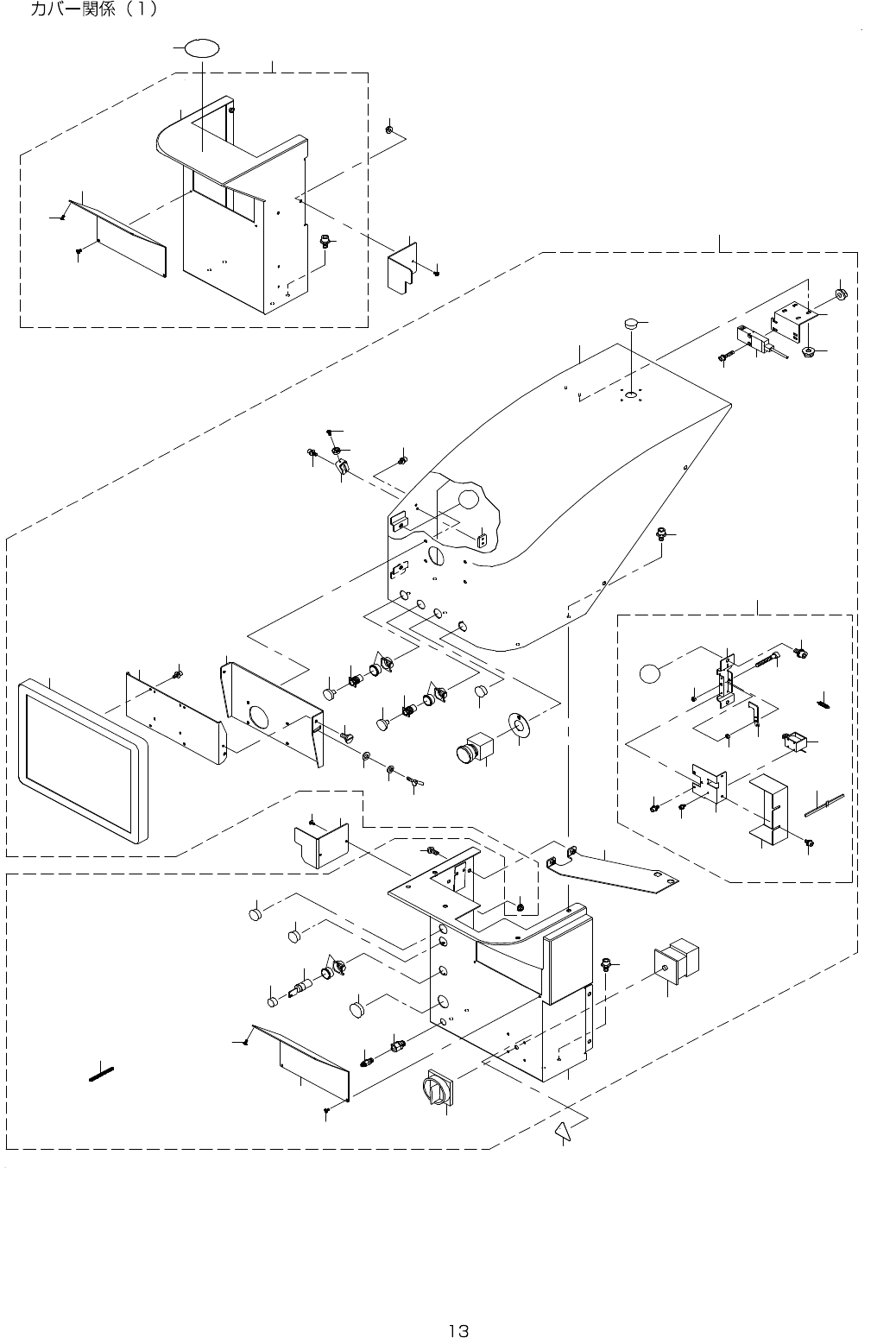

7. COVER COMPONENTS (1)
3 5
5 7
4 8
4 9
5 4
5 4
5 1
5 5
5 9
5 6
5 3
6 0
5 0
5 8
5 2
1
5
5
4
3
2
1 0
7
8
9
1 0
1 1
1 5
1 9
1 9
2 0
2 1
2 2
2 7
2 8
3 0
2 9
3 2
3 4
3 3
3 1
2 5
2 6
3 7
3 7
3 8
3 9
4 0
4 1
4 2
4 3
4 4
4 5
4 6
4 6
A
A
1 7
1 6
4 7
6
2 4
2 3
1 3
1 2
1 3
1 2
1 4
2 3
1 8
2 3
2 3
6 1
3 6
6 5
6 4
6 3
6 6
6 2
6 4
6 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83521 COVER_FUL_ASM 1
2 401-83435 COVER_FUL (1)
3 SL-6061292-TN SCREW M6 L=12 (4)
4 401-83443 MOTOR_COVER (1)
5 400-81751 B_COVER_SCREW (4)
6 401-83519 COVER_FUR_ASM 1
7 401-83436 COVER_FUR (1)
8 401-83387 COVER_FUR_U (1)
9 401-83472 COVER_STAY_FUR (1)
10 SL-6061292-TN SCREW M6 L=12 (9)
11 SL-3061232-TN SCREW M6 L=12 (2)
12 HA-0055200-40 SWITCH (2)
13 HA-0055200-30 SWITCH (2)
14 HA-0055200-10 SWITCH (1)
15 HA-0055200-1B SWITCH (1)
16 HA-0063800-10 SWITCH (1)
17 HA-0055200-20 SWITCH (1)
18 HA-0053500-3A SWITCH (1)
19 HA-0065500-00 SWITCH (1)
20 401-58158 15INCH LCD MONITOR (1)
21 401-29025 EMG SW CABLE ASM (1)
22 401-26708 EMERGENCY_SEAL (1)
23 HX-0032600-0A GROMMET (4)
24 HX-0032600-0M GROMMET (1)
25 PJ-3010651-06 FEMALE UNION (1)
26 E2904-700-000 SOCKET (1)
27 401-83444 LCD_BRACKET (1)
28 400-47170 LCD_BRACKET_F (1)
29 SL-6041092-TN SCREW M4 L=10 (4)
30 SL-6040892-TN SCREW M4 L=8 (4)
31 SD-0640246-SP SHOULDER SCREW D=6.35 H=2.4 (2)
32 WP-0641601-SC WASHER M6 (1)
33 WS-0610002-KN SPRING WASHER M6 (1)
34 161-87007 WING BOLT (1)
35 E5348-033-100 GROMMET (0.156)
36 401-83443 MOTOR_COVER (1)
37 400-81751 B_COVER_SCREW (4)
38 400-01464 STOPPER SUPPORT (1)
39 SL-6041092-TN SCREW M4 L=10 (2)
40 400-49671 COVER CUSHION (1)
41 SM-4030601-SC SCREW M3X0.5 L=6 (1)
42 401-47221 STOPPER_NUT_PLATE (1)
43 401-83448 SAFETY SWITCH BR (1)
44 400-02254 COVER OPEN SW CABLE ASM (1)
45 SL-6042042-TN SCREW M4 L=20 (2)
46 NM-3040520-SF FLANGE NUT M4 (4)
47 401-47273 SC_LOCK_ASM (1)
48 401-11821 SCL_BASE (1)
49 401-47117 SCL_SOLENOID_BASE (1)
50 SL-6040892-TN SCREW M4 L=8 (2)
51 401-47118 SCL_HOOK (1)
52 HX-0036700-0A GROMMET (0.015)
53 SM-6053502-TN SCREW M5 L=35 (1)
54 NM-6050001-SC NUT M5X0.8 TYPE1 (2)
55 401-47119 DOOR_LOCK_SP (1)
56 401-46405 COVER LOCK SV ASM (1)
57 SL-6030692-TN SCREW M3 L=6 (4)
58 401-11824 SCL_COVER (1)
59 SL-6040892-TN SCREW M4 L=8 (2)
60 SL-6061292-TN SCREW M6 L=12 (2)
61 CM-3001000-04 DANGER LABEL (50) 1
62 401-86066 BANK_COVER_FL 1
63 401-86067 BANK_COVER_FR 1
64 400-81751 B_COVER_SCREW 4
65 NM-3040520-SF FLANGE NUT M4 4
66 E5721-729-000 LABEL 1
