- - 10 . COV ER COM PON EN TS ( 4) 1 8 1 7 1 6 4 2 A 3 6 1 1 3 5 3 2 5 4 4 0 4 3 4 5 4 5 4 4 3 8 1 9 2 0 2 3 7 8 9 2 5 1 1 1 1 1 2 1 3 1 4 1 5 2 3 3 0 2 2 2 4 2 4 2 4 1 0 2 5 A 2 6 2 6 2 6 2 4 2 6 2 7 2 8 2 9 2 2 2 1 3…
- -

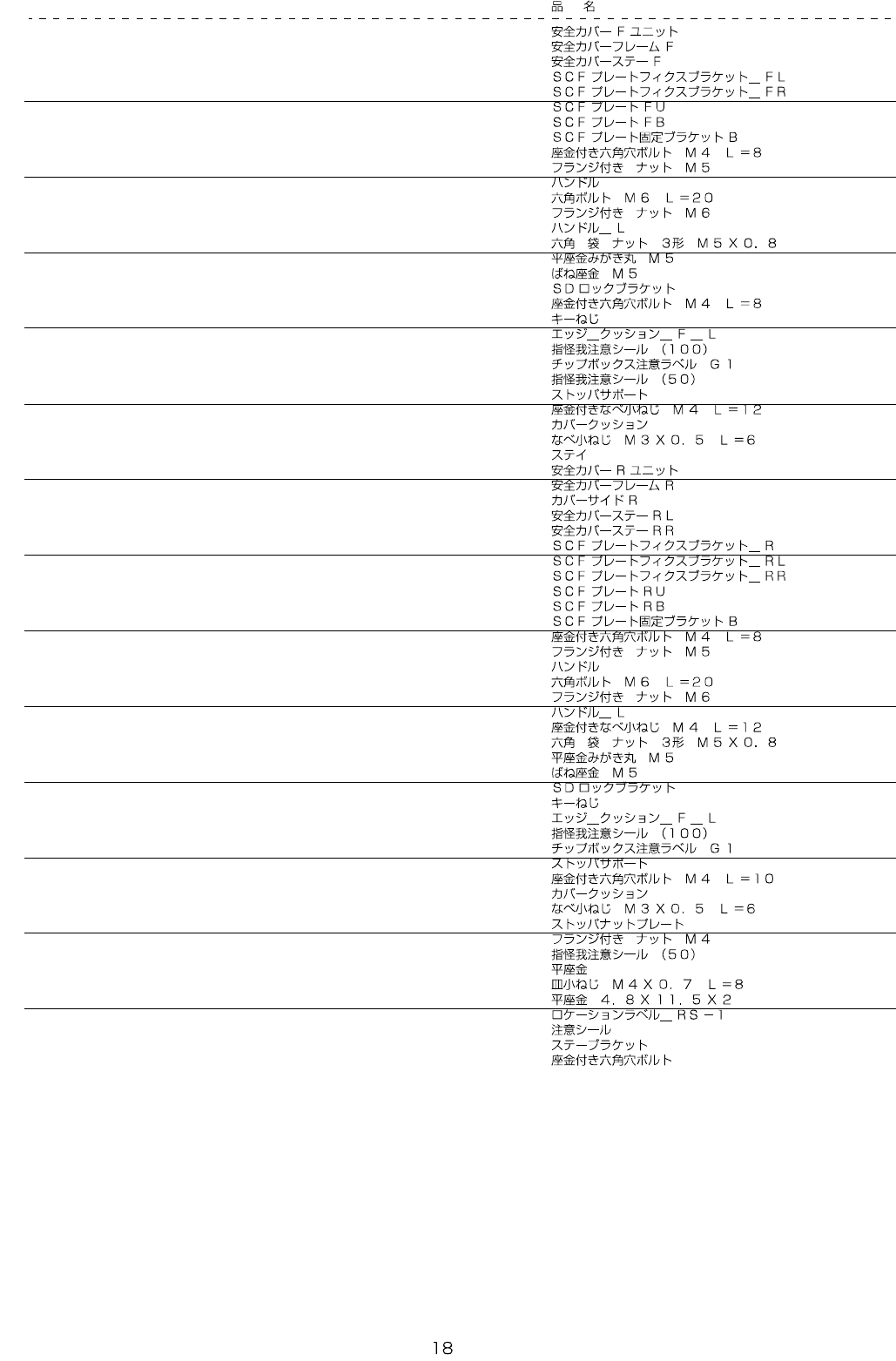

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83526 SAFETY_COVER_F_UNIT 1
2 401-83458 SAFETY_COVER_FRAME_F (1)
3 401-83459 SAFETY_COVER_STAY_F (2)
4 401-83460 SCF_PLATE_FIXED_BR_FL (1)
5 401-83461 SCF_PLATE_FIXED_BR_FR (1)
6 401-83462 SCF_PLATE_FU (1)
7 401-83463 SCF_PLATE_FB (1)
8 401-34622 SCF_PLATE_FIXED_BR_B (1)
9 SL-6040892-TN SCREW M4 L=8 (16)
10 NM-3050610-SF FLANGE NUT M5 (19)
11 401-22998 HANDLE (1)
12 SM-9062003-SC SCREW M6 L=20 (2)
13 NM-3060810-SF FLANGE NUT M6 (2)
14 401-13967 HANDLE_L (1)
15 NM-7050032-SC HEXAGONAL CAP NUT 3 M5X0.8 (4)
16 WP-0531001-SC WASHER M5 (4)
17 WS-0510002-KN SPRING WASHER M5 (4)
18 401-34618 SD_LOCK_BRACKET (1)
19 SL-6040892-TN SCREW M4 L=8 (2)
20 400-80490 KEY_SCREW (2)
21 401-14319 EDGE_CUSHION_F_L (1)
22 CM-3002000-06 FINGER INJURY CAUTION LABEL (100) (1)
23 400-51621 CHIP BOX NOTICE LABEL G1 (1)
24 CM-3002000-04 FINGER INJURY CAUTION LABEL (50) (1)
25 400-01464 STOPPER SUPPORT (1)
26 SL-4041291-SC SCREW M4 L=12 (2)
27 400-49671 COVER CUSHION (1)
28 SM-4030601-SC SCREW M3X0.5 L=6 (1)
29 400-77321 STAY 2
30 401-83527 SAFETY_COVER_R_UNIT 1
31 401-83449 SAFETY_COVER_FRAME_R (1)
32 401-83450 COVER_SIDE_R (1)
33 401-83451 SAFETY_COVER_STAY_RL (1)
34 401-83452 SAFETY_COVER_STAY_RR (1)
35 401-83453 SCF_PLATE_FIXED_BR_R (1)
36 401-83454 SCF_PLATE_FIXED_BR_RL (1)
37 401-83455 SCF_PLATE_FIXED_BR_RR (1)
38 401-83456 SCF_PLATE_RU (1)
39 401-83457 SCF_PLATE_RB (1)
40 401-34622 SCF_PLATE_FIXED_BR_B (1)
41 SL-6040892-TN SCREW M4 L=8 (11)
42 NM-3050610-SF FLANGE NUT M5 (17)
43 401-22998 HANDLE (1)
44 SM-9062003-SC SCREW M6 L=20 (2)
45 NM-3060810-SF FLANGE NUT M6 (2)
46 401-13967 HANDLE_L (1)
47 SL-4041291-SC SCREW M4 L=12 (2)
48 NM-7050032-SC HEXAGONAL CAP NUT 3 M5X0.8 (4)
49 WP-0531001-SC WASHER M5 (4)
50 WS-0510002-KN SPRING WASHER M5 (4)
51 401-34618 SD_LOCK_BRACKET (1)
52 400-80490 KEY_SCREW (2)
53 401-14319 EDGE_CUSHION_F_L (1)
54 CM-3002000-06 FINGER INJURY CAUTION LABEL (100) (1)
55 400-51621 CHIP BOX NOTICE LABEL G1 (1)
56 400-01464 STOPPER SUPPORT (1)
57 SL-6041092-TN SCREW M4 L=10 (3)
58 400-49671 COVER CUSHION (1)
59 SM-4030601-SC SCREW M3X0.5 L=6 (1)
60 401-47221 STOPPER_NUT_PLATE (1)
61 NM-3040520-SF FLANGE NUT M4 (1)
62 CM-3002000-04 FINGER INJURY CAUTION LABEL (50) (1)
63 WP-0651646-SC WASHER (4)
64 SM-1040801-SC SCREW M4X0.7 L=8 8
65 WP-0482016-SC PLAIN WASHER 4.8X11.5X2 4
66 401-83471 LOCATION_LABEL_RS-1 1
67 400-79329 CAUTION SEAL 2
68 401-86243 STAY_BRACKET 1
69 SL-6061692-TN BOLT 2
- -

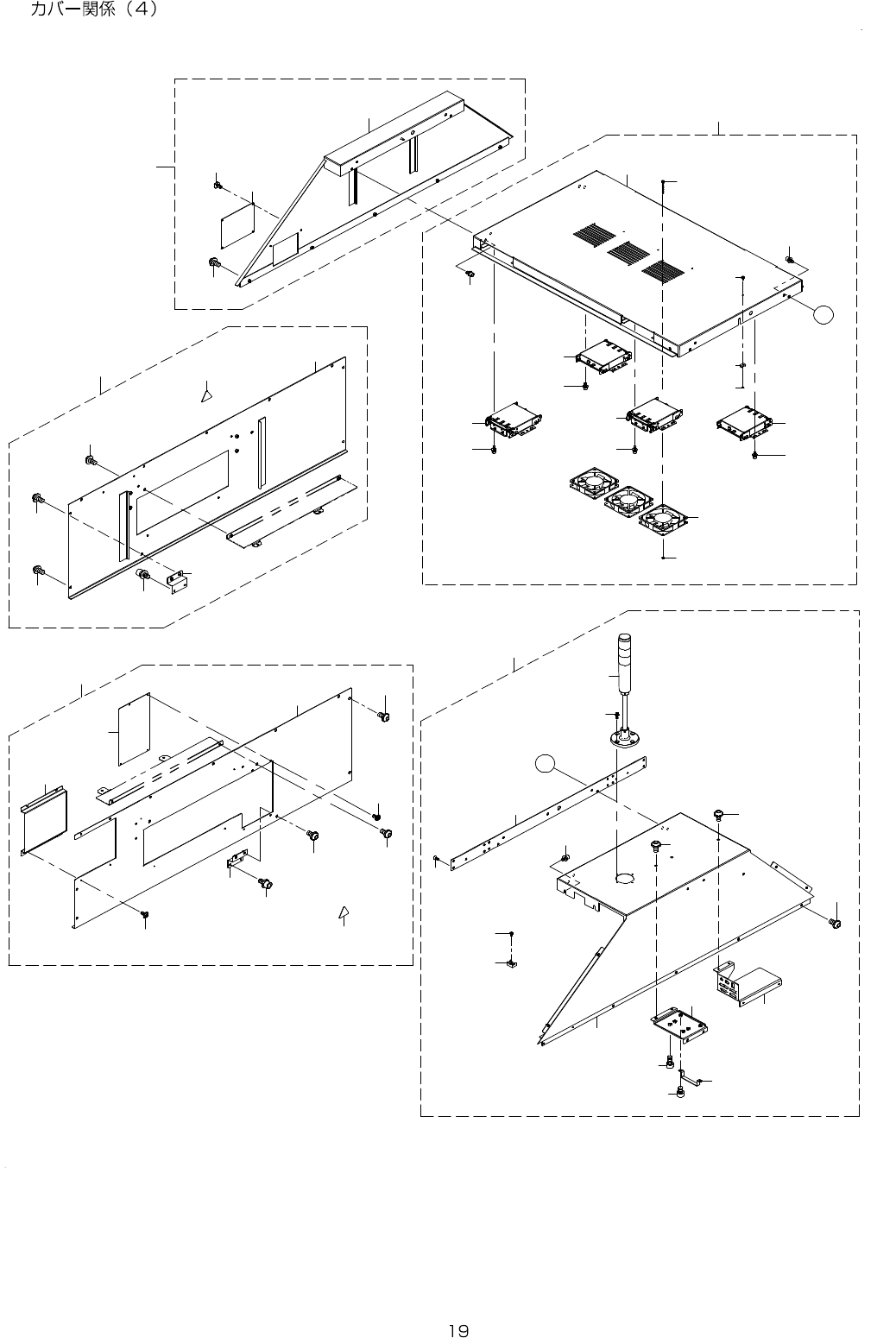

10. COVER COMPONENTS (4)
1 8
1 7
1 6
4 2
A
3 6
1 1
3 5
3 2
5
4
4 0
4 3
4 5
4 5
4 4
3 8
1 9
2 0
2
3
7
8
9
2 5
1 1
1 1
1 2
1 3
1 4
1 5
2 3
3 0
2 2
2 42 4
2 4
1 0
2 5
A
2 6
2 6
2 6
2 4
2 6
2 7
2 8
2 9
2 2
2 1
3 3
3 4
3 4
3 4
3 9
4 0
4 0
4 1
1
3 1
3 7
6
- -

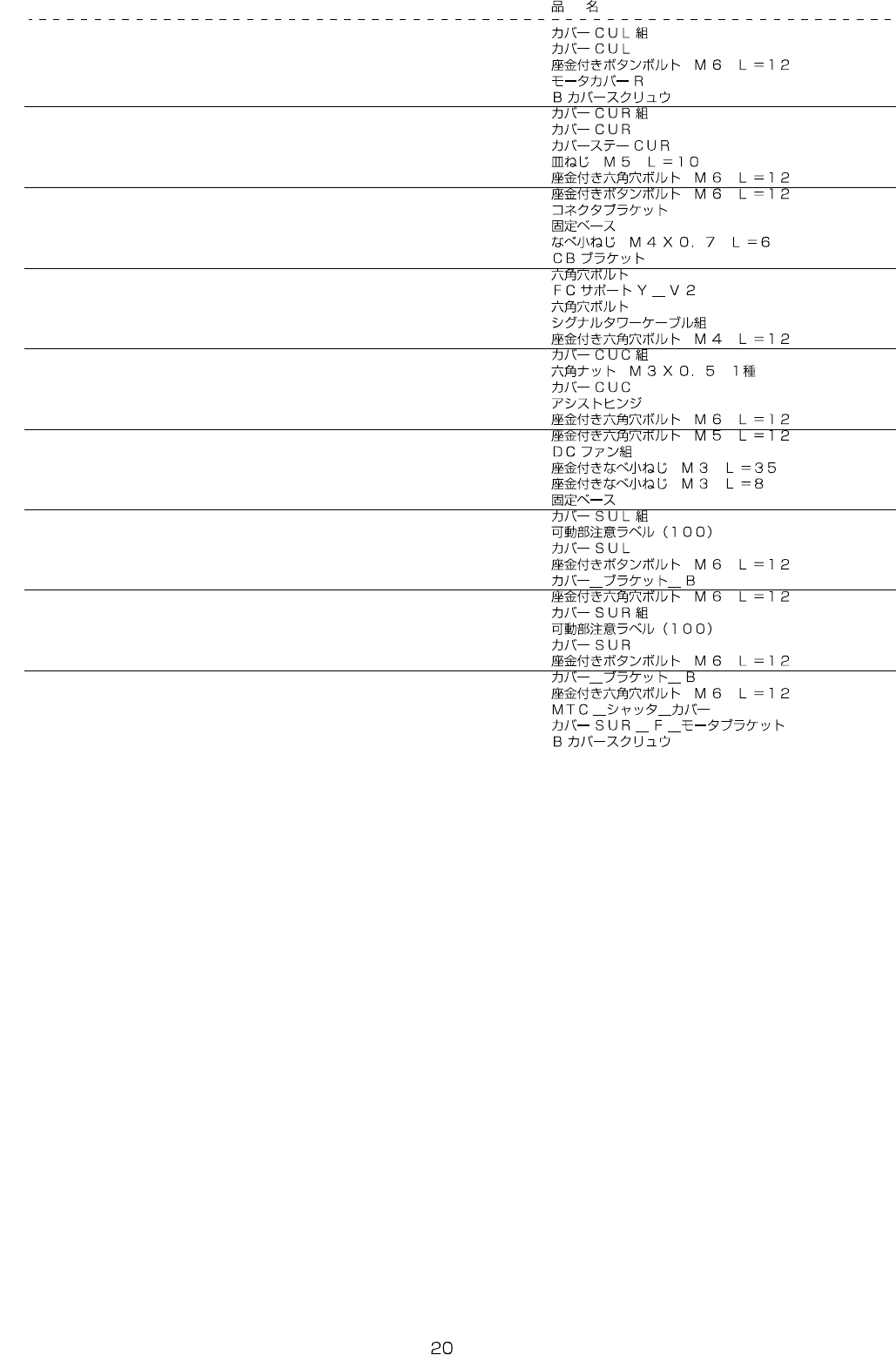

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83523 COVER_CUL_ASM 1
2 401-83441 COVER_CUL (1)
3 SL-3061232-TN SCREW M6 L=12 (5)
4 401-36850 MOTOR_COVER_R (1)
5 400-81751 B_COVER_SCREW (4)
6 401-83524 COVER_CUR_ASM 1
7 401-83384 COVER_CUR (1)
8 401-83382 COVER_STAY_CUR (1)
9 SM-1051052-TN PLATE SCREW M5 L=10 (8)
10 SL-6061292-TN SCREW M6 L=12 (4)
11 SL-3061232-TN SCREW M6 L=12 (12)
12 401-83469 CONNECTOR_BR (1)
13 HX-0029400-00 FIXED BASE (2)
14 SM-4040601-SC SCREW M4X0.7 L=6 (2)
15 401-46928 CB_BRACKET (1)
16 SM-6061202-TN SCREW (4)
17 401-10219 FC_SUPPORT_Y_V2 (1)
18 SM-6060802-TN SCREW (2)
19 401-29009 SIGNAL TOWER CABLE ASM (1)
20 SL-6041292-TN SCREW M4 L=12 (4)
21 401-83525 COVER_CUC_ASM 1
22 NM-6030001-SC NUT M3X0.5 TYPE1 (10)
23 401-83442 COVER_CUC (1)
24 401-83447 ASSIST_HINGE (4)
25 SL-6061292-TN SCREW M6 L=12 (8)
26 SL-6051292-TN SCREW M5 L=12 (24)
27 401-29141 DC FAN ASM (3)
28 SL-4033591-SC SCREW M3 L=35 (6)
29 SL-4030891-SC SCREW M3 L=8 (4)
30 HX-0051900-00 FIXING BASE (4)
31 401-83528 COVER_SUL_ASM 1
32 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
33 401-83439 COVER_SUL (1)
34 SL-3061232-TN SCREW M6 L=12 (7)
35 401-47149 COVER_BR_B (1)
36 SL-6061292-TN SCREW M6 L=12 (2)
37 401-83529 COVER_SUR_ASM 1
38 CM-3009000-06 WATCH_YOUR_HANDS_LABEL(100) (1)
39 401-83440 COVER_SUR (1)
40 SL-3061232-TN SCREW M6 L=12 (7)
41 401-47149 COVER_BR_B (1)
42 SL-6061292-TN SCREW M6 L=12 (2)
43 401-47150 MTC_SHUTTLE_COVER (1)
44 401-47151 COVER_SUR_F_MOTOR_BR (1)
45 400-81751 B_COVER_SCREW (8)
