- - 16 . HEAD CO MP ONE NT S ( 2) 3 2 8 7 3 5 5 5 4 4 4 6 8 7 1 0 9 1 1 1 3 1 3 1 4 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 7 2 8 2 9 3 0 3 1 3 6 3 6 3 2 3 3 3 3 3 4 3 5 3 6 3 6 3 7 3 8 4 0 4 1 4 1 4 4 4 4 4 5 4 …
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-82888 LNC120_HEAD_ASSY 1
2 401-82889 HEAD_BRACKET_ASSY (1)
3 401-82825 HEAD_BRACKET (1)
4 PH-0400082-C0 PARALLEL PIN TYPE B 4X8 (4)
5 SL-6051692-TN SCREW M5 L=16 (4)
6 401-82913 SMALL_HEAD_SCREW_M4_L=10 (2)
7 E3021-721-000 HAED CENTER SHIM C (3)
8 E3047-729-000 HEAD CENTER SHIM D (3)
9 401-82828 Z_LINEAR_GUIDE (8)
10 401-82829 GUIDE_SHIM_D_15 (2)
11 401-82830 GUIDE_SHIM_E_15 (4)
12 401-82890 SPLINE_BRACKET_ASSY (1)
13 401-82831 SPLINE_BRACKET (1)
14 G9303-880-000 BUSH D=5 (2)
15 401-82833 LIMIT_DUMPER_Z (1)
16 SM-6051402-TN SCREW M5 L=14 (6)
17 HX-0029400-00 FIXED BASE (3)
18 SM-4040601-SC SCREW M4X0.7 L=6 (3)
19 401-82834 LIMIT_DAMPER_ZD (1)
20 401-82835 LIMIT_STOPPER_ZD (1)
21 SL-6030892-TN SCREW M3 L=8 (2)
22 401-82836 BEARING_BASE_L (8)
23 SB-107000 7-00 BEARING (8)
24 SM-6020602-TN SCREW M2X6 (16)
25 401-82837 BEARING_BASE_U (8)
26 SB-107000 7-00 BEARING (8)
27 SM-6020602-TN SCREW M2X6 (16)
28 401-82838 SPLINE_UNIT (8)
29 SB-106001 8-00 BEARING (8)
30 400-46056 BEARING PLATE (16)
31 E3072-729-000 BEARING SHIM B (8)
32 E3073-729-000 BEARING SHIM C (8)
33 E3074-729-000 BEARING SHIM D (8)
34 SM-1030552-TN PLATE SCREW M3 L=5 (64)
35 401-61655 BALL SCREW 0608 (8)
36 401-82842 Z_PULLEY (8)
37 SM-8030302-TP SCREW M3X3 (8)
38 401-36334 SERVO MOTOR 30W (8)
39 SL-6031092-TN SCREW M3 L=10 (3)
40 400-01124 Z MOTOR PULLEY (8)
41 SM-8030312-TP SCREW M3 L=3 (16)
42 401-34136 TIMING_BELT_Z(AFTER_AGING) (8)
43 PA-160600 8-A0 AIR CYLINDER (2)
44 PC-0105080-00 SPEED CONTROLLER (2)
45 PJ-3040405-04 UNION (2)
46 401-82849 CYLINDER_BRACKET (2)
47 SL-6041092-TN SCREW M4 L=10 (4)
48 PX-950011 0-00 SWITCH FITTING BAND (2)
49 401-33002 NZL UP SENSOR 6T L CABLE ASM (1)
50 401-33003 NZL UP SENSOR 6T R CABLE ASM (1)
51 401-82876 RELEASE_BAR (1)
52 WP-0531001-SC WASHER M5 (4)
53 401-82855 Z_MOTOR_CABLE_STAY (1)
54 SL-6030692-TN SCREW M3 L=6 (4)
55 HX-0029400-00 FIXED BASE (8)
56 SL-4030691-SC SCREW M3 L=6 (6)
57 SM-4040601-SC SCREW M4X0.7 L=6 (2)
58 HX-0034400-00 FIXED BASE (3)
59 SL-4030691-SC SCREW M3 L=6 (3)
60 401-82843 T_MOTOR_BRACKET (1)
61 SL-6041092-TN SCREW M4 L=10 (4)
62 SL-6030842-TN SCREW M3 L=8 (16)
63 401-82844 T_MOTOR_MI_SUPPORT (4)
64 401-82845 T_PULLEY (4)
65 401-82846 T_PULLEY_FRANGE (4)
66 SM-8850312-TP SCREW M2.5 L=2.5 (24)
67 401-36335 SERVO MOTOR 30W (4)
68 401-82847 T_MOTOR_PLATE (4)
69 SM-1030801-SC SCREW M3 L=8 (8)
70 401-82899 TIMING_BELT_T(AFTER_AGING) (4)
71 401-82850 T_SENSOR_BRACKET (1)
72 SL-6030892-TN SCREW M3 L=8 (2)
73 401-83385 FIBER UNIT 2M (4)
74 HX-0067100-00 GROMMET (0.12)
75 401-82891 HEAD_SV_BRACKET_ASSY (1)
76 401-82851 HEAD_SV_BRACKET (1)
77 SL-6030692-TN SCREW M3 L=6 (4)
78 HX-0029400-00 FIXED BASE (8)
79 SL-4030691-SC SCREW M3 L=6 (7)
80 E3858-715-000 SEAL (1)
81 PJ-3010405-05 HALF UNION (8)
82 401-82852 FILTER_BOX_U (1)
83 SM-6033002-TN SCREW M3 L=30 (2)
84 400-46059 O RING F2 (8)
85 400-46646 FILTER (8)
86 401-82853 FILTER_BOX_L_8 (1)
87 SL-6031242-TN SCREW M3 L=12 (2)
88 400-46058 O RING F1 (8)
89 401-82489 VACCUM_UNIT (1)
90 SL-6030692-TN SCREW M3 L=6 (4)
91 BT-040025 1-EA URETHANE TUBE BLUE 4X2.5 (1.035)
92 SL-6031692-TN SCREW M3 L=16 (2)
93 PX-050501 0-00 SILENCER (2)
94 PJ-3010405-05 HALF UNION (2)
95 400-46535 CHECK VALVE (1)
96 PJ-3080400-06 UNION Y (2)
97 SM-6032502-TN SCREW M3 L=25 (1)
98 SL-6040892-TN SCREW M4 L=8 (2)
99 HX-0034400-00 FIXED BASE (3)
100 SL-4030691-SC SCREW M3 L=6 (5)
101 HX-0067100-00 GROMMET (0.12)
102 401-82856 DIN_RAIL (1)
103 401-82560 T1/T2/T3/T4 ORIGIN SENSOR ASM (4)
104 HK-0498900-0G BLOCK TERMINAL (2)
105 401-82892 Z_SLIDE_ASSY (1)
106 HX-0023300-0E CABLE BAND (15)
107 401-82885 Z_SLIDE_BRACKET_L (4)
108 401-82886 Z_SLIDE_BRACKET_R (4)
109 SM-6020302-UZ SCREW M2 L=3 (32)
110 SB-1040013-00 BEARING (16)
111 401-82895 Z_SLIDE_SHAFT (8)
112 400-01139 NOZZLE OUTER SCREW (8)
113 401-82861 STEEL_BALL (24)
114 401-82862 NOZZLE_OUTER (8)
115 RC-0560517-KP C-RING 6 (8) (8)
116 401-82863 OUTER_SP_HOLDER (8)
117 401-82864 NOZZLE_OUTER_SP (8)
118 401-82896 COUPTING_H (8)
119 SM-8030312-TP SCREW M3 L=3 (32)
120 400-46060 O RING H (8)
121 401-82491 ROTARY_JOINT (8)
122 SM-8850312-TP SCREW M2.5 L=2.5 (16)
123 400-46060 O RING H (8)
124 PJ-3010405-05 HALF UNION (8)
125 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (1.28)
126 401-82867 NUT_HOLDER_18 (2)
127 401-82869 NUT_HOLDER_27 (2)
128 401-82871 NUT_HOLDER_36 (2)
129 401-82873 NUT_HOLDER_45 (2)
130 401-82875 SCREW_M3_L=6 (16)
131 SM-6030802-TN SCREW (32)
132 HX-0023300-00 CABLE BAND (30)
133 401-83349 NZL-UP SV CABLE ASM 1
- -

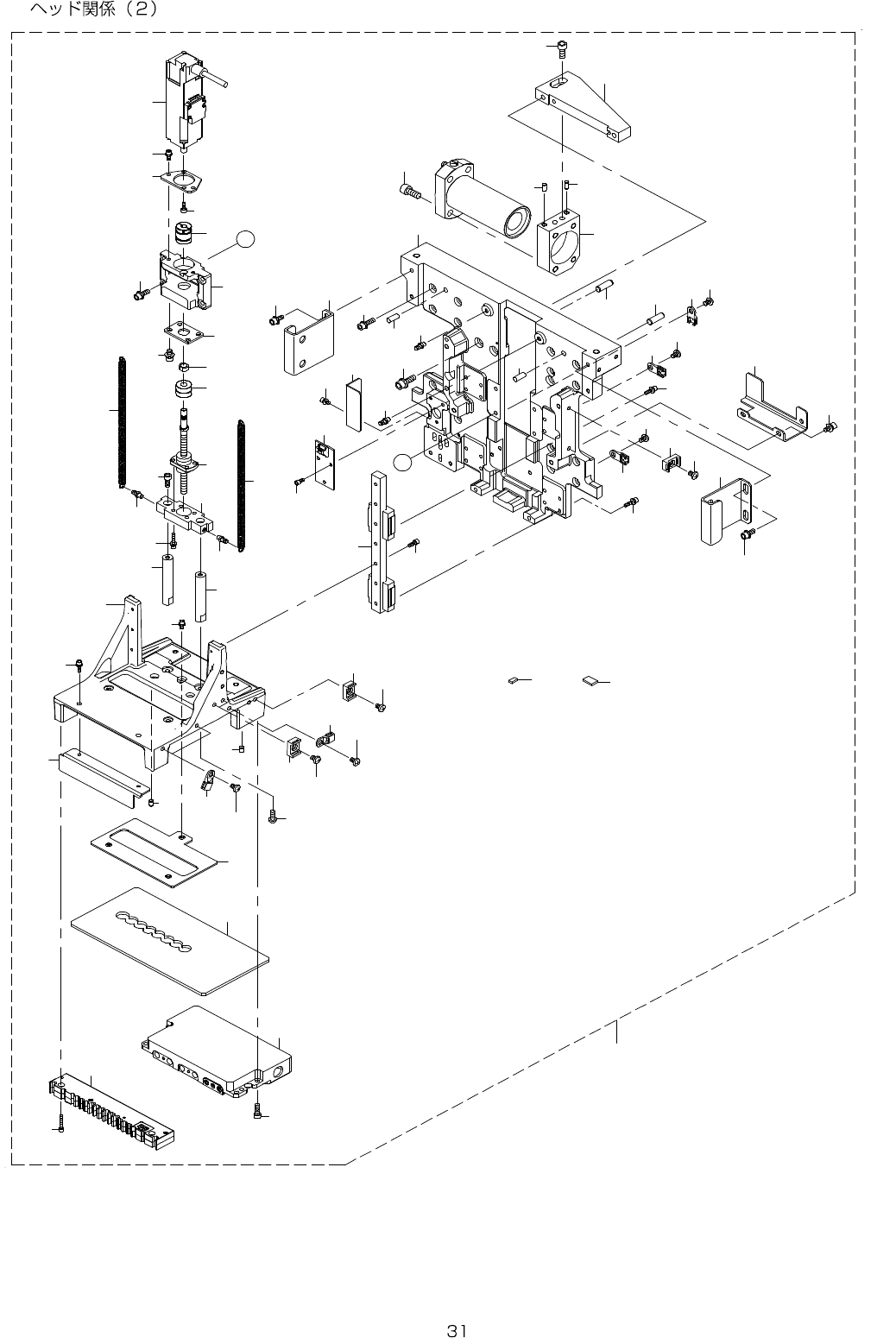

16. HEAD COMPONENTS (2)
3
2
8
7
3
5
5
5
4
4
4
6
8
7
1 0
9
1 1
1 3
1 3
1 4
1 6
1 7
1 8
1 9
2 0
2 1
2 2
2 3
2 4
2 5
2 6
2 7
2 8
2 9
3 0
3 1
3 6
3 6
3 2
3 3
3 3
3 4
3 5
3 6
3 6
3 7
3 8
4 0
4 1
4 1
4 4
4 4
4 5
4 6
4 7
4 8
4 9
5 0
5 0
5 1
5 2
5 3
5 5
5 5
5 4
5 3
5 5
5 4
5 5
5 6
5 7
5 8
5 9
6 0
6 1
3 9
A
A
1 2
1
1 5
1 5
4 2
4 3
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-82931 HEAD_PLATE_ASSY 1
2 401-82878 HEAD_PLATE (1)
3 PH-0500122-C0 PARALLEL PIN TYPE B 5X12 (2)
4 SM-4040601-SC SCREW M4X0.7 L=6 (3)
5 HX-0034400-00 FIXED BASE (3)
6 SL-6041492-TN SCREW M4 L=14 (16)
7 400-47317 HEAD_HANDLE (2)
8 SL-6041092-TN SCREW M4 L=10 (4)
9 HX-0029400-00 FIXED BASE (2)
10 SM-4040601-SC SCREW M4X0.7 L=6 (2)
11 401-86173 X_NUT_HOLDER_B (1)
12 401-86172 X_NUT_HOLDER_A (1)
13 PH-0400082-C0 PARALLEL PIN TYPE B 4X8 (2)
14 SM-6051202-TN SCREW M5X0.8 L=12 (2)
15 PH-0400122-C0 PARALLEL PIN TYPE B 4X12 (2)
16 SL-6051692-TN SCREW M5 L=16 (2)
17 SM-6061402-TN SCREW (4)
18 401-82882 LIMIT_DUMPER_ZA (2)
19 401-82884 LIMIT_DAMPER_ZA_U (2)
20 EZ-4454738-01 BEARING (MTA06-15) ANGULAR (1)
21 EZ-4463629-01 NUT (Z) BEARING (1)
22 EZ-4454740-01 SCREW (BLK0606S-3G1) BALL (1)
23 401-82918 ANGULAR_PLATE_D6 (1)
24 SL-6040892-TN SCREW M4 L=8 (4)
25 EZ-1855264-11 SERVO MOTOR (1)
26 401-82919 ZA_MOTOR_FRANGE (1)
27 SM-6030802-TN SCREW (2)
28 SL-6030892-TN SCREW M3 L=8 (2)
29 401-82914 ZA_MOTOR_BRACKET (1)
30 SL-6041292-TN SCREW M4 L=12 (4)
31 EZ-4454741-01 COUPLING (SFC-010SA2-5B-5B) (1)
32 401-82921 LNC_LINK_D6 (1)
33 401-82920 LNC_SHAFT (2)
34 SM-6041002-TN SCREW (2)
35 SL-6031492-TN SCREW M3 L=14 (4)
36 401-82922 SPRING_STUD (4)
37 401-82923 LM_GUIDE(ML12) (2)
38 SL-6031092-TN SCREW M3 L=10 (8)
39 SL-6031292-TN SCREW M3 L=12 (8)
40 401-82924 LNC_SLIDE_BRACKET (1)
41 PH-0400062-C0 PARALLEL PIN TYPE B 4X6 (2)
42 SM-6030802-TN SCREW (6)
43 SM-3041052-TN SCREW M4 L=10 (2)
44 401-82925 LNC_UP_SPRING1 (2)
45 401-82926 DIFFUSER_BR (1)
46 401-82927 LNC120_DIFFUSER (1)
47 SL-6030692-TN SCREW M3 L=6 (3)
48 401-82928 DISTURBANCE_COVER (1)
49 SL-6031092-TN SCREW M3 L=10 (2)
50 401-82791 LNC120-8 (1)
51 SM-6031602-TN SCREW M3 L=16 (2)
52 SM-6041202-TN SCREW M4X0.7 L=12 (4)
53 HX-0029400-00 FIXED BASE (3)
54 HX-0034400-00 FIXED BASE (3)
55 SM-4040601-SC SCREW M4X0.7 L=6 (6)
56 401-82883 X_LIMIT_SENSOR_DOG (1)
57 SL-6040892-TN SCREW M4 L=8 (2)
58 401-28883 THERMAL SENSOR PCB ASM (1)
59 SM-6030602-TN SCREW M3X6 (3)
60 401-82930 THERMAL_SENSOR_COVER (1)
61 SL-6030692-TN SCREW M3 L=6 (2)
