- - 17 . HEAD R ELAT ED CO MP ONE NT S 3 2 1 3 2 3 2 4 5 6 7 8 9 9 1 0 1 0 1 1 1 2 1 3 1 4 1 5 1 5 1 6 1 7 1 8 1 9 2 1 2 0 2 0 2 2 2 3 2 4 2 5 2 6 2 7 2 8 2 9 3 0 3 1 3 2 3 3 3 4 3 5 3 6 3 7 3 8 3 8 3 9 4 0 4 1 4 2 4 3…
- -

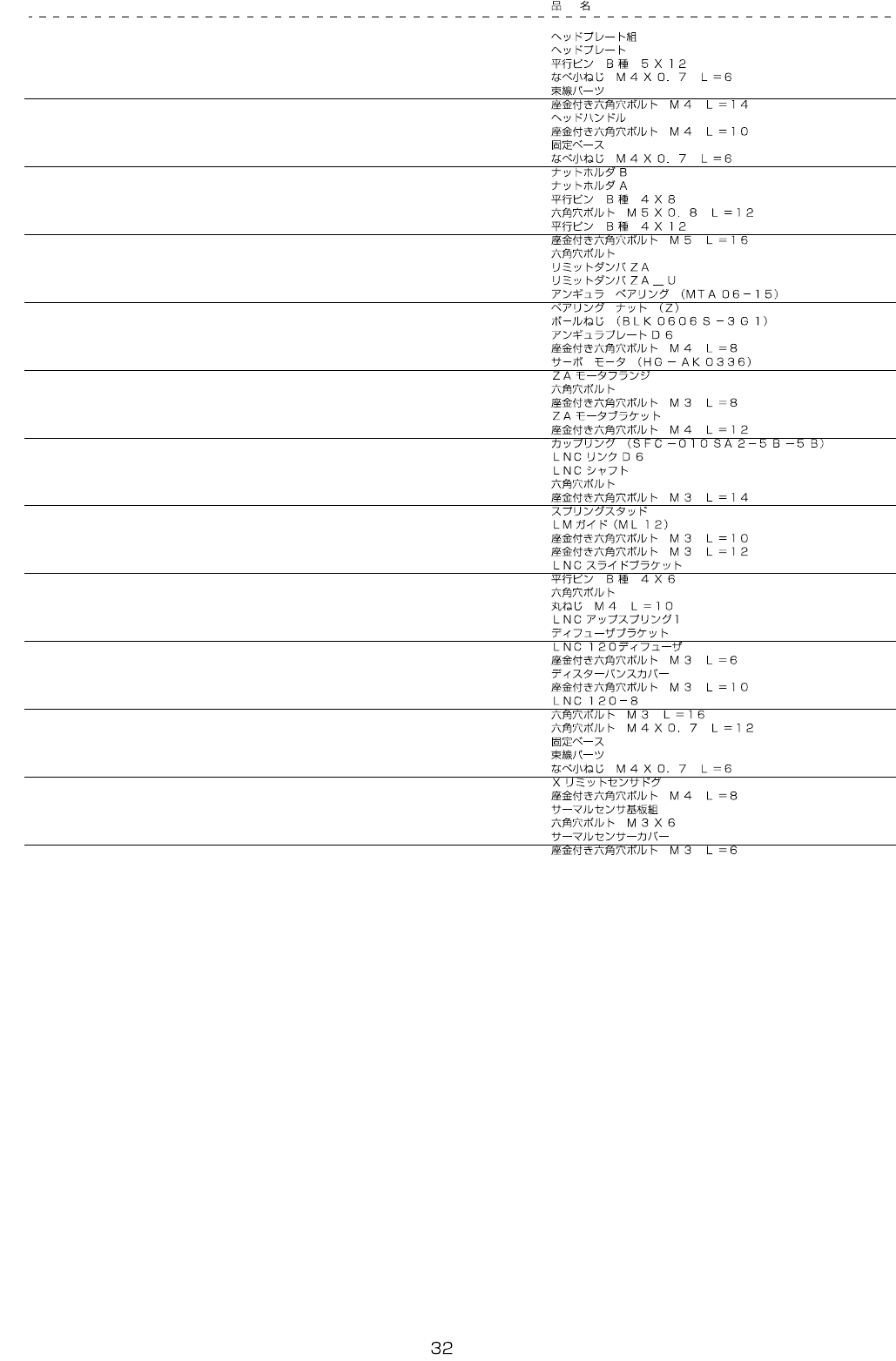

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-82931 HEAD_PLATE_ASSY 1
2 401-82878 HEAD_PLATE (1)
3 PH-0500122-C0 PARALLEL PIN TYPE B 5X12 (2)
4 SM-4040601-SC SCREW M4X0.7 L=6 (3)
5 HX-0034400-00 FIXED BASE (3)
6 SL-6041492-TN SCREW M4 L=14 (16)
7 400-47317 HEAD_HANDLE (2)
8 SL-6041092-TN SCREW M4 L=10 (4)
9 HX-0029400-00 FIXED BASE (2)
10 SM-4040601-SC SCREW M4X0.7 L=6 (2)
11 401-86173 X_NUT_HOLDER_B (1)
12 401-86172 X_NUT_HOLDER_A (1)
13 PH-0400082-C0 PARALLEL PIN TYPE B 4X8 (2)
14 SM-6051202-TN SCREW M5X0.8 L=12 (2)
15 PH-0400122-C0 PARALLEL PIN TYPE B 4X12 (2)
16 SL-6051692-TN SCREW M5 L=16 (2)
17 SM-6061402-TN SCREW (4)
18 401-82882 LIMIT_DUMPER_ZA (2)
19 401-82884 LIMIT_DAMPER_ZA_U (2)
20 EZ-4454738-01 BEARING (MTA06-15) ANGULAR (1)
21 EZ-4463629-01 NUT (Z) BEARING (1)
22 EZ-4454740-01 SCREW (BLK0606S-3G1) BALL (1)
23 401-82918 ANGULAR_PLATE_D6 (1)
24 SL-6040892-TN SCREW M4 L=8 (4)
25 EZ-1855264-11 SERVO MOTOR (1)
26 401-82919 ZA_MOTOR_FRANGE (1)
27 SM-6030802-TN SCREW (2)
28 SL-6030892-TN SCREW M3 L=8 (2)
29 401-82914 ZA_MOTOR_BRACKET (1)
30 SL-6041292-TN SCREW M4 L=12 (4)
31 EZ-4454741-01 COUPLING (SFC-010SA2-5B-5B) (1)
32 401-82921 LNC_LINK_D6 (1)
33 401-82920 LNC_SHAFT (2)
34 SM-6041002-TN SCREW (2)
35 SL-6031492-TN SCREW M3 L=14 (4)
36 401-82922 SPRING_STUD (4)
37 401-82923 LM_GUIDE(ML12) (2)
38 SL-6031092-TN SCREW M3 L=10 (8)
39 SL-6031292-TN SCREW M3 L=12 (8)
40 401-82924 LNC_SLIDE_BRACKET (1)
41 PH-0400062-C0 PARALLEL PIN TYPE B 4X6 (2)
42 SM-6030802-TN SCREW (6)
43 SM-3041052-TN SCREW M4 L=10 (2)
44 401-82925 LNC_UP_SPRING1 (2)
45 401-82926 DIFFUSER_BR (1)
46 401-82927 LNC120_DIFFUSER (1)
47 SL-6030692-TN SCREW M3 L=6 (3)
48 401-82928 DISTURBANCE_COVER (1)
49 SL-6031092-TN SCREW M3 L=10 (2)
50 401-82791 LNC120-8 (1)
51 SM-6031602-TN SCREW M3 L=16 (2)
52 SM-6041202-TN SCREW M4X0.7 L=12 (4)
53 HX-0029400-00 FIXED BASE (3)
54 HX-0034400-00 FIXED BASE (3)
55 SM-4040601-SC SCREW M4X0.7 L=6 (6)
56 401-82883 X_LIMIT_SENSOR_DOG (1)
57 SL-6040892-TN SCREW M4 L=8 (2)
58 401-28883 THERMAL SENSOR PCB ASM (1)
59 SM-6030602-TN SCREW M3X6 (3)
60 401-82930 THERMAL_SENSOR_COVER (1)
61 SL-6030692-TN SCREW M3 L=6 (2)
- -
17. HEAD RELATED COMPONENTS
3
2
1
3
2
3
2
4
5
6
7
8
9
9
1 0
1 0
1 1
1 2
1 3
1 4
1 5
1 5
1 6
1 7
1 8
1 9
2 1
2 0
2 0
2 2
2 3
2 4
2 5
2 6
2 7
2 8
2 9
3 0
3 1
3 2
3 3
3 4
3 5
3 6
3 7
3 8
3 8
3 9
4 0
4 1
4 2
4 3
4 2
4 3
4 2
4 3
4 2
4 3
4 2
4 3
4 3
4 2
4 2
4 3
4 2
4 3
4 3
4 2
4 4
4 5
A
A
B
B
C
C
8
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-82785 HEAD_TOP_BASE 1
2 SM-3061652-TN SCREW M6 L=16 6
3 WP-0651646-SC WASHER 6
4 HX-0029400-00 FIXED BASE 1
5 SM-4040601-SC SCREW M4X0.7 L=6 1
6 401-82782 HEAD_TOP_STAY_L 1
7 401-82784 HEAD_TOP_STAY_R 1
8 SL-6040892-TN SCREW M4 L=8 4
9 401-82786 HEAD_TOP_POLE_A 2
10 SM-1041001-SC SCREW M4X0.7 L=10 2
11 401-82787 X_CABLE_BEAR_BR 1
12 SL-6041092-TN SCREW M4 L=10 4
13 WP-0431005-SP PLAIN WASHER 4
14 401-82788 ZT_DRIVER_SUPPORT 1
15 SL-6031092-TN SCREW M3 L=10 4
16 401-29650 4AXIS INTEGRAL TYPE T AXIS DRIVER 1
17 SL-4030691-SC SCREW M3 L=6 9
18 401-82789 3ZT_DRIVER_SUPPORT 3
19 HX-0029400-00 FIXED BASE 3
20 SL-6031092-TN SCREW M3 L=10 12
21 SM-4040601-SC SCREW M4X0.7 L=6 3
22 EZ-1492148-11 AMPLIFIER SERVO 3
23 SL-4030691-SC SCREW M3 L=6 15
24 401-82790 HEAD_RELAY_PCB_BR 1
25 SL-6031092-TN SCREW M3 L=10 4
26 WP-0431005-SP PLAIN WASHER 2
27 401-28874 HEAD RELAY PCB ASM 1
28 SL-4030691-SC SCREW M3 L=6 5
29 SL-6030692-TN SCREW M3 L=6 1
30 401-82793 HEAD_MAIN_PCB_BR 1
31 SL-6030692-TN SCREW M3 L=6 4
32 401-28873 HEAD MAIN PCB ASM 1
33 SL-4030691-SC SCREW M3 L=6 4
34 400-66152 Y_FAN_GUARD_C 1
3
5 401-82794 ZT_FAN_BR 1
36 401-19461 HEAD FAN MOTOR A ASSY 1
37 NM-6030001-SC NUT M3X0.5 TYPE1 2
38 SL-6032092-TN SCREW M3 L=20 4
39 SL-6041092-TN SCREW M4 L=10 2
40 401-82795 HEAD_PCB_COVER 1
41 SM-3040652-TN SCREW M4 L=6 4
42 HX-0029400-00 FIXED BASE 17
43 SM-4040601-SC SCREW M4X0.7 L=6 17
44 L153E-321-000 FC RUBBER 2
45 400-81751 B_COVER_SCREW 1
