- - 19. HM S C OM PON EN TS 6 2 1 3 4 5 7
- -

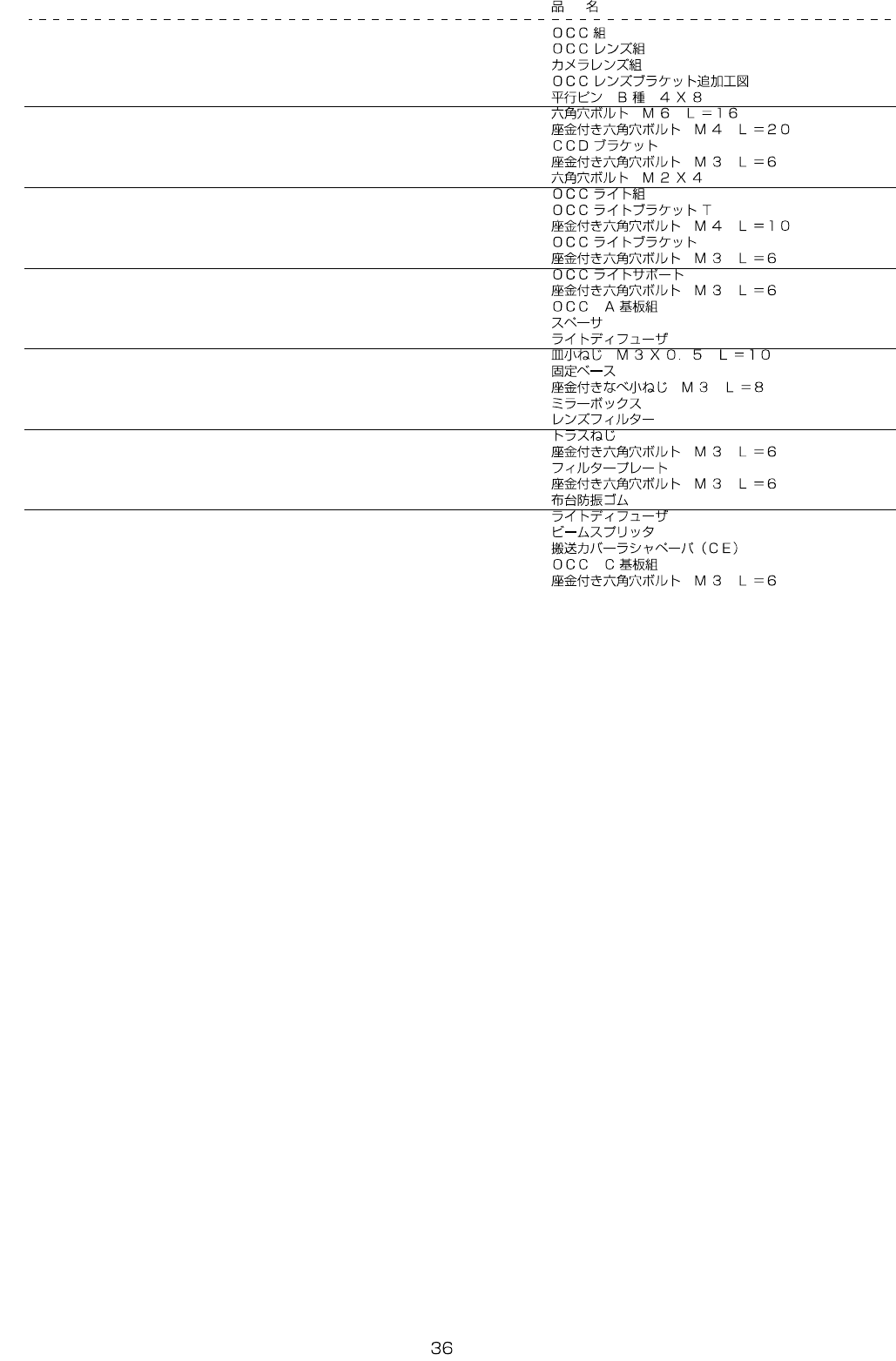

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83256 OCC_ASSY 1
2 401-83254 OCC_LENS_ASSY (1)
3 401-27914 CAMERA LENS ASSY (1)
4 401-83253 OCC_LENS_BR_ADD (1)
5 PH-0400082-C0 PARALLEL PIN TYPE B 4X8 (2)
6 SM-6061602-TN SCREW M6 L=16 (2)
7 SL-6042092-TN SCREW M4 L=20 (3)
8 401-27901 CCD_BRACKET (1)
9 SL-6030692-TN SCREW M3 L=6 (1)
10 SM-6020402-TN SCREW M2X4 (2)
11 401-27912 OCC_LIGHT_ASSY (1)
12 401-27896 OCC_LIGHT_BRKT_T (1)
13 SL-6041092-TN SCREW M4 L=10 (2)
14 401-27902 OCC_LIGHT_BRACKET (1)
15 SL-6030692-TN SCREW M3 L=6 (2)
16 401-27897 OCC_LIGHT_SUPPORT (1)
17 SL-6030692-TN SCREW M3 L=6 (3)
18 401-28878 OCC A PCB ASM (1)
19 HX-0033500-0G SPACER (4)
20 401-27900 LIGHT_DIFFUSER (1)
21 SM-1031001-SC SCREW M3X0.5 L=10 (4)
22 HX-0029400-00 FIXED BASE (1)
23 SL-4030891-SC SCREW M3 L=8 (1)
24 401-27898 MIRROR BOX (1)
25 400-43896 LENS FILTER (1)
26 SM-0020201-SC SCREW M2 L=2 (3)
27 SL-6030692-TN SCREW M3 L=6 (3)
28 401-27899 FILTER_PLATE (1)
29 SL-6030692-TN SCREW M3 L=6 (3)
30 118-04606 RUBBER PLUG (10)
31 400-14040 LIGHT DIFFUSER (1)
32 400-14037 BEAM SPRITTER (1)
33 E1143-721-000 WOOLEN CLOTH PAPER (1)
34 401-28879 OCC C PCB ASM (1)
35 SL-6030692-TN SCREW M3 L=6 (2)
- -
19. HMS COMPONENTS
6
2
1
3
4
5
7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-27903 HMS_BRACKET 1
2 SL-6030892-TN SCREW M3 L=8 3
3 HX-0029400-00 FIXED BASE 1
4 SL-4030891-SC SCREW M3 L=8 1
5 401-29108 HMS CABLE ASM 1
6 SM-6032502-TN SCREW M3 L=25 2
7 HX-0023300-00 CABLE BAND 2
