19. HMS COMPONENTS
6
2
1
3
4
5
7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-27903 HMS_BRACKET 1
2 SL-6030892-TN SCREW M3 L=8 3
3 HX-0029400-00 FIXED BASE 1
4 SL-4030891-SC SCREW M3 L=8 1
5 401-29108 HMS CABLE ASM 1
6 SM-6032502-TN SCREW M3 L=25 2
7 HX-0023300-00 CABLE BAND 2
- -

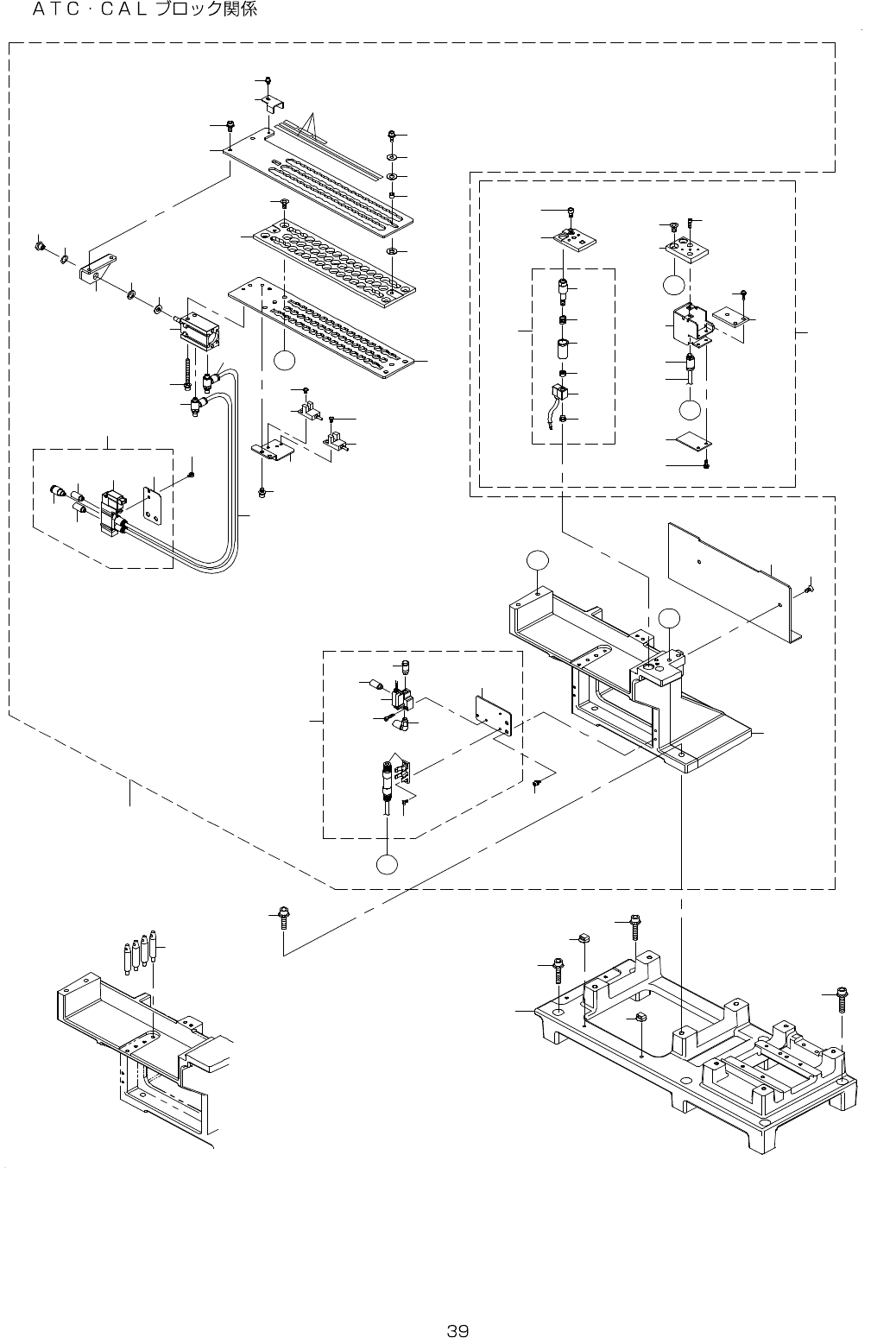

20. ATC & CAL BLOCK COMPONENTS
4
4
4
5 2
5 5
5 1
6 4
6 6
A
5 9
7 0
5 8
5 3
5 4
5 7
6 1
6 9
6 8
6 7
6 0
6 5
1
5
3
4 1
4 1
3 8
3 7
3 6
3 5
4 7
5 6
3 0
3 1
A
2 8
1 3
1 3
1 4
1 2
8
1 5
1 1
4 3
2
2
7
1 0
2 5
2 6
2 7
2 9
3 2
2 4
2 1
3 4
3 3
2 3
2 2
2 2
2 0
1 8
1 7
1 9
3 9
4 0
4 2
4 4
4 5
4 6
4 8
4 9
B
B
1 0
9
1 6
5 0
C
C
6 2
6 3
6
7 1
