RS-1-Rev00 - 第53页
- - REF.NO NOTE PART NO D E S C R I P T I O N Qty 1 400-0 0861 PWB GUIDE U 8 2 401-8 3561 CONVEYOR_MOT OR_C_ASM 1 3 400-0 1009 MOTOR BRAK ET C(L) (2) 4 400-0 0869 MOTOR ADJUST PLATE (2) 5 401-5 8136 2PHASE STEP PING MO…
- -

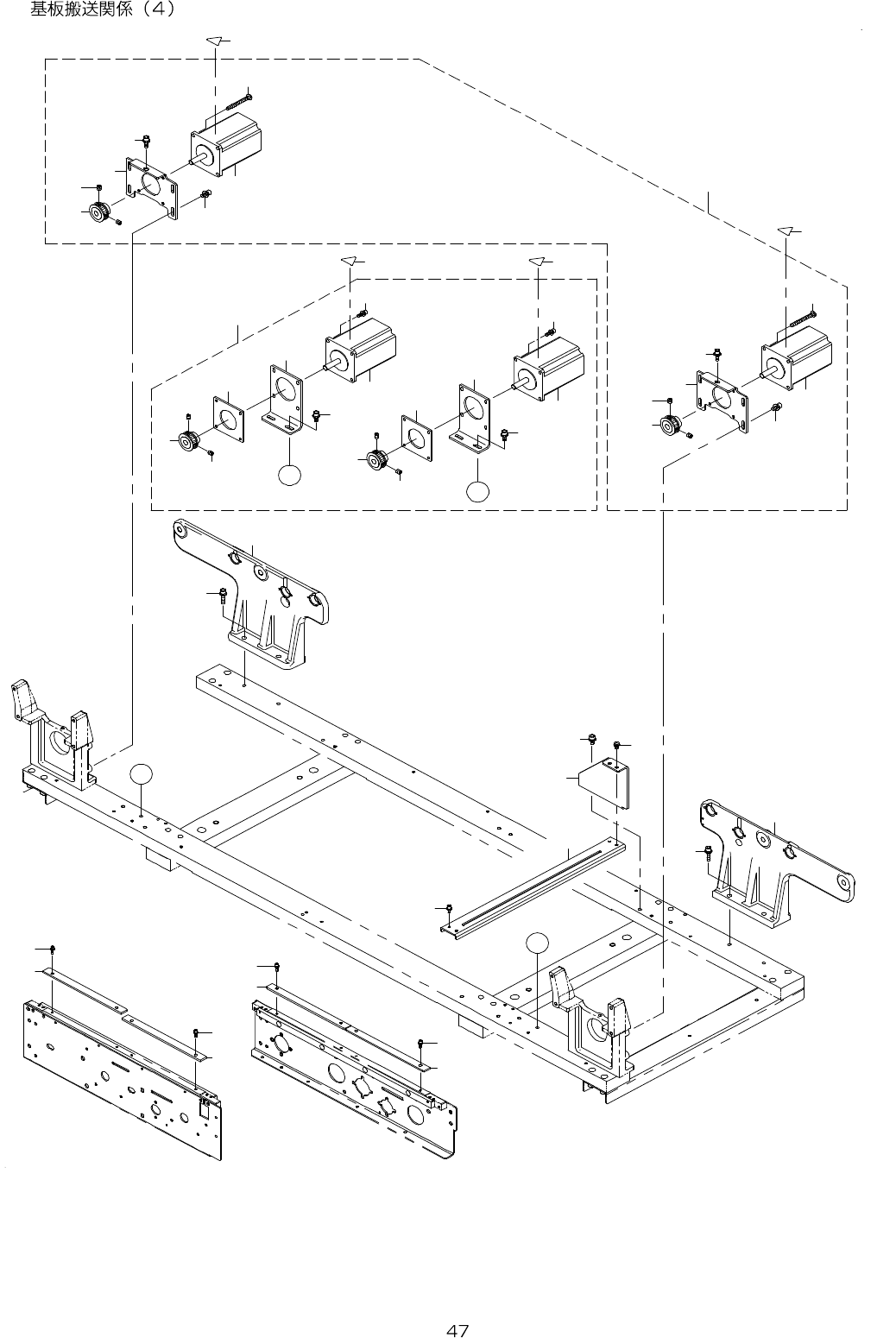

24. PWB CONVEYOR COMPONENTS (4)
3
4
6
7
8
1 7
1 3
1 4
5
A
1 5
1 6
A
B
2 3
2 2
2 4
2 4
9
B
8
7
4
3
9
5
6
1 1
1 2
1 2
1 1
1 6
1 5
1 4
1 3
1 7
2
1 0
2 5
1 9
2 7
2 0
1
1
1
1
1 8
1 8
1 8
1 8
2 6
2 6
2 6
2 6
2 1
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 400-00861 PWB GUIDE U 8
2 401-83561 CONVEYOR_MOTOR_C_ASM 1
3 400-01009 MOTOR BRAKET C(L) (2)
4 400-00869 MOTOR ADJUST PLATE (2)
5 401-58136 2PHASE STEPPING MOTOR (2)
6 SL-6041242-TN SCREW M4 L=12 (8)
7 400-00870 MOTOR PULLEY C (2)
8 SM-8030602-TP SCREW M3X0.5 L=6 (4)
9 SL-6051292-TN SCREW M5 L=12 (4)
10 401-83562 CONVEYOR_MOTOR_LR_ASM 1
11 401-58136 2PHASE STEPPING MOTOR (2)
12 SM-4054501-SC SCREW M5X0.8 L=45 (8)
13 400-46034 MOTOR BRACKET S(6) (2)
14 400-00870 MOTOR PULLEY C (2)
15 SM-8030602-TP SCREW M3X0.5 L=6 (4)
16 SL-6051492-TN SCREW M5 L=14 (2)
17 SL-6051092-TN SCREW M5 L=10 (8)
18 SL-6031092-TN SCREW M3 L=10 16
19
#01
401-83037 STOPPER_BASE 1
20
#01
SL-6051092-TN SCREW M5 L=10 2
21
#01
SL-6040892-TN SCREW M4 L=8 2
22 401-83054 RAIL_STAND_RL_PROCESSING 1
23 400-01066 RAIL STAND RR(L) 1
24 SL-6052092-TN SCREW M5 L=20 4
25
#01
401-83039 STOPPER_BASE_SUPPORT 1
26 CM-3003000-02 LABEL2 (25) 4
27
#01
SL-4040891-SC SCREW M4 L=8 2
- -
25. PWB CONVEYOR COMPONENTS (5)
