- - 35. FC S CO MP O NENT S 3 1 1 7 6 1 5 1 8 7 9 2 6 1 4 1 6 1 4 1 5 1 3 2 5 2 4 1 1 2 3 4 1 5 8 1 0 2 0 2 2 2 7 2 8 2 9 3 0 2 1 2 3 1 2 3 2 3 3 1 9
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83482 S_VCS_UNIT_ASM 1
2 401-83458 SAFETY_COVER_FRAME_F (1)
3 401-09807 S_VCS LENS STD (1)
4 401-33149 VCS CAMERA (1)
5 400-93915 VCS_LENS_HOLDER (1)
6 SL-6042592-TN SCREW M4 L=25 (1)
7 SL-6042092-TN SCREW M4 L=20 (3)
8 401-83486 S_VCS_LIGHT_UNIT ASM (1)
9 401-83368 VCS_SENSOR_DOG (1)
10 401-83369 VCS_SENSOR_BR (1)
11 401-65028 XY LMT SENSOR ASM (2)
12 401-83372 MIRROR_BOX_REFLECTOR (2)
13 401-11656 BOTTOM_LIGHT_DIFFUSER (1)
14 401-80852 BOTTOM LIGHT PCB ASM (1)
15 SM-0030601-SC SCREW M3X6 (8)
16 NM-6030003-SC NUT M3X0.5 TYPE3 (8)
17 400-23599 LIGHT STUD VCS (4)
18 E2143-715-000 TIMER SPACER A (4)
19 401-83370 LIGHT_STAY_V_RS1 (1)
20 401-80857 COAXIAL LIGHT PCB ASM (1)
21 SM-4030801-SC SCREW M3X0.5 L=8 (2)
22 HX-0035400-0B SPACER (4)
23 SL-6030642-TN SCREW M3 L=6 (4)
24 401-83362 VCS_FRAME (1)
25 400-71351 COVER_GLASS (1)
26 401-83361 MIRROR_BOX_RS1 (1)
27 SL-4030691-SC SCREW M3 L=6 (6)
28 400-71350 HALF_MIRROR_S (1)
29 118-04606 RUBBER PLUG (8)
30 400-71349 COAXIAL_DIFFUSER_S (1)
31 SL-6030892-TN SCREW M3 L=8 (4)
32 E1143-721-000 WOOLEN CLOTH PAPER (1)
33 400-71348 BACK_SCREEN_S (1)
34 SL-6030692-TN SCREW M3 L=6 (2)
35 HX-0005500-0E GROMMET (1)
36 SL-4030691-SC SCREW M3 L=6 (2)
37 401-86249 FLAT_PLATE_RS1 (2)
38 400-56913 STEP SCREW (2)
39 HX-0034400-00 FIXED BASE (6)
40 SL-6030592-TN SCREW M3 L=5 (4)
41 HX-0067100-0B GROMMET (0.1)
42 401-32986 BACK LIGHT PCB ASM (1)
43 SL-4030691-SC SCREW M3 L=6 (4)
44 401-11657 SIDE_LIGHT_COVER (1)
45 401-80854 SIDE LIGHT ASM (2)
46 401-83363 AIR_CYLINDER (2)
47 PJ-0320390-01 URETHANE BARBED JOINT (4)
48 401-83364 VCS_GUIDE_SH (2)
49 401-83365 VCS_SUB_FRAME (1)
50 401-83366 CYLINDER_NUT (2)
51 BT-0400251-EA URETHANE TUBE BLUE 4X2.5 (2)
52 NM-6030001-SC NUT M3X0.5 TYPE1 (2)
53 401-83371 CABLE_SAFETY_BR_RS1 (1)
54 SL-6030692-TN SCREW M3 L=6 (6)
55 PC-0124070-00 SPEED CONTROLLER (2)
56 PJ-3080400-06 UNION Y (2)
57 SB-8060001-00 LINEAR BEARING (2)
58 SL-6031092-TN SCREW M3 L=10 (4)
59 SL-6041292-TN SCREW M4 L=12 (2)
60 WP-0330516-SC WASHER 3.3X8X0.5 (2)
61 WP-0430801-SC WASHER M4 (2)
62 401-83367 SIDE_REFLECTOR (4)
63 SL-6040892-TN SCREW M4 L=8 (2)
64 PV-1502093-00 5-PORT SOLENOID VALVE (1)
65 SL-6051492-TN SCREW M5 L=14 (4)
66 EA-9500B01-00 CABLE BAND 10
67 EA-9500B02-00 CABLE BAND 150 15
68 401-83858 LIGHT_CONTROL_PCB_BR_ASM 1
69 SL-4030691-SC SCREW M3 L=6 (2)
70 401-83015 LIGHT_CTRL_PCB_BR (1)
71 401-32991 LIGHT CONTROL PCB ASM (1)
72 401-62631 PLATE_SUPPORT (3)
73 SL-6040892-TN SCREW M4 L=8 (3)
74 SL-6061492-TN SCREW M6 L=14 (3)
75 HX-0002600-00 GUIDE RAIL (2)
76 400-47390 MSU_BRACKET (1)
77 SL-6030692-TN SCREW M3 L=6 (1)
78 HX-0034400-00 FIXED BASE (2)
- -
35. FCS COMPONENTS
3 1
1 7
6
1 5
1 8
7
9
2 6
1 4
1 6
1 4
1 5
1 3
2 5
2 4
1 1
2
3
4
1
5
8
1 0
2 0
2 2
2 7
2 8
2 9
3 0
2 1
2 3
1 2
3 2
3 3
1 9
- -

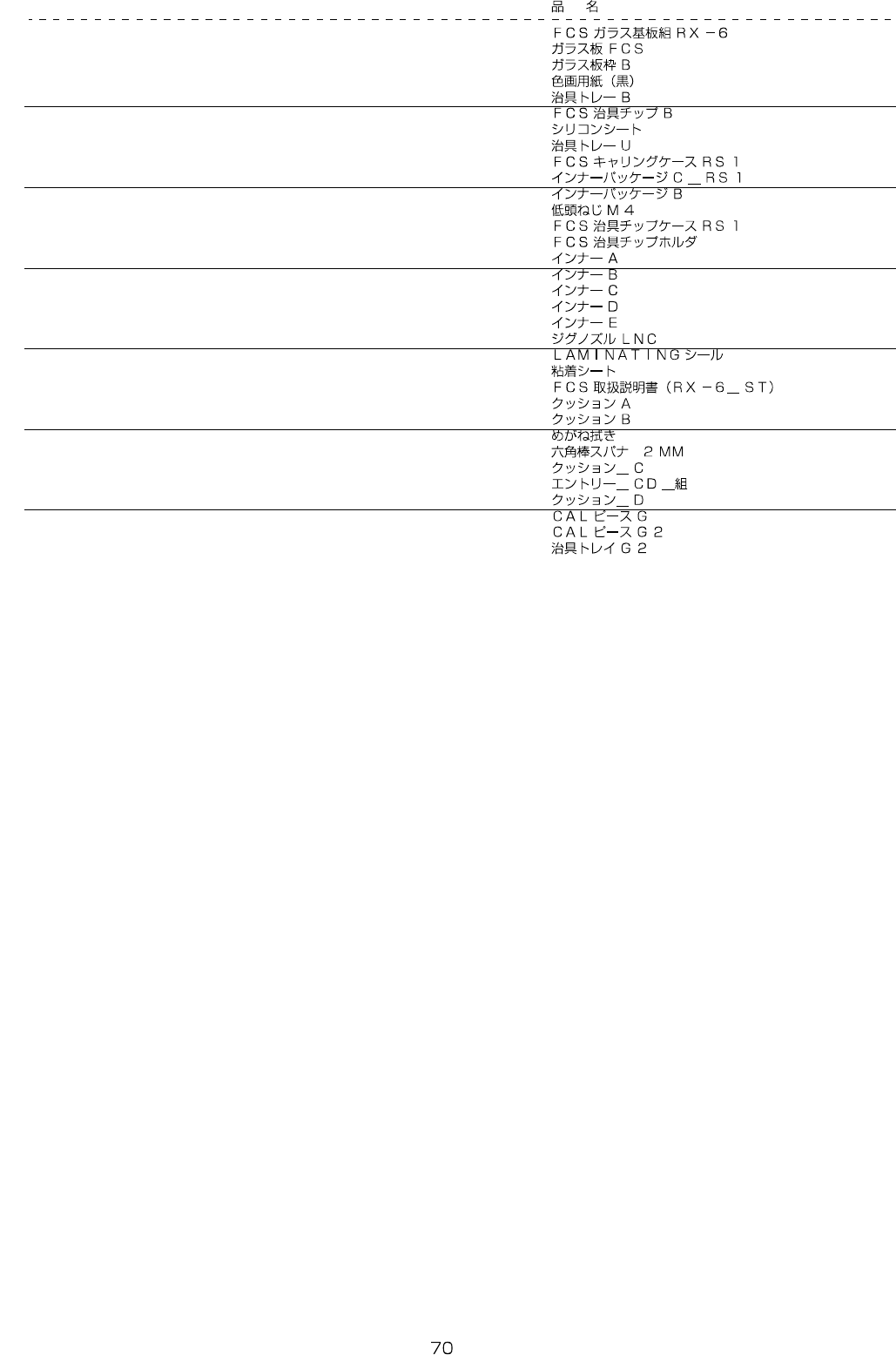

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28130 FCS_GLASS_PWB_ASM_RX-6 1
2 401-28131 GLASS_PLATE_FCS (1)
3 401-28132 GLASS_PLATE_FRAME_B (1)
4 400-27196 DRAWING PAPER 1
5 401-28142 JIG_TRAY_B 1
6 400-20304 FCS JIG CHIP B 2
7 400-27147 SILICON SHEET 2
8 401-28143 JIG_TRAY_U 1
9 401-87595 FCS_CARRYING_CASE_RS1 1
10 401-87596 INNER_PACKAGE_C_RS1 (1)
11 400-66811 INNER PACKAGE B (1)
12 401-28154 LOW_HEAD_SCREW_M4 7
13 401-87704 FCS_JIG_CHIP_CASE_RS1 1
14 400-27312 FCS JIG CHIP HOLDER (1)
15 400-27313 INNER A (2)
16 401-87597 INNER_B (1)
17 400-27315 INNER C (2)
18 400-27410 INNER D (1)
19 401-87598 INNER_E (1)
20 401-85344 JIG_NOZZLE_LNC 1
21 401-11970 LAMINATING_SEAL 1
22 401-28134 ADHESIVE_SHEET 48
23 401-33122 FCS INSTRUCTION MANUAL(RX-6_ST) 1
24 400-66812 CUSHION A 1
25 400-66813 CUSHION B 1
26 400-27235 TRAYSEE 1
27 J1066-000-00B HEXAGONAL WRENCH KEY (2MM) 1
28 401-32594 CUSHION_C 1
29 401-33186 ENTRY_CD_ASM 1
30 401-32599 CUSHION_D 1
31 400-11453 CAL PIECE G 1
32 401-87434 CAL_PIECE_G2 1
33 401-87435 JIG_TRAY_G2 1
