RS-1-Rev00 - 第78页
- - 37 . MIN I S IGN AL TO W ER CO MPO N EN TS 1 1 2 2
- -

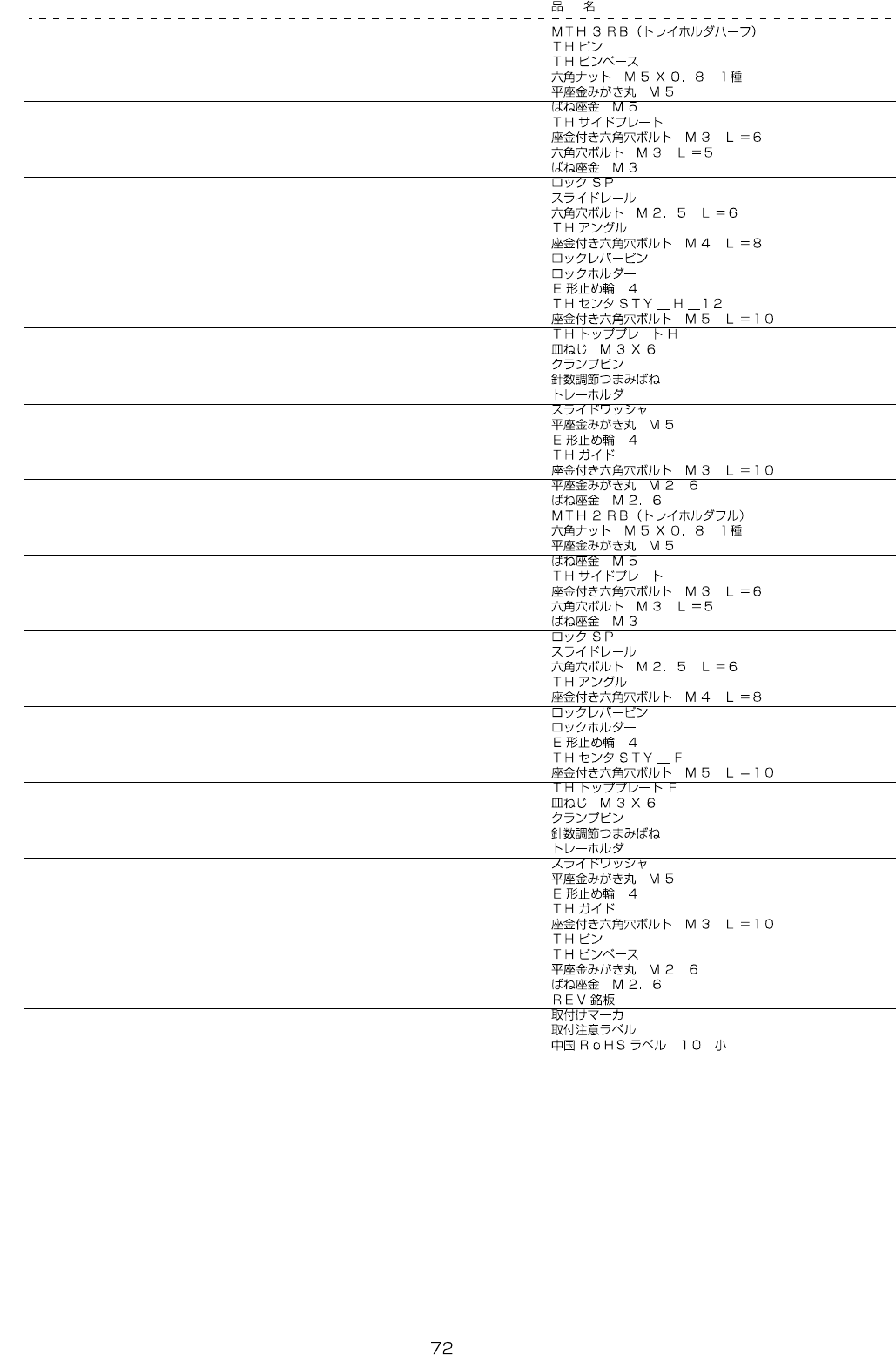

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-83117 MTH3RB(TRAY_HOLDER_HALF) 1
2 401-82947 TH_PIN (2)
3 401-82948 TH_PIN_BASE (2)
4 NM-6050001-SC NUT M5X0.8 TYPE1 (2)
5 WP-0531001-SC WASHER M5 (2)
6 WS-0510002-KN SPRING WASHER M5 (2)
7 401-82949 TH_SIDE_PLATE (2)
8 SL-6030692-TN SCREW M3 L=6 (4)
9 SM-6030502-TN SCREW M3 L=5 (2)
10 WS-0310002-KN SPRING WASHER M3 (2)
11 400-85741 LOCK_SP (2)
12 401-67213 SLIDE_RAIL (2)
13 SM-6850602-UZ SCREW M2.5 L=6 (6)
14 401-82950 TH_ANGLE (2)
15 SL-6040892-TN SCREW M4 L=8 (6)
16 E7725-716-000 LOCK LEVER PIN (2)
17 400-85739 LOCK_HOLDER (2)
18 RE-0400000-K0 E-RING 4 (4)
19 401-82953 TH_CENTER_STY_H (2)
20 SL-6051092-TN SCREW M5 L=10 (4)
21 401-82954 TH_TOP_PLATE_H (1)
22 SM-1030601-SC SCREW M3X6 (8)
23 E7307-700-000 CLAMP PIN (3)
24 B2626-372-000 SPRING (3)
25 E7709-700-000 TRAY HOLDER (3)
26 400-76382 SLIDE WASHER (6)
27 WP-0531001-SC WASHER M5 (3)
28 RE-0400000-K0 E-RING 4 (3)
29 E7303-715-000 TH GUIDE (4)
30 SL-6031042-TN SCREW M3 L=10 (4)
31 WP-0280501-SC WASHER M2.6 (6)
32 WS-0270002-KN SPRING WASHER M2.6 (6)
33 401-83114 MTH2RB(TRAY_HOLDER_FULL) 1
34 NM-6050001-SC NUT M5X0.8 TYPE1 (2)
35 WP-0531001-SC WASHER M5 (2)
36 WS-0510002-KN SPRING WASHER M5 (2)
37 401-82949 TH_SIDE_PLATE (2)
38 SL-6030692-TN SCREW M3 L=6 (4)
39 SM-6030502-TN SCREW M3 L=5 (2)
40 WS-0310002-KN SPRING WASHER M3 (2)
41 400-85741 LOCK_SP (2)
42 401-67213 SLIDE_RAIL (2)
43 SM-6850602-UZ SCREW M2.5 L=6 (6)
44 401-82950 TH_ANGLE (2)
45 SL-6040892-TN SCREW M4 L=8 (6)
46 E7725-716-000 LOCK LEVER PIN (2)
47 400-85739 LOCK_HOLDER (2)
48 RE-0400000-K0 E-RING 4 (4)
49 401-82951 TH_CENTER_STY_F (2)
50 SL-6051092-TN SCREW M5 L=10 (4)
51 401-82952 TH_TOP_PLATE_F (1)
52 SM-1030601-SC SCREW M3X6 (8)
53 E7307-700-000 CLAMP PIN (6)
54 B2626-372-000 SPRING (6)
55 E7709-700-000 TRAY HOLDER (6)
56 400-76382 SLIDE WASHER (12)
57 WP-0531001-SC WASHER M5 (6)
58 RE-0400000-K0 E-RING 4 (6)
59 E7303-715-000 TH GUIDE (4)
60 SL-6031042-TN SCREW M3 L=10 (4)
61 401-82947 TH_PIN (2)
62 401-82948 TH_PIN_BASE (2)
63 WP-0280501-SC WASHER M2.6 (6)
64 WS-0270002-KN SPRING WASHER M2.6 (6)
65 E9635-455-000 REVISION SEAL 2
66 E1602-723-000 MARKER 2
67 400-94024 INSTALLING_CAUTION_LABEL 2
68 CM-6005001-01 CHINA ROHS LABEL 10 S 2
- -

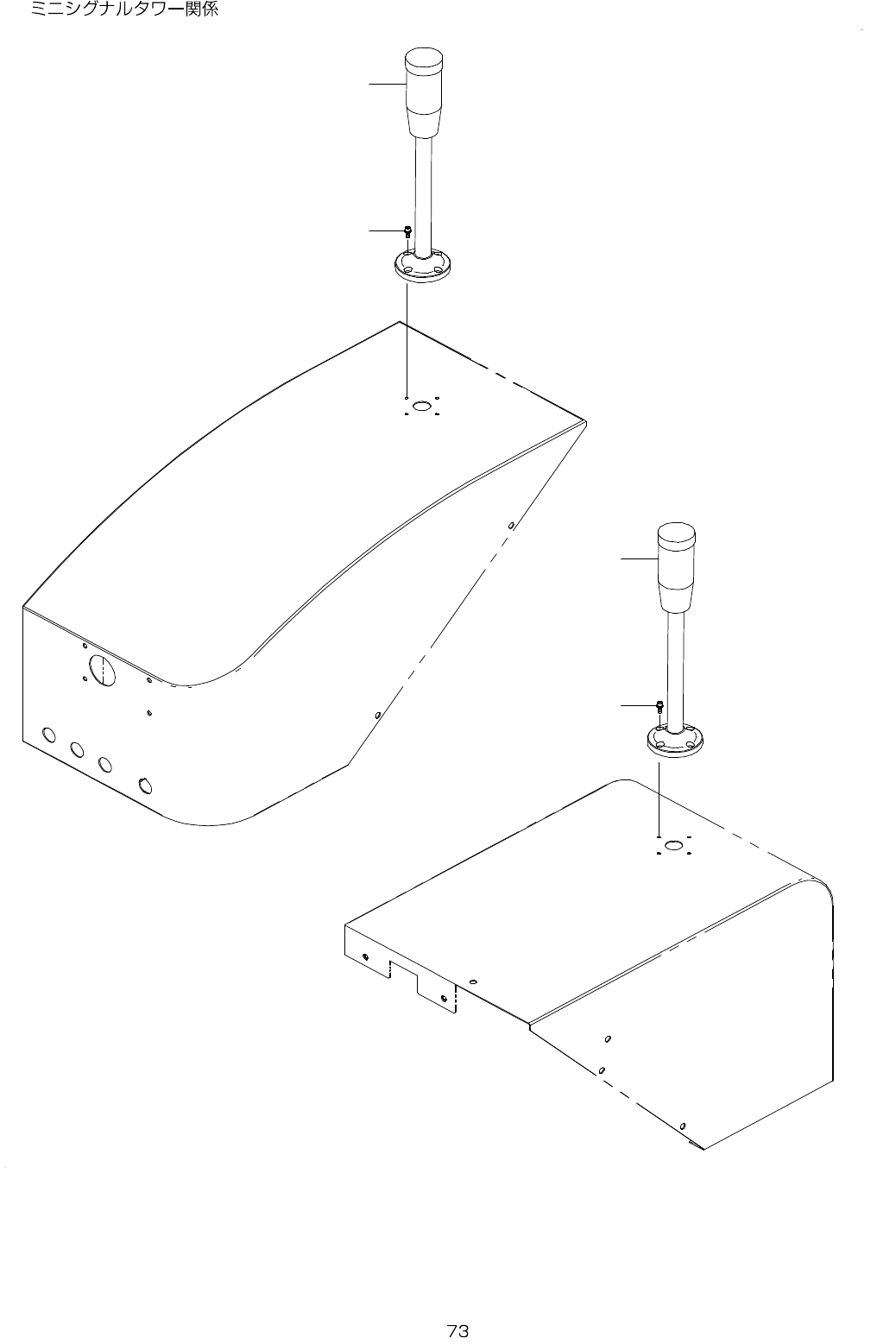

37. MINI SIGNAL TOWER COMPONENTS
1
1
2
2
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-29010 MINI SIGNAL TOWER CABLE ASM(OP) 2
2 SL-6041292-TN SCREW M4 L=12 8
