1 - 7
Student Guide SIPLACE HF/HF3
Edition 09/2005 4 Services to the machine
7
4.2 Power Supply on HF
4.2.1 Naming Convention of Connectors and Cables
The wiring on HF is highly structured. Every cable, connector, distributor uses an exact term,
which is dedicated to the sections and units in question:
The name convention and the systemacy is explained at the original HF-Machine type; this is ba-
sically valid for all the HF-machine series.
Section 2: term q+ 4
– Main-distributor section 2: term X1qa, X2qa, X3qa, ...
– CAN I/O module: term: term X1
qb, X2qb, X3qb, ...
– Vision DC/DC converter: term X1
qc, X2qc, X3qc, ...
– Vision control unit: term X1
qd, X2qd, X3qd, ...
Section 4: term r+ 4
– Sub-distributor section 4: term X1ra, X2ra, X3ra, ...
– CAN I/O module: term: term X1
rb, X2rb, X3rb, ...
– Vision DC/DC converter: term X1
rc, X2rc, X3rc, ...
– Vision control unit: term X1
rc, X2rd, X3rd, ...
Placement head gantry 1: term a+ 4
– Gantry distributor: 00 353593 aa
– Gantry interface: 00 363330
ab
– Head interface: 03000900
ac
– Vision board: 03 321469
au
Placement head gantry 3: term b+(up to Machine MA.No. xx / from MA .No. xx is the term c+) 4
– Gantry distributor: 00 353593 ba
– Gantry interface: 00 363330
bb
– Head interface: 03000900
bc
– Vision board: 03 321469
bu
Placement head gantry 4 (HF3): term d+ 4
– Gantry distributor: 00 353593 da
– Gantry interface: 00 363330
db
– Head interface: 03000900
dc
– Vision board: 03 321469
du
Computer unit: X1
p+
1 - 8
Student Guide SIPLACE HF/HF3
4 Services to the machine Edition 09/2005
8
4.2.2 Main distribution Unit, section 2

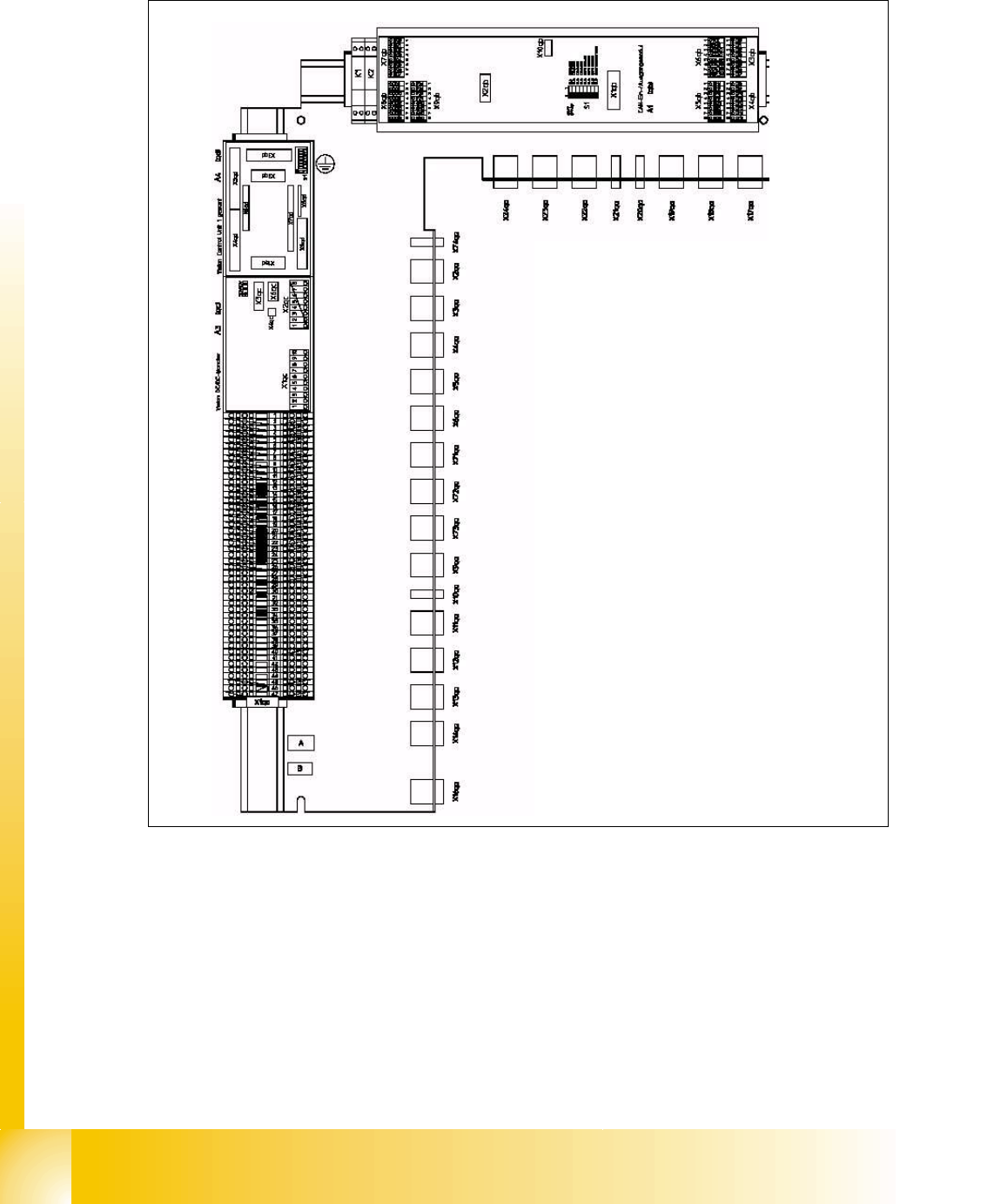

Fig. 4.2 - 1 section 2, main distributor
Legend:
1. Terminal block X1qa (GND, +3.3V, +5V, +15V, -15V, +24V, +52V, various signals)
2. DC/DC converter for Twin head stationary cameras and PCB camera placement area 2
3. Vision illumination control board for Twin head stationary cameras
4. CAN bus I/O module (SLIO)
5. Connector bar (connector X2qa - X16qa, X74qa)
52
3
1
4
1 - 9
Student Guide SIPLACE HF/HF3
Edition 09/2005 4 Services to the machine
9
4.2.3 Sub distribution Unit, section 4
Fig. 4.2 - 2 section 4, sub distributor
Legend:
1. Terminal block X1ra ((GND,+5V,+15V,-15V,+24V,+52V, various signals)
2. DC/DC distributor for PCB camera (for stationary cameras future application) on placement
area 1
3. Vision illumination control board for stationary cameras placement area 1 (future application).
4. CAN I/O module (SLIO)
5. Connector bar (connector X3ra - X6ra, X10ra- X14ra, X71ra-X74ra)
52
3
1
4
