1 - 19 S tudent Guide SIPLACE HF/HF3 Edition 09/2005 4 Servic es to the machine 19 4.2.6 Power S upply Axis Unit When the main switch is on, the axis unit is supplied with 52 V from main power supply via X13 and generate…

100%1 / 596
1 - 18
Student Guide SIPLACE HF/HF3
4 Services to the machine Edition 09/2005
18
4.2.5 Power Supply Computer Unit
When the main switch is on, the DC/DC converter in the computer unit is supplied with 52 VDC
by the main power supply unit. The following voltages are then generated in the control unit:
4
+ 3.3 VDC / 6A to supply the CPU of Machine Controller and CPU of Station Computer. 4
+ 5 VDC / 6A to supply the digital electronic circuits. 4
± 12 VDC to supply the digital electronic circuits. 4
± 15 VDC (not used, LED off) 4
4
4

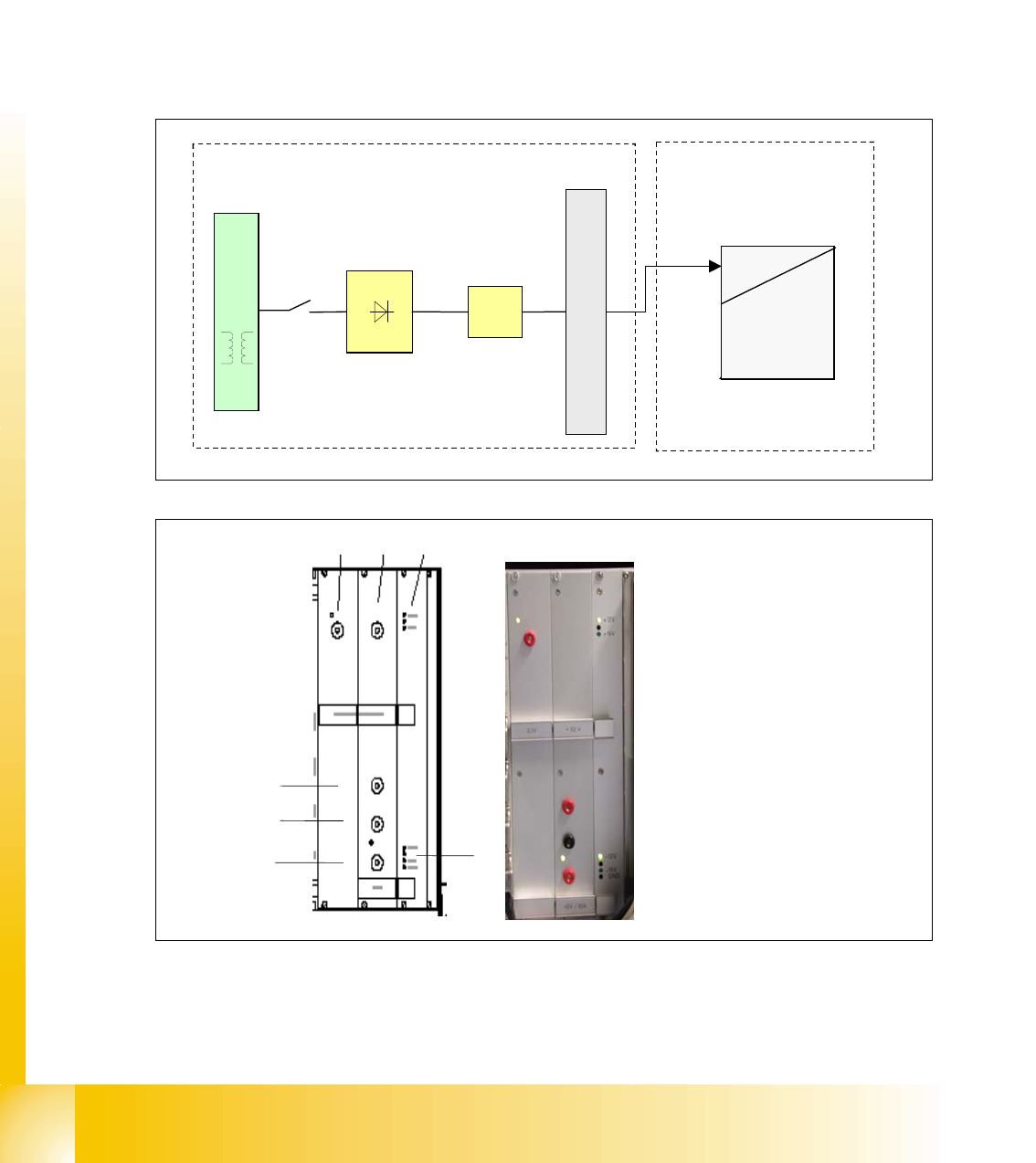

Fig. 4.2 - 9 DC/DC converter computer unit
power supply
52 VDC
5 VDC
52 VDC
+ 3.3 V
+ 5V/6A
+- 12V
+- 15V
GND
U6
T1
U7
F10
power supply main distributor
computer unit
not used: +- 15V
123
4
5
6
7
1. power 3.3 V (CPU)
2. not used
3. LED +12 V (ON) and +15 V (OFF)
4. power +52 V
5. GND
6. power 5 VDC, 6A
7. LED -12 VDC, GND, -15 VD
1 - 19
Student Guide SIPLACE HF/HF3
Edition 09/2005 4 Services to the machine
19
4.2.6 Power Supply Axis Unit
When the main switch is on, the axis unit is supplied with 52 V from main power supply via X13
and generates the voltages as shown below.
The +-15V and 5V supply voltages for the servo unit’s electronic circuits are generated from the
two DC/DC converter, which are integrated in the servo unit. This DC/DC converter generates the
5V and +- 15V needed for the servo board and the axis controller and the +-15V are also used on
placement heads and anti-crash, for e.g. It will travel to main distributor X4qa (sector 2) and then
to terminal block X1qa and get distributed from here.
4
4
4
Fig. 4.2 - 10 DC/DC converter axis unit
1
2
o
o
power supply on top: +-15 / 5V
o
o
o
1
+5V Axis controller
+15V Servo
-15V Servo
GND
2
-15V axis controller and machine
+15V axis controller and machine
power supply bottom: +-15 V
GND
GND
power supply
52 VDC
5 VDC
U6
T1
U7
F10
main power supply distributor
52 VDC
+5 VDC
+- 15 VDC
52 VDC
+-15 VDC
2
1
axis unit
1 - 20
Student Guide SIPLACE HF/HF3
4 Services to the machine Edition 09/2005
20
4.2.7 DC/DC Converter Vision section 2
This DC/DC converter is only used for generating 42 V for P&P camera illumination as well as the
power distribution for PCB camera (5/24V) and component camera (24V).
Fig. 4.2 - 11 DC/DC converter section 2
4.2.7.1 Power Supply Tape Cutter
The tape cutter are arranged in a parallel and a serial mode. The tape cutter in sector 2 and sector
3 are serial, tape cutter in sector 1 and sector 4 are also arranged in serial mode
Fig. 4.2 - 12 power supply tape cutter
52 VDC
42 VDC
m
a
i
n
p
o
w
e
r
s
u
p
p
l
y
d
i
s
t
r
i
b
u
t
o
r
5/24 V for PCB &
Co-camera
52V
5/24V
42 V
vision
control
unit
stationary
camera 1
stationary
camera 2
(optional)
main distributor, section 2
placement area 2
X4qd
X5qd
X2qa
X71qa X22qa
tape cutter 3
X17qa
tape cutter 2
SSK
X16
X71ra X22ra
tape cutter 4
X17ra
tape cutter 1
X21ra
2
4
V
power supply
tape cutter
main valve
X60
