1 - 61
Student Guide SIPLACE HF/HF3
Edition 09/2005 6 Collect &Place-Head / DLM2
61
6.4.3 Removal of star
6.4.3.1 Tools and equipment
– Set of DIN 911 Allen keys
– Gauge for the star (C&P head / DLM1/2), article number 00326164-01
– 5V Power supply for the C&P head / DLM1/2, article number 00353277-01
6.4.3.2 Dismantling the placement star
➠ Dismantle the front part of the C&P head.
➠ Place the front part of the revolver head on the tray.
➠ Remove all the sleeves (item 1 in Fig. 6.4 - 10) and place them in the sleeve boxes or on a soft,
clean surface.
➠ Loosen the three M3x8 hexagon socket head screws (item 5 in Fig. 6.4 - 10).
➠ Raise the star slightly.
➠ Lift the placement star up with a careful rotation and off.
6

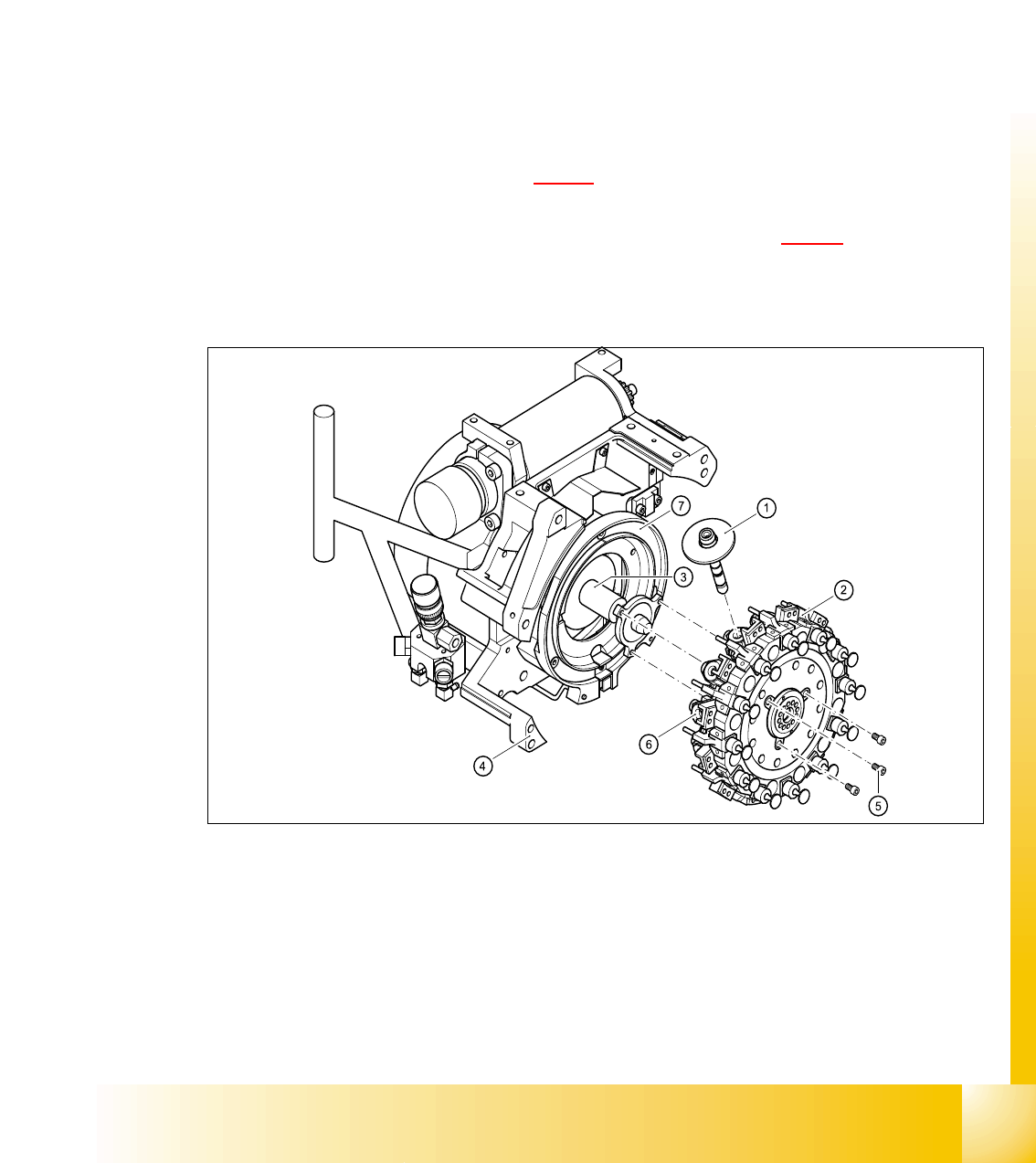

Fig. 6.4 - 10 Removal of star (Picture DLM 1)
Legend
(1) Sleeve (2) Star, mounted / DLM2
(3) Star drive (4) Front part of revolver head
(5) M3x8 hexagon socket head screws, 3x (6) Segment
(7) Raceway (Circular guide)
1 - 62
Student Guide SIPLACE HF/HF3
6 Collect &Place-Head / DLM2 Edition 09/2005
62
6.4.3.3 Fitting the star
Please Note:
Remove any remaining sleeves before fitting the star.
Push all the segments (item. 6 in Fig. 6.4 - 10
) slightly outwards.
➠ Insert small Allen keys (e.g. size 2) into the holes for the star fixing screws (item 5 in Fig.
6.4 - 10
).
➠ Hold the star over the star drive shaft (item 3 in Fig. 6.4 - 10) so that the Allen keys slide into
the threaded holes in the star drive.
➠ Push all the segments outwards.
➠ Insert the star.
Please Note:
Make sure that the vacuum hoses of the segments do not become squashed.
➠ Push all the segments inwards so that the segment ball bearings slide into the raceway (item
7 in Fig. 6.4 - 10
).
➠ Check that the star is seated flat on the drive shaft.
➠ Loosely tighten the three M3x8 hexagon socket head screws on the star so that the screws can
still move slightly in the fixing holes.
6.4.3.4 Adjusting the star with respect to the star's magnetic neutral position.
The aim of adjusting the star is to ensure that the vertical axis of segment no. 1 is aligned with the
magnetic neutral position of the star step motor.
6
➠ To do this, insert the gauge pin into the gauge for the star and into the hole in the segment
no. 1, until it reaches the stop.
➠ Pull off the motor line plug of the star motor from socket X5 on the intermediate distribution
board and connect the motor line to the power supply.
➠ Connect the power supply unit to main power.
➠ Tighten the three M3x8 hexagon socket head screws on the star.
➠ Remove the gauge pin.
➠ Insert the gauge pin again into the gauge for the star and into the hole in the segment, until it
reaches the stop. Then check:
– that the gauge pin can be inserted easily.
➠ Disconnect the power pack from the power source.
➠ Insert the gauge pin again into the gauge for the star and into the hole in the segment, until it
reaches the stop. Then check:
– that the star does not rotate out of its current position as a result.
If both of these conditions are fulfilled, then the star has been fitted correctly.
6
1 - 63
Student Guide SIPLACE HF/HF3
Edition 09/2005 6 Collect &Place-Head / DLM2
63
➠ Repeat the adjustment procedure if the gauge pin does not slide easily into the hole.
➠ Continue with fitting the front part of the C&P head.
CAUTION
The maximum operating time of the power pack for the star motor is five minutes. Do NOT exceed
this time. If you have to disconnect the power pack from the power source because it has been
operating for five minutes, always insert the gauge pin before switching the power pack on again.
If you still cannot fit the star in the magnetic neutral position of the star motor, follow the
instructions below: 6
➠ Loosen the four M5x16 hexagon socket head screws (item 2 in Fig. 6.4 - 11) for fixing the star
drive (item 1 in Fig. 6.4 - 11
) and turn the star drive in the direction that will allow the star to be
adjusted with respect to the magnetic neutral position. Tighten the four hexagon socket head
screws in this position.
6

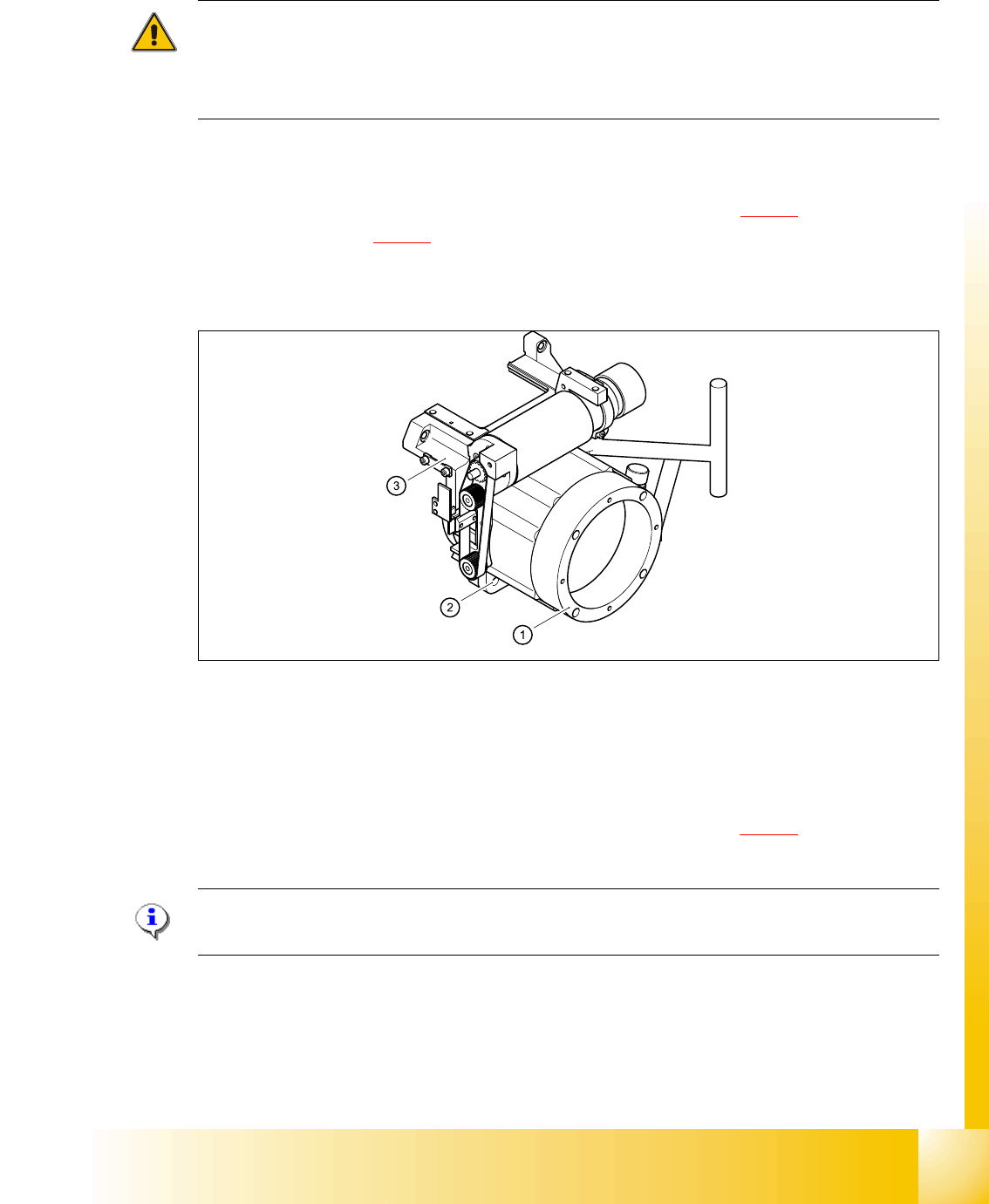

Abb. 6.4 - 11 Loosening the star drive
Legend
➠ Loosen the three M3x8 hexagon socket head screws (item 5 in Fig. 6.4 - 10) for fixing the star
again and repeat the adjustment procedure.
Please Note: The star is fitted correctly until it no longer moves out of position when the gauge
pin is removed after disconnecting the star drive from the power supply.
(1) Star drive, digital / DLM2 (2) M5x16 hexagon socket head screws, 4x
(3) Front part of revolver head
