1 - 84
Student Guide SIPLACE HF/HF3
6 Collect &Place-Head / DLM2 Edition 09/2005
84
6.6.3.2 Test setup with axis testbox
Fig. 6.6 - 5 Test setup to check the axis dynamic signal ,
Please Note:
Use an RC - filter to record the current signal.
Measure the end signal on the adapter board "axis test box", with the switch pressed down. 6
11
1 - 85
Student Guide SIPLACE HF/HF3
Edition 09/2005 6 Collect &Place-Head / DLM2
85
6.6.3.3 Test setup with SAT-Box
Please Note:
For checking of the dynamics with the aid of the SAT-Box please use the official Adjustment ma-
nual. 6
Fig. 6.6 - 6 Test set up SAT-Box
Legend outputs Siplace Axis Tester to oscilloscope channels
(1) Nominal current (Vreg)
not connected to the scope for HF
(2) uncommutated nominal current
connect to CH2
(3) Deviation of position connect to CH1 (4) End signal connect to CH 3
Axis unit error
Servo ON
Initialize
Counter error
Zero puls
End signal
Interface:
Test adapter,
Axis test box,
SAT-Box
2
4
1
3
1 - 86
Student Guide SIPLACE HF/HF3
6 Collect &Place-Head / DLM2 Edition 09/2005
86
6.6.3.4 Example for dynamic with the control signal of the Vnom. output
The Axis dynamic of the Star axis is checked with Star step continuos run. At Vnominal output of
the Axis tester pass a motor current signal. (Control signal1) The uncommutated nominal current
signal (Signal 3) show the friction of the axis system it show also increased friction.
The positioning time for the Star axis step is 70 ms (6 segment C&P head) and for the 12 segments
C&P head 46 +/-3 ms.

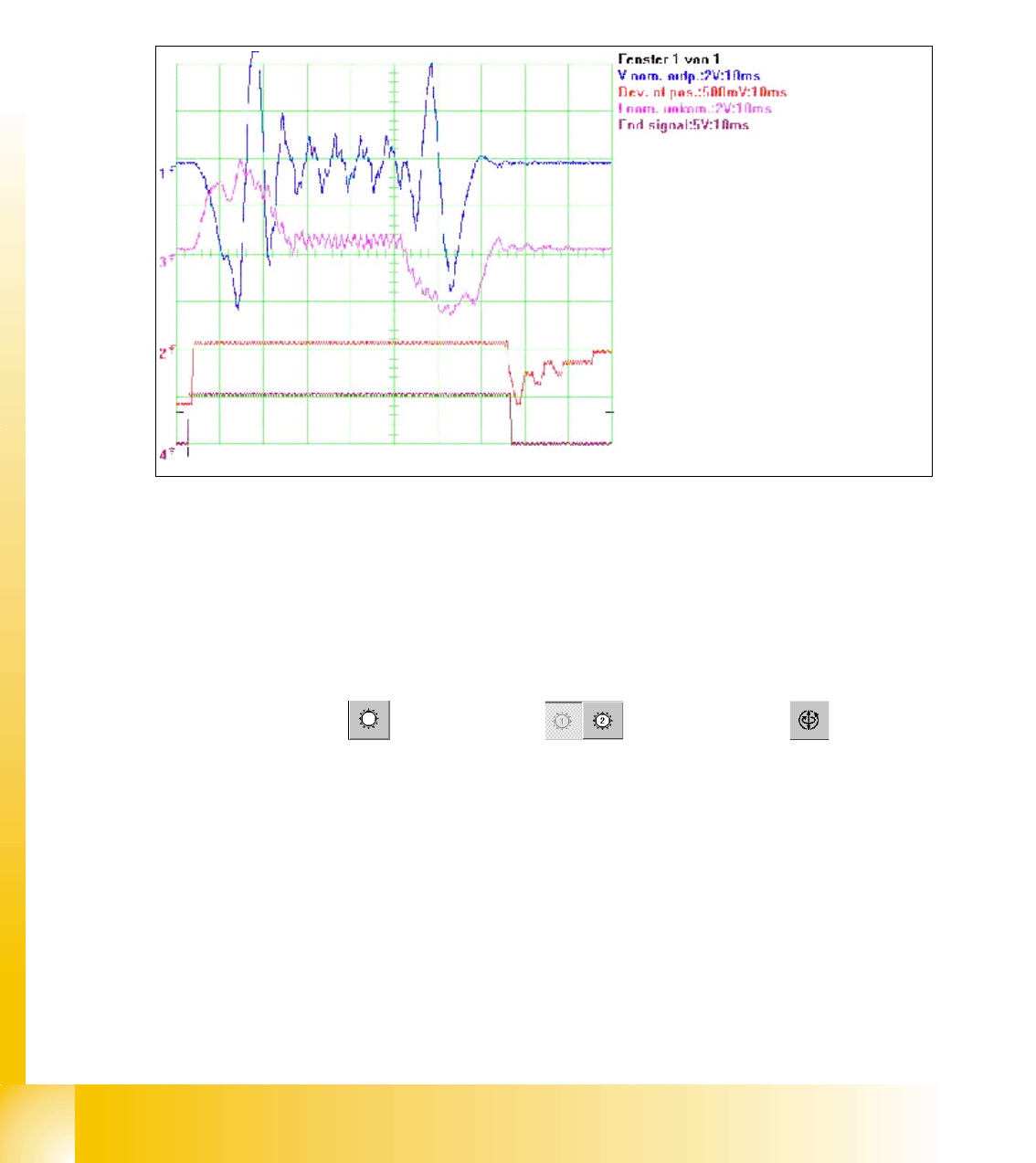

Fig. 6.6 - 7 Dynamic signals Star axis for excample 6 segment C&P head
Legend
SITEST: 6
➠ Select "C&P heads" ==> "Select head" ==>"Axis functions" ==> "Select
Star-axis" ==> "Continuous run Star" ==> Edit: Waiting time "500 ms" ==> "Accept".
➠ If necessary, press the START button.
(1) Control signal (Axis testbox V
nom.) (2) Uncommutated Current signal Axis adapter
(3) Position of deviation (4) End signal
1
2
3
4
