1 - 105
Student Guide SIPLACE HF/HF3
Edition 09/2005 6 Collect &Place-Head / DLM2
105
6.8.3 Mounting on gantry S-27 HM
Fig. 6.8 - 1 DLM 2 C&P head - mounting on gantry S-27 HM
Legend
(1) Gantry (head mounting)
(2) DLM2 C&P head
(A) 4 fixing screws for head mounting
The DLM 2 C&P head has a new assembly which is more robust and fixed with 4 screws to the
gantry.
1 - 106
Student Guide SIPLACE HF/HF3
6 Collect &Place-Head / DLM2 Edition 09/2005
106
6.8.4 Mounting on gantry (HS-60)
Fig. 6.8 - 2 DLM 2 C&P head - mounting on gantry HS-60
Legend
(1) C&P head
(2) Mounting plate on gantry
(3) Head PCB
(4) Adjusting pins
(A) 4 fixing screws for head mounting
1 - 107
Student Guide SIPLACE HF/HF3
Edition 09/2005 6 Collect &Place-Head / DLM2
107
6.8.5 Changed parts of the DLM2 C&P head
6.8.5.1 Star brake
Due to the increasement of star acceleration and star decelaration a new optimized star brake
was required which stabalizes the star dynamics in the DLM head.
6

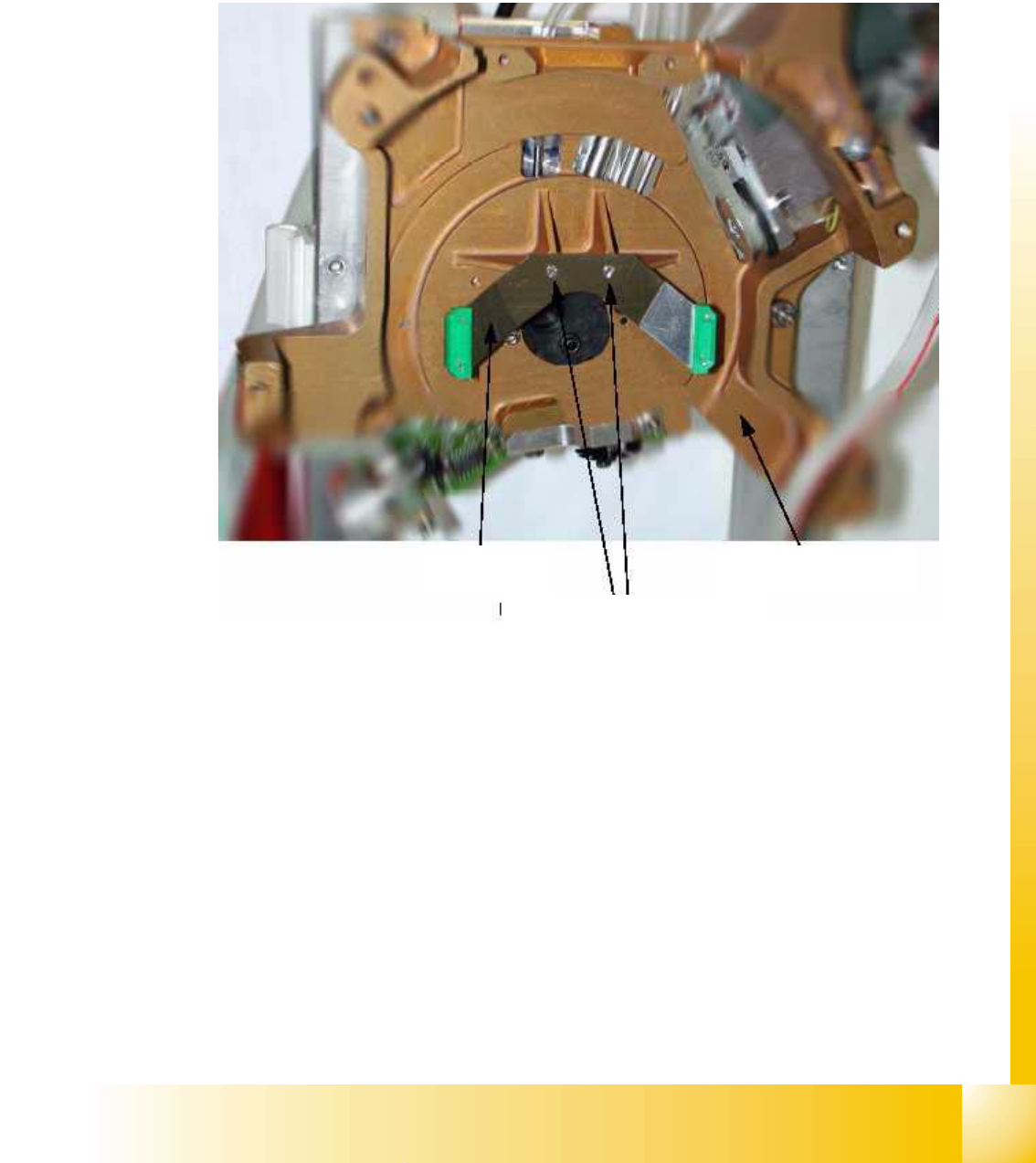

Fig. 6 - 2 Star brake
Rear part of the placement head
M1.6 x 4 mounting screw
Star brake
