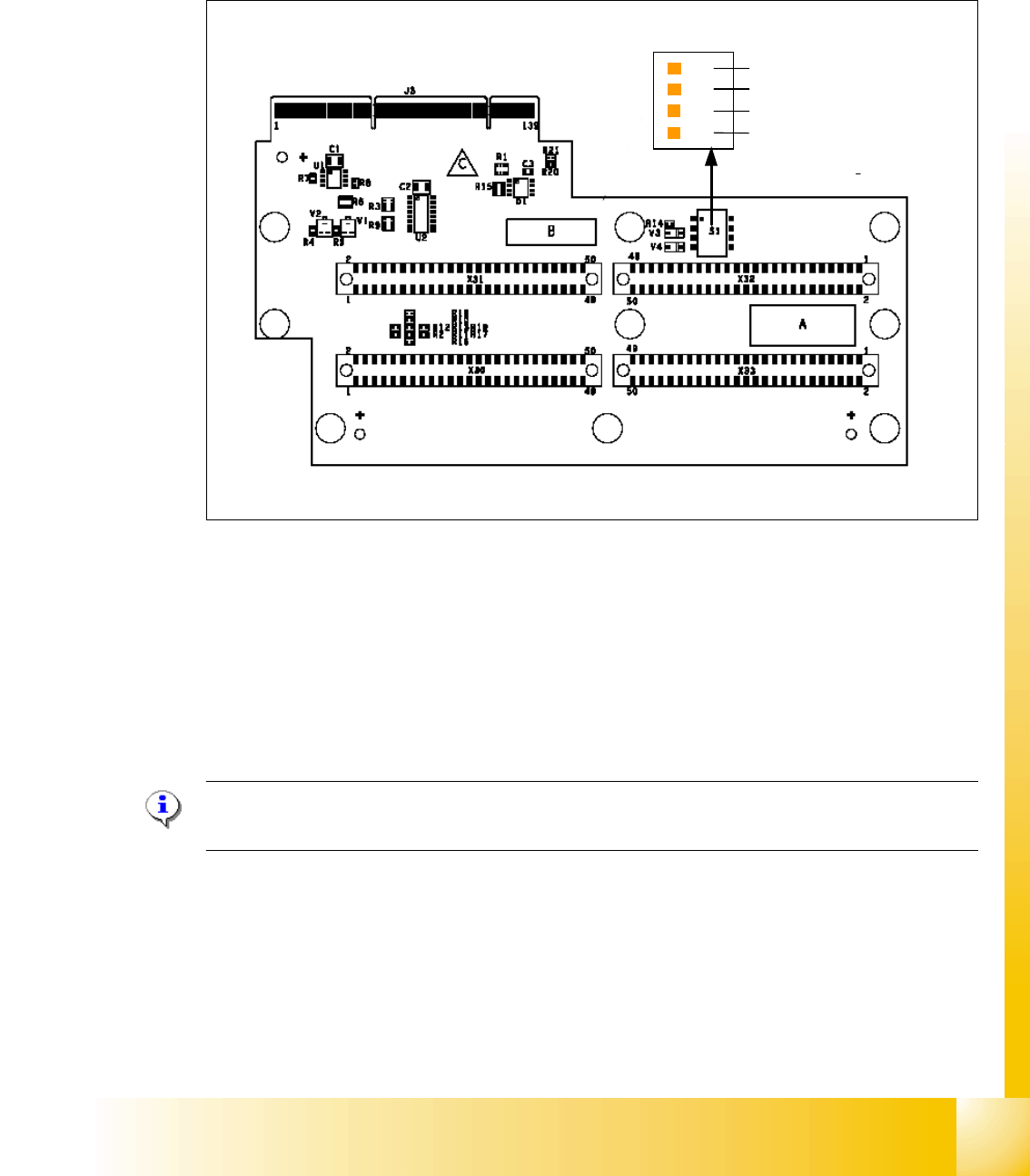

7.4.1.4 Head adapter Twin Head
The head adapter board connects the head interface board directly to the main board of Twin head
segment 1 and 2 via ribbon cable. This head adapter must be changed for head modularity, if you
use a C&P head.
Fig. 7.4 - 4 Head adapter Twin head
Please Note:
The ribbon cable sets for the Twin head segment 1and 2 are different.
(1) Connector Z-Axis Twin head 1 (2) Connector D-Axis Twin head 1
(3) Connector DP-Axis Twin head 2 (4) Connector Z-Axis Twin head 2
(5) PP1 Boot CAN Processor Twin Segm. 1 (6) PP1 Reset CAN Processor Twin Segm. 1
(7) PP2 Boot CAN Processor Twin Segm. 2 (8) PP2 Reset CAN Processor Twin Segm. 2
1
24
3
OFF
1
4
5
6
7
8
1 - 24
Student Guide SIPLACE HF/HF3
7 TWIN-Head Edition 09/2005
24
7.4.1.5 TWIN-Head main board
The main board is mounted directly on the top of the frame of the TWIN-head. This board is con-
nected to the head adapter via ribbon cable (one ribbon cable for each axis).
Fig. 7.4 - 5 Main board at TWIN-head segment
1. Connector for the 16 Bit CAN Bus Processor (Control the analog or digital vacuumgenerator)
2. LED´S (Description from top to bottom)
- D6 BERO Z-axis top (not used)
- D1 not defined
- D2 Clamping Z-axis (yellow) LED off, retract unit is at top position.
- D15 Temperature monitoring Z-axis linear motor (red) LED on, is ok.
3. Connectors to the head adapter
4. Connector track signals Z-axis
5. Connector BERO Z-axis (not used)
6. Connector pneumatic valve (retract unit)
7. LED‘s: D7- is ON after reference run
D8- protect Z-axis without function
D9 - without function
D10 - green LED ON 24Vfor the vacuumgenerator
D14 - Alarm output for the vacuumgenerator ( red LED ON vacuumgenerator defect)
8. Connector for valve (only 24 Volts on pin 2 and 4 measured)
9. Hole for pneumatic pipe to the vacuum generator
1
2
3
4
6
5
7
8
9
1 - 25
Student Guide SIPLACE HF/HF3
Edition 09/2005 7 TWIN-Head
25

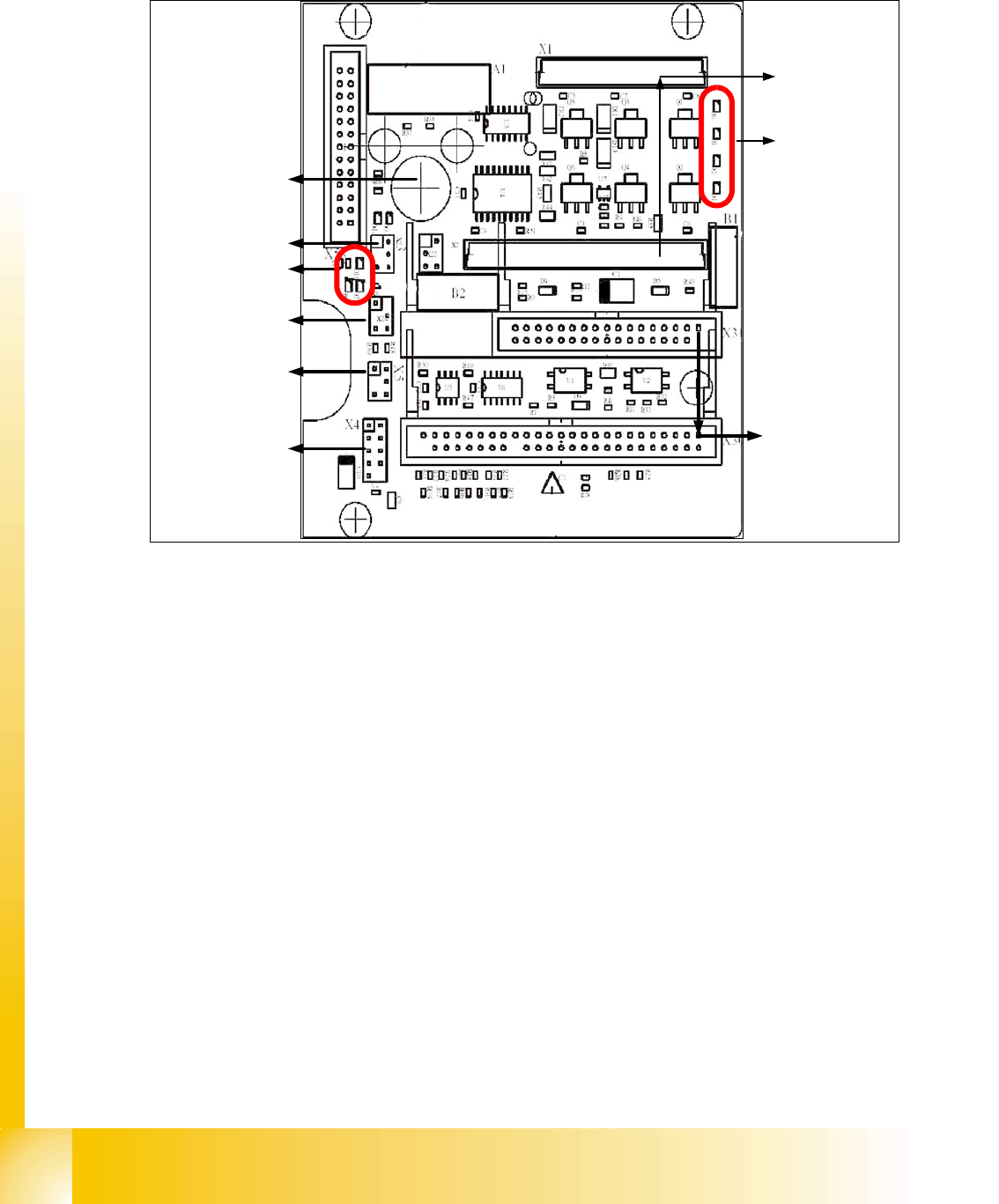

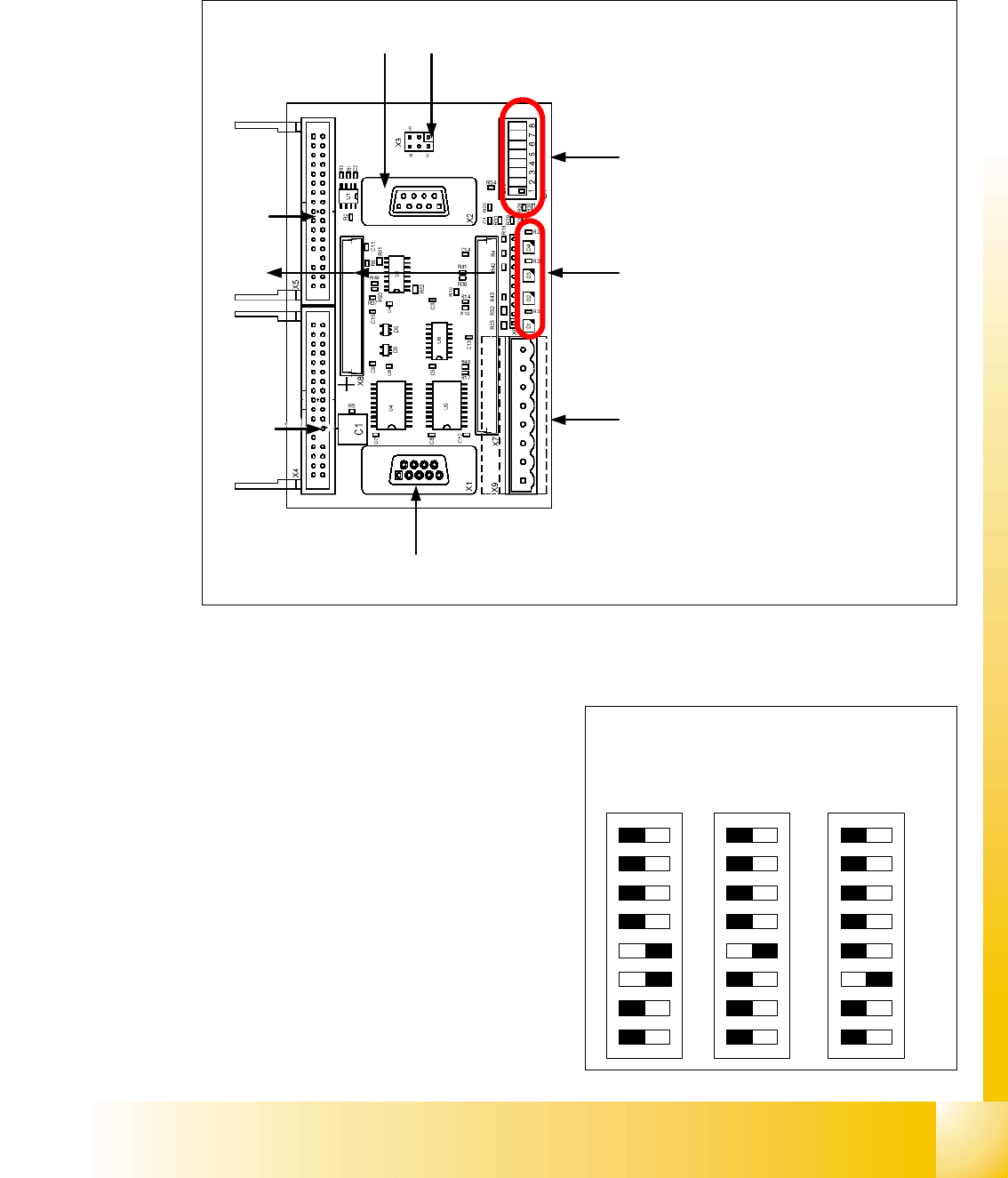

7.4.1.6 Vision control board "IC camera"
The vision control board is installed in sector 2 for the Twin head on gantry 3 and at sector 4 for
the Twin head on gantry 1 (only for HF).
Fig. 7.4 - 6 Vision control board IC camera
1. Connector for FC Camera illumination
2. Connector for IC Camera illumination
3. Service connector
4. LED‘s (downwards D4 - D1)
– + 5 V / -15 V / +15 V / +40 V
5. DIP Switch
6. Connector CAN Bus
7. Power supply Vision control board
Connector for DC/DC converter (Section2)
for DC/DC distributor (section 4)
8. Connectors for CAN Bus Processor 16 Bit
9. Flash signal
1
6
3
4
5
2
7
8
9
to 5)DIP-Switch
(1) CAN- Terminator
(2) RESET
(3) Bootstrap
(4) TEST
(5) P1 Address -Switch
(6) P0 Address -Switch
(7) CAN - ID 1
(8) CAN -ID 0
ON
78123456
ON
78123456
ON
78123456
Gantry 1
for HF
Gantry 3
for HF/HF3
Gantry 2 for
HF (504)
