1 - 10 S tudent Guide SIPLACE HF/HF3 2 Overview Edition 09/2005 10 2.2.2 Power supply unit The main power supply unit is mounted on a co mpac t slide-in module, and located on the left side of the middle section. When vi…

100%1 / 596
1 - 9
Student Guide SIPLACE HF/HF3
Edition 09/2005 2 Overview
9

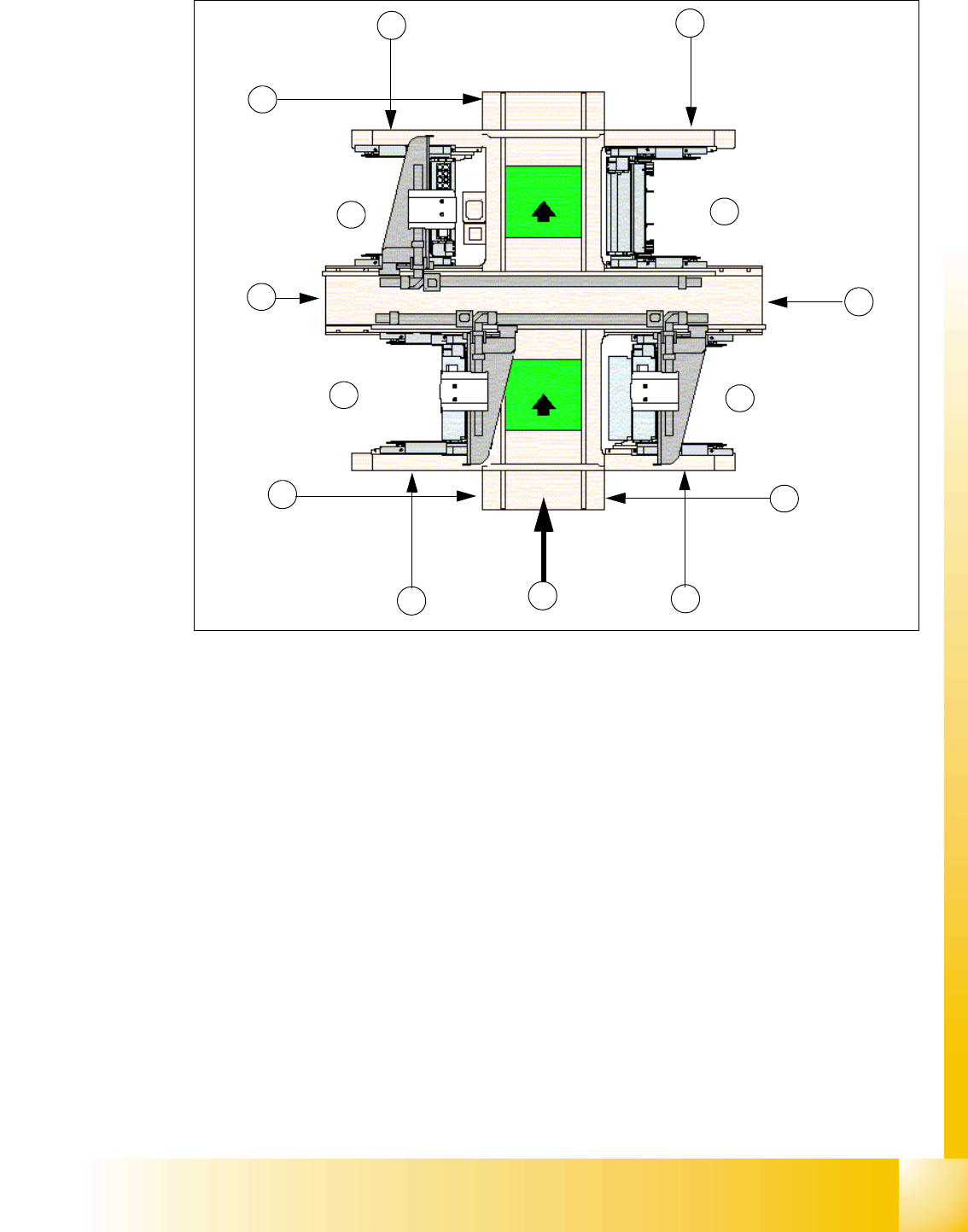

Fig. 2.2 - 2 Siplace HF3
Legend
(1) Sector 1 (2) Sector 2 (Main Distributor)
(3) Sector 3 (4) Sector 4 (Sub Distributer)
(5) Transport direction (6) Pneumatic unit & Control unit conveyor
(7) Component changeover table (8) Computer unit
(9) Position for Component changeover table
or MTC 2 for BB 2
(10) Position for Component changeover table
or MTC 2 for BB 1 (MTC only HF)
(11) Axis unit in PA 1 for HF3 (12) Axis unit in PA 2
(13) Power supply unit
1
2
8
3
5
6
4
7
7
9
10
11
PA 1
PA 2
13
12
1 - 10
Student Guide SIPLACE HF/HF3
2 Overview Edition 09/2005
10
2.2.2 Power supply unit
The main power supply unit is mounted on a compact slide-in module, and located on the left side
of the middle section. When viewed from the outside only the red main power switch is visible.
A lockable door prevents access to the unit.
Fig. 2.2 - 3 Power supply
Legend
(1) DC / DC Converter 24 V (2) DC / DC Converter 5 V and 5V/24V for HF3
(3) Safety combination relais K6 (4) F5 fuse for Star axis
(5) F11for Inrush current limiter transformer
1
2
3
4
5
main distributor main
power supply
Inrush current limiter:
a: transformer: EST
b: servo: Ess
transformer T2
transformer T1
T1
T2
Fuse F61 - fuse F142
1 - 11
Student Guide SIPLACE HF/HF3
Edition 09/2005 2 Overview
11
2.2.2.1 Overview Voltages on the front panel of the power supply unit
Fig. 2.2 - 4 Frontside Power supply
K1
K2 / K3 / K4
K6
K5
F1/F14
F2 / F10 / F6 / F8 /
F12 / F13
F4 / F7
F11 / F5
Q1 / Q2
Units Identification Contact Voltages
X100 connecting terminal panel
Power supply
L1, L2, L3 3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC
X102 Service socket 115 VAC / 220 VAC / 230 VAC / 240
VAC
Q1 Main switch 1, 3, 5 u.
2, 4, 6
3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC
Q2 Motor protective switch 1, 3, 5 u.
2, 4, 6
3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC
K1 main contactor 1, 3, 5 u.
2, 4, 6
3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC
K2 contactor 1, 3, 5 u.
2, 4, 6
3 x 177 VAC
K3 contactor 1, 3, 5 u.
2, 4, 6
3 x 177 VAC
K4 contactor 1, 3, 5 u.
2, 4, 6
3 x 177 VAC
