1 - 15 S tudent Guide SIPLACE HF/HF3 Edition 09/2005 2 Overview 15 2.2.4 Sectors 1 - 4 Fig. 2.2 - 6 Overview Sector 1-4 Sector 1/3: 2 – Connector modules for safety loop and S tart/S top switch – circuit for onehand oper…
1 - 14
Student Guide SIPLACE HF/HF3
2 Overview Edition 09/2005
14
2.2.3.1 Pneumatic loop Cooling Y - Linear motor for Placement area 1/2
For cooling the Y-motors, an additional pneumatic system which is supplied by ambient air was
built up. The ambient air is sucked over a filter with the aid of a blower motor and provided to the
Y-motors. The compressed air escapes on the side of the Y-motor again.
2.2.3.2 Pneumatic loop Cooling X - Linear motor for Placement area 1/2
Cooling the X-motors is implemented via exhaust air of the vacuum generator of the C&P head or
Twin head.
2.2.3.3 Compressed air distributor block
The pneumatic unit is used to prepare and distribute the compressed air required in the machine.
The pressure in the compressed-air connection is 5,0 bar.
The following pneumatic circuits are supported via the compressed air distributor block:
– Gantrys 1-4 Vacuumgenerator: 5,0 bar
– Transportsystem: 5,0 bar
– Tape cutter for the locations 1-4: 5,0 bar
– Nozzle changer for the locations 1-4: 5,0 bar
– Docking units for the component changeover table: 5,0 bar
– Bulkase Feeder on the location 1-4: 2,5 bar
1 - 15
Student Guide SIPLACE HF/HF3
Edition 09/2005 2 Overview
15
2.2.4 Sectors 1 - 4
Fig. 2.2 - 6 Overview Sector 1-4
Sector 1/3: 2
– Connector modules for safety loop and Start/Stop switch
– circuit for onehand operated comp.tables at location 1/3 respective sector 3 for location 3/4.
– Sector 1-> Hub for the Option Splicedetection
Sector 2 (Main Distributor): 2
– CAN I/O Module
– Vision illumination control board for Twin head IC-Camera or FC Camera (Option)
– DC/DC converter for Twin head IC-Camera (Flash signal)
– Main distributor (Connector moduls)
– Terminals X1qa (GND,+5V,+15V,-15V,+24V,.Start/Stop-signal, Covers, emergency stop sig-
nal,SW-enabling signal)
– Connector modules for safety loop and Start/Stop switch
Sector 4 (Sub Distributor): 2
– CAN I/O Modul
– Vision illumination control board for Twin head IC-Camera or FC Camera (Option)
– DC-distributer for Twin head IC-Camera (Flashsignal) in Placement area 1 if installed.
– Sub distributor (Connector moduls)
– Terminals X1ra (GND,+5V,+15V,-15V,+24V,Start/Stop-signal, Covers, E-stop signal,...)
– Connector modules for safety loop and Start/Stop switch
Axis unit PA 2
Axis unit PA 1 HF3
1 - 16
Student Guide SIPLACE HF/HF3
2 Overview Edition 09/2005
16
2.2.5 Computer unit

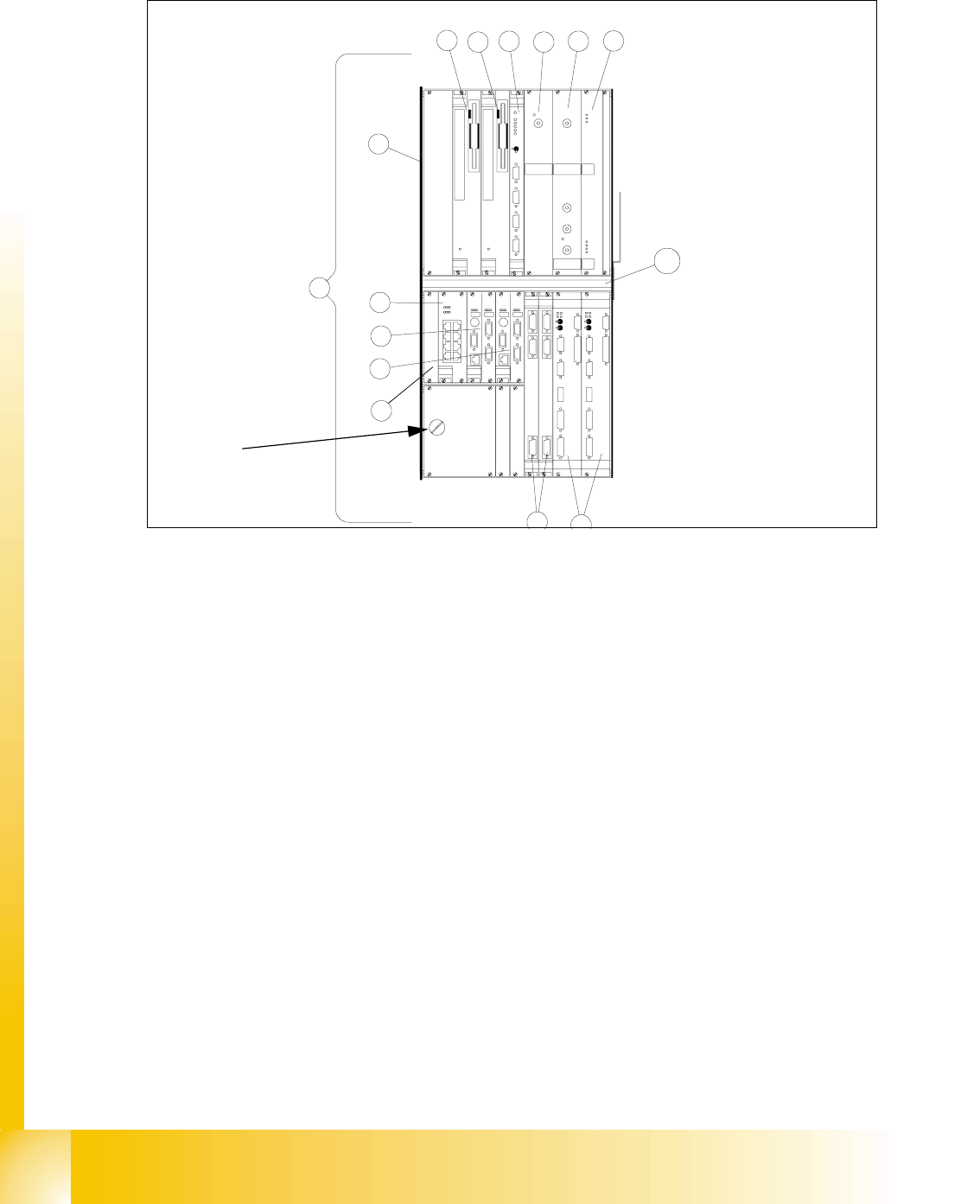

Fig. 2.2 - 7 Computer unit
(1) Slide in rack; Computer unit
(2) ICOS 1(left) Placement area 1 / ICOS 2 Placement area 2
(3) Fan unit
(4) Slot for coplanarity Control unit
(5) CPU unit machine controller (MC)
(6) CPU unit station computer (SC)
(7) Harddisk/Floppydisk/CD-ROM SC (left) Harddisk/Floppydisk/CD-ROM MC(right)
(8) Power supply DC/DC Converter +/-12V (+/-15V not used)
(9) Power supply DC/DC Converter 3,3V (CPU‘s)
(10) Power supply DC/DC Converter 52V / +5V 60A
(11) Dual LAN unit
(12) Video multiplexer
(13) COM unit 1Mbit/s(left) CAN BUS / COM unit (right) (not used on HF 504) used on HF 505
COM unit 1Mbit/s(left) CAN BUS for BB1 / COM unit 1Mbit/s(right) for BB2 on the HF3
(14) Space for additional COM interface (serial Port) for the option Traceability
3,6V
Batterie
Reset
Abort
X9pu X5pu X8puX7pu X6pu
X3pu X4pu
HS3LVGAAUXKamera 1/3Kamera 2/4
S-COM 2 S-COM 1
S-COM 1S-COM 2
Kamera 2/4 Kamera 1/3
AUX VGA HS3L
X4ptX3pt
X6ptX7pt
X8ptX5ptX9pt
Abort
Reset
X7po
CAN-Bus
X6po
CAN-Bus
X2po
S-COM 1
S-COM 1
X2pn
CAN-Bus
X6pn
CAN-Bus
X7pn
L1
L2
H1
H2
LAN1 LAN2 HUB 6 HUB 5
HUB1HUB2HUB 3HUB4
H3
H4
H5
H6
Activity
COM-ACOM- B
VGALAN
X6pa
X8pa X7pa
X5
L3
L4
L5
L6
KEYB.
USB
RUN
WD
L1
L2
USB
USB
L2
L1
WD
RUN
USB
KEYB.
L6
L5
L4
L3
X5
X7pcX8pc
X6pc
LAN
VGA
COM-B COM-A
Harddisk
Floppy
CD
CD
Floppy
Harddisk
ICOS 2ICOS 1GEMMC
X4pvX3pvX2pvX1pv
3,3V + 52V
+ 5V
+12V
-12V
+15V
-15V
GND
7
7
12
9
10
8
18
4
11
6
5
13
2
1
3
14
Battery
3,6V
