1 - 38
Student Guide SIPLACE HF/HF3
9 Modular conveyor Edition 09/2005
38
Display I / O LED assignment
H54 IN Light scanner "Fluxing", intermediate conveyor
H55 IN Light scanner "Fluxing", placement area 2
H56 IN Light scanner "Fluxing", output conveyor
H58 IN Option plug, placement area 1: Input 1
H59 IN Option plug, placement area 1: Input 2
H60 IN Option plug, placement area 1: Input 3
H61 IN Option plug, placement area 1: Input 4
H62 IN Option plug, placement area 1: Input 5
H63 IN Option plug, placement area 1: Input 6
H64 IN Option plug, placement area 2: Input 1
H65 IN Option plug, placement area 2: Input 2
H66 IN Option plug, placement area 2: Input 3
H67 IN Option plug, placement area 2: Input 4
H68 IN Option plug, placement area 2: Input 5
H69 IN Option plug, placement area 2: Input 6
H70 Cod. Option plug, placement area 1: Coding 1
H71 Cod. Option plug, placement area 1: Coding 2
H72 Cod. Option plug, placement area 1: Coding 3
H73 Cod. Option plug, placement area 2: Coding 1
H74 Cod. Option plug, placement area 2: Coding 2
H75 Cod. Option plug, placement area 2: Coding 3
H76 Out Lifting table, placement area 1: valve up
H77 Out Lifting table, placement area 1: valve down
H78 Out Lifting table, placement area 2: valve up
H79 Out Lifting table, placement area 2: valve down
H80 Out Laser light barrier, placement area 1: Transmitter
H81 Out Laser light barrier, placement area 2: Transmitter
H82 Out Width driver 1 : Valve
H83 Out Width driver 2 : Valve
H85 Out Width driver 3 : Valve
H92 Out Option plug, placement area 1: Output 1
H93 Out Option plug, placement area 1: Output 2
H94 Out Option plug, placement area 1: Output 3
H95 Out Option plug, placement area 2: Output 1
H96 Out Option plug, placement area 2: Output 2
H97 Out Option plug, placement area 2: Output 3
H98(ao) Out Barcode reader, track 1: Start signal
H99(ao) Out Barcode reader, track 2: Start signal
1 - 39
Student Guide SIPLACE HF/HF3
Edition 09/2005 9 Modular conveyor
39
9.3.3.2 Siemens/SMEMA TSP 301 interface description

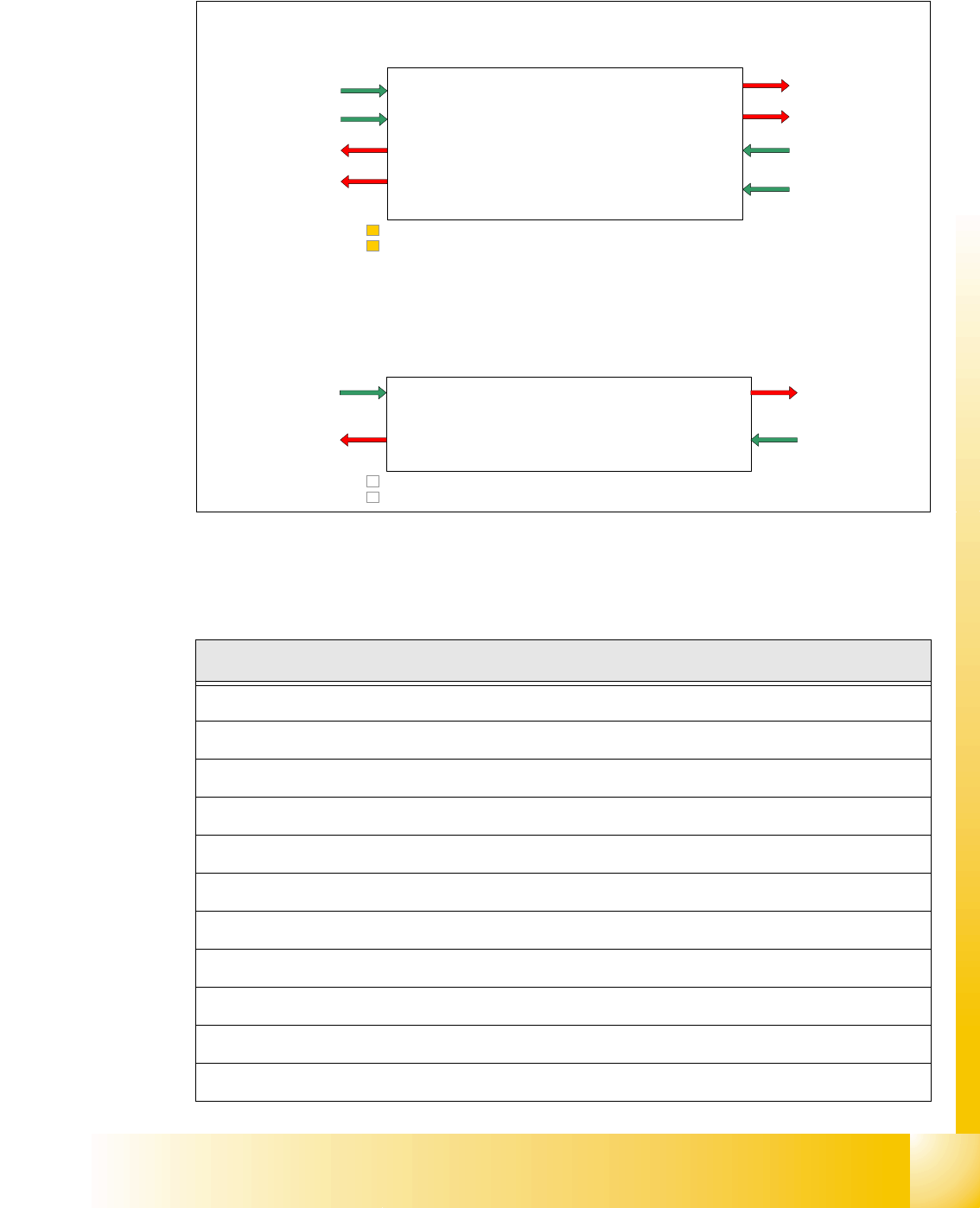

Fig. 9.3 - 4 TSP 301 interface
Notes:
Siemens Schnittstelle/Interface
H10 / H10
H17 / H17
H16 / H16
H11 / H11
H18 / H18
H13 / H13
H12 / H12
H19 / H19
Abgegeben/Board
transferred
Erlaubnis/
Permission
Angekommen/Board
arrived
Anforderung/
Request
Abgegeben/Board
transferred
Anforderung/
Request
Angekommen/Board
arrived
Erlaubnis/
Permission
TSP 301
Vorgänger/Previous station
X1 ao(Track1) X1 ap (Track2)
abstecken / disconnect X3 / X4
Nachfolger/Next station
X2 ao(Track1) X2 ap (Track2)
abstecken / disconnect X3 / X4
Vorgänger/Previous station
X3 ao(Track1) X3 ap (Track2)
Nachfolger/Next station
X4 ao(Track1) X4 ap (Track2)
LP verfügbar/
Board available
Nicht fertig/
Not ready
LP verfügbar/
Board available
Nicht fertig/
Not ready
Smema Schnittstelle/Interface
TSP 301
H17 / 17
H11 / H11
H19 / H19
H13 / H13
H14 Siemens zu Vorgänger / to upstream station
H15 Siemens zu Nachfolger / to downstream station
H14 SMEMA zu Vorgänger / to upstream station
H15 SMEMA zu Nachfolger / to downstream station
