1 - 3
Student Guide SIPLACE HF/HF3
Edition 09/2005 10 Sitest
3
10.1.2 Starting/Terminating the Test Program
10.1.2.1 Starting
➠ On the user interface for the station, click on the icon (see User’s Manual SIPLACE HF/
HF3) The test program is started.
Fig 7.1 - 1 Confirmation "Start Sitest"
The main view of the user interface of the test program will appear on the screen shortly after-
wards.
➠ Select the desired language .
10.1.2.2 Terminating
There are three ways of properly terminating the test program, i.e. either
– from the main view via the
Mode menu, by selecting the menu command Exit ,
– using the key
ESC
– or by proceeding as described in the following.
Note:
Only the key ESC permits the test program to be terminated from any view.
➠ In the main view, click on the icon.
1 - 4
Student Guide SIPLACE HF/HF3
10 Sitest Edition 09/2005
4

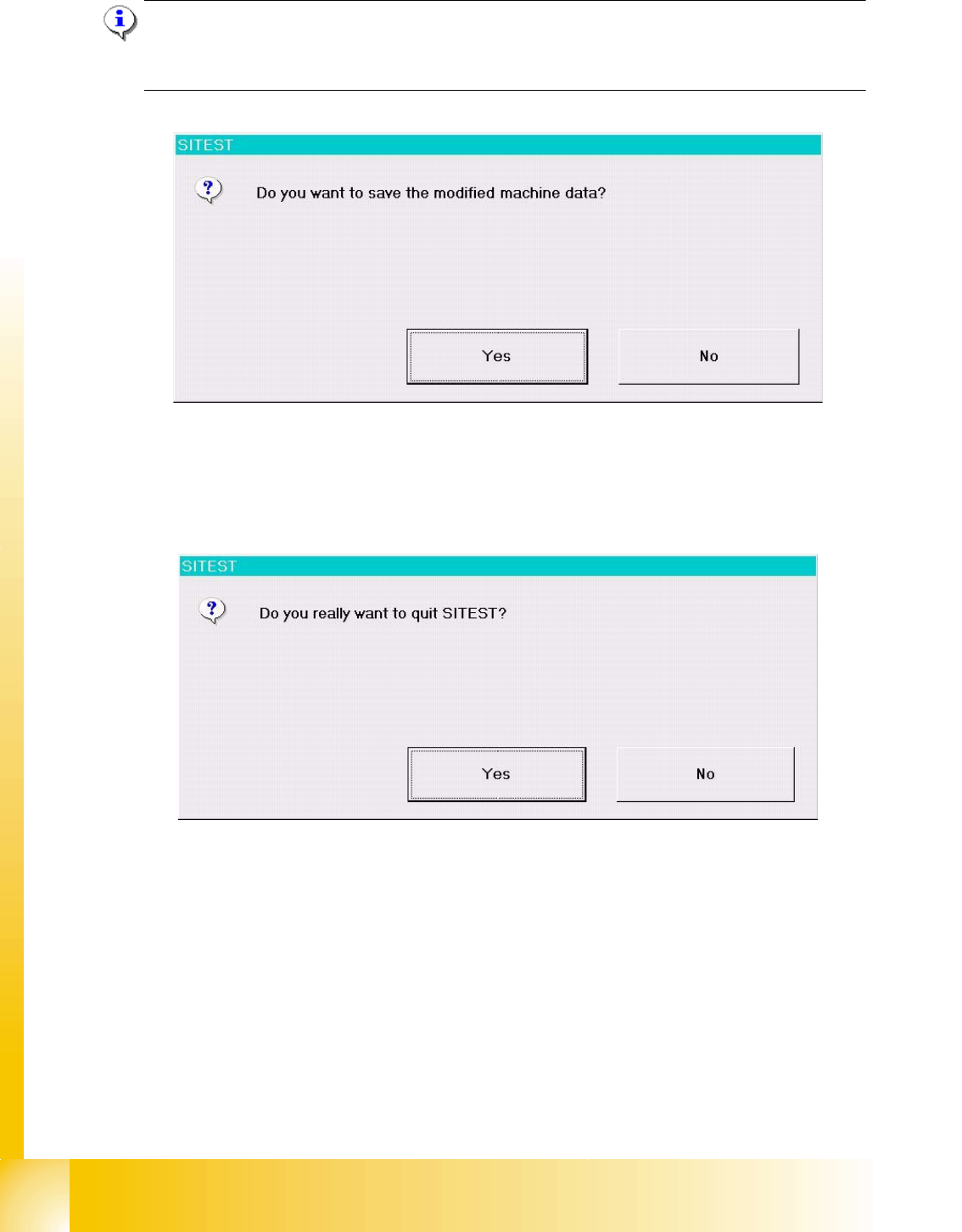

Note:
If newly determined or edited machine data have not been saved yet, an appropriate message will
be displayed before exiting the program prompting you to save the data (see example below).
➠ Click on the Yes button in the dialog box if you wish to save the data on terminating the test
program, or click on
No if you do not wish to save the data.
The following dialog box opens.
➠ Click on the Yes button. The test program is terminated.
1 - 5
Student Guide SIPLACE HF/HF3
Edition 09/2005 10 Sitest
5

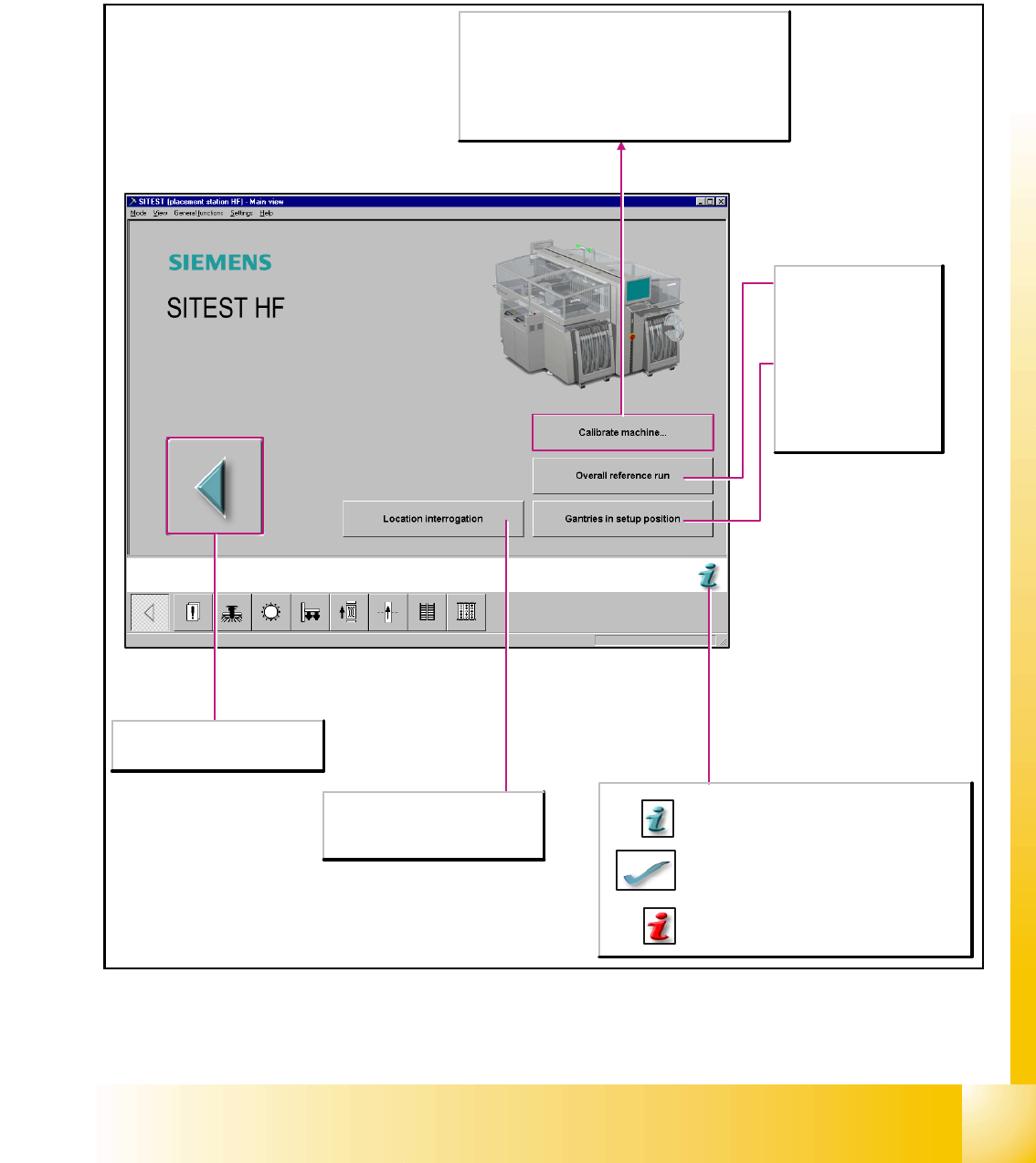

10.1.3 Main view Sitest
After starting the SITEST test program, the main view of the user interface will be displayed. The
operator can control the basic functions of the program from this view. He can return to the main
view from all the other displays.
Location interrogation
Available locations are queried as to
whether component tables or MTCs
(matrix-tray changers) are attached.
Cancels processing and exits the
SITEST test program.
Calibrate machine...
Opens the Calibrate entire machine dialog box. All
functions which are needed to calibrate the entire
machine are offered here.
Note
Before the calibration operation is carried out, a reference
run must be carried out for the heads and gantries.
Overall reference run
Starts the reference run
for all head and gantry
axes of the machine and
initializes the conveyor.
Gantries in setup
position
Moves the gantries from
the feeder area to allow
access to the component
tables with the feeders.
Starts a help system which lists possible causes
of the current error along with corrective
measures.
The current error message is deleted from the
status bar.
Provides context-sensitive help on the current
view.. This also provides a short description of all
the displayed operating elements.
