1 - 45 S tudent Guide SIPLACE HF/HF3 Edition 09/2005 1 1 MTC 2 45 Fig. 1 1.3 - 1 1 Overview "Calibration feed axe s 2/2" Catch Engage The catch is engaged in the waffle pack tray car rier. Thi s allow s a waffl…
1 - 44
Student Guide SIPLACE HF/HF3
11 MTC 2 Edition 09/2005
44

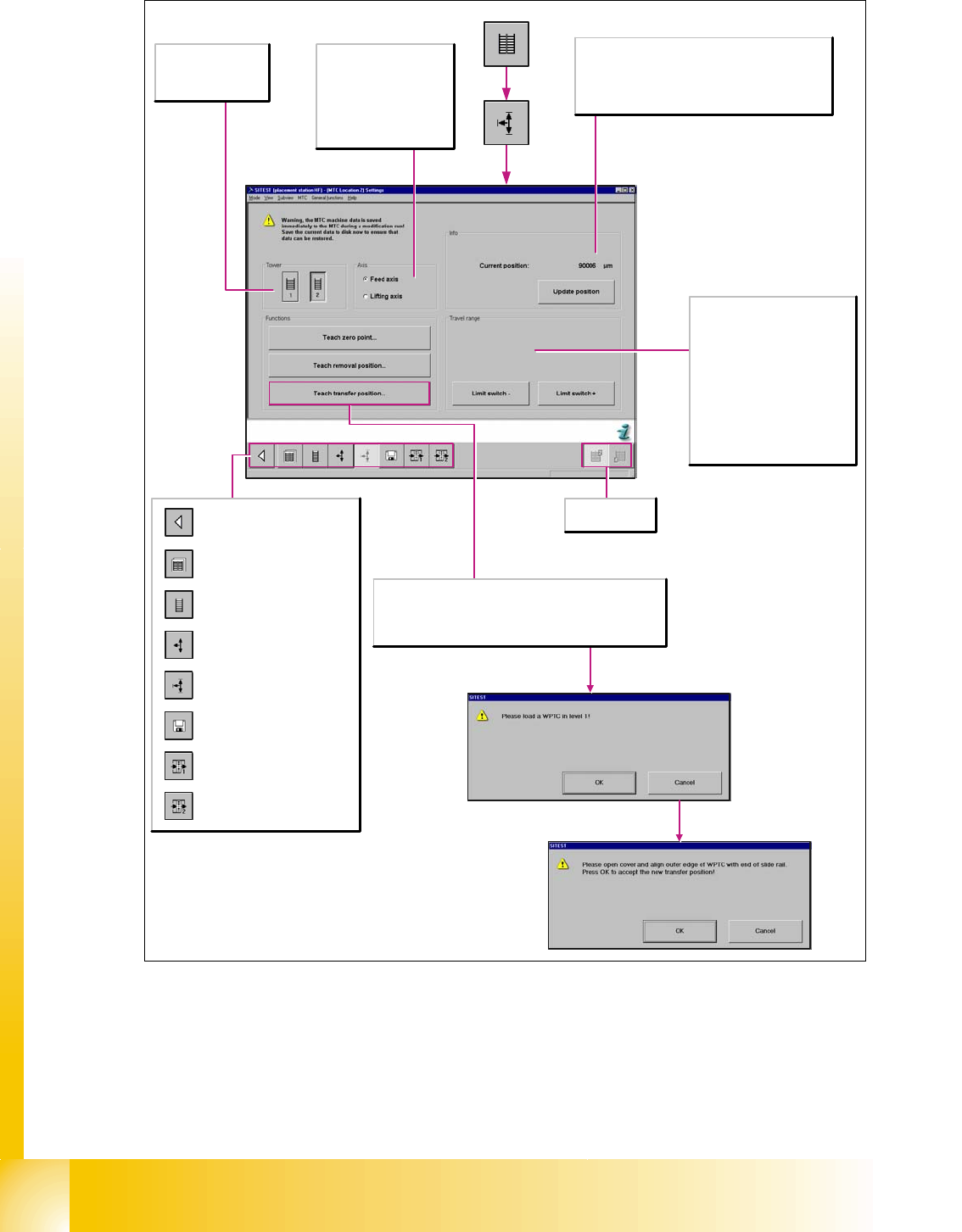

Fig. 11.3 - 10 Overview "Calibration feed axes 1/2"
Calls the view for the functions
of the MTC.
Calls the view for the tower
functions of the MTC.
Calls the view for the axis
functions of the MTC.
Calls the view for the settings of
the MTC.
Calls the view for the machine
data functions of the MTC.
Calls the view for the inputs/
outputs of the MTC.
Calls the view for the inputs/
outputs of the MTC.
Return to the main view.
Selects the MTC
at location 2 or 4.
Axis
Feed axis
The selected functions are
executed for the feed axis.
Lifting axis
The selected functions are
executed for the lifting axis.
Tower
1/2
Activates the functions
for tower 1 or tower 2.
Info
Current position:
Shows the current position of the activated axis in µm.
Update position
Updates the display for the position of the activated axis.
Travel range
Limit switch +
Moves the selected axis to the limit
switch in order to re-determine the
maximum position which can be
reached. A reference run is then
performed with the axis.
Limit switch -
Moves the selected axis to the limit
switch in order to re-determine the
minimum position which can be
reached. A reference run is then
performed with the axis.
The feed axis is deactivated when the protective cover is opened.
The end of the slide rail of the feed axis is physically adjusted so
that it comes into line with the outer edge of the waffle pack tray
carrier in Level 1. This position can then be accepted as the new
transfer position by clicking OK.
1 - 45
Student Guide SIPLACE HF/HF3
Edition 09/2005 11 MTC 2
45

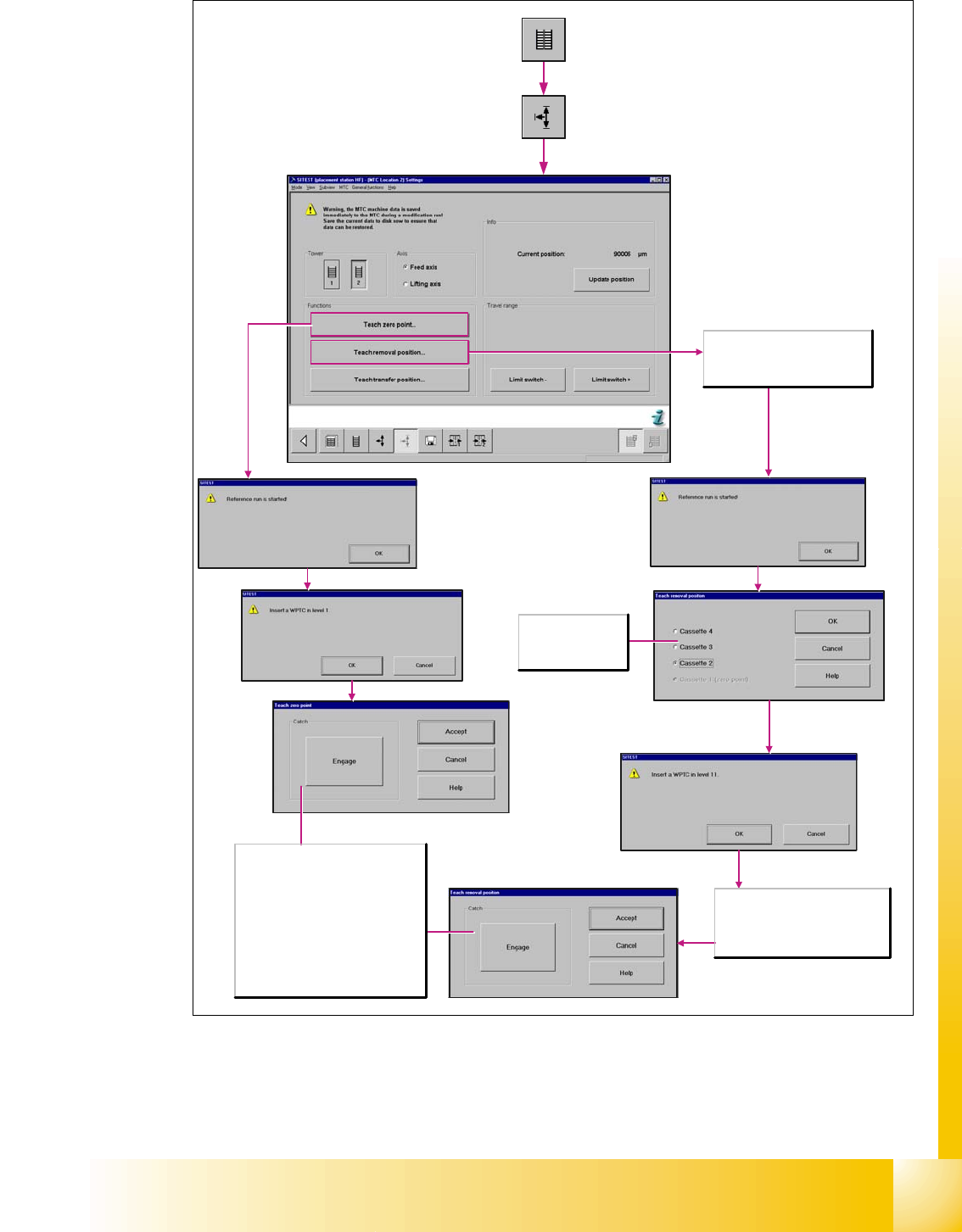

Fig. 11.3 - 11 Overview "Calibration feed axes 2/2"
Catch
Engage
The catch is engaged in the waffle pack
tray carrier. This allows a waffle pack tray
carrier to be moved out of the tower.
Disengage
The catch is then disengaged, so that the
tower can be moved.
Apply
Applies the taught position. A reference
run is then started.
Opens the Teach removal
position dialog box where you can
select the cassette for which the
removal position is to be taught.
Select the cassette
for which the removal
position is to be
determined.
After selecting the cassette the saved
removal position is approached and
the Teach removal position dialog
box is opened which allows you
engage or disengage the catch.
1 - 46
Student Guide SIPLACE HF/HF3
11 MTC 2 Edition 09/2005
46
11.3.2.3 Machine data MTC

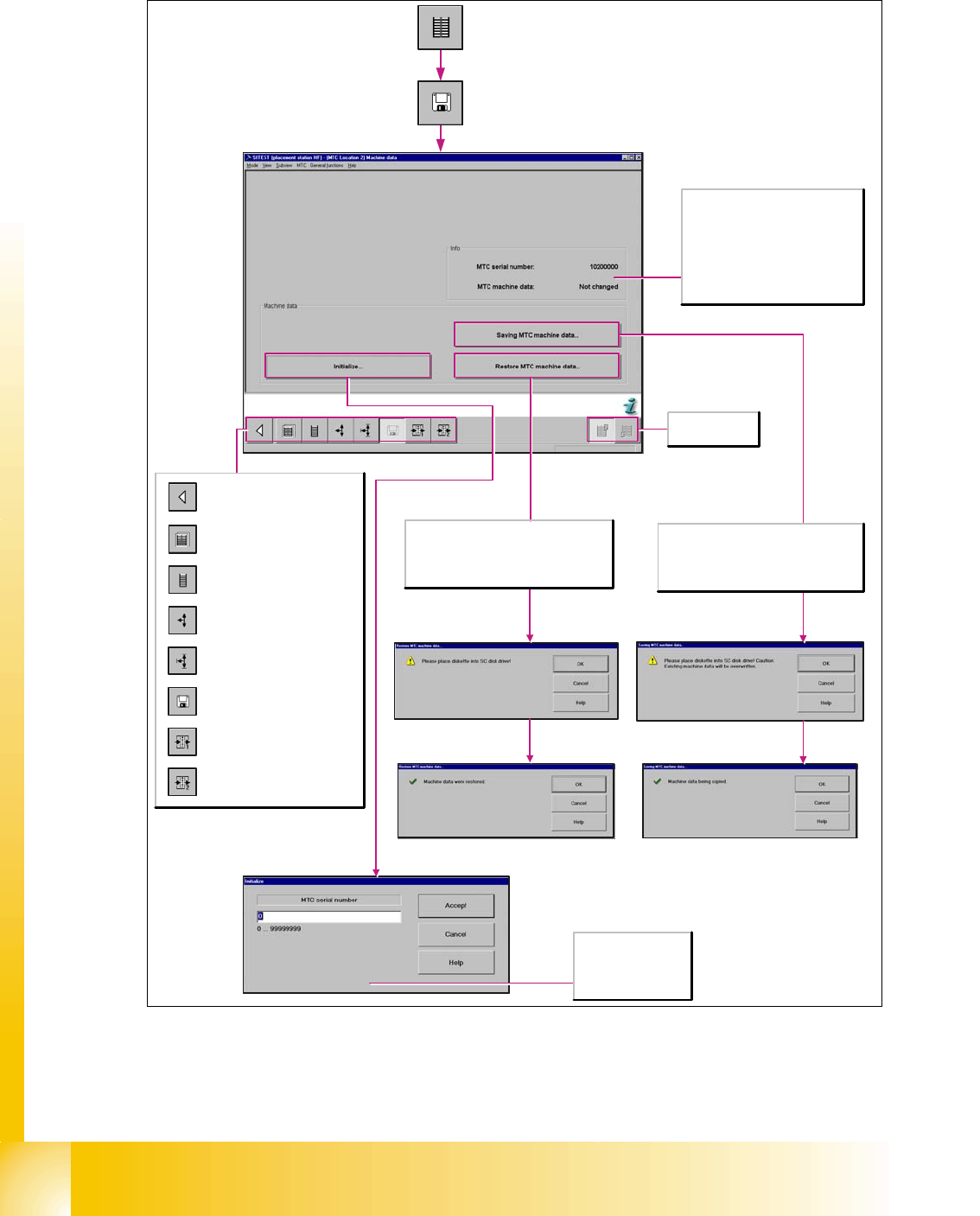

Fig. 11.3 - 12 Storage machine data
Save Machine-Data: With the SW 601, it is not possible to save the data onto the floppy disc.
Now you can choose a folder and save the mtc.ma (e.g. Memory Stick)
Calls the view for the functions
of the MTC.
Calls the view for the tower
functions of the MTC.
Calls the view for the axis
functions of the MTC.
Calls the view for the settings of
the MTC.
Calls the view for the machine
data functions of the MTC.
Calls the view for the inputs/
outputs of the MTC.
Calls the view for the inputs/
outputs of the MTC.
Return to the main view.
Selects the MTC
at location 2 or 4.
The file mtc.ma, which contains the machine
data for the MTC, is copied from floppy disk
to the directory C:\SRDaten\srcma of the
station computer. The machine data is then
transferred to the MTC.
This saves the changes to the machine data
of the MTC in a file called mtc.ma which is
located in the directory C:\SRDaten\srcma
of the station computer. The file mtc.ma is
subsequently copied to floppy disk.
MTC serial number
Enter the serial number
of the MTC here.
The serial number can
be found on the MTC.
Info
MTC serial number
The serial number of the MTC is
displayed here.
MTC machine data
The current status of the MTC
machine data is shown here, the value
may be "Changed" or "Not changed".
