1 - 51
Student Guide SIPLACE HF/HF3
Edition 09/2005 11 MTC 2
51
➠ Firmly tighten the clamping screws and varnish them with red screw locking varnish.
➠ Check the belt tension again.
➠ Remove the belt tension stickers.
➠ Dock the MTC 2 onto the SIPLACE station (see the User Manual).
➠ Check the zero offset of the lifting axis if you have changed the belt tension.
11.3.3.2 Guide rails and stopper bars
Fig. 11.3 - 16 Guide rails and stopper bars in the upper frame
Key
1 Guide rail (shown here for tower 1)
2 Stopper bar (shown here for tower 1)
Tools and accessories 11
– 1 set of hexagon socket wrenches
Preparatory measures 11
➠ Move the lifting axis into the refill position for cassette 1 and completely set up the MTC 2 with
empty cassettes (see User Manual).
➠ Set up every cassette with an empty WTC in the bottom and in the top level.
2
1
1 - 52
Student Guide SIPLACE HF/HF3
11 MTC 2 Edition 09/2005
52
Checking and setting the guide rails, top 11
➠ Manually open the WTC interlock for each WTC which has been set up and check that the
WTC can be pulled out approx. 0.5 to 1mm up to the closed guide rail. When closing the WTC
interlock, the WTC must automatically click into place.
➠ Open the guide rail. When closing the guide rail, use a WTC which has been pulled out to
check either:
– that the WTC engages in the WTC interlock again on its own or
– that the guide rail cannot be closed.
➠ Set the position of the guide rail (by moving it in its fixing holes), if the behavior described above
is not observed.
Checking and setting the stopper bars, top 11
➠ Manually open the side interlock (leaf springs) for each WTC and check that the WTC can be
pushed through approx. 0.5 to 1mm up to the stopper bar. When closing the interlock, the WTC
must click into place automatically.
➠ Set the position of the stopper bar (by moving it in its fixing holes), if the behavior described
above is not observed. If necessary, remove the covers behind the doors.
Check on tower 1 that a WTC XL with 25 mm-high components can be transported without
colliding with the stopper bar. If necessary, correct the position of the stopper bar.
Checking and setting the stopper bars, bottom 11
➠ Move the doors fully down
➠ Remove the side covers
➠ Set the position of the guide rails until they are approx. 0.5 through 1mm away from the WTCs.
WARNING
The stopper bar and guide rail must under no circumstances touch the WTCs!
1 - 53
Student Guide SIPLACE HF/HF3
Edition 09/2005 11 MTC 2
53

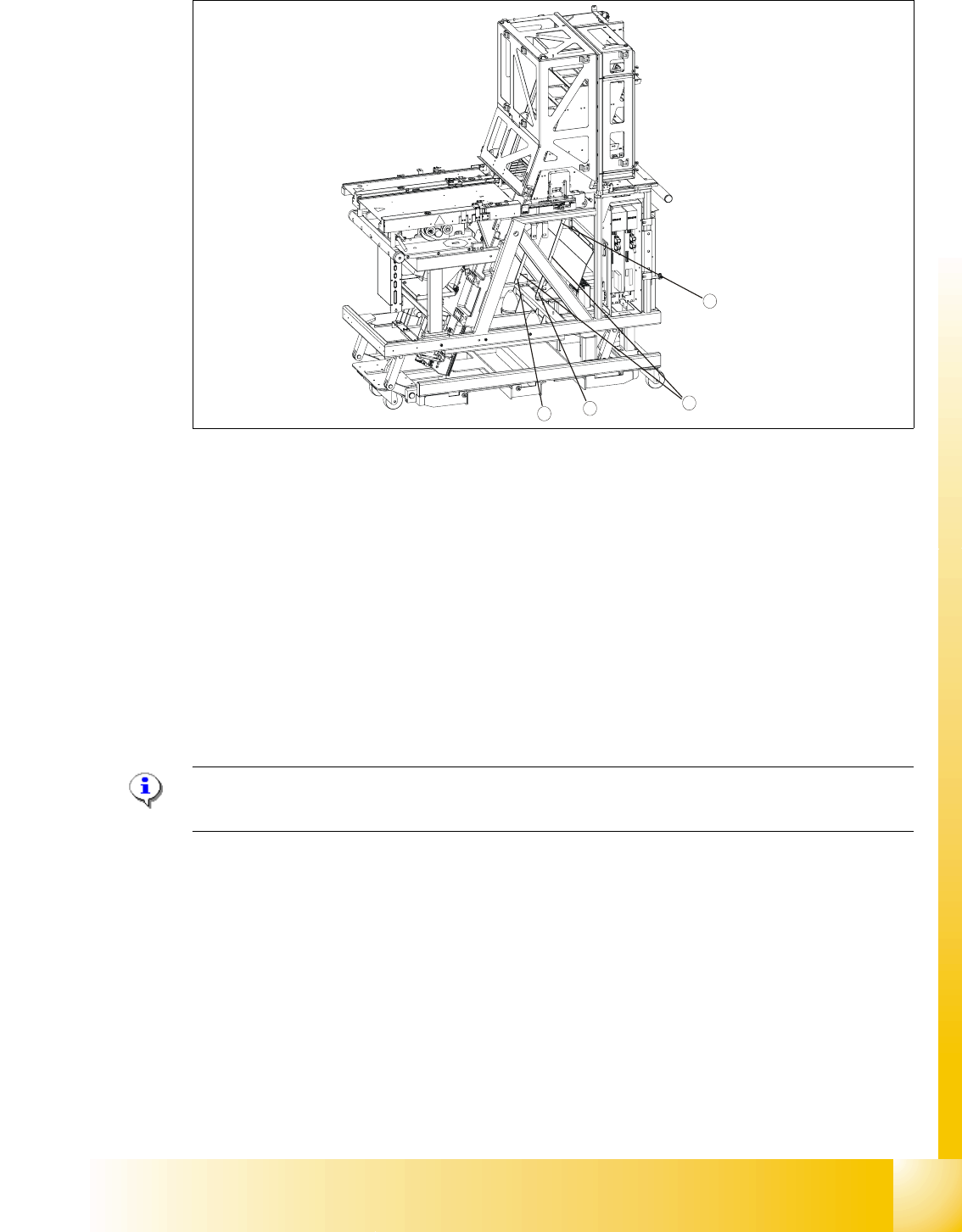

Fig. 11.3 - 17 Guide rails, bottom
Key
1 Guide rails
2 Attachment screws
11.3.3.3 Cassette guide rails
Tools and accessories 11
– 1 set of hexagon socket wrenches
Preparatory measures 11
NOTE
An empty cassette is needed to set the cassette guide rails.
➠ Empty the MTC 2 completely (see the User Manual).
➠ Prepare an empty cassette XL.
Setting the cassette guide rails 11
1
2
2
2
