Student Guide SIPLACE HF/HF3
Edition 09/2005 11 MTC 2
75
11.4 Masterdrives
11.4.1 Operating the master drive with the parametrization unit (PMU)
The PMU parameterizing unit enables parameterization, operator control and visualization of the
converters and inverters directly on the unit itself.

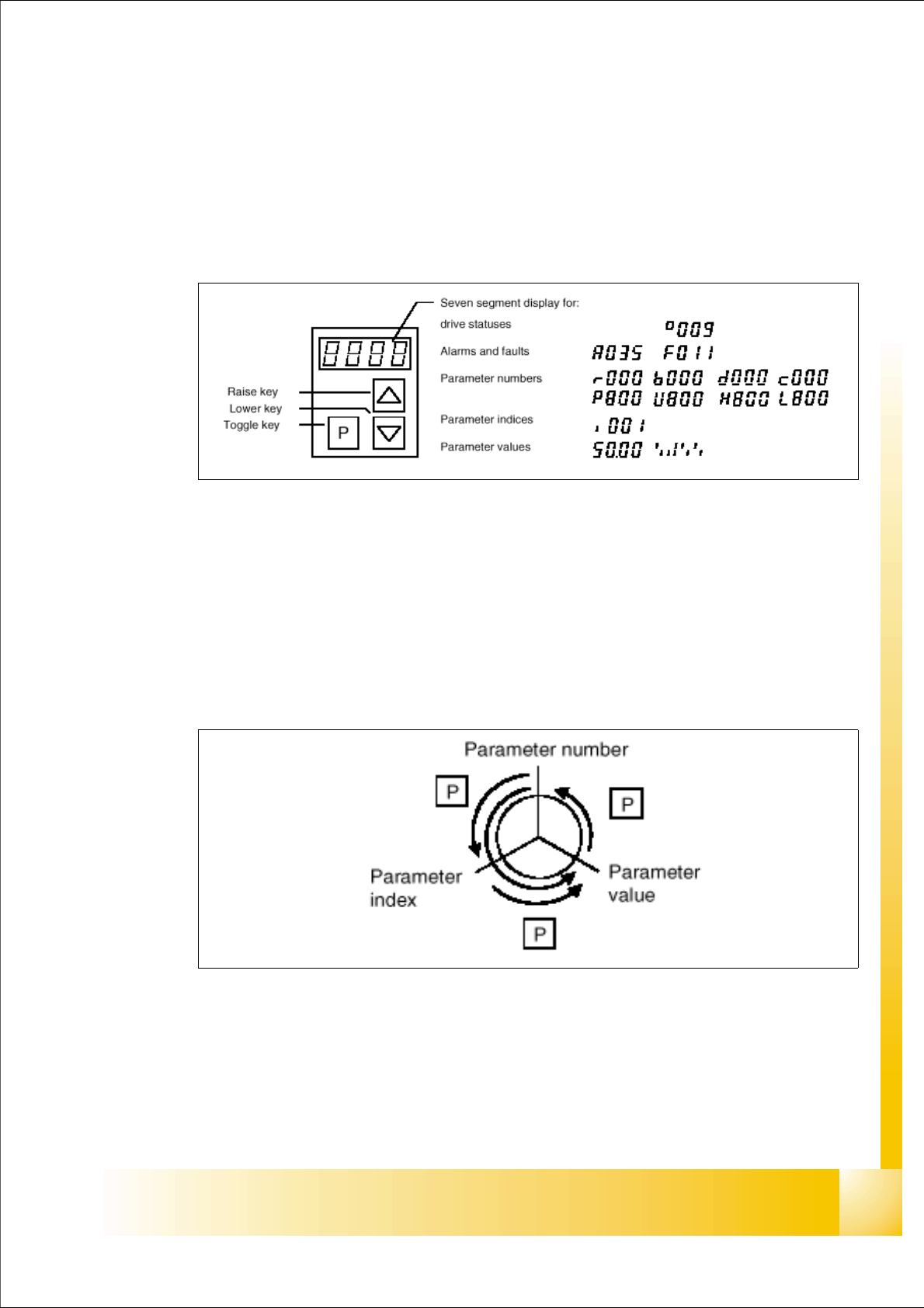

Fig. 11.4 - 1 PMU parameterizing unit
With the toggle key, you can change over:
– from the parameter number to the parameter index
– from the parameter index to the parameter value
– from the parameter value to the parameter number
If the parameter is not indexed, you can jump directly from the parameter number to the parameter
value.
Fig. 11.4 - 2 Toggle key of the PMU
1 - 76
Student Guide SIPLACE HF/HF3
11 MTC 2 Edition 09/2005
76
11.4.2 Important Parameter for trouble shooting
– U / r = visualization parameters
– P = parameters which can be changed
– r004 = Output current inverter, converter
– r006 = actually DC link voltage
– r009 = Temperature motor
– r069 = Software version Index 1 main unit
Index 2 Option unit slot A
11
Index 3 Option unit slot B 11
Index 4 Option unit slot C 11
– U003 = Parameter set version:
for the Feed axis tower 1/2 software version
for the Lifting axis tower 1/2 software version
Note: On the MTC 2 are four different parameter sets, because the mechanical construction for
tower 1 and tower 2 is different and new parameter sets for new Hardware e.g. motor lifting axis
version 02.
So, please look always to new technical information in the DMS!
– U501 = Machine data
– P060 = Function parameter to choose actually menu.
Index 4:Unit configuration: Address
11
– P095 = Motor list with standard motors
– P096 =Function parameter motor
Define serial Interface: 11
– P700 interface address of COM 1
– P701 baud rate 8 is equal to 38400
