1 - 6
Student Guide SIPLACE HF/HF3
14 Test Equipment Edition 09/2005
6
m Four BNC sockets, impedance 50 Ohm
The sockets can be assigned as required with the following signals:
– Track signal A or B TTL level, max. 5 V
– Zero pulse TTL level t
min
= 1 ìsec
– End signal TTL level t
min
> 10 msec
– Trigger TTL level t
min
> 10 msec
– Counting error TTL level, trigger signal from counting error sensor for the
oscilloscope
–V
setpoint
± 10 V, analog signal, R
i
= 10 kOhm
– Force ± 10 V analog signal, R
i
= 10 kOhm
–V
REG
(total current) ± 10 V analog signal, R
i
= 10 kOhm
– Position deviation ± 10 V analog signal; the signal is generated internally in the axis
tester.
14.2.1 Package
The complete SIPLACE axis tester, part no. 03002801-01, is supplied with the following compo-
nents:
– SIPLACE Axis Tester, part no. 03000761-01
– Test cable A361 ... A363 (length 150 cm), with 37-pin plug and 37-pin socket for connecting to
the axis controllers of S2x, F4/F5 and HS placement machines,
part no. 03002803-01
– CAN bus cable, part no. 00349679-03
– RS232 C cable, part no. 03002804-01
– Manual for axis tester, part no. 00193370-01
1 - 7
Student Guide SIPLACE HF/HF3
Edition 09/2005 14 Test Equipment
7
14.3 Axis Test Box (former version) and Adapter Board
Item no: Axis test box, including adapter board 00303430-06 14
Item no: Axis test box 00328041-05 14
Item no: Cable 00304771-03 14
Item no: Adapter board 00328040-01 14
Applica-
tion:
14
The axis test box is used in connection with the test adapter axis, for calibration of the dynamics
of the axes. (Placement head axes and gantry axes).
14
14
fig. 14.3.1 Adapter board for axis test box, item no: 00328040-01
14
fig.: 14.3 - 2 SIPLACE axis test box, front view
14
fig.: 14.3 - 3 SIPLACE axis test box, back view
1 - 8
Student Guide SIPLACE HF/HF3
14 Test Equipment Edition 09/2005
8

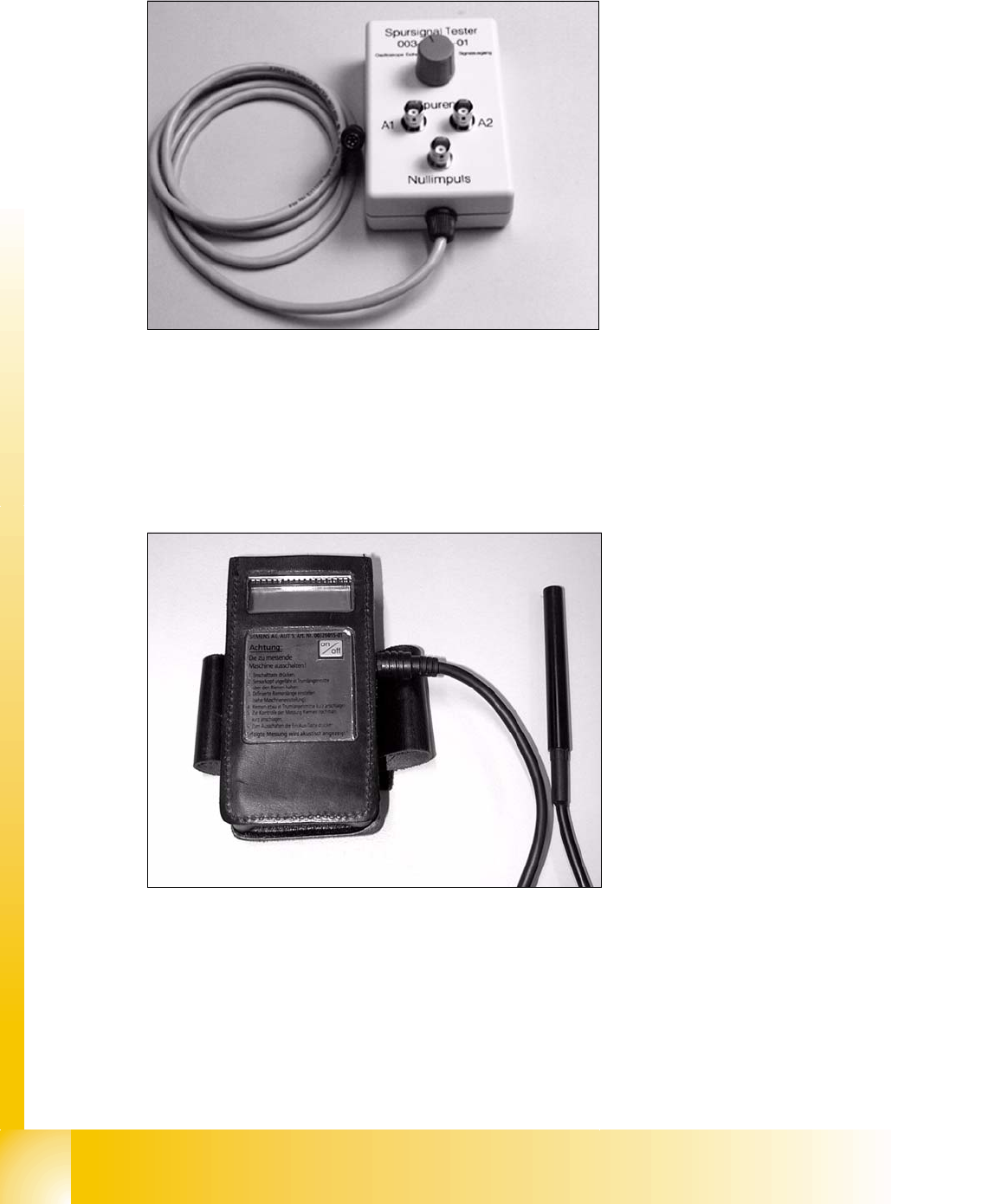

14.4 Track Signal Tester HS / HF
14
fig.: 14.4 - 1 Track signal tester HS
Applica-
tion:
14
Testing of track signals of incremental measuring systems of gantry axes. 14
14.5 Belt Tension Tester
14
fig.: 14.5 - 1 Belt tension tester
Applica-
tion:
14
The belt tension tester is used for the adjustments of belt tensions of the toothed belts on the
placement system.
14
