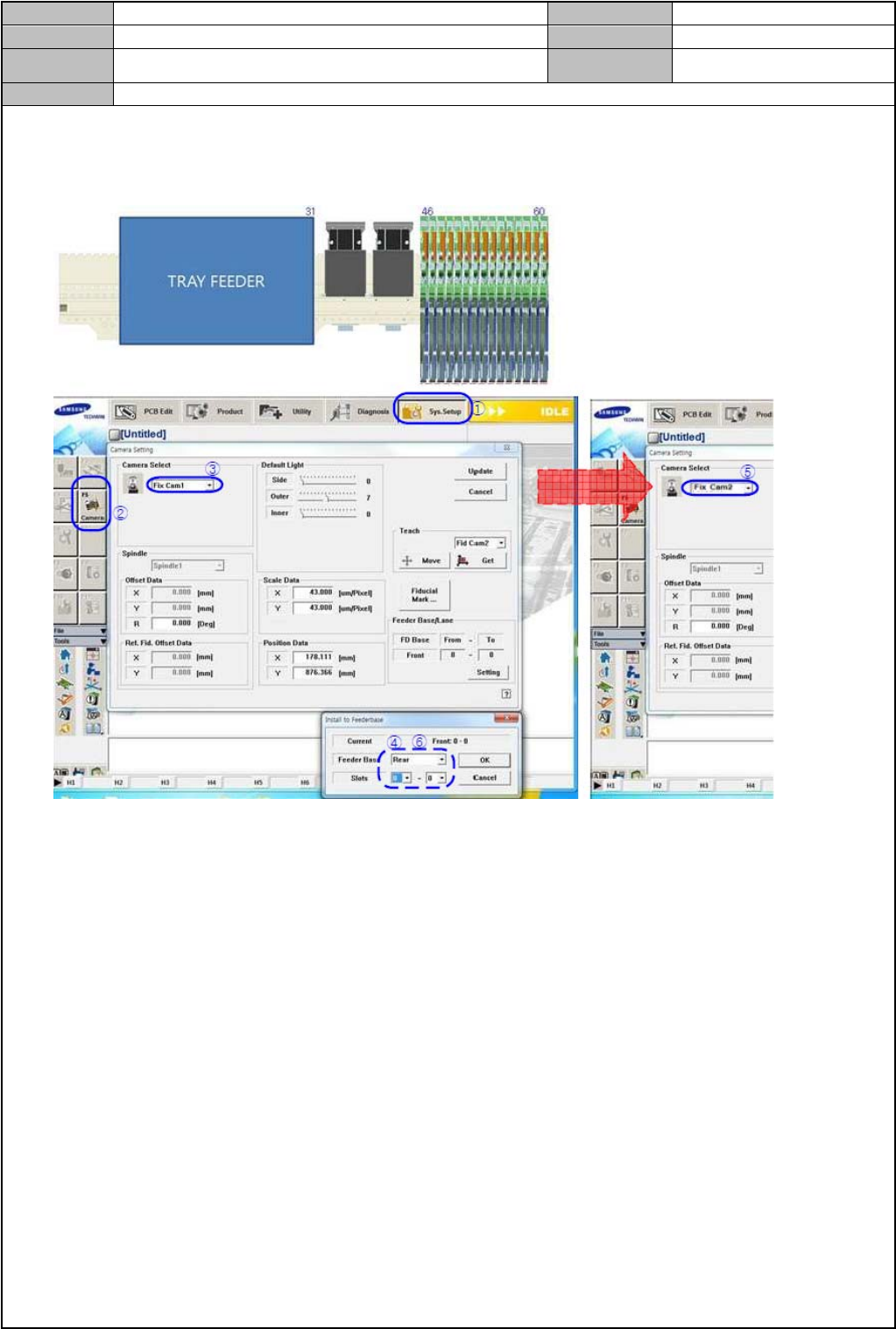

Fix Camera 两个时
Camera Setting → Camera Select → Fix Cam1 → Setting (Slot 32~39, 40~45)
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title
变更FEEDER BASE SYSTEM OPTION
Page
3-9-6
Note

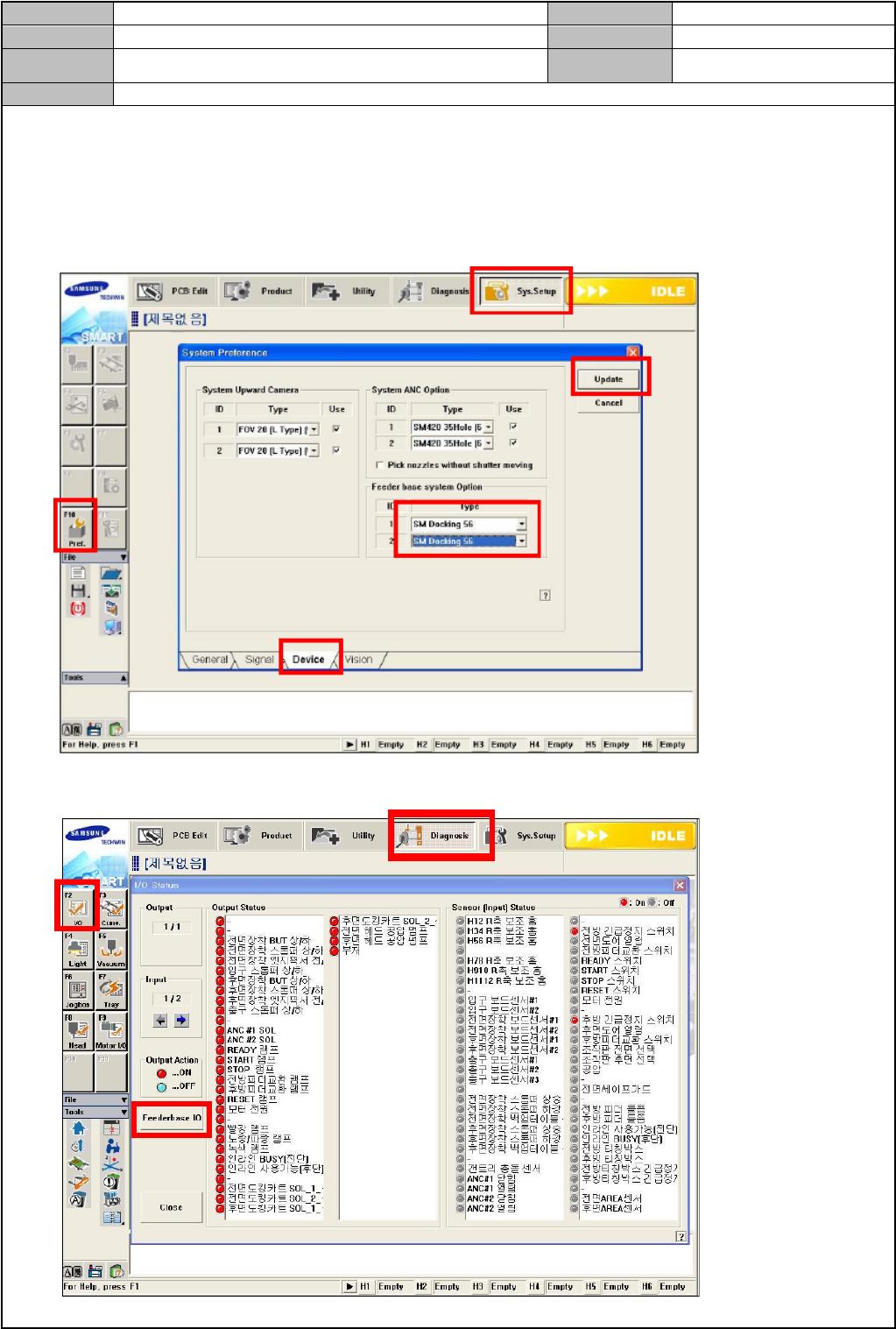

[变更 FEEDER BASE SYSTEM OPTION]
1. 在<Sys.Setup> → <F10 Pref>. → <Device> → <Feeder Base System Option>选择<SM Docking
56> → 点击<Update>
2. 选择<Diagnosis> → <F2 I/O> → <Feeder Base IO>，确认是否正常启动
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.9 DOCKING CART & FEEDER BASE
Version
01
Title
变更FEEDER CHAGE位置
Page
3-9-7
Note

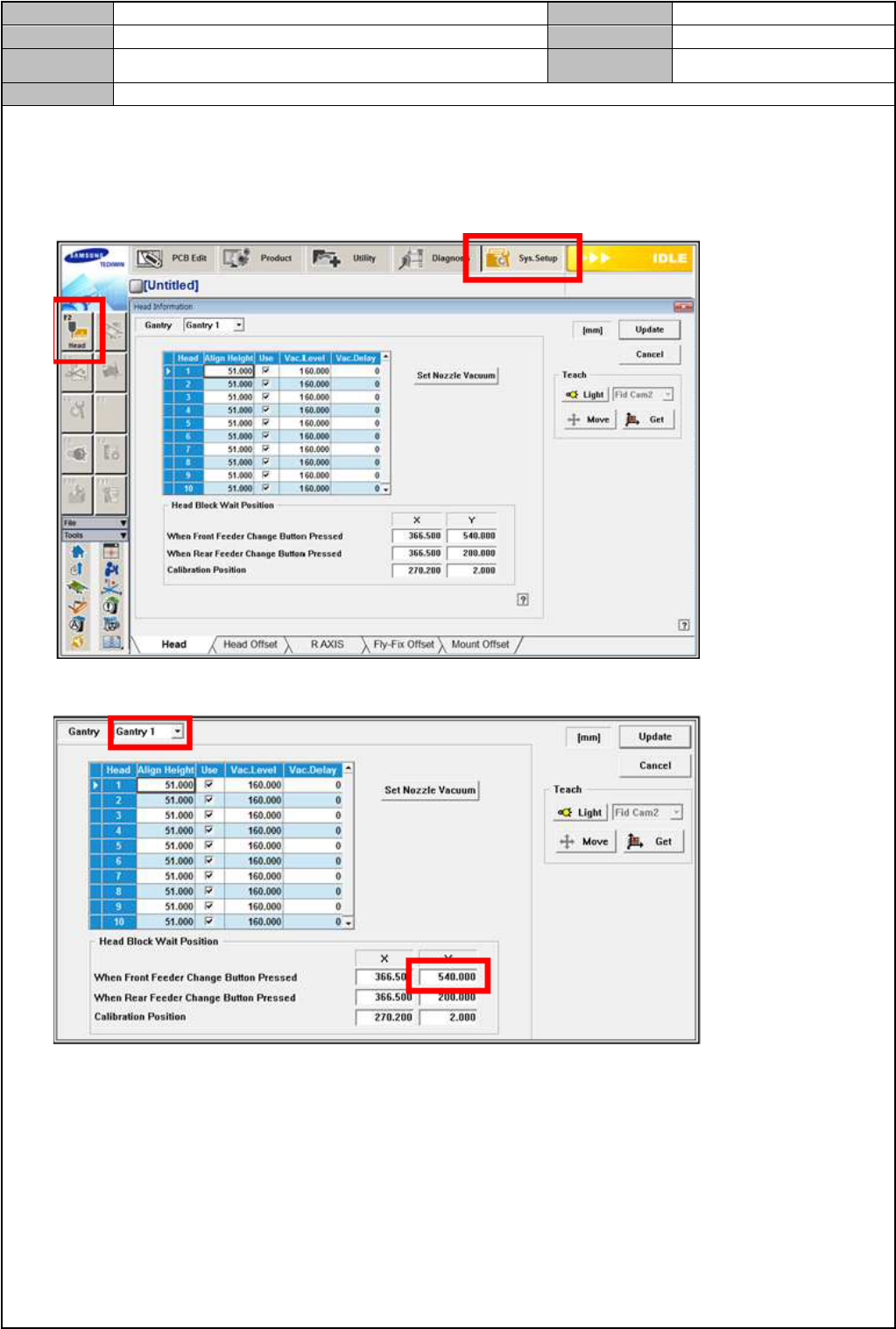

[变更 FEEDER CHAGE 位置]
1. 选择<Sys. Setup> → <F2. Head>
2. 在 Gantry 1 将 When Front Feeder Change Button Pressed 的 Y 值变更为 550 → 540
