Model DECAN Series Company SAMSUNG TECHWIN Module 3.15 PC RACK V ersion 01 Tit le 组装 PC RACK Page 3-15-6 Note No. 规格 ST ART END 备注 1 3M CB-CE-3 PCIE-2 AXIO#2(Front) A 2 SM51 1_KV003-2 SBC-VGA1 F-MON 3 SM51 1_PC003 PC-232…

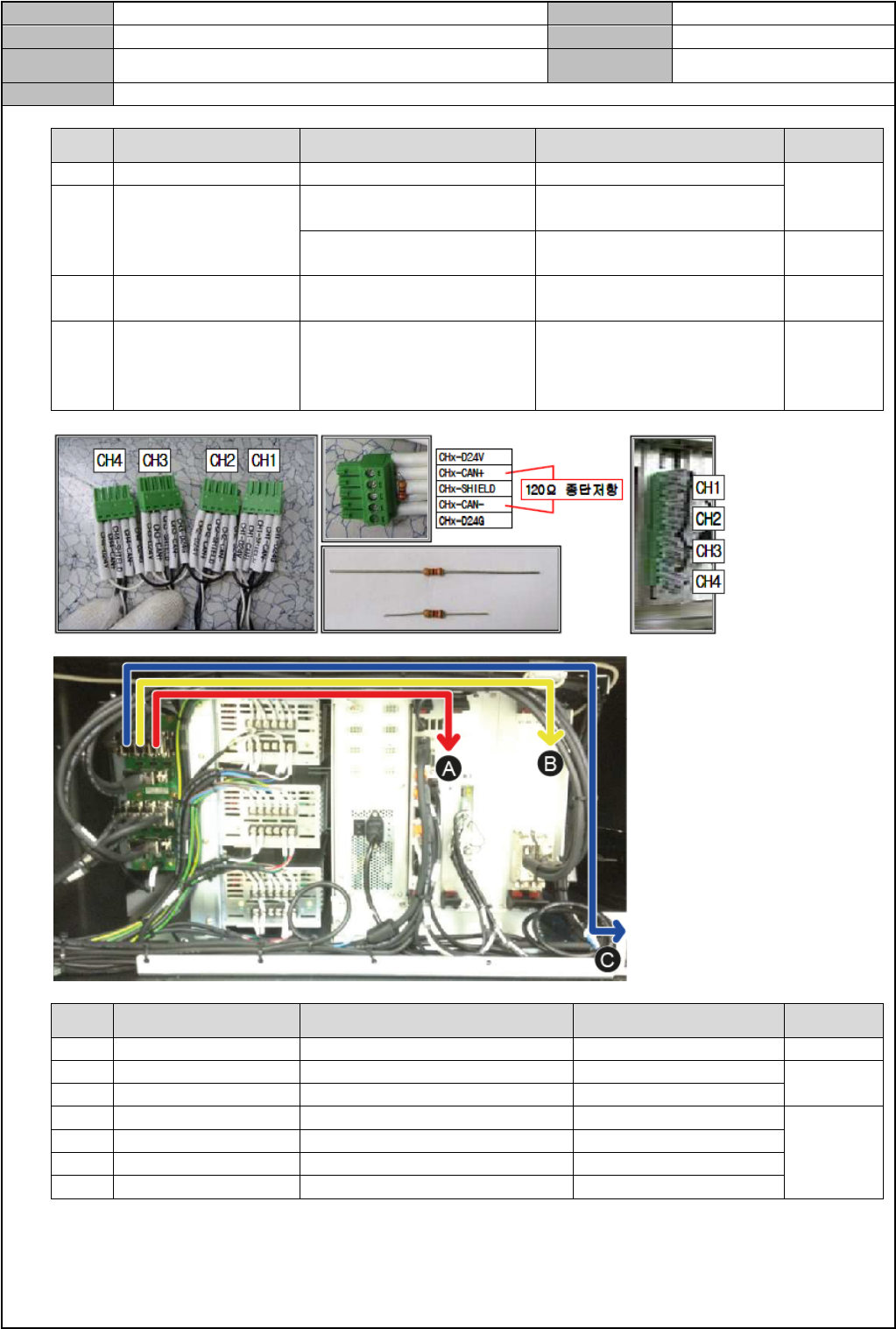

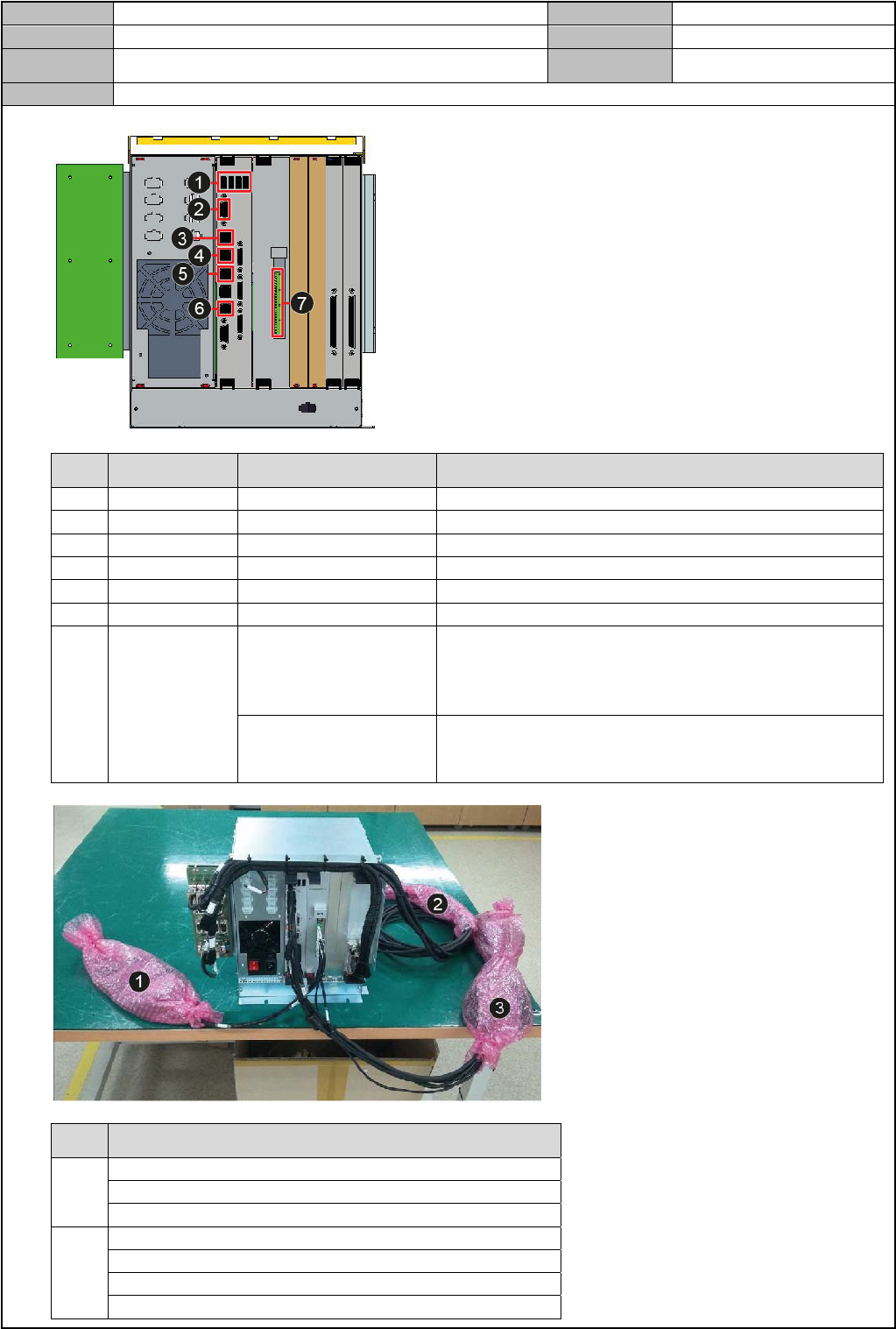

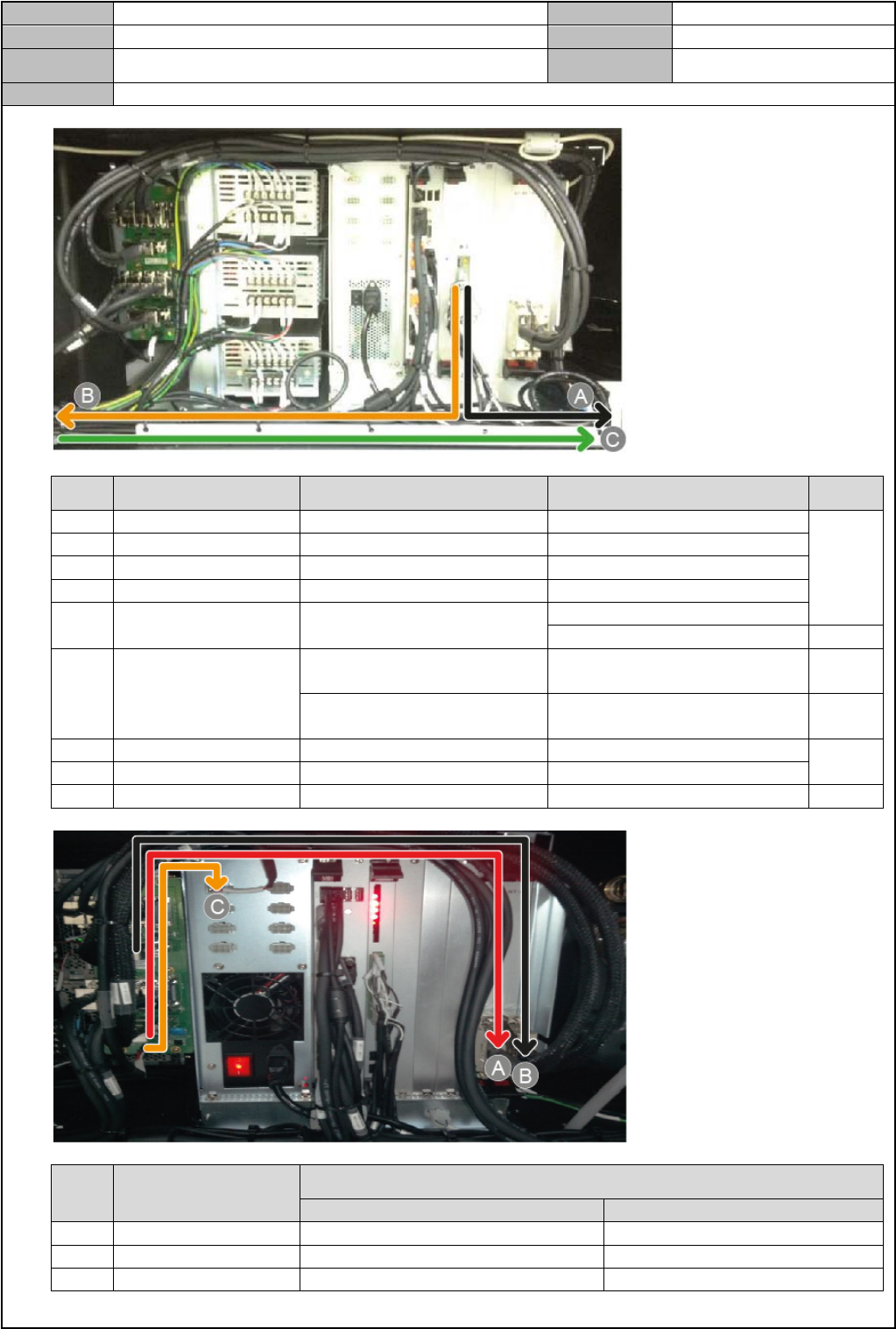

Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.15 PC RACK
Version
01
Title
组装PC RACK
Page
3-15-5
Note
No.
规格
START END
备注
8 SM511_PW127 T6L-7,8,9,10 PS1,2+24V,-24G
A
9 SM511_PW101
PS5-L,N
PS6-L,N
T5L-7,8,9,10
PS5-GND
PS6-GND
PS1-GND
PS5-GND
P/S 内部
10 SM511_PW123 PS3+24V,-24G
FZ12-CN5
FZ910-CN5
B
11 SM511_IT005
PS2+24V
PS2-24G
DEVICE NET B/D CH1
DEVICE NET B/D CH2
DEVICE NET B/D CH3
DEVICE NET B/D CH4
C
No.
规格
START END
备注
1 SM511_VIS000 VIS-CN11 RACK-CN1 A
2 SM511_VIS012 VIS-CN4 NX1-CN1
B
3 SM511_VIS012-1 VIS-CN9 NX2-CN1
4 SM511_VIS001-1 VIS-CN1 FID1-CAM1
C
5 SM511_VIS001-2 VIS-CN2 FID1-CAM2
6 SM511_VIS005 VIS-CN3 FLY1-PW
7 SM511_VIS008 VIS-CN5 FLY1-CAM
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.15 PC RACK
Version
01
Title
组装PC RACK
Page
3-15-6
Note
No.
规格
START END
备注
1 3M CB-CE-3 PCIE-2 AXIO#2(Front)
A
2 SM511_KV003-2 SBC-VGA1 F-MON
3 SM511_PC003 PC-232 PC-232-EXT
4 SM511_VM111 SBC-LAN1 LAN-EXT
5 SM511_IT001
COM3/4(FULL IT OPTIO
N)
F-BAR
R-BAR B
6 SM511_IT004
DEVICE NET B/D CH2
DEVICE NET B/D CH3
FRONT FDR BASE RIGHT
REAR FDR BASE LEFT
A
DEVICE NET B/D CH1
DEVICE NET B/D CH4
FRONT FDR BASE LEFT
REAR FDR BASE RIGHT
B
7 SM511_AX103-1 FY-AX-EXT AX-CN2
C
8 SM511_CS051-1 AX-CN4-EXT AX-CN4
9 SM511_PC005 F-USB USB-HUB
No.
规格
标签
CPU BOX VISION IF BOARD
A SM511CVIS012-2 NX2-CN1 NX2-CN1
B SM511CVIS012 NX1-CN1 NX1-CN1
C SM48C_VIS000 VIS-CN11 RACK-CN1
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.15 PC RACK
Version
01
Title
组装PC RACK
Page
3-15-7
Note
No.
项目 规格 标签
1 USB SM471PC_007 USB-PORT
2 VGA1 SM511C_KV003-2 SBC-VGA1
3 COM5/6 SM511_VM101 COM5/6
4 COM3/4 SM511_IT001 COM3/4
5 COM1/2 SM48C_PC003 COM-1/2
6 LAN3 SM511_VM111 SBC-LAN1
7
SM511_IT004
CH1_CAN+, CH1_CAN-, CH1_SHIELD
CH2_CAN+, CH2_CAN-, CH2_SHIELD
CH3_CAN+, CH3_CAN-, CH3_SHIELD
CH4_CAN+, CH4_CAN-, CH4_SHIELD
SM48C_IT005
CH1_D24V, CH2_D24V, CH3_D24V
CH4_D24V, CH1_D24G, CH2_D24G
CH3_D24G, CH4_D24G
No.
项目
1
DEVICE-PW
CAN_CH1_L
CAN_CH4_R
2
FID1-CAM1
FID1-CAM2
FLY1-PW
FLY1-CAM
