Model DECAN Series Company SAMSUNG TECHWIN Module 3.19 ELECTRIC DEVICE V ersion 01 Tit le 组装 MOTOR DRIVER Page 3-19-28 Note 3. 设定 Step Motor Driver 的 Dip Switch 4. 连接电缆 规格 品名 ST ART END SM41 SC006 MC1 ENABLE CABLE ASSY M…
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
组装MOTOR DRIVER
Page
3-19-27
Note

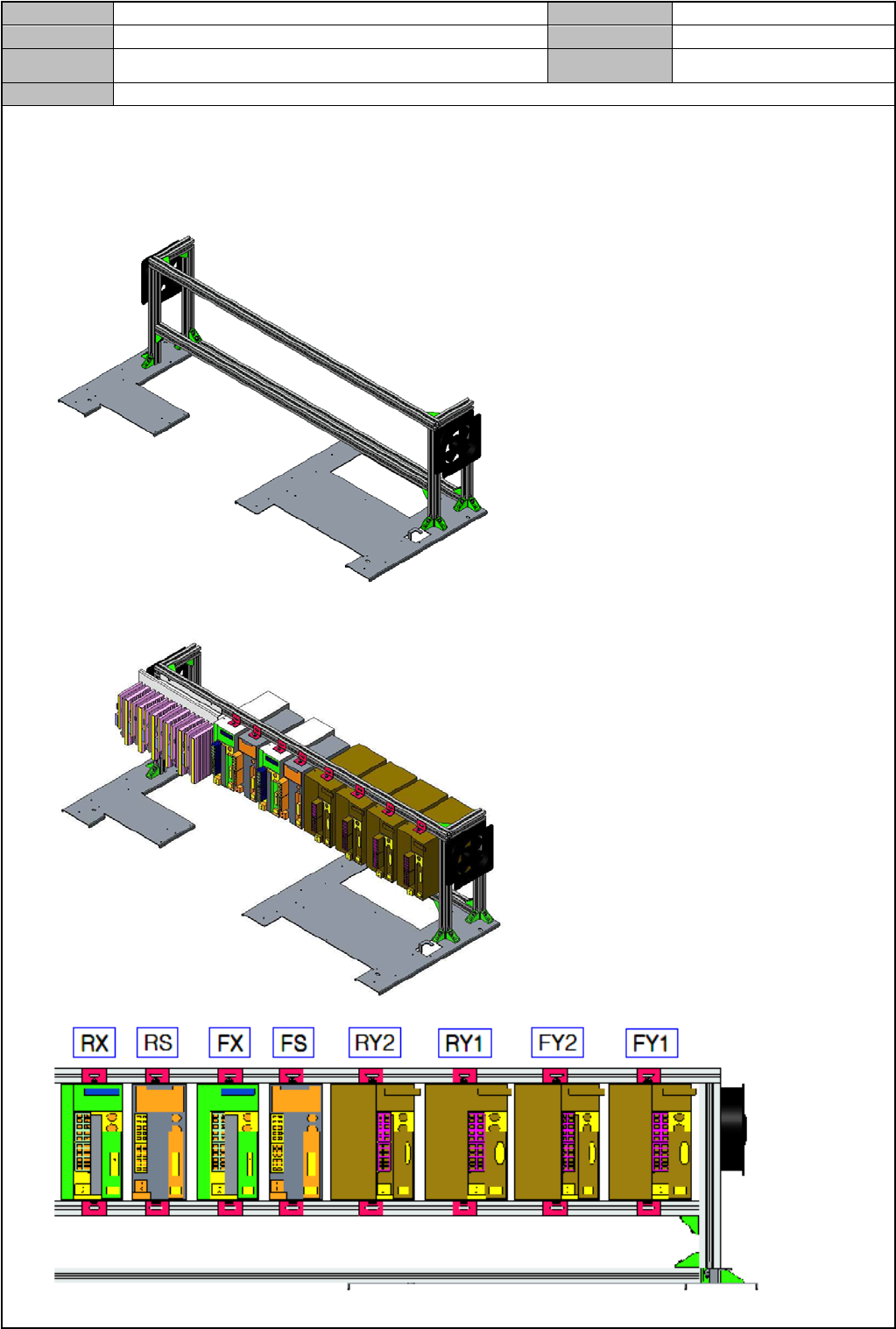

[组装 MOTOR DRIVER]
1. 准备托架
2. 组装 Motor Driver
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
组装MOTOR DRIVER
Page
3-19-28
Note

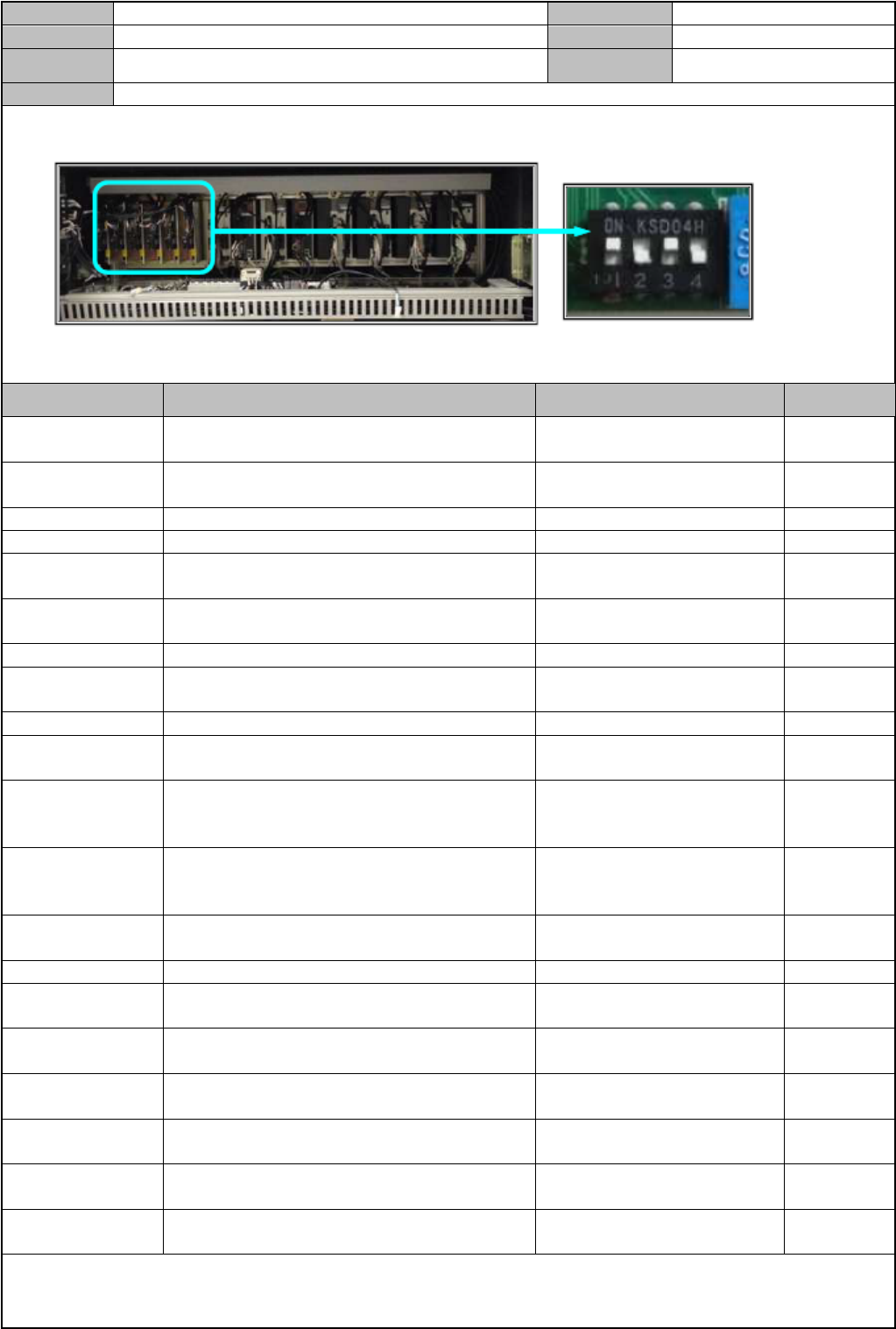

3. 设定 Step Motor Driver 的 Dip Switch
4. 连接电缆
规格 品名
START END
SM41 SC006 MC1 ENABLE CABLE ASSY MC1/+A1,21
MC1/-A2,22
SC-CN18,
SC-CN19
SM411 PW029 SHUTTLE WIDTH PW CABLE ASSY MS1.WS1,WW1,MS2.WS2.
WW2-CN1
DP2-CN2,
3,4,5
SM471 PW007 CABLE ASSY-CP1 TB1 MC1 TB1-1A,6A CP1-2,4
SM471 PW008 CABLE ASSY-CP2 TB1 MC2 CABLE MC1-1,3,5TB1-13A,15A CP3-2,4,6
SM471 PW018 CABLE ASSY-FY1 FY2 SERVO POWER TB1-13C,15C,17C,19C,21C
PE15,16
FY1, FY2
DRV
SM471 PW019 CABLE ASSY-RY1 RY2 SERVO POWER TB1-14C,16C,18C,20C,22C
PE17,18
RY1, RY2
DRV
SM471 PW111-2 CABLE ASSY-TB1 FS1 FS2 TB1-9C,10C FS1,FS2-B
SM471 PW115 CABLE ASSY-MC1 TB1 MC1-2,4,6 TB1-17A,1
9A,21A
SM471 PW120-3 CABLE ASSY-TB1 MC1 MC1-13 TB1-11B
SM471 SC007-1 AXIO BD 1 PWR CABLE ASSY SC-CN27 AXIO#1-C
N2
SM511 PW016 LI
QI
CABLE ASSY-FX,FS SERVO POWER TB1-13B,15B,17B,19B,21B
PE11,12
FX,FS-
DRV
FX,FS-PE
SM511 PW017 LI
QI
CABLE ASSY-RX,RS SERVO POWER TB1-14B,16B,18B,20B,22B
PE13,14
RX, RS-
DRV
RX, RS-PE
SM511 PW112 CABLE ASSY-FAN POWER TB1-6D, TB1-7D FS3-B, FS
4-B
SM511 PW113 CABLE ASSY-SERVO FAN POWER TB1-8D FS5-B
SM511C VM003 CABLE ASSY-FY1 FY2 DRV COMMAND AXIO#1-CN11, AXIO#1-CN
12
FY1,2-DR
V
SM511C VM004 CABLE ASSY-RY1 RY2 DRV COMMAND AXIO#1-CN13, AXIO#1-CN
14
RY1,2-DR
V
SM511C VM005 CABLE ASSY-FX FS DRV COMMAND AXIO#1-CN15, AXIO#1-CN
16
FX,RX-DR
V
SM511C VM013 CABLE ASSY-MS1 WS1 DRV COMMAN AXIO#1-CN21, AXIO#1-CN
22
MS1,WS1-
DRV
SM511C VM014 CABLE ASSY-WW1 MS2 DRV COMMAND AXIO#1-CN23, AXIO#1-CN
24
WW1,MS1
-DRV
SM511C VM015 CABLE ASSY-WS2 WW2 DRV COMMAN
D
AXIO#1-CN25, AXIO#1-CN
26
WS2,WW2
-DRV
Model
DECAN Series
Company
SAMSUNG TECHWIN
Module
3.19 ELECTRIC DEVICE
Version
01
Title
SMEMA检查
Page
3-19-29
Note

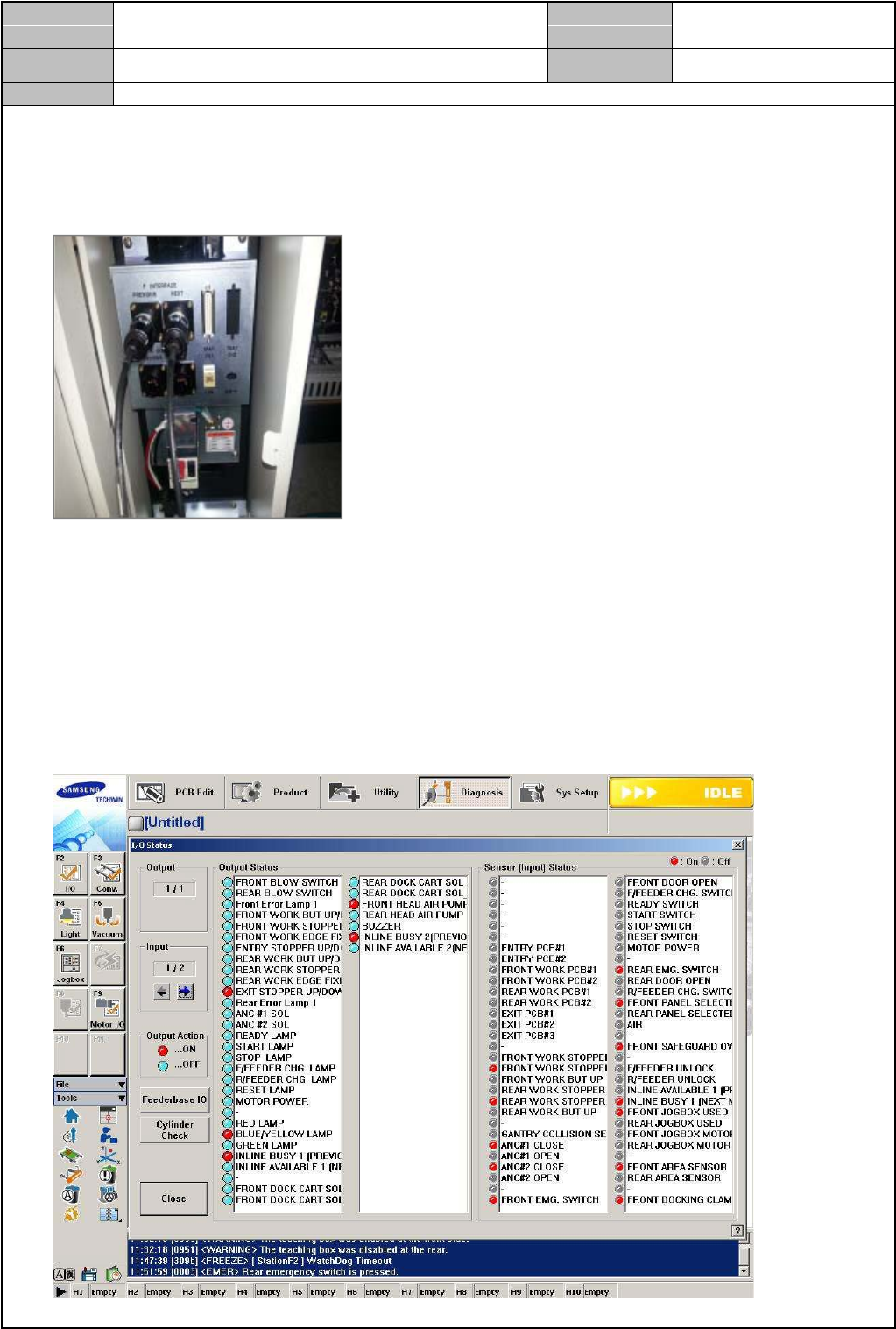

[SMEMA 检查]
1. 将 SMEMA 夹具连接到设备
2. 在 MMI 菜单中，在<Diagnosis>→<F2(I/O)>项目选择<Inline Busy[Previous]>时，确认 T/Box 的<B
usy LED>上是否亮灯
3. 选择<Inline Available[Next]>时，确认 T/Box 的<Available LED>上是否亮灯
4. 用手按下 Teach Box 的<Pre>时，确认<F2(I/O)>的<Inline Available [Previous]>上是否亮灯
5. 用手按下 Teach Box 的<Next>时，确认<F2(I/O)>的<Inline Busy [Next]>上是否亮灯
