KHM_YG200L_PL - 第15页
3 5 Head Combination (R) Head KHM-081 11 1 8 25 83 42 43,44 38 3 16 15 39 47 40 60 69 69 70 66 65 61 63 62 68 64 12 1 1 5 21 37 38 37 74 76 82 77 75 80 78 79 80 36 1,2 9 23 56 56 48 50 55 19 20 18 6 4 10 49 41 51 52 52 8…
2
5
FNC Head (R)
Head
KHM-1103
91
59
62
60
110
111
61
121
66
90
92
88
89
92
54
55
68
67
68
69
87
95
100,101
98,99
93,94
7
78
116
115
117
102
102
53
58
75
81
73
72
56
84
108
109
122
113
112
112
112
77
76
85
83
83
57
1
8
10
7
7
3
74
82
65
86
107
103
96
84
70
114
71
97
81
81
81
79
3
4
9
4
11
82
102
80
77
53
27
26
25
22
23
19
24
18
12
13
13
14
14
15
15
27
26
17
16
20
21
24
29
21
4
6
2
5
7
3
74
3
4
9
4
10
80
80
106
106
105
64
63
25
30
23
19
31
20
28
33
43
49
34
42
42
39
41
47
41
48
39
35
36
46
38
32
37
45
40
44
51
50
106
59
62
60
110
111
61
117
118
118
104
52
119
120
OLD
34 Fig A
34 Fig B 34 Fig C
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M7101-00X HOUSING, HEAD 1
2 90990-22J001 PACKING 1 H1, 3, 5
3 90990-22J003 PACKING 3
4 90990-22J002 PACKING 3
5 KV8-M7103-00X PISTON, PLUG 1
6 90990-22J015 PACKING 1 H2, 4, 6
7 90200-01J125 O-RING 3
8 KV8-M7103-10X PLUG 1
9 KV8-M7104-00X PISTON 1
10 90990-22J006 PACKING 1
11 KGT-M7106-A0X SHAFT HEAD SUB ASSY 3
12 KV8-M71RJ-00X COLLAR,BRG 1
13 KG7-M7137-A0X LEAF SPRING 2
14 KG7-M7169-00X SCREW 2
15 90990-28J002 WASHER PLAIN 2
16 KGT-M7106-01X BALL SPLINE 1
17 KGT-M7107-01X HOLDER, NOZZLE 1
18 KV8-M7109-00X COLLAR 1, HEAD 1
19 90933-03J128 BEARING 4
20 KV8-M7106-81X SPACER 2
21 KGT-M7167-00X PULLEY 2
22 KV8-M7154-00X SPG.RETURN 1
23 KV8-M7108-00X NUT 2
24 92A08-03303 SET SCREW M3X3 4
25 90933-02J604 BEARING 2
26 90440-01J030 CIRCLIP 2
27 KU1-M7152-00X WASHER 1 THURUST 2
28
KGT-M711S-A0X SHAFT HEAD SUB ASSY 2 Type 71, 72, 73F
KGT-M711S-B0X SHAFT HEAD SUB ASSY 3 Type 71, 79, 73F
29 KV8-M7110-00X COLLAR 2, HEAD 1
30 KV8-M71X2-00X SPG. RETURN 1
31 KV8-M7106-52X BALL SPLINE 1
32
KV8-M711N-A0X NOZZLE ASSY 1 Type 71, 72, 73F
KV8-M712N-A0X NOZZLE ASSY 1 Type 71, 79, 73F
33 KV8-M71X1-00X SPG. LOCATE 1
34
KV8-M71R1-10X SHAFT 1 1 Fig A
KV8-M71R1-20X SHAFT 1 1 Fig B
KV8-M71R1-30X SHAFT 1 1 Fig C
35 KV8-M71R2-01X BLOCK, STOPPER 1
36 KV7-M71M6-01X SCREW,NOZZLE 2
36-1 90990-09J004 SCREW,FLAT HEAD 2 (2007/11/9) MD00082 OK
37 KV8-M71R5-02X PIN, LOCATE 1
38 KV8-M71R6-02X HOLDER, INDEX 1
39 KV8-M71R9-00X CAM 2
40 KGT-M71RA-01X BEVEL-GEAR 1 1
41 KV8-M71RC-00X PIN, CAM 2
42 90440-10J008 CIRCLIP 4
43 KV8-M71RE-00X WASHER 1
43-1 90990-28J077 WASHER,PLAIN 1 (2007/12/18) MDX0125 OK
44 99009-12800 CIRCLIP 1
45 KV8-M71RL-00X NUT, LOCK 1
46 KV8-M71RH-00X SEAL,INDEX 1
46-1 Delete (2008/4/8) ME40004
47 KV8-M71RM-00X SLEEVE 1
48 KV8-M71RB-A0X BEVEL-GEAR 2 ASSY. 1
48-1 KV8-M71RB-11X BEVEL-GEAR 2 1 (2007/10/1) MD80023 OK
49 KGT-M71R7-01X HOLDER, BRG. 3
50 KGB-M71R8-00X COLLAR, BRG. 3
51 90933-01J801 BEARING 3
52 KGT-M7111-00X PULLY, POST 1
53 KV8-M7115-00X SHAFT 1, TENSION 2
54 KGB-M7116-00X PULLY 2 1
55 92A08-04305 SET SCREW M4X5 3
56 KGT-M7117-00X BLOCK, ADJUST 1
57 KV8-M7119-00X BLOCK, ADJUST 1
58 KGT-M7166-00X PLATE, VALVE 1
59 KGT-M71V1-00X SENSOR STAY F 1
59-1
KGT-M71V1-01X SENSOR STAY F 1 R HEAD 2007/12/21 MDY0099 NG
KGT-M71V1-11X SENSOR STAY F 1 L HEAD 2007/12/21 MDY0099 NG
60 KGT-M71VU-00X PLATE, SENSOR 3
60-1 KGT-M71VU-01X BLOCK, SENSOR 3 2007/12/21 MDY0099 NG
61 KGT-M71RX-00X HOLDER, SENSOR 3
61-1 KGT-M71RX-01X HOLDER, SENSOR 3 2007/12/21 MDY0099 NG
62 KV8-M71VR-00X PLATE, NUT 3
62-1 KGT-M71VR-00X PLATE, NUT 3 2007/12/21 MDY0099 NG
63 KGT-M71VD-00X BRACKET,AMP 6
64 KGT-M71VE-01X PLATE, BRACKET AMP 1
65 KGT-M71V3-00X BRACKET, LOCK SENSOR 1
66 KGT-M71V9-01X COVER 1
67 KGB-M71Y1-01X COLLAR 1,PULLEY 1
67-1 90990-41J011 COLLAR 1 (2008/4/15) ME20075 OK
68 90933-01J800 BEARING 2
69 99009-10800 CIRCLIP (ISTW-10) 1
70 KGT-M71Y9-00X BODY, CYLINDER 1
71 KV8-M71YA-00X VALVE CLUTCH 3
72 91317-05006 BOLT HEX. SOCKET HEAD 6
73 90990-22J005 PACKING 6
74 KM1-M7105-00X PLUG 2 1
75 KGT-M7112-01X STOPPER 1
76 KGT-M7181-00X BELT, HEAD 2
77 90933-03J128 BEARING 4
78 90990-17J007 O-RING 4
79 91317-03055 BOLT HEX. SOCKET HEAD 3
80 90115-02J008 BOLT HEX. SOCKET HEAD 12
81 $KM-05 MUFFLER 8
82 $SLH8-01 JOINT 2
83 $SLH6-01 JOINT 2
84 90990-22J001 PACKING 18
85 KGT-M7162-00X SOLENOID VALVE 1
86 KHM-M7163-00X EJECTOR, RESIN 1
86-1 KHM-M71G1-00X EJECTOR, RESIN 1 (2008/5/23) ME30096 NG
87 KGB-M7170-00X GEAR 1 1
88 KGT-M7171-00X GEAR 2 1
89 KGB-M7172-00X COLLAR 1,GEAR 1
89-1 90990-41J009 COLLAR 1 (2008/4/15) ME20075 OK
90 KGB-M7173-00X COLLAR 2,GEAR 1
90-1 90990-41J010 COLLAR 1 (2008/4/15) ME20075 OK
91 KGB-M7174-00X SHAFT, GEAR 1
92 90933-02J085 BEARING 2
93 KGT-M7179-00X COVER, GEAR 1 R
94 KGT-M7179-10X COVER, GEAR 1 L
95 KGB-M7185-00X PLATE 2, NUT 1
96 KGB-M7184-00X BOLT HEXA.S.H 4
96-1 91317-03060 BOLT,HEX.SOCKET HEAD 4 (2007/10/29) MD00030 OK
97 KGT-M7183-00X PLATE, EJECTOR 1
98 KGT-M71VB-01X BRACKET, GEAR 1 R
99 KGT-M71VB-11X BRACKET, GEAR 1 L
100 KGT-M71VC-01X HOLDER, PULLEY 1 R
101 KGT-M71VC-11X HOLDER, PULLEY 1 L
102 KV8-M71VS-00X COLLAR,SENSOR 12
102-1 90990-41J066 COLLAR 12 (2008/4/17) ME20197 OK
103 $TSH4-M3M JOINT 6
104 KGB-M71R9-00X PLATE, BRG. 3
105 KGT-M71VF-00X COVER, AMP 1
106 90563-03J120 SPACER BOLT 6
107 KM1-M4592-13X VAC SENSOR BOARD ASSY 6
108 KGT-M654N-A0X SENSOR, CLUTCH ASSY 3
108-1 KGT-M654N-A1X SENSOR, CLUTCH ASSY 3 (2011/1/27) MG00101 OK
109 KGT-M654M-A0X SENSOR, DOWN2 ASSY. 3 For 2,4,6
110 KGT-M654G-A0X SENSOR, POS1 ASSY 3
111 KGT-M654H-A0X SENSOR, POS2 ASSY. 3
112 KGT-M654J-A2X SENSOR, HEAD ASSY. 3
113 KGT-M654K-A0X SENSOR, RORG ASSY. 1
114 99480-04008 PIN, PARALLEL 8
115 KV8-M7103-A0X PISTON, PLUG ASSY. 3
116 KV8-M7103-B0X PLUG ASSY. 3
117 KV8-M7104-A0X PISTON ASSY. 6
118 KM1-M7105-A0X PLUG 2 ASSY. 6
119 91317-04030 BOLT,HEX. S.H 4 M4X30
120 91317-03022 BOLT,HEX. S.H 5
121 98507-03004 SCREW PAN HEAD 9 2007/12/21 MDY0099
122 KGT-M654L-A0X SENSOR, DOWN1 ASSY. 3 For 1,3,5 (2011/1/27) MG00101 OK
3
5
Head Combination (R)
Head
KHM-081111
8
25
83
42
43,44
38
3
16
15
39
47
40
60
69
69
70
66
65
61
63
62
68
64
12
11
5
21
37
38
37
74
76
82
77
75
80
78
79
80
36
1,2
9
23
56
56
48
50
55
19
20
18
6
4
10
49
41
51
52
52
85
17
10
13
54
35
34
34,35
24
24
24
32,33
26
28,29
30
27
84
22
57
59
58
58
45,46
7
51
31
53
72
73
71
67
71
81
OLD
86
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M7102-00X PLATE, HEAD 1 R
2 KGT-M7102-10X PLATE, HEAD 1 L
3 KV8-M7118-00X SPG. MAIN 1
4 KV8-M71YC-00X HOLDER, Z SPRING 1
5 KV8-M7125-00X FLANGE, MOTOR 1
6 KV8-M7128-A0X BALL SCREW Z ASSY. 1
7 KGT-M7129-00X HOLDER 1, BEARING 1
8 KV8-M7130-00X PLATE, BEARING 1
9 KGT-M7131-00X BRACKET, Z SENSOR 1
10 KV8-M7136-00X GUIDE, Z AXIS 1
11 KGB-M7137-00X BELT, R MOTOR 1
12 KGB-M7139-00X PULLEY, MOTOR 1
13 KV8-M7145-00X DAMPER Z, SCREW 1
15 KV8-M71Y7-00X HOLDER, BLOCK Z 1
16 KV8-M71Y8-00X BRACKET, SPRING 1
17 KJ2-M7151-01X DUMPER Z GUIDE 1
18 KG2-M7141-00X BEARING 1 7000ADF
18-1 90990-26J002 BEARING 1 (2007/12/6) MDX0068 OK
19 KU4-M7120-00X COUPLING 1
20 KG2-M9173-00X LOCK NUT 1
21 90K63-001305 AC SERVO MOTOR R 1
22 90K63-001409 AC SERVO MOTOR Z 1
23 90990-20J001 PIN DOWEL 4
23-1 90990-20J001 PIN DOWEL 5 (2007/3/6) MD20051 OK
24 99480-04012 PIN,PARALLEL 4
25 KGA-M7210-01X CCD CAMERA 1
26 KV7-M7211-00X LENS 095 1
27 KGR-M7600-00X FIDUCIAL LIGHT ASSY. 1
28 KV8-M7133-00X HOLDER, CAMERA 1 R
29 KGT-M7133-10X HOLDER, CAMERA 1 L
30 KHM-M7135-02X BLOCK, FID. LIGHT 1
31 KGT-M71W1-00X PLATE, I/O BOARD 1
32 KGT-M71W2-00X STAY 1, CABLE 1 R
33 KGT-M71W2-10X STAY 1, CABLE 1 L
34 KHM-M71W3-00X STAY 2, CABLE 1 R
34-1 KHM-M71W3-10X STAY 2R, CABLE 1 R (2008/5/23) MN30096 NG
35 KHM-M71W4-00X STAY 2, CABLE 1 L
35-1 KHM-M71W4-10X STAY 2L, CABLE 1 L (2008/5/23) MN30096 NG
36 KGT-M71W7-00X BRACKET, TOP 1
37 KHM-M71W8-00X BRACKET R 1
37-1 KHM-M71W8-10X BRACKET R 1 (2008/5/23) MN30096 NG
38 KHM-M71W9-00X BRACKET L 1
38-1 KHM-M71W9-10X BRACKET L 1 (2008/5/23) MN30096 NG
39 KGT-M71WA-00X BRACKET 1, HNS 1
40 KGT-M71WB-00X BRACKET 2, HNS 1
41 KGT-M71WJ-00X COVER, I/O BOARD 1
42 KGT-M71WK-00X GUIDE, CABLE 1
43 KGB-M71WL-00X COVER, HARNESS 1 R
44 KGT-M71WL-10X COVER, HARNESS 1 L
45 KGT-M71W6-00X BRACKET, I/O PLATE 1 R
46 KGT-M71W6-10X BRACKET, I/O PLATE 1 L
47 KGT-M71WR-00X BLACKET, 1 SHAFT 1
48 KGT-M71WX-00X SHAFT, I/O BOARD 1
49 KGT-M71WY-00X BLOCK, I/O BOARD 2
50 KGT-M71W5-02X BRACKET 2, SHAFT 1
51 90562-03J060 SPACER BOLT 6
51-1 90562-03J060 SPACER BOLT 2 (2007/10/30) MD00092 OK
52 90562-03J180 SPACER BOLT 6
52-1 90562-03J180 SPACER BOLT 4 (2004/7/6) MA70017 OK
53 KV8-M71WF-00X BOLT,SPACER(M4-75MM) 2
53-1 90990-05J013 SPACER BOLT 2 (2007/11/12) MD00058 OK
54 KV8-M71WG-00X BOLT,SPACER(M4-70MM) 2
54-1 90990-05J014 SPACER BOLT 2 (2007/11/12) MD00058 OK
55 KGB-M71WS-00X BOLT,SPACER(M4-30MM) 2
55-1 90990-05J008 SPACER BOLT 2 (2007/11/12) MD00058 OK
56 KGB-M71WT-00X BOLT,SPACER(M4-43MM) 2
56-1 90990-05J009 SPACER BOLT 2 (2007/11/12) MD00058 OK
57 KGT-M7142-00X HANDLE 1
58 KGT-M7143-00X POST, HANDLE 2
59 KGT-M7144-00X BLACKET, POST 2
60 KGT-M71E1-03X STAY, MACS 1
61 KGT-M71E2-02X HOLDER, LED 1
62 KGT-M71E3-01X HOLDER, GLASS 2
63 KGT-M71E5-01X SHEET, URETHANE 2
64 KGT-M71E6-01X GLASS, MACS 2
65 KGT-M71E7-01X SEAL, REFRECTOR 2
66 KGT-M7554-01X MACS LIGHT BRD. ASSY 1
67 90563-03J050 SPACER BOLT 3
68 KV7-M71M6-01X SCREW,NOZZLE 2
68-1 90990-09J004 SCREW,FLAT HEAD 2 (2007/11/9) MD00082 OK
69 99480-04010 PIN PARALLEL 3 4X10
69-1 99480-04008 PIN,PARALLEL 3 4X8 (2008/8/20) ME80099 OK
70 91317-03006 BOLT HEX.SOCKET HEAD 5
70-1 91317-03006 BOLT HEX.SOCKET HEAD 3 (2007/8/21) MD80074 OK
71 91317-03010 BOLT HEX.SOCKET HEAD 6
71-1 91317-03010 BOLT HEX.SOCKET HEAD 8 (2007/8/21) MD80074 OK
72 KGT-M71E9-00X COVER, P. C. B. 1
73 90990-05J001 SPACER 3
74 KGS-M7176-00X VALVE 1
75 KHM-M7186-00X MANIFOLD 1
76 $TSH4-M5M JOINT 1
77 $TL4-M5M JOINT 1
78 $TL4-M3M JOINT 1
79 $BF4BU-M3 JOINT 6
80 $PF-M3 PLUG 2
81 $UTD6-4M JOINT 1
82 $KM-05 MUFFLER 1
83 KGA-M66F4-00X C. CABLE ASSY: L1.7M 1
84 KV7-M7165-00X SEAL, DON'T TOUCH 1
85 KGT-M71ST-00X STICKER, HEAD 1
86 KHM-M7136-00X STAY,FID.LIGHT 1
4
5

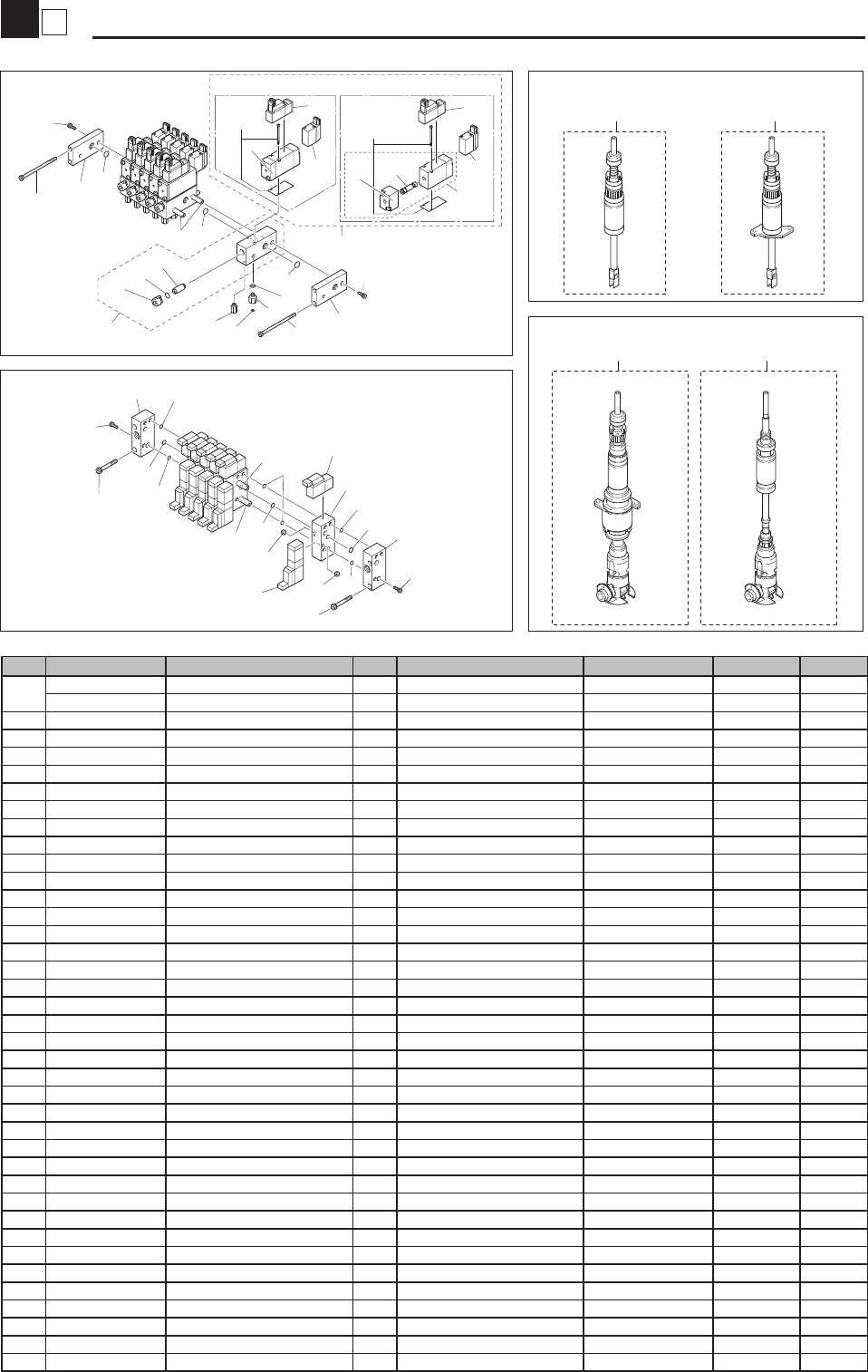

Head Spare
Head
KHM-1002
18
37
19,20
2
BLACK
GRAY
bit type
non bit type
38
1
18
19, 20
27
26
28
24
24
24
24
24
30
22
21
26
27
29
23
25
23
25
31
31
23
2
7
5
11
11
15
13
16
14
12
10
6
4
3
9
9
8
8
36
32
STD. Shaft 1, 2
EJECTOR
VALVE
FNC Shaft
33
11
34, 35
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGS-M7171-A0X EJECTOR 1 non bit type
KHW-M71G2-00X EJECTOR 1 bit type
2 KM1-M7163-20X VALVE 1
3 KGT-M7163-L0X END BLOCK L 1
4 KGT-M7163-R0X END BLOCK R 1
5 KM5-M7174-C1X EJECTOR BASE 1
6 KM5-M7174-J0X AIR JOINT 1
7 KGT-M7163-B0X JOINT BAR 1
8 KM5-M7174-Y0X BOLT H. S. H 1
9 KM5-M7174-V1X BOLT H. S. H 1
10 90200-10J030 O-RING 1
11 90990-17J009 O-RING 1
12 KM0-M3416-00X GASKET 1
13 KM5-M7174-G0X FILTER CAP 1
14 K46-M8527-C0X FILTER (SZ65111) 1
15 KM5-M7174-H0X SPACER 1
16 90990-17J010 O-RING 1
17
18 KM1-M7163-30X VALVE 1
19 KM5-M7174-70X PACKING SET 1 1 H1, 6
20 KM5-M7174-80X PACKING SET 2 1 H2-5
21 KV8-M7162-10X VALVE 1
22 KV8-M7162-20X VALVE 1
23 90990-17J012 O-RING 1
24 90990-17J011 O-RING 1
25 KGT-M7162-B0X JOINT BAR 1
26 KM5-M7188-Y0X BOLT H. S. H 1
27 KM5-M7188-X0X BOLT H. S. H 1
28 KM5-M7188-L1X END BLOCK L 1
29 KM5-M7188-R1X END BLOCK R 1
30 KM5-M7188-C1X VALVE BASE 1
31 KM5-M7188-G0X NUT HEXAGON 1
32 KGT-M712S-A1X STD. SHAFT 1, SPARE 1
33 KGT-M713S-A1X STD. SHAFT 2, SPARE 1 Normal
34 KGT-M711S-B0X FNC SHAFT, SPARE 1 FNC Circle Nozle
35 KGT-M711S-A0X FNC SHAFT, SPARE 1 FNC S.T.D Nozzle
36 KGT-M71S0-00X HOLDER INDEX SPARE 1 1 FNC
37 KHW-M71G4-00X BIT 1
38 KHW-M71G2-10X EJECTOR SPARE 1 bit type (2009/12/22) MFY0099
