KHM_YG200L_PL - 第24页

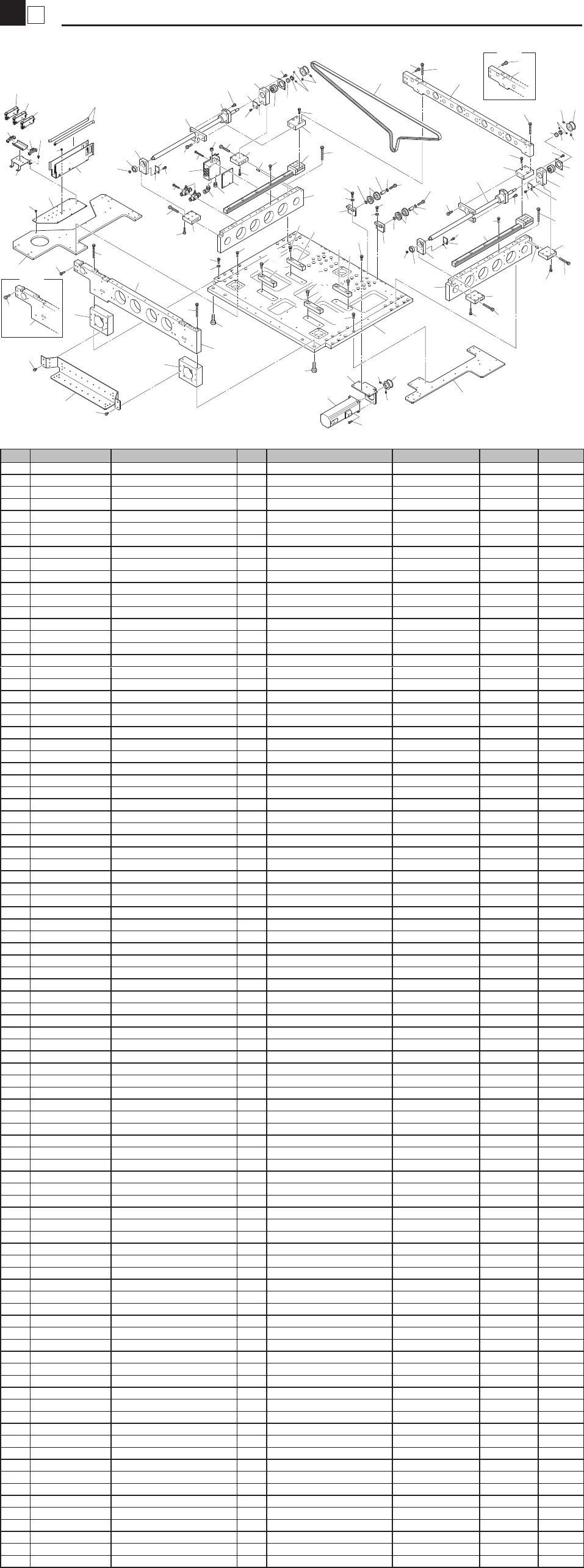

6 8 Moving Conveyor (R)-1 Conveyor KHM-1012 35 36 34 41 52 47 18 19 25 24 61 29 63 10 55 64 22 4 58 72 71 42 12 25 24 56 32 48 40 48 13 5 20 23 70 59 51 26 48 50 63 10 59 56 55 60 8 68 43 28 27 30 44 1 1 73 17 15 41 48 6…
5
8
Fixed Conveyor Ent./Exit (R)
Conveyor
KHM-081111
1
1
2
18
75
70
71
70
17
43
63
60
60
60
50
60
63
63
47
42
14
50
34
53
67
27
33
66
60
69
7
46
55
68
62
69
49
3
60
69
60
69
60
69
51
12
74
55
76
31
23
23
55
55
4
44
9
37
37
44
54
54
68
54
54
54
54
38
38
54
24
72
54
54
54
54
54
67
68
38
66
56
56
66
13
15
55
54
51
67
51
16
76
31
31
31
31
31
13
73
72
73
65
28
45
32
43
47
42
5
41
45
76
76
10
22
58
57
57
21
52
20
30
45
32
54
54
51
15
16
39
39
66
66
60
19
60
8
37
2
11
35
64
1
48
63
3
36
26
1
6
38
38
40
40
61
69
59
68
67
68
29
A flow direction shows the left from the right.
25
72
24
72
25
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M9101-00X STAND 1 8
2 KHM-M9103-00X FRAME 1 4
3 KHM-M9104-00X FRAME 2 4
4 KHM-M9106-00X PLATE 1, CONV. 2
5 KHM-M9107-00X PLATE 2, CONV. 2
6 KHM-M9108-00X PLATE 3, CONV. 2
7 KGT-M9109-00X PLATE, TENSION IDLER 2
8 KGT-M910A-00X BELT (231-3GT-9) 2
9 KHM-M910B-00X BELT (579-3GT-9) 2
10 KGT-M9111-00X BRKT., COLLAR 2
11 KGT-M9112-00X BRKT., SENSOR ORG 2
12 KHM-M9113-00X GUIDE 1,END 4
12-1 KHM-M9113-01X GUIDE 1,END 4 (2006/2/20) MC20126 OK
12-2 KHM-M9113-01X GUIDE 1,END 2 (2006/5/9) MC40134 OK
13 KHM-M9114-00X GUIDE 2,END 4
13-1 KHM-M9114-01X GUIDE 2,END 4 (2006/2/20) MC20126 OK
13-2 KHM-M9114-01X GUIDE 2,END 2 (2006/5/9) MC40134 OK
14 KGT-M9114-00X BRKT. 1, SENSOR 1
15 KHM-M9116-00X GUIDE 1 4
16 KHM-M9117-00X GUIDE 1-1 4
17 KHM-M9127-00X PLATE, BASE 2
18 KGT-M9128-00X HEX.POST 8
18-1 KGT-M9128-00X HEX.POST 10 (2006/12/21) MCX0115 OK
19 KGT-M912D-00X PULLEY 2
20 KGT-M9135-00X PULLEY 1, SPLINE 2
21 KHM-M913B-00X SPLINE 2
22 KGT-M913C-00X PULLEY, MOTOR 2
23 KHM-M913J-00X BELT 1, CONVEYOR
4
24 KHM-M913K-R0X COVER, BLOCK END R 2
25 KHM-M913K-L0X COVER, BLOCK END L 2
26 KGT-M9193-00X NUT PLATE 8
27
KGT-M928A-01X SENSOR, ENT. 1 R>L
KGT-M928G-01X SENSOR, POS. 1 L>R
28 KHM-M652D-10X SENSOR,MASTER ASSY 1
28-1 KHM-M652D-11X SENSOR,MASTER ASSY 1 (2006/2/23) MC20123 OK
28-2 KHM-M652D-12X SENSOR,MASTER ASSY 1 (2006/11/6) MC00096 OK
28-3 KHM-M652D-13X SENSOR,MASTER ASSY 1 AMP(KHM-M654D-A2)+FIBER (2007/5/11) MD50014 OK
29 KHM-M652D-40X SENSOR,MASTER ASSY 1
29-1 KHM-M652D-41X SENSOR.MASTER ASSY 1 (2006/2/23) MC20123 OK
29-2 KHM-M652D-42X SENSOR,MASTER ASSY 1 (2006/11/6) MC00096 OK
29-3 KHM-M652D-43X SENSOR,MASTER ASSY 1 AMP(KHM-M654D-A2)+FIBER (2007/5/11) MD50014 OK
30 KG2-M9108-11X COLLAR, CONVEYOR 2
31 KG2-M9120-01X PLATE PULLEY CON 12
32 KG2-M9121-00X PLATE,TENSION PULLEY 4
33 KG7-M9113-01X PULLEY 3 2
34 KG7-M912A-00X BRACKET, SENSOR 1
35 KHM-M652K-10X SENSOR, ORG (L=400) 2
36 KGK-M9170-00X DC MOTOR ASSY. 2
37 KH2-M9105-11X PULLEY, MOTOR: P30-3GT 6
38 KH2-M9121-00X BEARING 12
39 KV1-M910C-00X NUT, PLATE 4
40 KV1-M9110-00X COLLAR,BALL SCREW 4
40-1 90990-41J106 COLLAR 4 (2008/4/11) ME30019 OK
41 KV1-M9113-00X DOG, ORG CONV. 2
42 KV1-M9118-01X DAMPER 1, W 4
43
KV1-M9119-00X DAMPER 2, W 4
44 KV1-M9137-00X WASHER,M4 13D 2T 4
44-1 90990-28J070 WASHER,PLAIN 4 (2007/12/18) MDX0125 OK
45 KV1-M9140-A0X PULLEY,CONV. ASSY 16
45-1 KV1-M9140-A0X PULLEY CONV.ASSY. 8 (2007/2/12) MD20003 OK
46 KV7-M9149-00X COLLAR,BRG. 2
46-1 90990-41J057 COLLAR 2 (2008/4/17) ME20197 OK
47 KW8-M9126-00X BALL SCREW F-CONV. 4
47-1 KW8-M9A00-10X BALL SCREW 4 (2008/11/3) ME50036 OK
48 90K63-001606 AC SERVO MOTOR 2
49 90933-03J608 BEARING 4
50 91317-03006 BOLT HEX. SOCKET HEAD 7
51 91317-03008 BOLT HEX. SOCKET HEAD 40
52 91317-03010 BOLT HEX. SOCKET HEAD 8
53 91317-03014 BOLT HEX. SOCKET HEAD 2
54 91317-04006 BOLT HEX. SOCKET HEAD 68
55 91317-04008 BOLT HEX. SOCKET HEAD 20
56 91317-04010 BOLT HEX. SOCKET HEAD 4
57 91317-04014 BOLT HEX. SOCKET HEAD 16
58 91317-04016 BOLT HEX. SOCKET HEAD 2
59 91317-04050 BOLT HEX. SOCKET HEAD 8
60 91317-05008 BOLT HEX. SOCKET HEAD 48
61 91317-05012 BOLT HEX. SOCKET HEAD 2
62 91317-05020 BOLT HEX. SOCKET HEAD 2
63 91317-06010 BOLT HEX. SOCKET HEAD 32
64 98907-03008 SCREW BINDING HEAD 2
65 92A08-03306 SCREW, SET 4
66 92A08-04306 SET SCREW M4X6 20
67 92907-03200 WASHER PLAIN 23
68 92907-04200 WASHER PLAIN 24
69 92907-05200 WASHER PLAIN
20
70 92907-08200 WASHER PLAIN 16
71 95307-08600 NUT HEXAGON 8 (2006/10/30) MC00036
72 K16-90101-06X BOLT: TP-M4X6 8
73 KHM-M9113-02X GUIDE 1,END 2 (2006/5/9) MC40134
73-1 KHM-M9113-03X GUIDE 1,END 2 (2007/6/8) MD60021 OK
74 KHM-M9114-02X GUIDE 2,END 2 (2006/5/9) MC40134
74-1 KHM-M9114-03X GUIDE 2,END 2 (2007/6/8) MD60021 OK
75 95302-08600 NUT HEXAGON 8 (2006/10/30) MC00036
76
KGY-M9140-A0X PULLEY CONV.ASSY.
8
(2007/2/12) MD20003
6
8
Moving Conveyor (R)-1
Conveyor
KHM-1012
35
36
34
41
52
47
18
19
25
24
61
29
63
10
55
64
22
4
58
72
71
42
12
25
24
56
32
48
40
48
13
5
20
23
70
59
51
26
48
50
63
10
59
56
55
60
8
68
43
28
27
30
44
11
73
17
15
41
48
65
74
65
66
66
46
1,2
53
53
31
7
33
7
38
6
72
72
49
21
16
14
9
60
55
54
9
60
60
37
37
19
44
59
63
70
59
63
10
10
8
11
25
32
4
3
58
63
63
76
74
24
22
48
55
56
64
48
24
25
42
71
72 20
40
72
5
12
13
48
67
57
67
57
69
69
45
45
39
39
69
69
62
61
14
62
9
9
3
OLD
1,2
1,2
OLD
75
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHM-M9151-R0X FRAME,FIXED SIDE R 1 R type
1-1 KHM-M9151-R1X FRAME,FIXED SIDE R 1 R type 2006/9/19 MC40023 SET
2 KHM-M9151-L0X FRAME,FIXED SIDE L 1 L type
2-1 KHM-M9151-L1X FRAME,FIXED SIDE L 1 L type 2006/9/19 MC40023 SET
3 KHM-M9154-00X FRAME,MOVING SIDE 1
3-1 KHM-M9154-01X FRAME MOVING SIDE 1 2006/9/19 MC40023 SET
4 KHM-M9155-00X BLOCK, GUIDE 2
5 KHM-M9156-00X HOLDER 2, BEARING 2
6 KHM-M915A-00X BASE, CONVEYOR 1
7 KHM-M915B-00X BASE 2, CONVEYOR 2
8 KHM-M915C-00X BASE, GUIDE 2
9 KHM-M915D-00X BASE, PU 4
10 KHM-M915E-00X PLATE 1, W DRIVE 4
11 KHM-M915F-00X HOLDER1, BRG. 2
12 KHM-M915H-00X BEARING SET 2
12-1 90990-26J010 BEARING 2 (2007/12/6) MDX0068 OK
13 KHM-M915J-00X PLATE, BEARING 2
14 KHM-M915M-00X HOLDER, NUT 2
14-1 KHM-M915M-10X HOLDER,NUT 2 (2007/11/8) MD00085 OK
15 KHM-M915P-00X PLATE 1, BELT DRIVE 1
16 KHM-M915R-00X PLATE 1, DUCT 1
17 KHM-M915T-00X PLATE 1, VALVE 1
18 KHM-M915U-R0X CABLE GUARD 1
19 KHM-M9163-00X C CLIP 2
20 KHM-M9164-00X PULLEY, MOTOR: P24-3GT 2
21 KHM-M9166-00X PULLEY, MOTOR: P24-3GT 1
22 KHM-M916R-00X GUIDE, W AXIS 2
23 KHM-M916V-00X BELT (1260-3GT-9) 1
24 KHM-M9172-00X STOPPER 1, W DRIVE 4
25 KHM-M9174-00X COLLAR, STOPPER 8
25-1 90990-41J042 COLLAR 8 (2008/4/14) ME20133 OK
26 KHM-M9175-00X VALVE 1
27 $KM-10 MUFFLER 1
28 $TL6-01M JOINT 1
29 K40-M8598-00X PLUG 1 2
29-1 Delete (2006/7/12) MC70016
30 KHM-M9176-00X PLATE, VALVE 1
31 KHM-M9178-00X PLATE, DUCT 1
32 KHM-M917L-00X BALL SCREW, W 2
33 KHM-M917Y-00X BRACKET, SENSOR 1
34 KHM-M654D-A0X MASTER AMP 1 Spare
34-1 KHM-M654D-A1X MASTER AMP 1 Spare (2006/11/6) MC00096 OK
34-2 KHM-M654D-A2X MASTER AMP 1 Spare (2007/5/11) MD50014 OK
35 KHM-M654E-A0X SINGLE AMP 1 Spare
35-1 KHM-M654E-A1X SINGLE AMP 1 Spare (2006/11/6) MC00096 OK
35-2 KHM-M654E-A2X SINGLE AMP 1 Spare (2007/5/11) MD50014 OK
36 KHM-M654F-A0X TWIN AMP 1 Spare
36-1 KHM-M654F-A1X TWIN AMP 1 Spare (2006/11/6) MC00096 OK
36-2 KHM-M654F-A2X TWIN AMP 1 Spare (2007/5/11) MD50014 OK
37 KGT-M9157-00X BRACKET, PULLEY 2
38 KGT-M915S-01X BRACKET, MOTOR 1
39 KV7-M9149-00X COLLAR,BRG. 2
39-1 90990-41J057 COLLAR 2 (2008/4/17) ME20197 OK
40 KV8-M7108-00X NUT 2
41 K46-M641F-00X PARTS 1-3(STOPPER) 2
41-1 KHM-M641F-00X STOPPER,DIN RAIL 2 (2006/4/4) MC30179 OK
42 KC5-M223A-10X COLLER, 1 2
43 $SSU4 SPEED CONTROLLER 2
44 90933-02J626 BEARING 2
45 90933-03J608 BEARING 4
46 90K55-41276W AC SERVO MOTOR 1
47 91317-03005 BOLT HEX. SOCKET HEAD 2
48 91317-03006 BOLT HEX. SOCKET HEAD 21
49 91317-03008 BOLT HEX. SOCKET HEAD 4
50 91317-03025 BOLT HEX. SOCKET HEAD 2
51 91317-03035 BOLT HEX. SOCKET HEAD 3
52 91317-04005 BOLT HEX. SOCKET HEAD 4
53 91317-04008 BOLT HEX. SOCKET HEAD 4
54 91317-04010 BOLT HEX. SOCKET HEAD 4
55 91317-04012 BOLT HEX. SOCKET HEAD 28
56 91317-04014 BOLT HEX. SOCKET HEAD 24
57 91317-04015 BOLT HEX.SOCKET HEAD 4
57-1 91317-04014 BOLT HEX.SOCKET HEAD 4 (2008/2/1) ME10057 OK
58 91317-04016 BOLT HEX. SOCKET HEAD 4
59 91317-04018 BOLT HEX. SOCKET HEAD 8
60 91317-05012 BOLT HEX. SOCKET HEAD 8
61 91317-05016 BOLT HEX. SOCKET HEAD 4
62 91317-05020 BOLT HEX. SOCKET HEAD 2
63 91317-05035 BOLT HEX. SOCKET HEAD 12
64 91317-05045 BOLT HEX. SOCKET HEAD 6
65 91317-06065 BOLT HEX. SOCKET HEAD 4
66 91317-08020 BOLT HEX. SOCKET HEAD 4
67 92907-04200 WASHER PLAIN 4
68 92907-04600
WASHER PLAIN 16
69 92907-05600 WASHER PLAIN 6
70 99480-04012 PIN, PARALLEL 2
71 90990-02J006 SET SCREW 4
72 92A08-04306 SET SCREW M4X6 6
73 KHM-M915V-00X TRIMS 2
74 91317-04025 BOLT HEX. SOCKET HEAD 8 (2006/4/12) MC40023 SET
75 91317-06030 TRIMS 2 (2006/4/12) MC40023
76 91317-06025 TRIMS 2 (2006/4/12) MC40023
7
8
Moving Conveyor (R)-2
Conveyor
KHM-081111
33
56
40
74
44
55
60
65
45
29
15
70
34
38
21
70
66
52
52
28
58
10
9
39
8
54
19
73
26
51
1
68
18
16
2
56
49
61
54
59
72
54
59
73
36
69
22
20
26
8
68
25
68
73
19
26
37
31, 32
48
74
61
47
47
73
73
68
54
26
8
19
25
73
57
35
7
73
59
20
54
68
73
26
36
69
22
5,6
23, 24
55
484171
61
46
27
43
53
49
61
29
51
73
26
52
18
20
75
75
52
56
11,12
39
42
67
61
64
51
64
70
21
34
38
30
13
50
8
3
10
9
68
54
14
1
17
35
4
63
2
3
62
63
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHM-M9152-01X GUIDE, PCB 2
2 KHM-M9158-01X FRAME SIDE 1 1
2-1 KHM-M9158-02X FRAME SIDE 1 1 2006/9/19 MC40023 NG
3 KHM-M9159-01X FRAME SIDE 2 1
3-1 KHM-M9159-02X FRAME SIDE 2 1 2006/9/19 MC40023 NG
4 KHM-M915G-00X GUIDE 1
5 KHM-M915N-R0X GUIDE R 1 R>L
6 KHM-M915N-L0X GUIDE L 1 L>R
7 KHM-M9161-00X BRACKET,HARNESS 1
7-1 KHM-M9161-01X BRACKET,HARNESS 1 (2006/2/17) MC20081 OK
8 KHM-M9162-00X SHAFT,BELT 4
8-1 KHM-M9162-01X SHAFT,BELT 4 (2006/2/23) MC20124 OK
9 KHM-M9169-00X STAY, BELT 2
10 KHM-M916C-00X SPACER, BELT 2
11 KHM-M916E-00X HOLDER, PULLEY R 1 R type
12 KHM-M916F-00X HOLDER, PULLEY L 1 L type
13 KHM-M916G-00X BRACKET 1, SENSOR 1
14 KHM-M916J-01X PLATE, GUIDE 1
15 KHM-M916K-01X PLATE, GUIDE 1
16 KHM-M916L-00X HOLDER 1, PULLEY 1
17 KHM-M916T-00X BELT (1485) 2
18 KHM-M916Y-00X PIN, GUIDE 2
19 KHM-M9179-01X GUIDE F-L 3
19-1 KHM-M9179-02X GUIDE F-L 3 (2006/5/9) MC40134 OK
19-2 KHM-M9179-03X GUIDE F-L 3 (2007/3/20) MD30062 OK
20 KHM-M917A-01X GUIDE F-R 3
20-1 KHM-M917A-02X GUIDE F-R 3 (2006/5/9) MC40134 OK
20-2 KHM-M917A-03X GUIDE F-R 3 (2007/3/20) MD30062 OK
21 KHM-M917B-00X HOOK 1, SPG 2
22 KHM-M917F-10X STOPPER 1,CLAMP 2
22-1 90990-33J008 BOLT,STOPPER 2 (2008/6/18) ME20019 OK
23 KHM-M917K-00X BRACKT R BEARING 1 R type
24 KHM-M917J-00X BRACKT L, BEARING 1 L type
25 KHM-M654C-00X SENSOR, FIBER 2 1
25-1 KHM-M654C-01X SENSOR, FIBER 2 1 (2006/2/23) MC20123 OK
26 KHM-M654B-00X SENSOR, FIBER 1 6
26-1 KHM-M654B-01X SENSOR, FIBER 1 6 (2006/2/23) MC20123 OK
27 KGT-M9135-00X PULLEY 1, SPLINE 1
28 KGT-M915U-00X PULLEY, DRIVE F 1
29 KGT-M9165-01X HOLDER, PULLEY 2
30 KGT-M916H-00X DOG, ORG 1
31 KGT-M916N-L0X BRACKT L, MOTOR 1 L type
32 KGT-M916N-R0X BRACKT R, MOTOR 1 R type
33 KGT-M916U-00X BELT (201-3GT-9) 1
34 KGT-M917B-00X HOOK 1 2
35 KHM-M917C-10X LOW HEAD CAP SCREW 13
35-1 90990-01J020 BOLT,HEX.SOCKET HEAD 13 (2007/10/29) MD00030 OK
36 KGT-M917E-00X BLOCK 2
37 KGT-M9193-00X NUT PLATE 4
38 KGT-M9173-00X SPRING 2
39 KV1-M9140-A0X PULLEY,CONV. ASSY 5
39-1 KV1-M9140-A0X PULLEY CONV.ASSY. 3 (2007/2/12) MD20003 OK
40 KV1-M9137-00X WASHER,M4 13D 2T 1
40-1
90990-28J070 WASHER,PLAIN 1 (2007/12/18) MDX0125 OK
41 KHM-M652H-10X SENSOR, ORG 1
42 KV7-M9140-A0X PULLEY CONV. ASSY. 1
43 KG2-M9108-11X COLLAR, CONVEYOR 1
44 KG7-M9110-01X COLLAR W 1
44-1 90990-41J006 COLLAR 1 (2008/4/15) ME20075 OK
45 KGK-M9170-00X DC MOTOR ASSY. 1
46 KGS-M9143-00X SPLINE 1 (335) 1
47 KH2-M9105-11X PULLEY, MOTOR: P30-3GT 2
48 KH2-M9121-00X BEARING 2
49 90933-02J148 BEARING 4
50 91317-03005 BOLT HEX. SOCKET HEAD 2
51 91317-03006 BOLT HEX. SOCKET HEAD 8
52 91317-03008 BOLT HEX. SOCKET HEAD 6
53 91317-03010 BOLT HEX. SOCKET HEAD 4
54 91317-03014 BOLT HEX. SOCKET HEAD 12
55 91317-04005 BOLT HEX. SOCKET HEAD 4
56 91317-04008 BOLT HEX. SOCKET HEAD 5
57 91317-04010 BOLT HEX. SOCKET HEAD 2
58 91317-04012 BOLT HEX. SOCKET HEAD 1
59 91317-04025 BOLT HEX. SOCKET HEAD 12
60 91317-04050 BOLT HEX. SOCKET HEAD 4
61 91317-05008 BOLT HEX. SOCKET HEAD 11
62 91317-06025 BOLT HEX.SOCKET HEAD 2
62-1
Delete
(2006/4/18) MC40023
63 91317-06030 BOLT HEX.SOCKET HEAD 2
63-1
Delete
(2006/4/18) MC40023
64 92907-03600 WASHER PLAIN 4
65 92907-04200 WASHER PLAIN 4
66 92907-04600 WASHER PLAIN 2
67 92907-05200 WASHER PLAIN 1
68 92907-3200 WASHER PLAIN 12
69
95302-04700 NUT HEXAGON 2
70 95307-03700 NUT HEXAGON 4
71 98902-03008 SCREW BINDING HEAD 1
72 98502-03006 SCREW BINDING HEAD 2
73 90990-02J006 SET SCREW 9
74 92A08-04306 SET SCREW M4X6 4
75 KGY-M9140-A0X PULLEY,CONV. ASSY. 2 (2007/2/12) MD20003 OK
