1 1 1 Exterior ,etc Exterior KHM-081 11 1 1 1 20 21 21 9 22, 23 24 8 9 6 18,27 10 20 1 1 14 17 16 19 15 13 12 2 5 4 3 3 5 4 4 5 4 5 25 7 26 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 K…
1
9

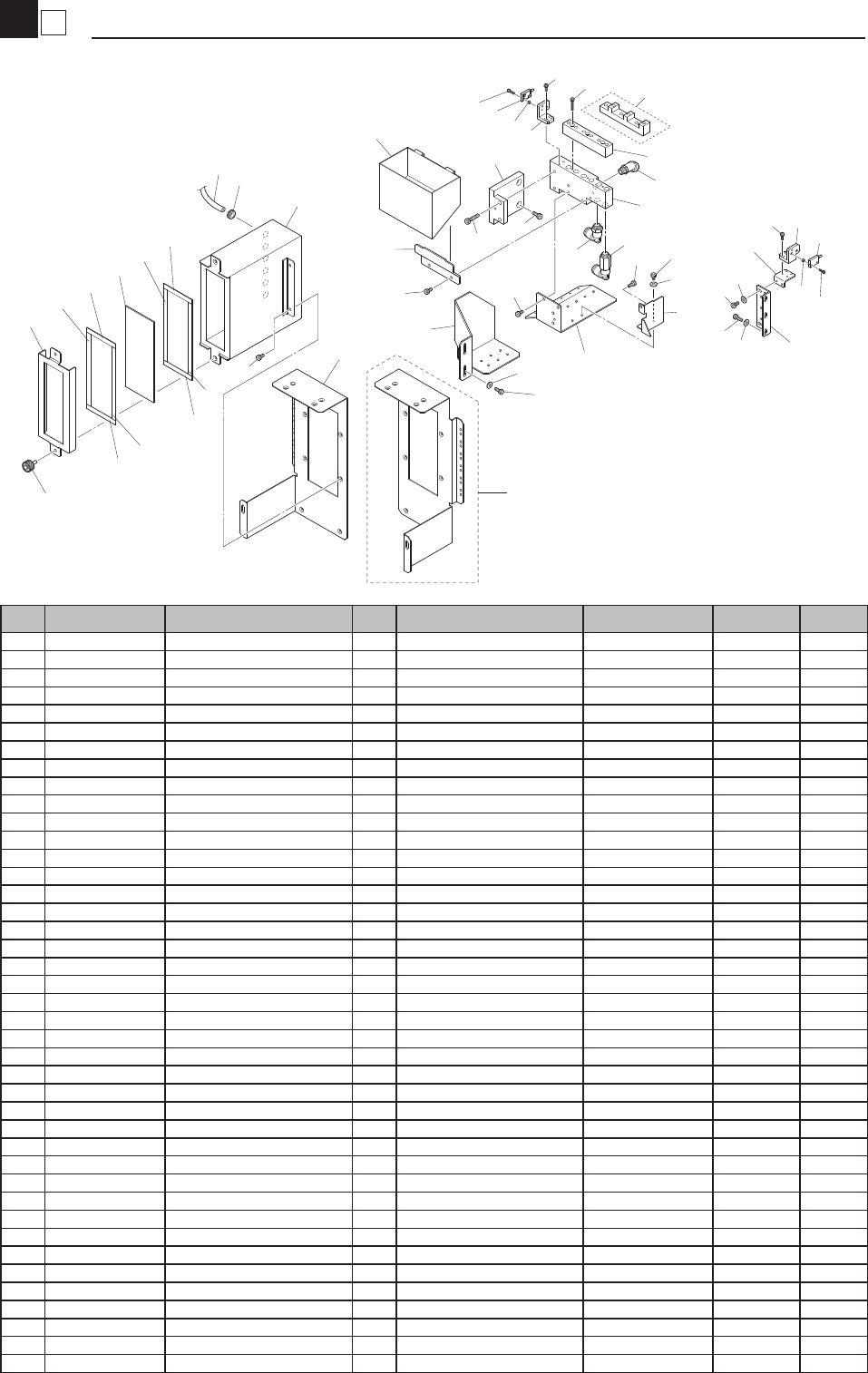

Blow Station
Blow Station
KHM-081111
35
32
31
32
31
22
32
27
36
30
37
31
34
32
31
33
29
28
26
7
21
20
9
18
19
1
10
15
14
25
24
23
4
3
2
16
21
17
21
22
26
6
26
20
22
5
8
26
13
24 11
14
15
25
12
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KHM-M9901-00X BASE BLOCK A 1
2 KHM-M9904-00X BASE B, BLOW STN. 1
3 KHM-M9905-51X TOP, BLOW STN. (SF) 1 SF
4 KHM-M9905-01X TOP, BLOW STN. (FNC) 1 FNC
5 KHM-M9907-00X PLATE B, TUBE 1
6 KHM-M9909-00X PLATE B, SUPPORT 1
7 KHM-M9911-00X BRACKET B, TUBE 1
8 KHM-M9912-00X JOINT 4
8-1 90990-42J020 JOINT 4 (2008/6/17) ME30112 OK
9 KHM-M9913-00X PLATE, DUMP BOX 1
10 KHM-M9914-01X BRACKET 1, SENSOR 1
11 KHM-M9915-01X BRACKET 2, SENSOR 1
12 KHM-M9916-00X STAY 1,SENSOR 1
12-1
KHM-M9916-10X STAY 1,SENSOR A 1 (2008/7/9) ME60165 OK
13 KHM-M9917-00X STAY 2, SENSOR 1
14 KHM-M652J-10X SENSOR, BLOW ST ASSY 1
15 KV8-M71VS-00X COLLAR,SENSOR 4
15-1 90990-41J066 COLLAR 4 (2008/4/17) ME20197 OK
16 $TL8-01 JOINT 1
17 $TLL8-01 JOINT 1
18 91317-05022 BOLT HEX.SOCKET HEAD 2
18-1 91317-05025 BOLT HEX.SOCKET HEAD 2 (2006/8/25) MC80075 OK
19 91317-05012 BOLT HEX. SOCKET HEAD 2
20 91317-04010 BOLT HEX. SOCKET HEAD 2
21 91317-04008 BOLT HEX. SOCKET HEAD 5
22 91317-04006 BOLT HEX. SOCKET HEAD 4
23 91317-03012 BOLT HEX. SOCKET HEAD 3
24 91317-03008 BOLT HEX. SOCKET HEAD 2
25 90115-02J008 BOLT HEX. SOCKET HEAD 4
26 92907-04200 WASHER PLAIN 6
27 $TUS0805B TUBE 3300
28 KHM-M9931-00X BRACKET A, FILTER 1 R
29 KHM-M9932-00X BRACKET B, FILTER 1 L
30 KHM-M9933-00X BOX, AIR DUST 1
31 KHM-M9934-00X PACKING A 4
32 KHM-M9935-00X PACKING B 4
33 KHM-M9936-00X COVER, FILTER 1
34 KHM-M9937-00X FILTER 1
35 KHM-M9938-00X KNOB 2
36 KHM-M9939-00X GROMET 6
37 KGT-M36A1-00X DUMP BOX 1
1
10

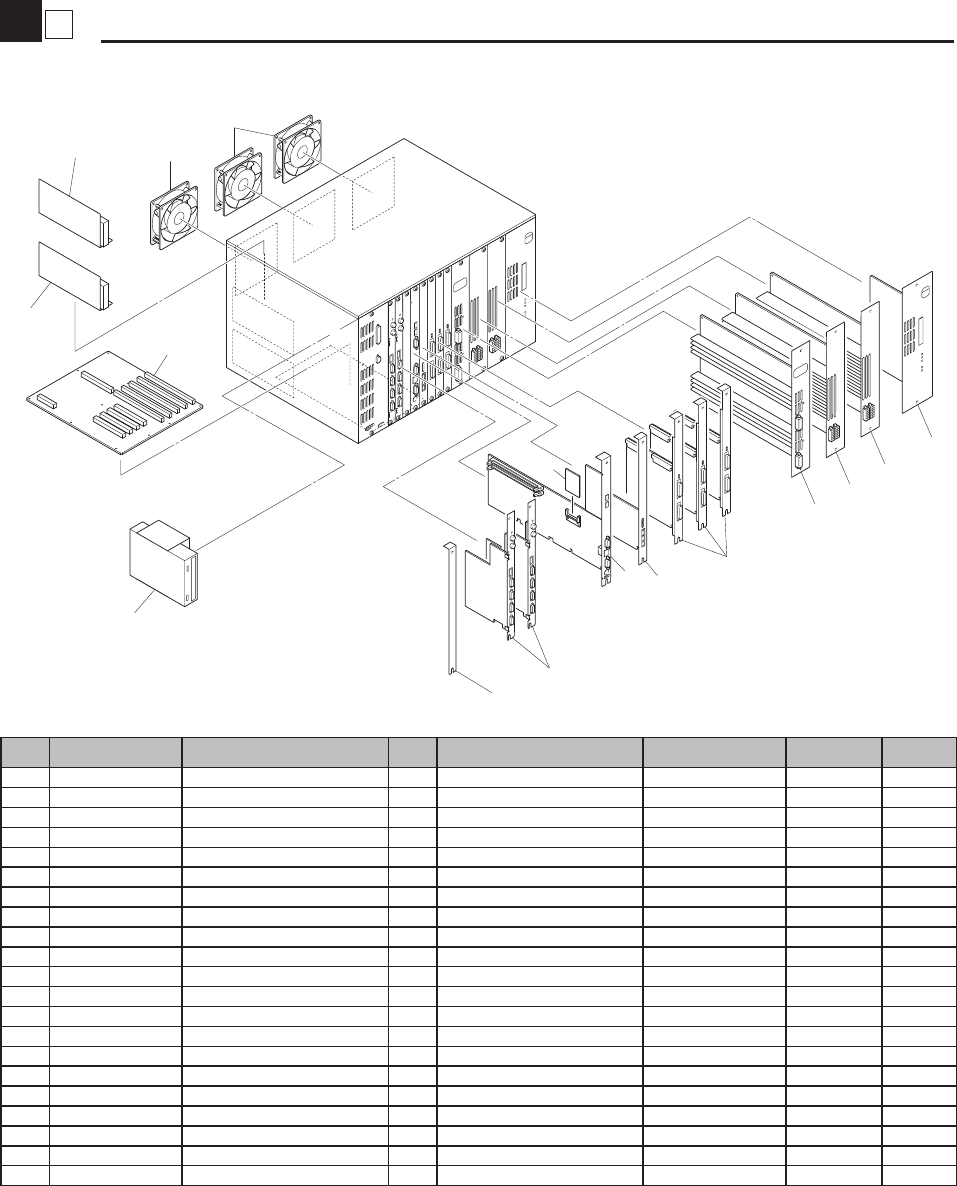

Control Box
Controller
KHM-081111
1
10
8
4
4
5
2
3
6
7
9
12
15
15
14
13
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGK-M4510-00X MOTHER BOARD ASSY 1
2
KGN-M5840-02X SERVO BOARD ASSY 3
2-1 KGN-M5840-04X SERVO BOARD ASSY 3 (2006/4/10) MC40013 OK
3 KGK-M4200-00X SYSTEM UNIT ASSY 1
3-1 KGS-M4200-00X SYSTEM UNIT ASSY 1 (2006/3/15) MC20176 NG
3-2
KGS-M4200-20X SYSTEM UNIT ASSY 1 (2007/8/29) MD80036 NG
3-3 KGS-M4209-C0X SPARE SYSTEM UNIT 1 1 SPARE (2007/11/15) MD90073 OK
4 KGK-M5810-11X DRIVER BOARD ASSY 2
5 KGN-M5810-10X DRIVER BOARD ASSY 1
6 KGJ-M441H-03X VISION BOARD ASSY 2
7 KGR-M4530-01X INTERFACE BOARD ASSY 1
8 KGN-M5880-00X D. POWER BOARD ASSY 1
9 KGK-M4136-10X PANEL NO VISION 1
10 KW3-M4256-00X CD-ROM DRIVE 1
11
12 KGK-M4255-20X FLASH DISK 1
12-1
KHL-M4255-00X FLASH DISK 1 (2007/6/20) MD60085 OK
13
KGA-M5303-00X SW POWER DC5 1 PAA150F-5
13-1
KGS-M5303-00X SW POWER DC5 1 PBA150F-5 (2007/1/22) MCY0159 NG
14 KGK-M5303-10X SW POWER DC12 1
15 KGA-M4185-10X FAN MOTOR ASSY 3
1
11

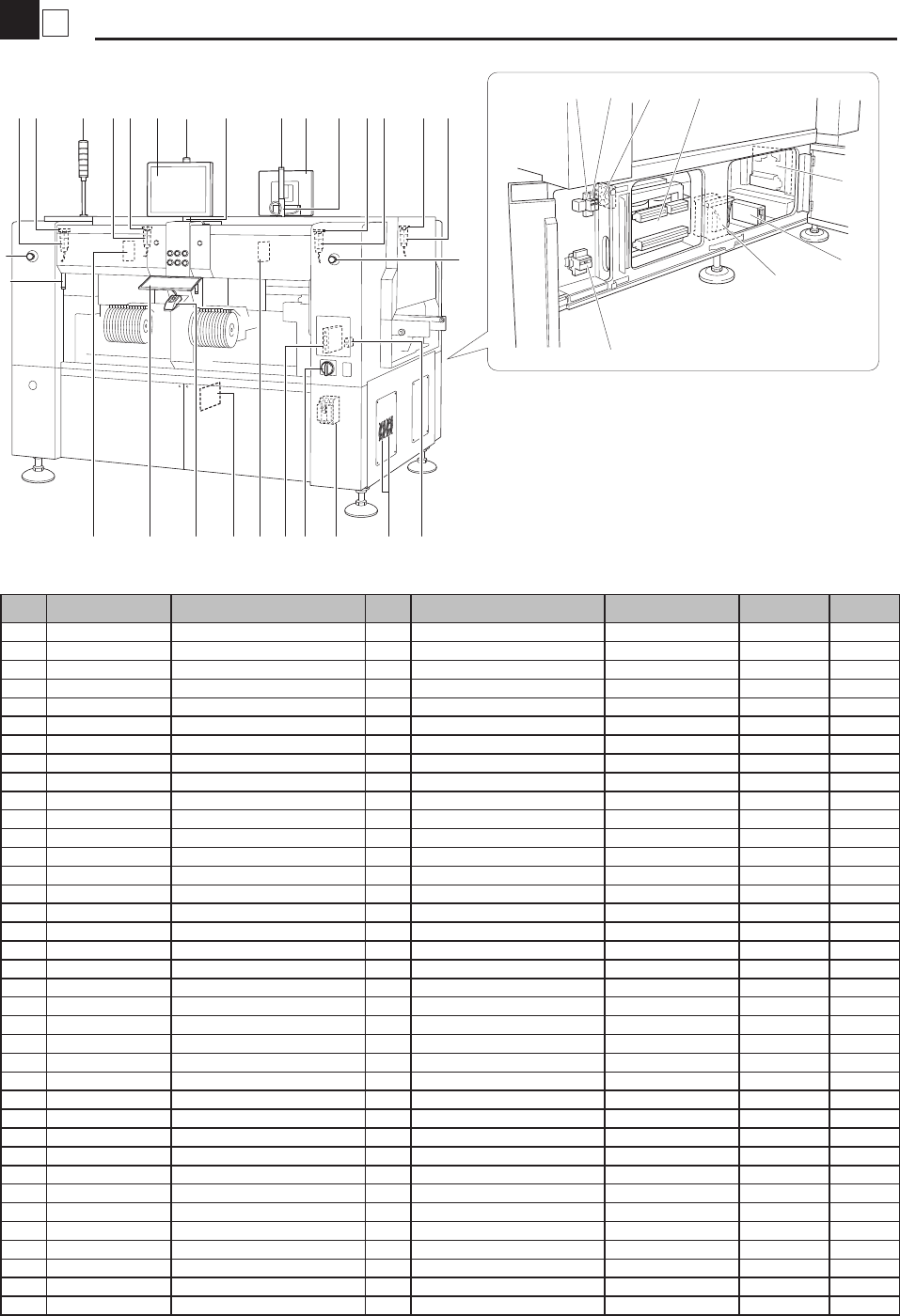

Exterior,etc
Exterior
KHM-081111
1 1 202121
9 22, 23 24 8 9 6 18,27 10
20
11
14
17
16
19
15
13
12
2 54
3
3
54 45 45
257
26
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M5106-00X 15" NORMAL LCD 2 S.T.D
1-2 KGT-M5106-01X 15NORMAL LCD" 2 (2006/6/21) MC60059 OK
1-3 KGT-M5106-02X 15" NORMAL LCD 2 AC100V (2008/4/15) ME20188 OK
1-3 KGT-M5106-B0X SMT OPE.PANEL ASSY 1 DC12V
(Compati.:KHW-M5106-10X)
(2012/11/22) MJX0111 NG
2 KGS-M4899-00X LIGHT 1 ASSY 1 S.T.D (H1850)
3 KGK-M5138-00X SWITCH EMG ASSY 4
4 KW7-M5126-00X SAFETY SWITCH 4
5 KW7-M5127-00X SAFETY SWITCH KEY 4
6 KM5-M6554-10X MAIN SWITCH 1
7 KGK-M530H-00X FDD ASSY 1
8 KGA-M4472-01X SWITCHER BOARD ASSY 1
8-1 KGA-M4472-02X SWITCHER BOARD ASSY 1 (2006/9/7) MC70102 OK
9 KGT-M4570-01X I/O BOARD HEAD ASSY 4
10 KH1-M6185-00X FAN MOTOR ASSY 1 L=300
10-1 KH1-M6185-10X FAN MOTOR ASSY 1 L=50 (2007/6/13) MD50100 NG
11 KGA-M6185-00X FAN MOTOR ASSY 2 L=300
11-1 KGA-M6185-10X FAN MOTOR ASSY 2 L=50 (2007/6/13) MD50100 NG
12 KW8-M5328-01X POWER, TRANSFORMER 1
13 KGA-M5318-10X POWER, TRANSFORMER 1
14 KGT-M4580-01X I/O CONVEYOR BOARD A 1
15 KGT-M0107-60X POWER SUPPLY ASSY 1
16 KH4-M6514-00X CIRCUIT PROTECTOR 4 1
16-1 KH4-M6514-01X CIRCUIT PROTECTOR,3P 1 CP30-BA AC 10A MD (2008/6/20) ME60163 NG
17 KHA-M6513-00X CIRCUIT PROTECTOR,3 1
17-1 KHA-M6513-01X CIRCUIT PROTECTOR,1P 1 CP30-BA AC 7A MD (2008/6/20) ME60161 NG
18 KGS-M6510-00X BREAKER ASSY 1 SA53CT-20A
19 KK1-M6513-10X CIRCUIT PROTECTOR 3 1
19-1 KK1-M6513-11X CIRCUIT PROTECTOR,1P 1 (O/P) CP30-BA 1A M (2008/6/20) ME60161 NG
20 KHM-M1380-00X STAY, LCD UNIT 2
20-1 KHM-M1380-01X STAY, LCD UNIT 2 (2006/6/23) MC60073 OK
21 KGS-M4896-01X LIGHT, ERROR 2
22 KW3-M5150-50X KEYBOARD J 2
23 KW3-M5150-60X KEYBOARD E 2
24 KHM-M514A-00X TRACKBALL 2
25 KGK-M6680-20X HNS, USB-MEMORY 2M ASSY 1
26 KGA-M9802-00X SENSOR AREA 2 (L=500)
27 KM8-M6510-12X BREAKER LEAK ASSY 30 1 MN50-CW 3P 25A (2005/11/23) MBX0081
