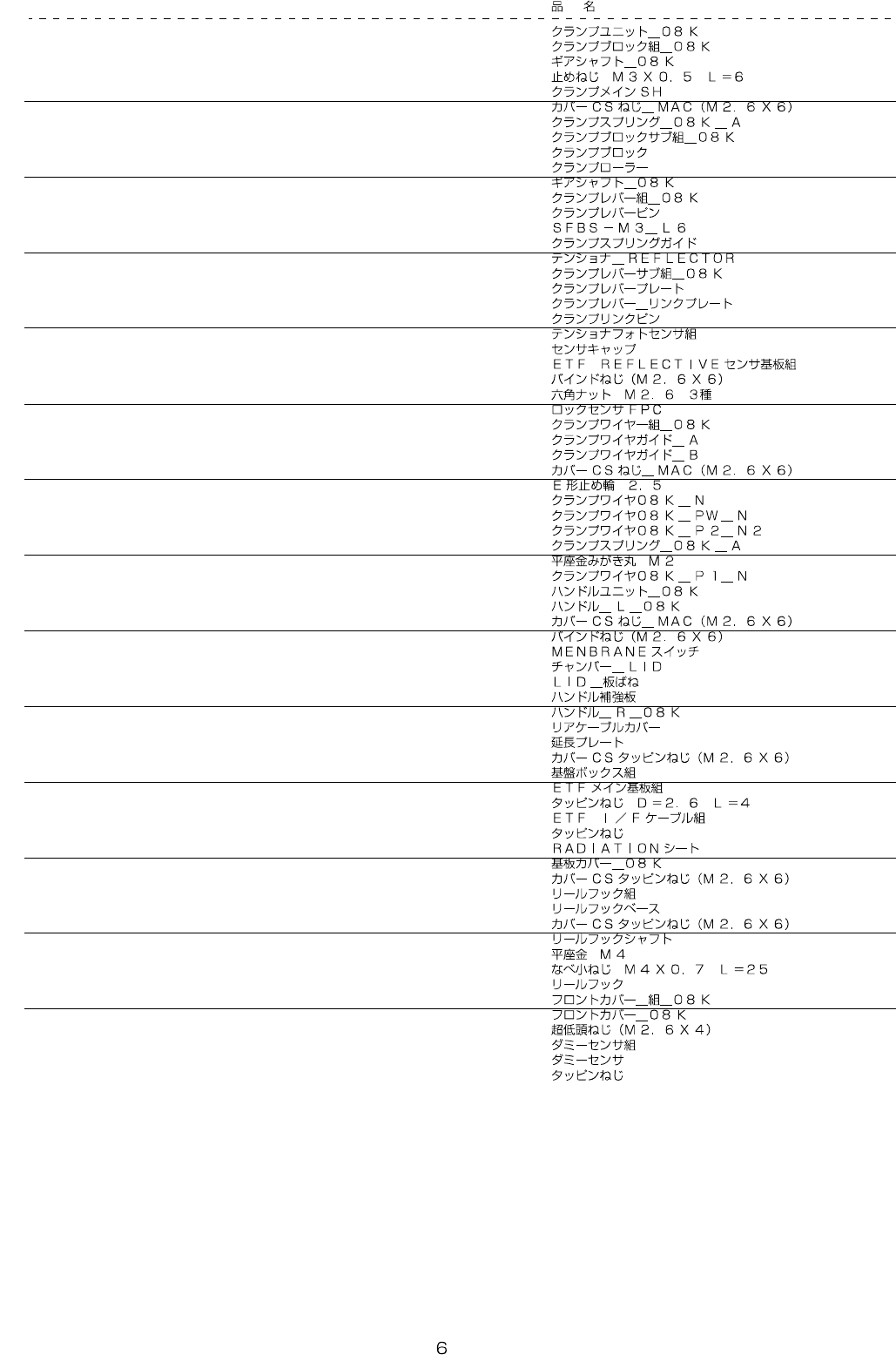

REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-69521 CLAMP_UNIT_08K 1
2 401-69543 CLAMP_BLOCK_ASSY_08K (1)
3 401-67216 GEAR_SH_08K (1)
4 SM-8030602-TP SCREW M3X0.5 L=6 (1)
5 401-67218 CLAMP_MAIN_SH (1)
6 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
7 401-67265 CLAMP_SP (1)
8 401-69546 CLAMP_BLOCK_SUB_ASSY_08K (1)
9 401-67215 CLAMP_BLOCK (1)
10 401-67217 CLAMP_ROLLER (1)
11 401-67216 GEAR_SH_08K (1)
12 401-69544 CLAMP_LEVER_ASSY_08K (1)
13 401-67237 CLAMP_LEVER_PIN (1)
14 401-71822 SFBS-M3_L6 (1)
15 401-67238 CLAMP_SPRING_GUIDE (1)
16 401-69514 TENSIONER_REFLECTOR (1)
17 401-69547 CLAMP_LEVER_SUB_ASSY_08K (1)
18 401-67234 CLAMP_LEVER_PLATE (1)
19 401-67235 CLAMP_LEVER_LINK_PLATE (1)
20 401-67236 CLAMP_LINK_PIN (1)
21 401-69548 CLAMP_PHOTO_SENSOR_ASSY (1)
22 401-67282 SENSOR_CAP (1)
23 401-62445 ETF REFLECTIVE SENS PCB ASM (1)
24 401-67278 BINDING_HEAD_SCREW_M26X6 (1)
25 NM-6860003-SC NUT M2.6 TYPE3 (1)
26 401-66940 LOCK SENS FPC (1)
27 401-69545 CLAMP_WIRE_ASSY_08K (1)
28 401-67249 CLAMP_WIRE_GUIDE_A (1)
29 401-67250 CLAMP_WIRE_GUIDE_B (2)
30 401-67279 COVER_CS_SCREW_MAC_M26X6 (6)
31 RE-0250000-K0 E-RING 2.5 (1)
32 401-67248 CLAMP_WIRE_08K_N (1)
33 401-67287 CLAMP_WIRE_08K_PW_N (0.305)
34 401-67289 CLAMP_WIRE_08K_P2_N (1)
35 401-67266 CLAMP_WIRE_SP (1)
36 WP-0220301-SC WASHER M2 (1)
37 401-67288 CLAMP_WIRE_08K_P1_N (1)
38 401-69522 HANDLE_UNIT_08K 1
39 401-67258 HANDLE_L_08K (1)
40 401-67279 COVER_CS_SCREW_MAC_M26X6 (3)
41 401-67278 BINDING_HEAD_SCREW_M26X6 (2)
42 401-66942 MENBRANE SWITCH (1)
43 401-67252 CHAMBER_LID (1)
44 401-67251 LID_PRESSURE_PLATE (1)
45 401-67254 HANDLE_REINFORCED_PLATE_12K (1)
46 401-67257 HANDLE_R_08K (1)
47 401-67232 REAR_CABLE_COVER (1)
48 401-67253 EXTENSION_PLATE (1)
49 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (14)
50 401-69549 PCB_BOX_ASSY (1)
51 401-62443 ETF MAIN PCB ASM (1)
52 ST-4860421-SN TAPPING SCREW D=2.6 L=4 (4)
53 401-66939 ETF I/F CABLE ASM (1)
54 ST-4860821-SN TAPPING SCREW M2.5X8 (2)
55 401-66943 RADIATION SHEET (2)
56 401-67283 PCB_COVER_08K (1)
57 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (6)
58 401-71823 REEL_HOOK_ASSY (1)
59 401-71257 REEL_HOOK_BASE (1)
60 401-67280 COVER_SC_TAPPING_SCREW_M26X6 (2)
61 400-68219 REEL_HOOK_SH (1)
62 WP-0430801-SC WASHER M4 (1)
63 SM-4042501-SC SCREW M4X0.7 L=25 (1)
64 401-71258 REEL_HOOK (1)
65 401-69523 FRONT_COVER_ASSY_08K 1
66 401-67259 FRONT_COVER_08K (1)
67 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (3)
68 401-69529 DUMMY_SENSOR_UNIT 1
69 401-67233 DUMMY_SENSOR (1)
70 ST-4860821-SN TAPPING SCREW M2.5X8 (2)
- -
4. RF12AS/RF16AS/RF24AS (1)
3
4
4
4
4
5
4
2
1 8
1 9
1 7
1 6
2 1
2 0
1 5
1 3
1 4
1 2
1 1
1 0
3 3
3 4
3 5
3 6
2 5
2 6
2 6
2 7
1
2 6
2 8
2 9
2 9
3 0
3 2
3 2
3 2
3 1
4 1
4 2
4 0
4 5
4 6
4 4
4 3
3 9
A
A
6 7
4 7 4 9
2 4
9
8
B
B
2 2
2 3
3 8
3 7
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-75338 FRAME_UNIT_12K 1
2 401-79604 MAIN_FRAME_12K_ADC (1)
3 401-67228 FEED_WHEEL_SH_08K (1)
4 401-67216 GEAR_SH_08K (5)
5 E6347-705-000 FASTENER PIN BX3 (1)
6 401-71153 SPONGE_FM (2)
7 401-77383 SPONGE_FD_02 (1)
8 401-72607 SPONGE_FH (1)
9 401-75339 FEED_UNIT_12K 1
10 401-75340 FEED_WHEEL_ASSY_12K (1)
11 401-72610 SLIT_PLATE_12K (1)
12 401-72611 SLIT_PLATE_TAPE_12K (1)
13 401-72609 FEED_GEAR_A_12K (1)
14 401-67219 FEED_WHEEL_08K (1)
15 401-75341 PP_SENSOR_12K_UNIT (1)
16 401-75342 PP_SENSOR_12K_SUB_ASSY (1)
17 400-85419 SCREW M2X4 (2)
18 401-72617 PP_SENSOR_BR_12K (1)
19 401-62444 ETF PP SENS PCB ASM (1)
20 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
21 401-72618 PP_SENSOR_COVER_12K (1)
22 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (2)
23 400-95428 SINGLE SIDE ADHESION TAPE50 (0.02)
24 401-75343 FEED_GEAR_ASSY_12K (1)
25 401-67202 FEED_GEAR_E_08K (1)
26 401-72608 LINER_STUD_12K (3)
27 401-71255 FEED_GEAR_GUARD_08K_P (1)
28 401-67264 SPROKET_THRUST_SP_08K (1)
29 401-67278 BINDING_HEAD_SCREW_M26X6 (4)
30 401-67260 FEED_GEAR_COVER_12K (1)
31 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
32 401-67277 SUPER_LOW_HEAD_SCREW_M26X4 (3)
33 401-66950 MOTOR_ASSY_12K (1)
34 401-67205 FEED_GEAR_B_08K (1)
35 401-67204 FEED_GEAR_C_08K (1)
36 401-67203 FEED_GEAR_D_08K (1)
37 401-77382 SPONGE_FC_02 (1)
38 401-77384 SPONGE_FD_03 (1)
39 401-75344 UPPER_COVER_BASE_UNIT_12K 1
40 401-72671 UCSP_R_12K (1)
41 401-67225 UPPER_PUSHER_BR_08K (1)
42 401-67279 COVER_CS_SCREW_MAC_M26X6 (1)
43 401-72620 UPPER_COVER_HOOK_12K (1)
44 401-72621 UPPER_COVER_HOOK_PIN_12K (1)
45 SM-8030302-TP SCREW M3X3 (1)
46 401-67263 UC_HOOK_SP_08K (1)
47
#01
401-75350 UPPER_COVER_UNIT_12K 1
48
#02
401-75360 UPPER_COVER_UNIT_16K 1
49
#03
401-75362 UPPER_COVER_UNIT_24K 1
