TECHNICAL REFERENCE APPENDIX PREVENTIVE MAINTENANCE Chapter Issue 1 June 15 Appendix to Micron Technical Manuals 3.115 Figure 3-12 Scre en Change Mechanism Screen at Stop Sensor Auto Drip T ray Actuator Piston Auto Drip …
TECHNICAL REFERENCE APPENDIX
PREVENTIVE MAINTENANCE
3.114 Appendix to Micron Technical Manuals Chapter Issue 1 June 15
Figure 3-11 Camera System
Camera Y Linear Bearing Guide (left)
Camera Y Linear Bearing Guide (right)
Camera Y Encoder Strip
Camera X Encoder Strip
Camera X Linear Bearing Guide
View on Underside of Camera Mechanism
Camera
Camera Y Magnet Track
Camera X Magnet Track
TECHNICAL REFERENCE APPENDIX
PREVENTIVE MAINTENANCE
Chapter Issue 1 June 15 Appendix to Micron Technical Manuals 3.115

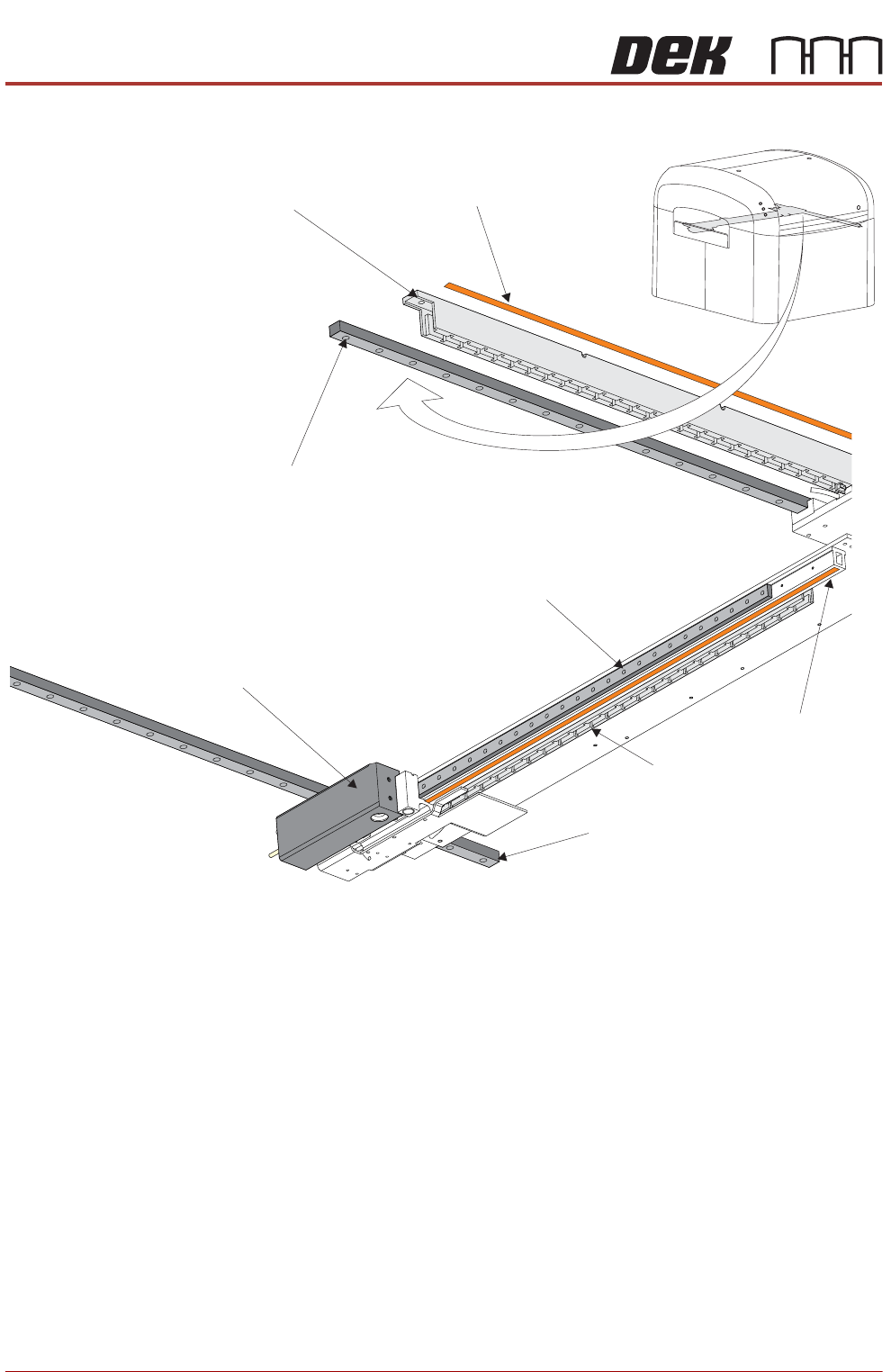

Figure 3-12 Screen Change Mechanism
Screen at Stop Sensor
Auto Drip Tray
Actuator Piston
Auto Drip Tray
Screen Stop
Actuator Arm Lever
TECHNICAL REFERENCE APPENDIX
PREVENTIVE MAINTENANCE
3.116 Appendix to Micron Technical Manuals Chapter Issue 1 June 15

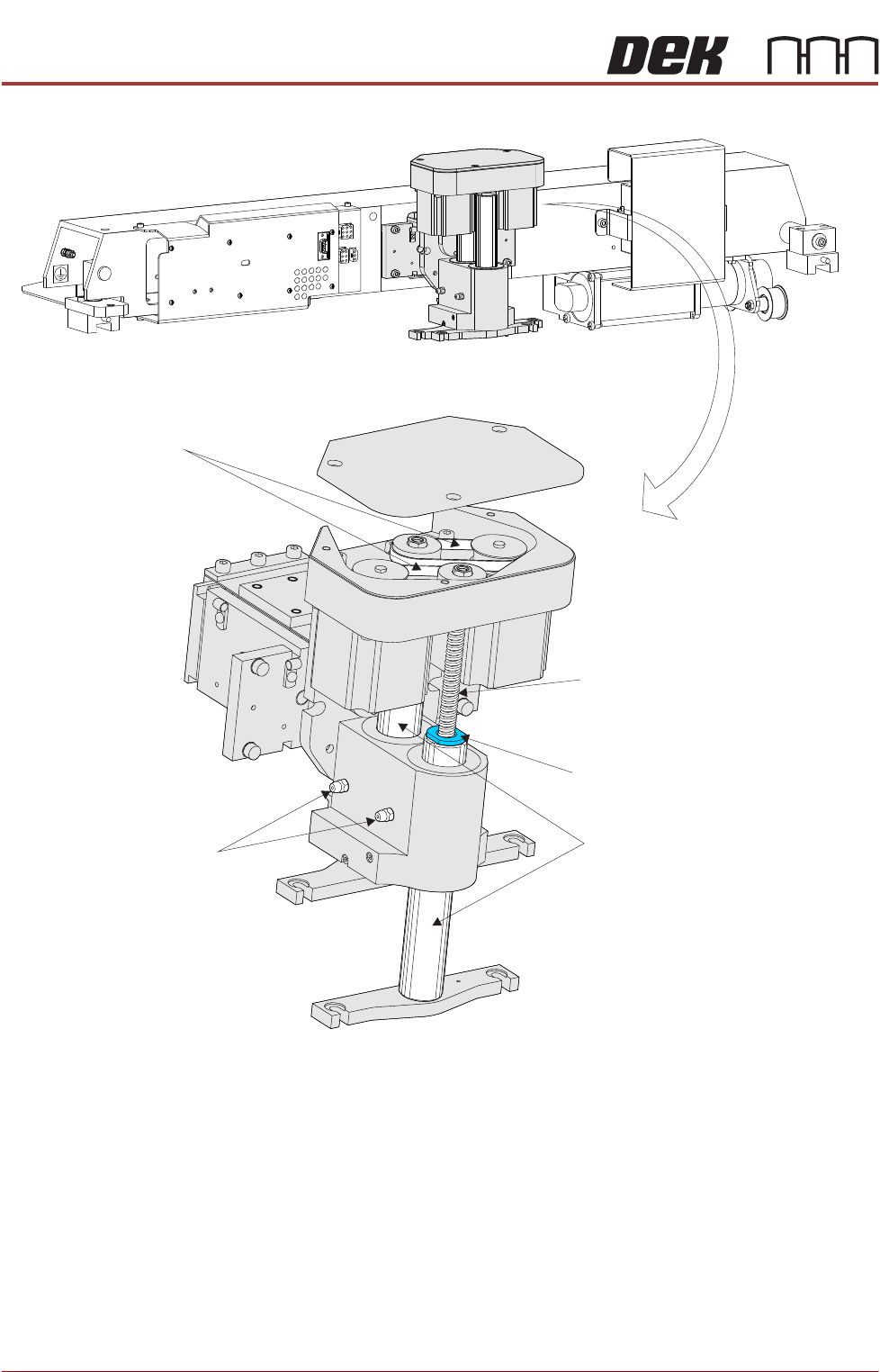

Figure 3-13 Squeegee Mechanism
View on Front of Print Carriage
Spindle Shafts
Grease Nipples
Drive Belts
Leadscrew (rear squeegee
leadscrew not shown)
Supernut (rear squeegee
supernut not shown)
