SME_FEEDER_TRM(Ver3.9_CS19.01).pdf - 第18页
Page HANWHA 6 SME W4P1 SME Tape Feeder - Total NO. LEVEL P ART NO. P ART NAME Q 'TY TYPE OLD NO. Reference 1 FC39-001302A MAIN BODY SME W4P 1 1 2 J70653552A D-TENSIONER_HINGE J706 53552A 1 3 J72651 198A D-TENSIONER …
Page
HANWHA
5
SME

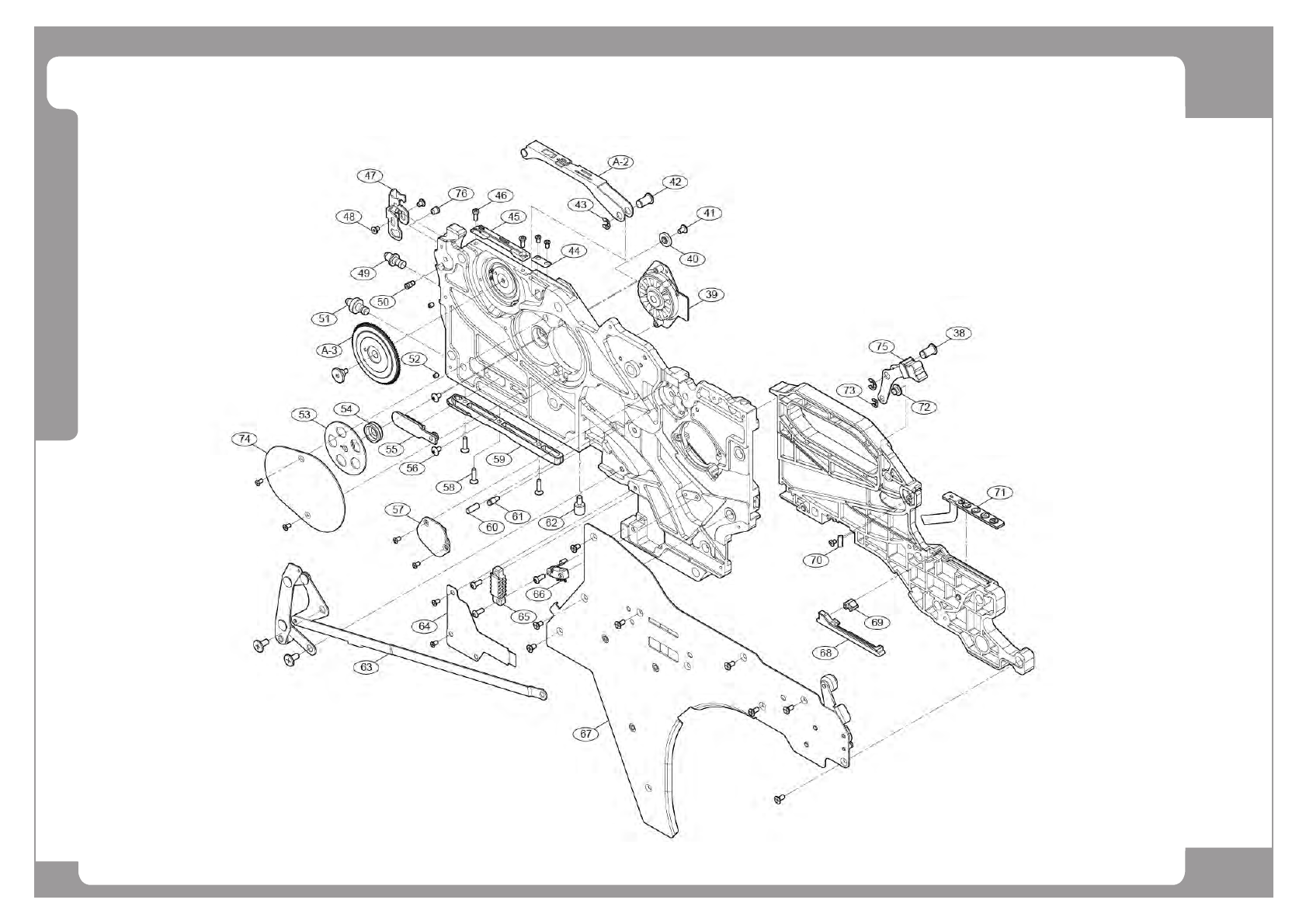

W4P1 SME Tape Feeder - Total (2)
Page
HANWHA
6
SME
W4P1 SME Tape Feeder - Total
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
1 FC39-001302A MAIN BODY SME W4P1 1
2 J70653552A D-TENSIONER_HINGE J70653552A 1
3 J72651198A D-TENSIONER ROLLER 2
4 MC19-000643A DRAIN HANDLE SHAFT 1
5 J70653926A PAN CAP SCREW M25L35 5
6 J64091017A MAGNET HXNS1-5 1
7 J70653940A FLAT TAPPING SCREW 3X7-2 12
8 J7065980A HANGER SHAFT GUIDE 1
9 J72651326A PCB COVER M 08 1
10 J6006300650 FLAT HEAD CAP SCREW 8
11 FC15-001975A D-BOX COVER SME-W4P1 1
12 J6004300450 BUTTON HEAD CAP SCREW 3
13 AM03-001815C ASSY,BOARD-MF MAIN BOARD 1
14 J70653748A D-DOOR PIN M 08 1
15 FC24-000043A D-BOX DOOR SME W4P1 1
16 J71651939A HEAT SINK M 08 1
17 J70653696A D-BOX LEVER M 08 1
18 J70653697A D-MOTOR COVER M 08 1
19 FC15-002324A RIGHT COVER M 08 1
20 FC07-000971A DRAIN COVER W4P1 1
21 FC07-000970A DRAIN GEAR FORK-W4P1 1
22 J70653933A D-STAGE GEAR SHAFT 1
23 GD03-000049A D-STAGE GEAR1 1
24 MC11-001010A DRAIN GEAR-1 W4P1 1
25 MC19-000660A DRAIN COVER SHAFT 1
26 J6005300838 BUTTON HEAD SOCKET SCREW 5
27 FC15-002039A DUMP BOX COVER M 08 W4P1 1
Page
HANWHA
7
SME
W4P1 SME Tape Feeder - Total
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
28 J6005300538 BUTTON HEAD SOCKET SCREW 2
29 FC07-001049A DUMP BOX COVER2 W4P1 1
30 J70653701A SLICING OUTER COVER M 08 1
31 J90652110A SPLICING M 08 ASSY 1
32 J31021017A SM-V DRAIN MOTOR 1
33 J90650183C HANGER ASSY 1
34 J90611845A DRAIN SENSOR HARNESS ASSY M 08 1
35 AM03-008090A SECOND GEAR M 08 ASSY 1
36 J91741352A INDEX SENSOR ASSY 1
37 J90652099A D-TENSIONER M 08 ASSY 1
38 J70661458A TAPE GUDIE SHAFT1 M 08 1
39 AM03-007525A INDEX MOTOR SME08 ASSY 1
40 J70653745A SECOND PINION 08 1
41 MC19-000514A GEAR SHAFT SCREW 1
42 J70661458A TAPE GUDIE SHAFT1 M 08 1
43 J1301149 E RING (4) 2
44 J7066026A T-COVER 1
45 FC07-000972B BLOCK-PICKUP BLOCK 4W1P 1 FC07-000972A
46 MC19-000661A SHAFT-PICKUP BLOCK SHAFT W4P1 2
47 J90652097A LOCKER M 08 ASSY 1
48 J70661457A LOCKER HINGE M 08 2
49 J70652174A X ECCENTRIC PIN 1
50 J7066033B LOCKER SPG PIN2 1
51 J70650948B LOCATION FLANGE 1
52 J6010300438 SOCKET SET SCREW(M3X0.5 L4) 2
53 AM03-010170A MOTOR GEAR SHAFT1 ASSY 1
54 MC19-000492A FIRST METAL BEARING 1
