W4P1 SME Tape Feeder - Total
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
55 J72651377A DUMP BOX DOOR 1
56 FC18-000694 TRUSS HEAD SRCREW M3L5 2
57 J90652111A D-GEARTRAIN M 08 ASSY 1
58 J6004301250 FLAT HEAD CAP SCREW 3
59 GD03-000023A INSTALL GUIDE 1
60 J70650994B TOGGLE STOPPER 1
61 J70650995B TOGGLE SPG PIN 1
62 J7065992B BOTTOM LOC PIN 1
63 J90652106A TOGGLE M 08 ASSY 1
64 J7065981A PROBER COVER 1
65 AM03-001245A Main Probe Harness ASSY M 08 1
66 J90611844A CLAMP_SWITCH_HARNESS_ASSY_M_08 1
67 J90652105A REEL PLATE M 08 ASSY 1
68 GD03-000055A UI BLOCK M 08 1
69 J71651465A MAIN LED LIGHT 1
70 J70652749A VINYL_CUTTER 1
71 J91741353A UI ASSY M08 1
72 J70661463A CLAMP LEVER SHAFT M 08 1
73 J1301023 E RING(3) 1
74 J70653699A MOTOR COVER M 08 1
75 J70653694A CLAMP LEVER M 08 1
76 J70650967C LOCKING LIMIT 1
77 FC38-000155A SPRING,ETC-D TENSIONER SPRING W4P1 1
Page
HANWHA
9
SME
Blank
Page
HANWHA
10
SME

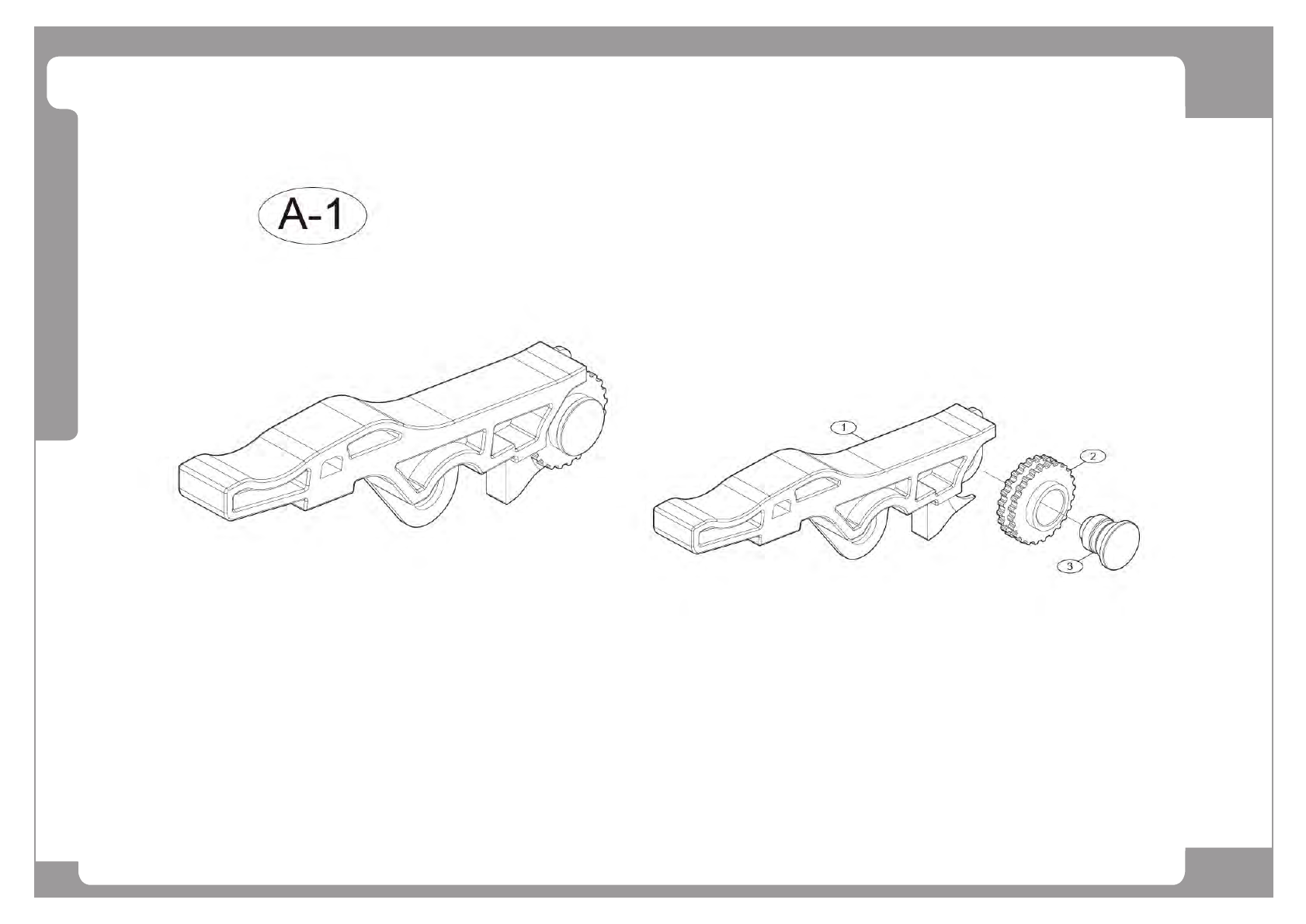

4mm SME Tape Feeder - Sub (1)
