SME_FEEDER_TRM(Ver3.9_CS19.01).pdf - 第24页
Page HANWHA 12 SME 4 mm SME Tape Feeder - Sub (3)
Page
HANWHA
11
SME
4mm SME Tape Feeder - Sub (2)
Page
HANWHA
12
SME
4mm SME Tape Feeder - Sub (3)
Page
HANWHA
13
SME
4mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
A-1 AM03-012580A D-HANDLE M W4P1 ASSY 1
1 FC24-000037A DRAIN HANDLE SME W4P1 1
2 MC11-001009A DRAIN GEAR-W4P1 1
3 MC19-000535B DRAIN F GEAR SHAFT 1

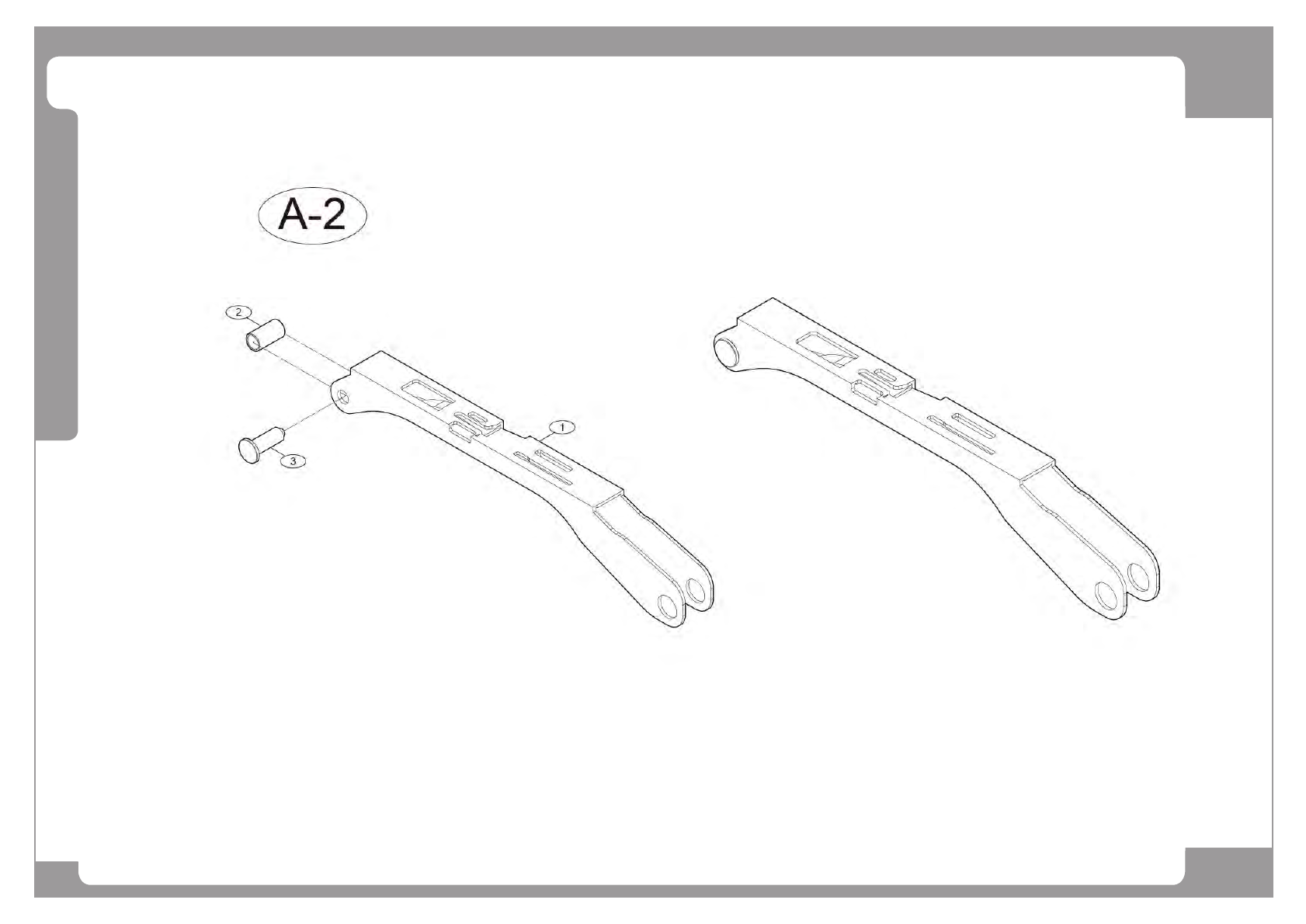

A-2 AM03-012579A TAPE GUIDE M W4P1 ASSY 1
1 FC09-003300B BRACKET-TAPE GUIDE SME 4W1P 1 FC09-003300A
2 J70661455A LOCKING ROLLER M 08 1
3 J70661456A TAPE GUIDE SHAFT2 M 08 1

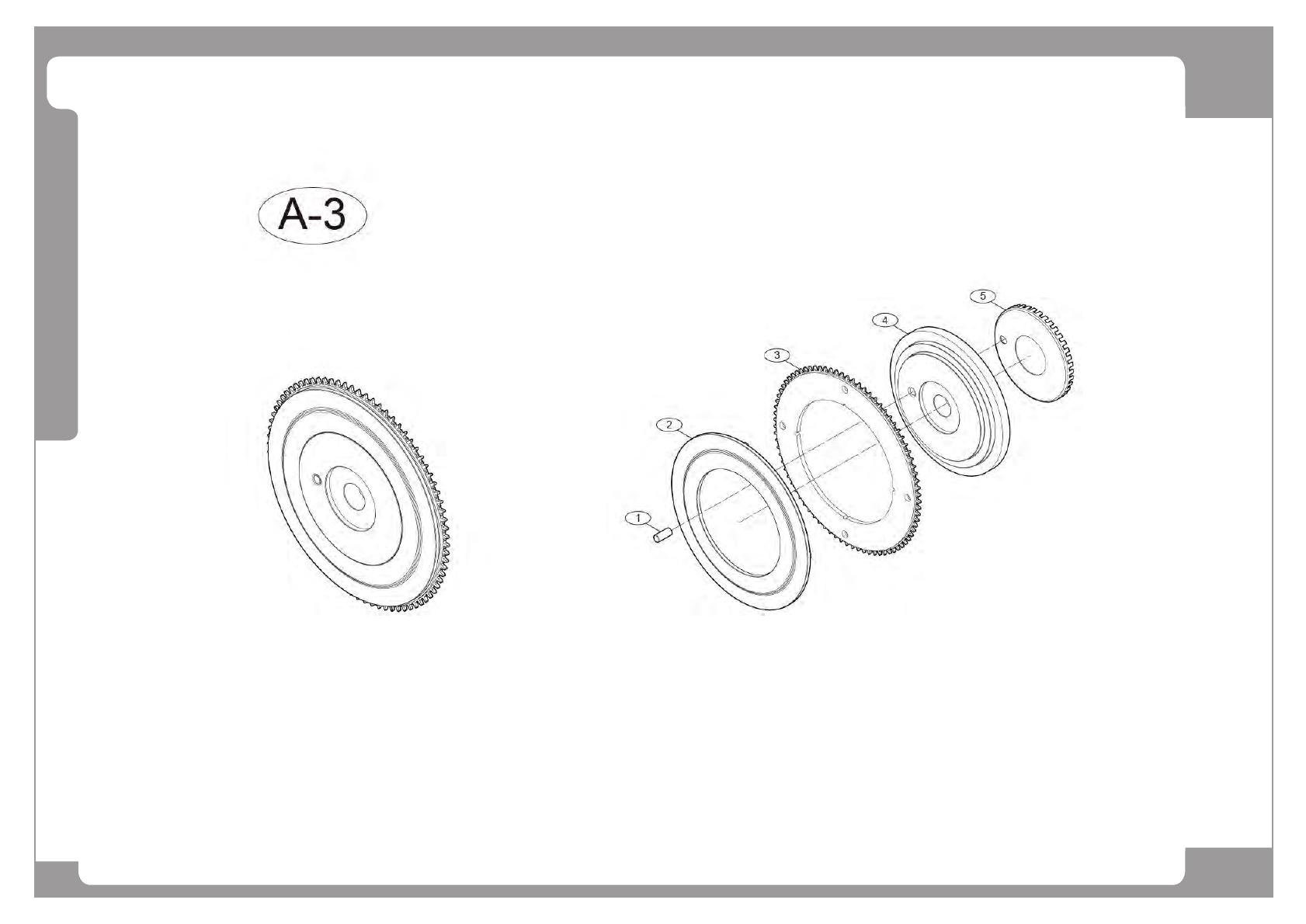

A-3 AM03-012578A SPROCKET W4P1 SME ASSY 1
1 J71691250A SPROCKET PIN 1
2 GD03-000051A SPROCKET COVER 1
3 MC23-000053A SPROCKET W4P1 1
4 J71651834A SPROCKET GEAR 08 1
5 FC28-000551A HOMING DOG 08 1
