Page HANWHA 19 SME 8 mm SME Tape Feeder - Total NO. LEVEL P ART NO. P ART NAM E Q'TY TYPE OLD NO. Referen ce A J90652106A TOGGLE M 08 ASSY 1 A-1 J13010 23 T LINK1 M 08 1 A-2 J90652 108A T LINK3 M 08 1 A-3 J90652 107…
Page
HANWHA
18
SME
8mm SME Tape Feeder - Total
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
55 J90652102A SECOND GEAR M 08 ASSY 1
56 J90652105A REEL PLATE M 08 ASSY 1
57 GD03-000046A D-FOLLOWER SPRING 1
58 J90652110A SPLICING M 08 ASSY 1
59 J90652111A D-GEARTRAIN M 08 ASSY 1
60 J91741352A INDEX_SENSOR_ASSY 1
AM03-004845A ASSY,BOARD-MFISB_8MM 1
61 J91741316A SMV FEEDER MAIN BOARD 1
62 J7066047A FLAT HEAD CAP SCREW H4.4 24
63 J70653926A PAN CAP SCREW M25L35 5
64 J6010300438 SOCKET SET SCREW(M3X0.5 L4) 2
65 J6005300538 BUTTON HEAD SOCKET SCREW 4
66 AM03-007525A INDEX MOTOR SME08 ASSY 1 J90652109A
67 J70652174A X ECCENTRIC PIN 1
68 J70650994B TOGGLE STOPPER 1 1
69 J70650995B TOGGLE SPG PIN 1
70 FC18-901932 FLAT HEAD CAP SCREW[M3X12(SUS)] 3 J6006301250
71 J6005300838 BUTTON HEAD SOCKET SCREW 5
72 J6006300650 FLAT HEAD CAP SCREW 8
73 J70653940A FLAT TAPPING SCREW 3X7-2 12
74 J90611846A MAIN CONNECTOR HARNESS ASSY M08 1
75 J7065992B BOTTOM LOC PIN 1
76 J1301154 FLAT WASHER (M3L) 2
77 J6004300450 BUTTON HEAD CAP SCREW 3
78 FC07-000339B FC07-000339A 1
79 EP10-002213 EP10-000804 2
80 AM03-010172A ASSY,TAPE FEEDER-D-GEARTRAIN V 08 ASSY 1
Page
HANWHA
19
SME
8mm SME Tape Feeder - Total
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
A J90652106A TOGGLE M 08 ASSY 1
A-1 J1301023 T LINK1 M 08 1
A-2 J90652108A T LINK3 M 08 1
A-3 J90652107A T LINK4 M 08 1
A-4 J70661463A CLAMP LEVER SHAFT M 08 3
A-5 J70653944A T LINK2 M 08 ASSY 1
A-6 J70653943A T LINK5 M 08 ASSY 1
A-7 J70653941A E RING(3) 4
Page
HANWHA
20
SME

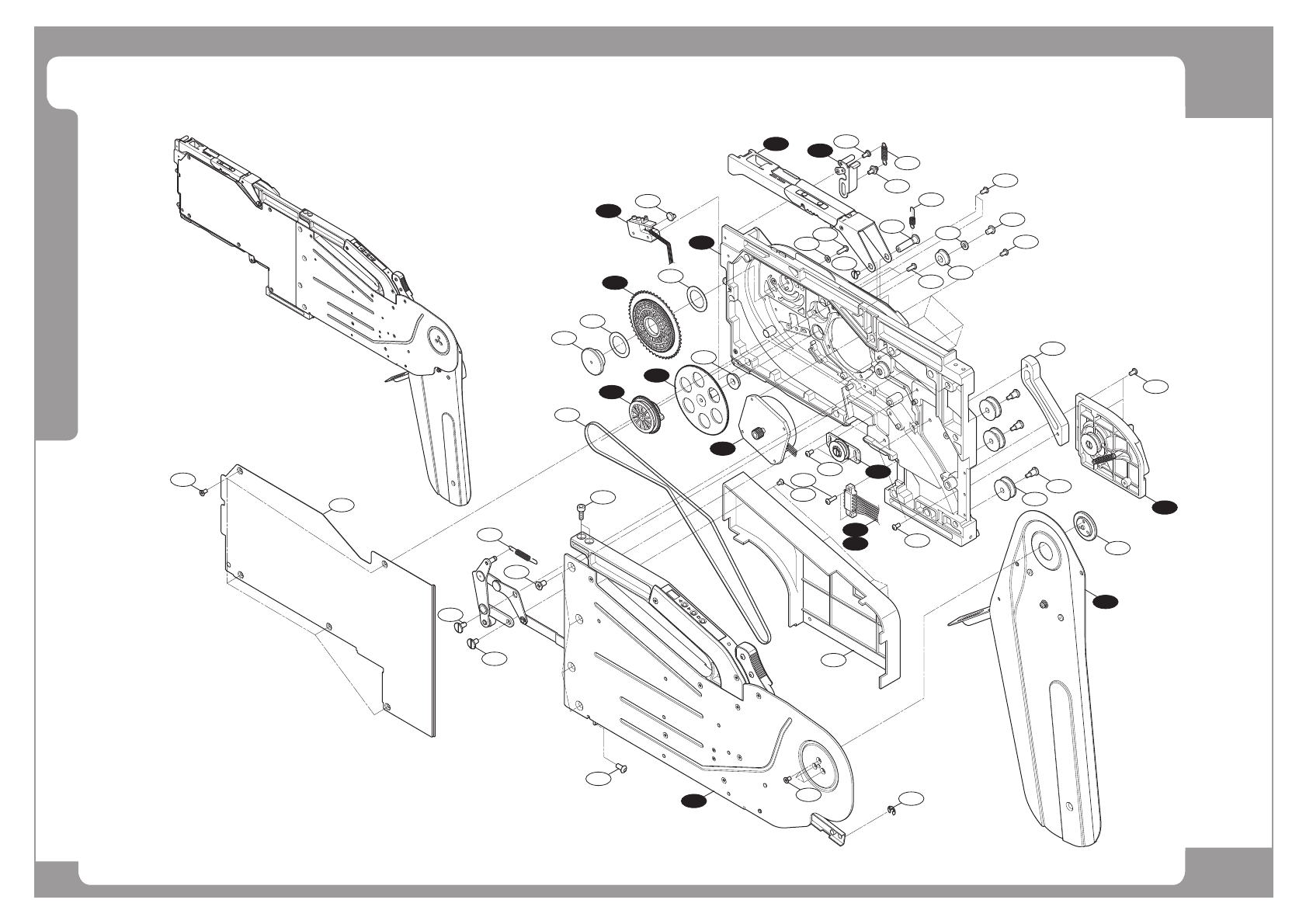

12mm SME Tape Feeder - Total
10
23
12
K
26
23
19
31
29
14
24
23
F
Q
13
27
23
6
27
23
E
11
18
22
16
9
26
D
R
S
N
1
8
7
2
27
20
28
4
15
3
30
17
6
25
21
25
2
B
T
C
I
A
J
