SME_FEEDER_TRM(Ver3.9_CS19.01).pdf - 第47页
Page HANWHA 35 SME 12 mm SME Tape Feeder - Total NO. LEVEL P ART NO. P ART NAME Q'TY TYPE OLD NO. Reference P AM03-001781A HANDLE ASSY 1 S90000059A 5 AM03-001786A SWITCH BOARD ASSY 1 S91000003A 6 AM03-001787A SWITCH…
Page
HANWHA
34
SME
12mm SME Tape Feeder - Total
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
8 AM03-001455A LIMIT SWITCH CABLE ASSY 1 S91000007
10 FC18-000479A FHCS 7 S60060004A
11 J6006201050 FHCS 2 S60060002A
12 FC18-000474A BHCS 2 S60050001A
13 FC18-000476A BHCS 2 S60050003A
14 J6025200050 NUT 2 S60250001A
16 J1301149 SNAP RING 2 S60710003A DIA 4 (SUS)
O FEEDER CLAMP ASSY 1
1 AM03-001448A T_LINK2 ASSY 1
2 J70650996B T_LINK1
3 J70660007C T_LINK1 SHAFT2 1
4 J70652737A T_LINK3 1
5 J70660002C T_LINK2 SHAFT 2 1
6 J70652736A T_LINK4 1
7 J70660029B T_LINK3 SHAFT1 1
8 FC28-000118A T_LINK5 1
9 J70652727A T_LINK4 PIN 1
10 J1301149 SNAP RING 1 S60710003A DIA 4 (SUS)
11 J1301023 SNAP RING 3 S60710002A DIA 3 (SUS)
12 J90651524A CLAMP LEVER ASSY 1
13 MC19-000344A T_LINK5 SHAFT 1 1
14 MC19-000344A SNAP RING 1 S60710004A DIA 5 (SUS)
Page
HANWHA
35
SME
12mm SME Tape Feeder - Total
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
P AM03-001781A HANDLE ASSY 1 S90000059A
5 AM03-001786A SWITCH BOARD ASSY 1 S91000003A
6 AM03-001787A SWITCH BOARD CABLE ASSY 1 S91000004A
9 AM03-001791A SPLICE_BOARD_ASSY 1 S91000010A
10 AM03-001789A SPLICING SENSOR CABLE ASSY 1 S91000006A
11 FC29-001090A SPLICING GUIDE_12 1 S72000038A
Q J90651449A 12MM REEL ARM PLATE ASSY 1
R AM03-001449A PROBE CABLE ASSY (IT) 1 J91672413A
T MC11-000383A GEAR-DROP GEAR ASSY 1 S90000010C03 S90000010A
Page
HANWHA
36
SME

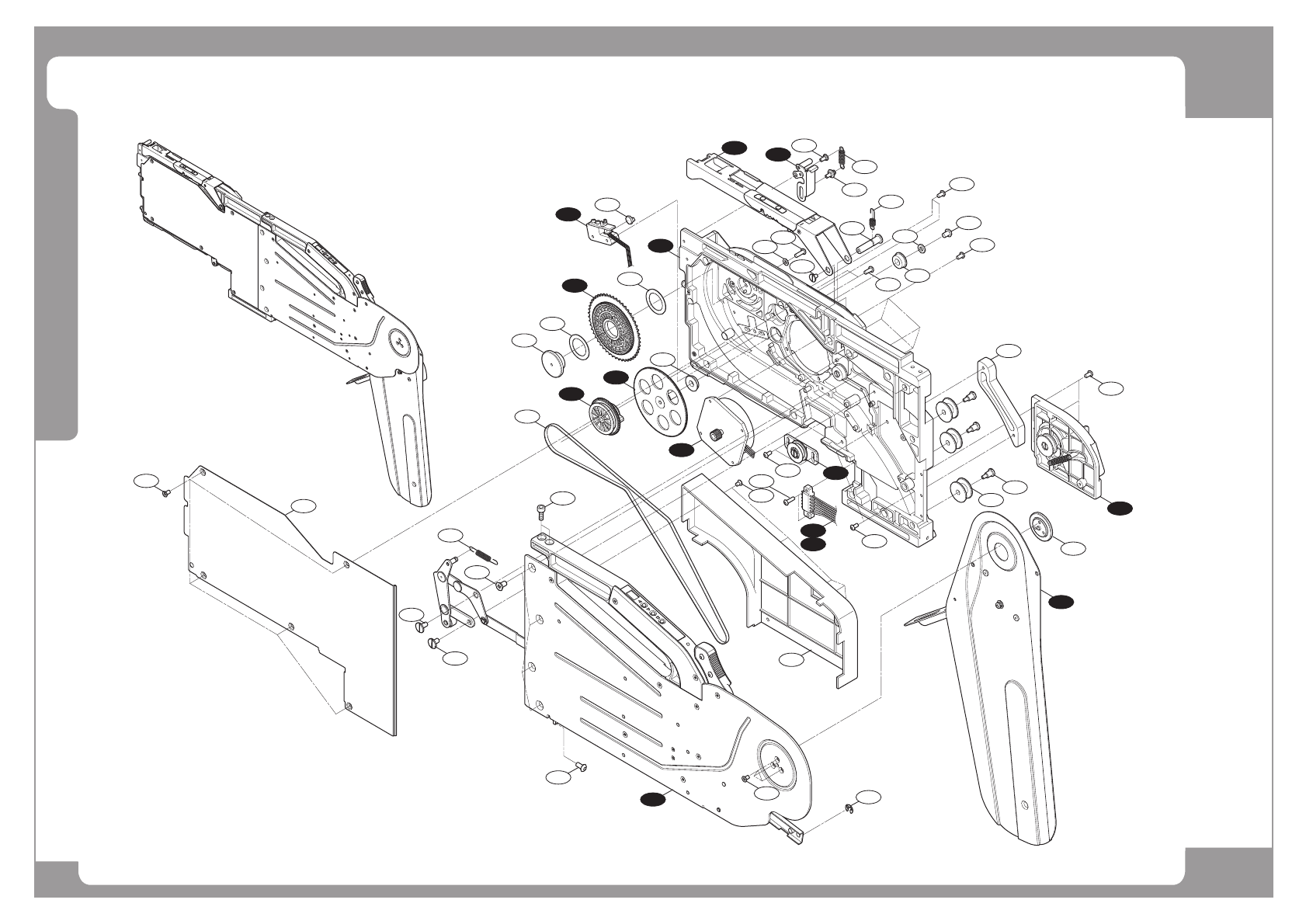

16mm SME Tape Feeder - Total
10
23
12
K
26
23
19
31
29
14
24
23
F
Q
13
27
23
6
27
23
E
11
18
22
16
9
26
D
R
S
N
1
8
7
2
27
20
28
4
15
3
30
17
6
25
21
25
2
B
T
C
I
A
J
