Page HANWHA 51 SME 16 mm SME Tape Feeder - Sub NO. LEVEL P AR T NO. P ART NAME Q'TY TYPE OLD NO. Reference P HAN DLE ASSY 1 5 AM03-001786A SWITCH BOARD ASSY 1 S91000003A 6 AM03-001787A SWITCH BOARD CABLE ASSY 1 S910…
Page
HANWHA
50
SME
16mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
8 AM03-001455A LIMIT SWITCH CABLE ASSY 1 S91000007
10 FC18-000479A FHCS 7 S60060004A
11 J6006201050 FHCS 2 S60060002A
12 FC18-000474A BHCS 2 S60050001A
13 FC18-000476A BHCS 2 S60050003A
14 J6025200050 NUT 2 S60250001A
16 J1301149 SNAP RING 2 S60710003A
O S90000056A FEEDER CLAMP ASSY 1
1 J90651524A CLAMP LEVER ASSY 1
2 AM07-006160A ASSY-ETC-CONTROL BOARD COVER S72000035A 1
3 AM03-014191A ASSY,ETC,IMS-CONTROL SWITCH COVER 1
4
5 AM03-001786A ASSY,TAPE FEEDER-SWITCH BOARD ASSY 1
6 AM03-001787A ASSY,TAPE FEEDER-SWITCH BOARD FLEX CABLE 1
7 AM03-014190A ASSY,ETC,IMS-FND GLASS 1
Page
HANWHA
51
SME
16mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
P HANDLE ASSY 1
5 AM03-001786A SWITCH BOARD ASSY 1 S91000003A
6 AM03-001787A SWITCH BOARD CABLE ASSY 1 S91000004A
9 AM03-001791A SPLICE_BOARD_ASSY 1 S91000010A
10 AM03-001789A SPLICING SENSOR CABLE ASSY 1 S91000006A
11 FC29-001091A SPLICING GUIDE_16 1 S72000039A
Q AM03-001460A 16MM REEL ARM PLATE ASSY 1
R AM03-001449A PROBE CABLE ASSY (IT) 1 J91672413A
S S91000008A IT BOARD IF CABLE ASSY 1
T MC11-000383A GEAR-DROP GEAR ASSY 1 S90000010C03 S90000010A
Page
HANWHA
52
SME

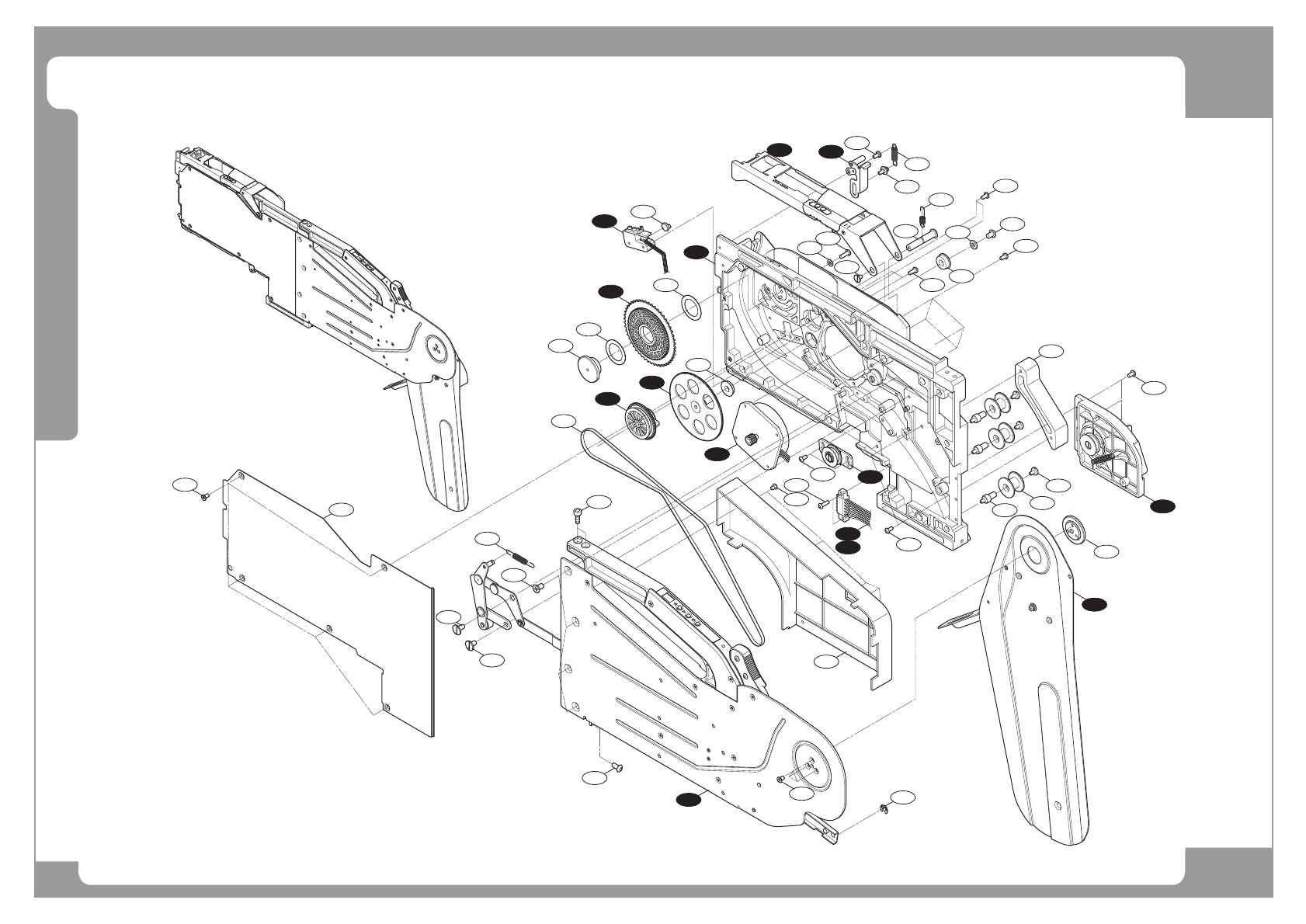

24mm SME Tape Feeder - Total
10
24
12
K
23
24
19
32
30
14
25
24
F
Q
20
28
24
6
27
24
E
11
18
13
23
16
9
27
D
R
S
N
1
8
7
2
28
21
29
4
15
3
31
17
5
26
22
26
2
B
T
C
I
A
J
