Page HANWHA 69 SME 32 , 44 , 56,72,88 mm SME Tape Feeder - Total 9 26 29 26 18 33 32 13 27 F T Q 19 30 26 5 30 26 E 10 17 12 25 2 1 20 15 8 39 D K R S N 20 7 6 30 21 31 3 22 14 16 11 5 26 4 24 28 1 B U C I A J
Page
HANWHA
68
SME
24mm SME Tape Feeder - Sub
NO. LEVEL PART NO. PART NAME Q'TY TYPE OLD NO. Reference
Page
HANWHA
69
SME

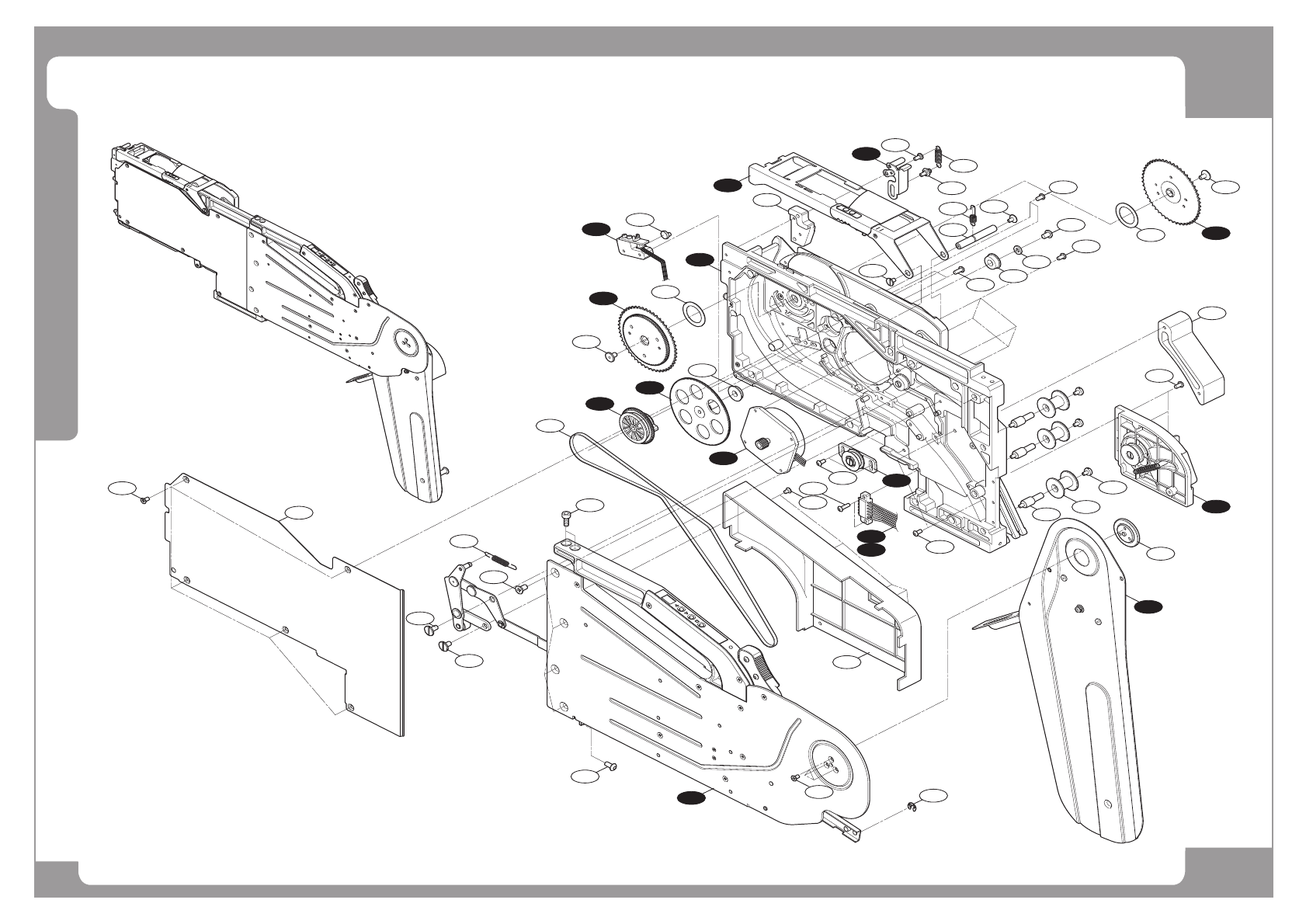

32, 44, 56,72,88mm SME Tape Feeder - Total
9
26
29
26
18
33
32
13
27
F
T
Q
19
30
26
5
30
26
E
10
17
12
25
2
1
20
15
8
39
D
K
R
S
N
20
7
6
30
21
31
3
22
14
16
11
5
26
4
24
28
1
B
U
C
I
A
J
Page
HANWHA
70
SME
32, 44, 56,72,88mm SME Tape Feeder - Total
NO. LEVEL PART NO. PART NAME
Q'TY
TYPE OLD NO. Reference
32mm 44mm 56mm 72mm 88mm
1 MC23-000036A SPROCKET WASHER 2 2 2 2 2 S73000001A
2 FC18-000471A DROP GEAR WASHER 2 1 1 1 1 1 S70000089A
3 MC11-000432A SENSOR ADJUST CAM 1 1 1 1 1 S70000090A
4 FC18-000472A TAPE GUIDE FIX BOLT 1 1 1 1 1 S70000091A
5 J70660008C T_LINK1 SHAFT1 1 1 1 1 1
6 J70660001B T_LINK4 SHAFT1 1 1 1 1 1
7 FC38-000028A TOGGLE SPRING 1 1 1 1 1 S70000092A
8 FC15-000910A MAIN BOARD COVER 1 1 1 1 1 S72000044A
9 FC15-000251A DRIVING PART COVER 1 1 1 1 1 S70000093A
10 J7066079A REEL PLATE SHAFT 1 1 1 1 1
11 FC38-000027A TAPE GUIDE CUSHION SPRING 1 1 1 1 1 S70000095A
12 MC19-000330A VINYL GUIDE ROLLER SHAFT_32 3 0 0 0 0 S70000106A
MC19-000331A VINYL GUIDE ROLLER SHAFT_44 0 2 0 0 0 S70000108A
MC19-000332A VINYL GUIDE ROLLER SHAFT_56 0 0 2 0 0 S70000111A
MC19-000710A
VINYL GUIDE ROLLER SHAFT 2-72 0 0 0 0 0 S70000390A
MC19-000804A
VNYL GUIDE ROLLER
SHAFT 2-88
00 00 1
S70000390A
13 J70652728A LOCKER LINK POST 1 1 1 1 1
14 J70652717A LOCKER SLOT PIN 1 1 1 1 1
15 J7066140A LOCKER SPRING 1 1 1 1 1
16 MC19-000336A TAPE GUIDE SHAFT_32 1 0 0 0 0 S70000105A
MC19-000337A TAPE GUIDE SHAFT_44 0 1 0 0 0 S70000107A
MC19-000338A TAPE GUIDE SHAFT_56 0 0 1 0 0 S70000110A
MC19-000711A TAPE GUIDE
SHAFT_72
0 0 0 1 0 S70000248A
MC19-000805A TAPE GUIDE
SHAFT_88
0 0 0 0 1 S70000388A
17 S72000048A VINYL GUIDE ROLLER_32 2 0 0 0 0 S72000048A
S72000049A VINYL GUIDE ROLLER_44 0 2 0 0 0 S72000049A
