Speed (Single-Sided) DLM-RV12 - Option 1
Installation Procedures
18 Assembly Instructions E by SIPLACE
► Connect the diameter 6 mm tube "Tube Nozzle Changer LOC1" [03102149
-
xx] to port 3 of the air
service unit located in location 2.

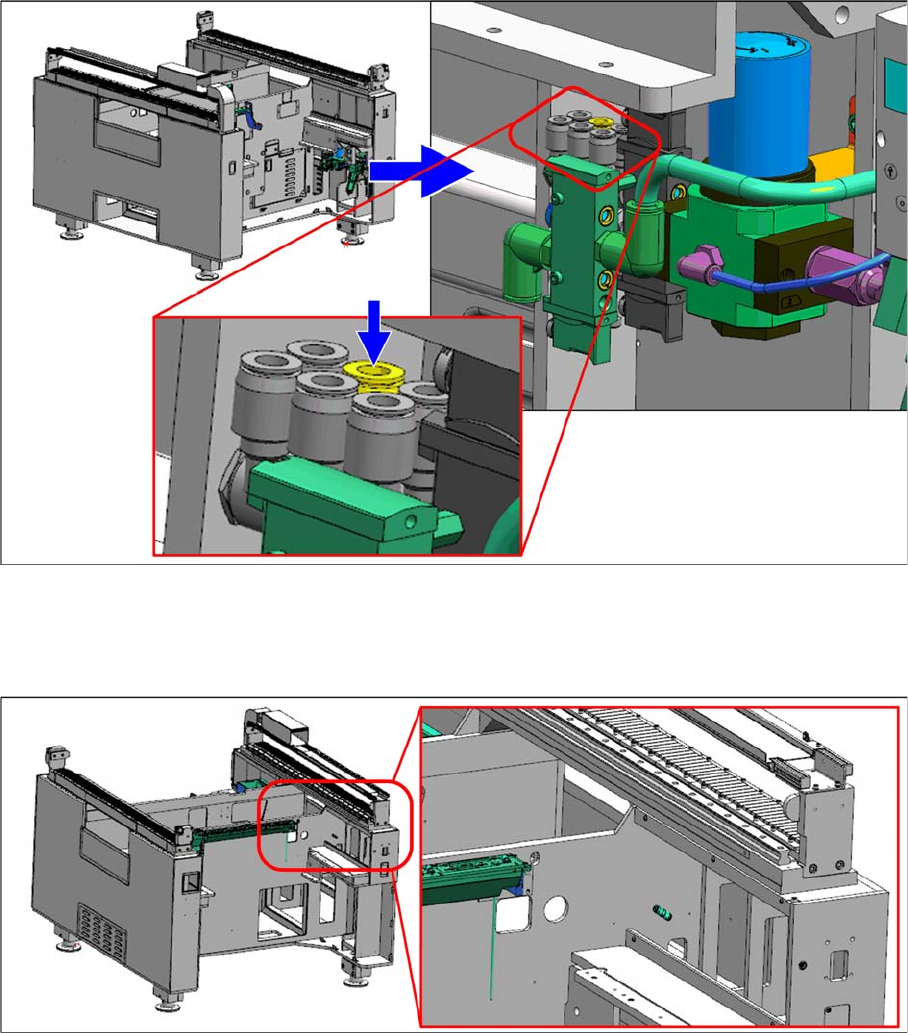

Port 3 is the port shown in yellow in the below picture.
► Route the tube [03102149
-
xx] from the air service unit to the indicated area in location 1.
► Connect the tube [03102149
-
xx] to the tube of the nozzle changer via the provided "6-4 reducer fit
-
ting" [00386293
-
xx].
► Refit all the removed covers.
Speed (Single-Sided) DLM-RV12 - Option 2
Installation Procedures
Assembly Instructions E by SIPLACE 19
3
3 Speed (Single-Sided) DLM-RV12 - Option 2
Speed (Single-Sided) DLM-RV12 - Option 2
A "SPEED (Single-Sided) option 1" configuration can be enhanced with "SPEED Option 2", which con
-
sists of an additional "NC Speed kit reject bin small" [03113189
-
xx] and a "Module sensor reject box
LOC2" [03102729
-
xx] located at location 2.
3.1
3.1 Installation Procedures
Installation Procedures
► Mount the "NC mounting bracket Speed left" [03108126
-
xx] (1) onto the machine frame using two
5x12 dowel pins and two M5x30 cap screws.

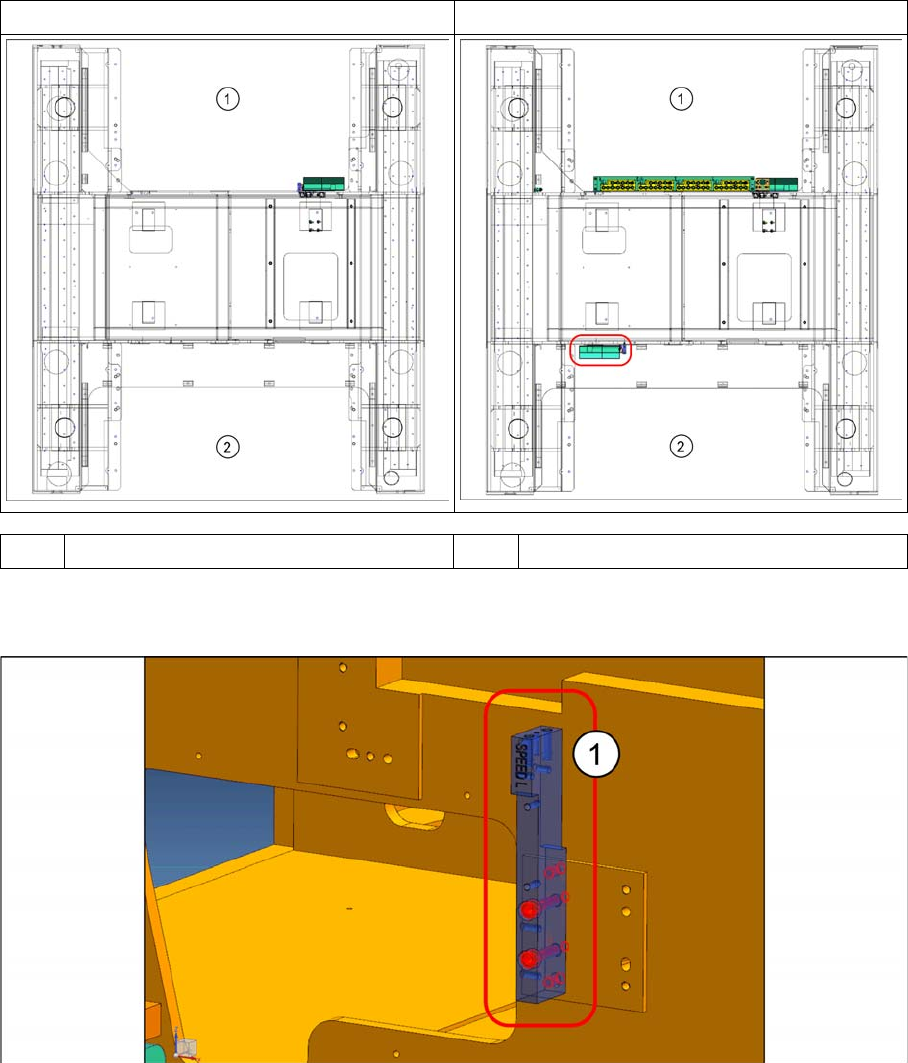

STANDARD SPEED (SS) RV12 SPEED (SS) RV12 OPTION 2
1 Location 1 2 Location 2
Speed (Single-Sided) DLM-RV12 - Option 2
Installation Procedures
20 Assembly Instructions E by SIPLACE
► Mount the "Reject bin holder" [03110727
-
xx] (1) using two "M4x8 button head screws"
[03045201
-
xx].

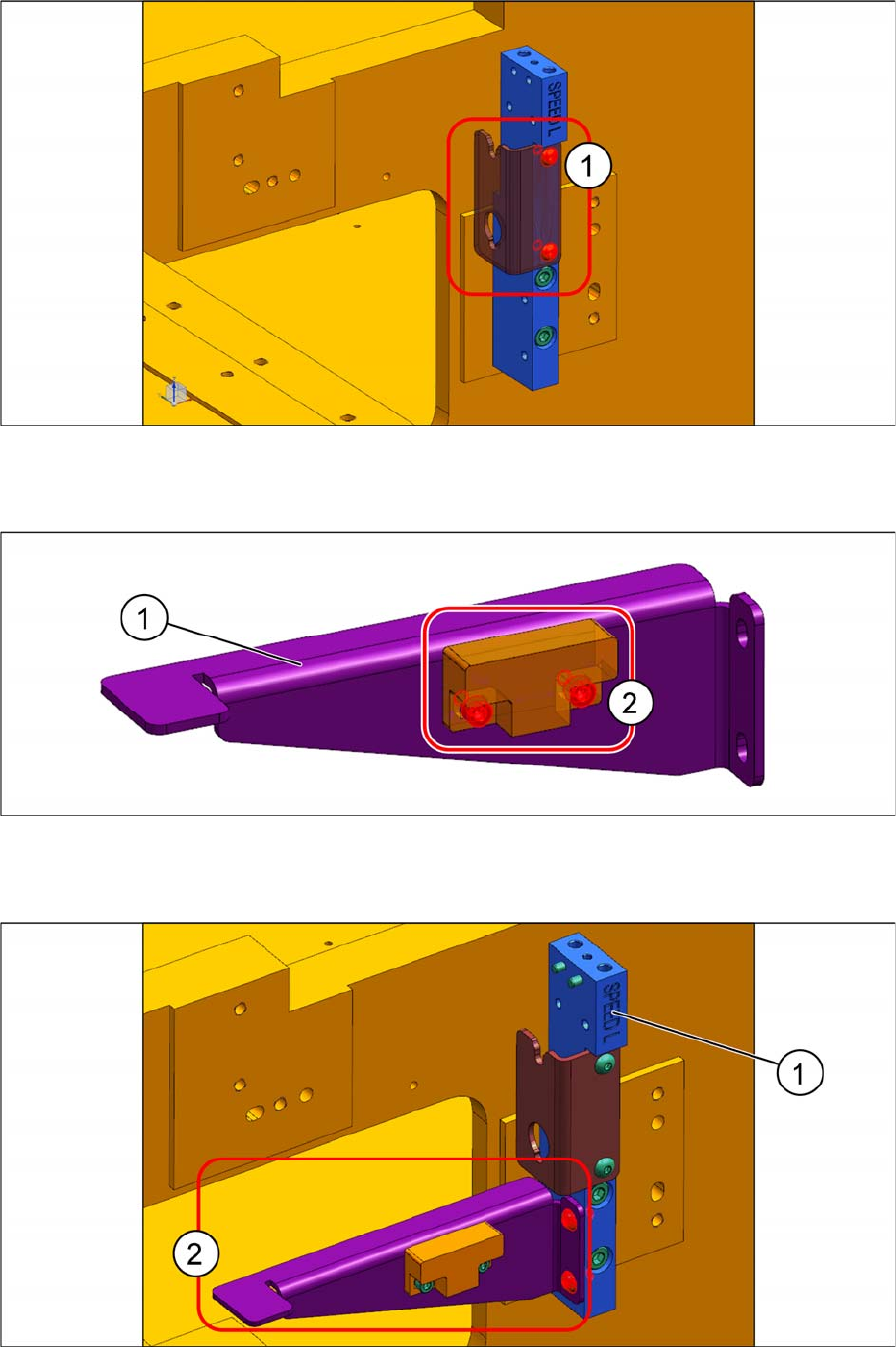

► Mount the "Module sensor reject box Loc2" [03102729
-
xx] (2) onto the "Sensor mount"
[03105704
-
xx] (1) using two "M3x6 cap screws" [03042541
-
xx].
► Mount the "sensor and sensor mount subassembly" (2) onto the "NC mount bracket Speed left"
[03108126
-
xx] (1), using two "M4x8 button head screws" [03045201
-
xx].
