Speed (Double-Sided) DLM-RV12 - Option 2 Assembly Instructions E by SIPLACE 25 5 5 S p e e d ( D o u b le - S id e d ) D L M - R V 1 2 - O p t io n 2 Speed (Double-Sided) DLM-RV12 - Option 2 A SPEED (Double-Sided) Option…
Speed (Double-Sided) DLM-RV12 - Option 1
Installation Procedures
24 Assembly Instructions E by SIPLACE
4.1
4.1 Installation Procedures
Installation Procedures
The
SPEED (Double-sided) option 1
is basically the same as the
SPEED (Single-sided) Option 2
. Refer
to "5 Speed (Double-Sided) DLM-RV12 - Option 2" [ ➙ 25].
Speed (Double-Sided) DLM-RV12 - Option 2
Assembly Instructions E by SIPLACE 25
5
5 Speed (Double-Sided) DLM-RV12 - Option 2
Speed (Double-Sided) DLM-RV12 - Option 2

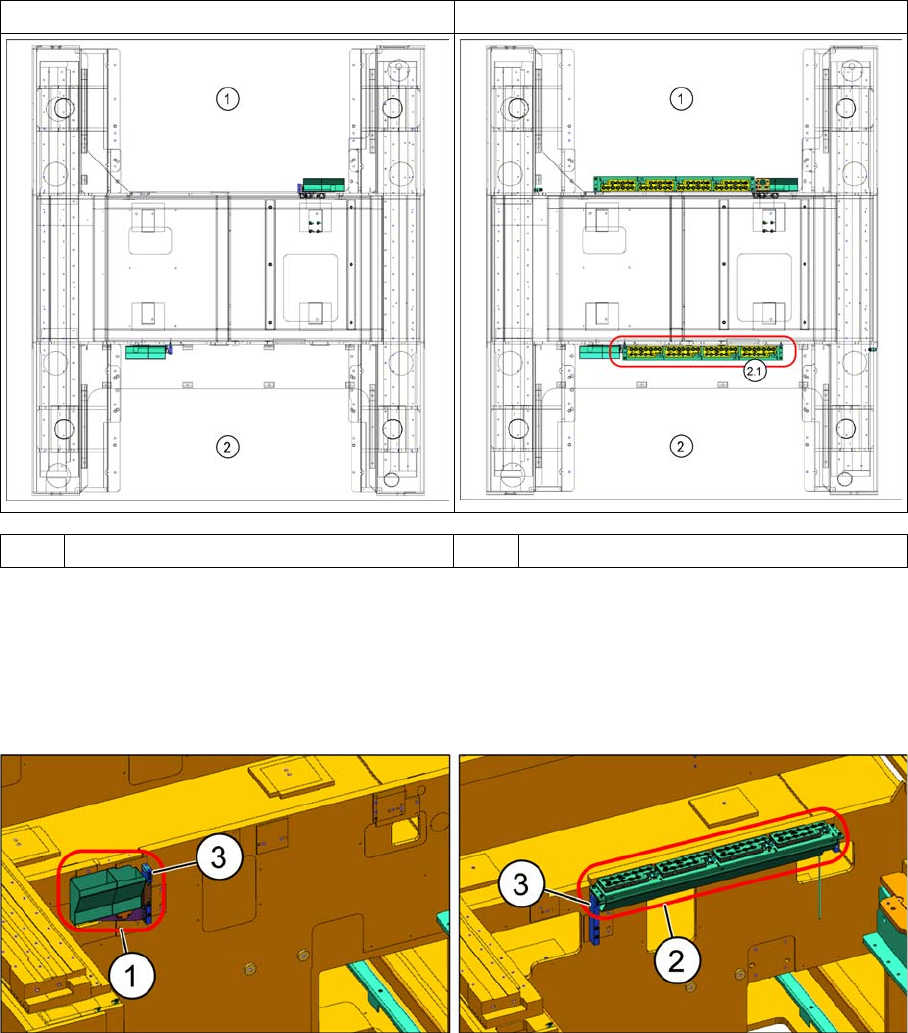

A SPEED (Double-Sided) Option 1 configuration can be enhanced by a "SPEED (Double-sided) Option
2", which includes an additional "NC SPEED RV12 LOC2.1 cpl." [03113797
-
xx].
"NC SPEED RV12 LOC 1 cpl." [03113197
-
xx] is located at the highlighted area.
▪ It consists of a single row nozzle changer "base plate" [03106322
-
xx] with four "active nozzle mag
-
azines" [03081446
-
xx] as shown above.
▪ For an upgrade in the field, the height measurement block SPEED [03119428 xx] must also be or
-
dered.
Three configurations are possible:
▪ "NC SPEED kit reject bin small" [03113189
-
xx] (2)
▪ "NC SPEED C&P14 LOC2.1 cpl" [03113193
-
xx] (3)
▪ "NC SPEED kit reject bin small" [03113189
-
xx] and "NC SPEED C&P14 LOC2.1 cpl" [03113193
-
xx]
Note: Only one of the two "NC Mounting Brackets Speed Left" [03108126
-
xx] (1) must be installed.
STANDARD SPEED (DS) RV12 SPEED (DS) RV12 OPTION 2
1 Location 1 2 Location 2
Speed (Double-Sided) DLM-RV12 - Option 2
Installation Procedures
26 Assembly Instructions E by SIPLACE

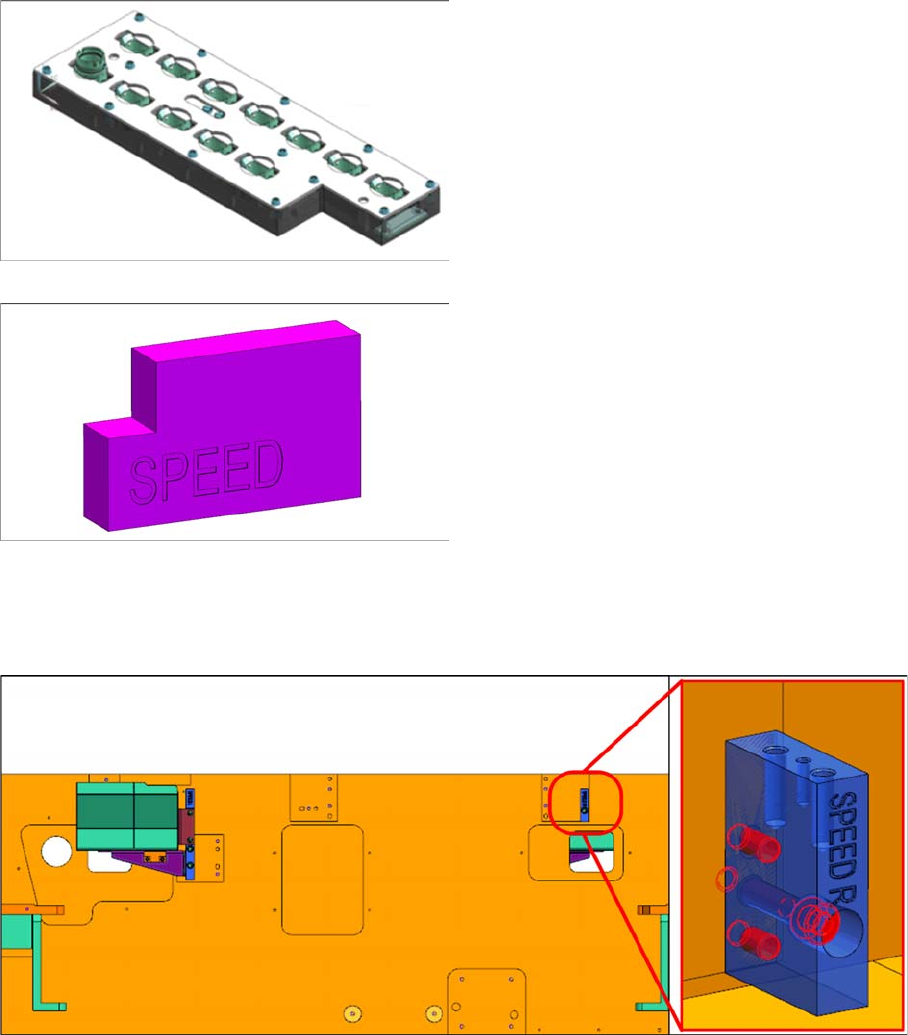

Nozzle maga zine type 30xx fo r RV12 [03081446-xx]
Height measurement block SPEED [03119428-xx]
5.1
5.1 Installation Procedures
Installation Procedures
► Mount the "NC mounting bracket Speed right" [03108035
-
xx] onto the machine frame using two 5x12
dowel pins and one M5x30 cap screw.
Active nozzle magazine type (quick reference)
▪ Nozzle magazine type 30xx for RV12
[03081446
-
xx]
Height measurement block SPEED [03119428
-
xx]
