Speed (Double-Sided) DLM-RV12 - Option 2
Installation Procedures
Assembly Instructions E by SIPLACE 29

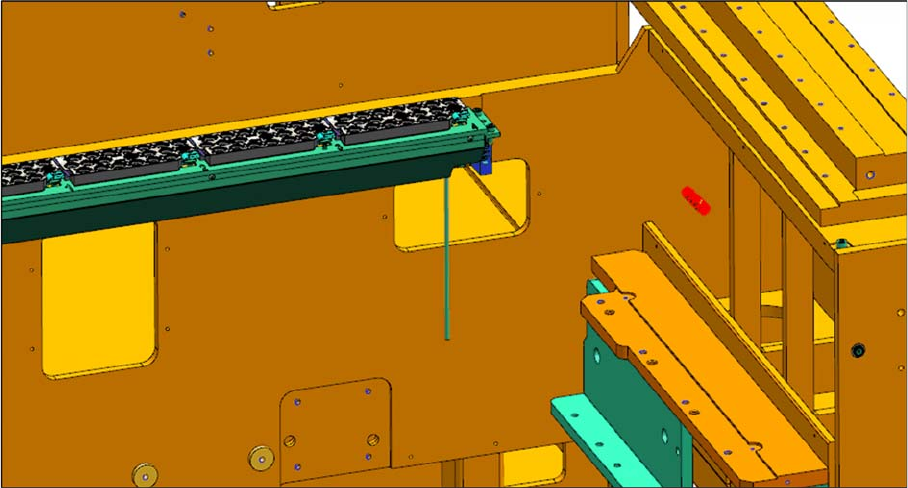

► Place the "NC single row for DLM4 RV6/12, C&P14 P" [03106322
-
xx] onto the shim covers and fas
-
ten it with four M5x14 cap screws.
► Install the active nozzle magazines (1).
Speed (Double-Sided) DLM-RV12 - Option 2
Installation Procedures
30 Assembly Instructions E by SIPLACE
► Remove the red covers shown and locate the nozzle changer control cable [03109999
-
xx] and the
connectors to the cable of the nozzle changer "NC single row for DLM 4 RV6/12, C&P14 P"
[03106322
-
xx].
► Connect the 6 mm diameter tube "Tube Nozzle Changer LOC2" [03102150
-
xx] to port 4 of the air
service unit in location 2. Port 4 is the port shown in the picture.
Speed (Double-Sided) DLM-RV12 - Option 2
Installation Procedures
Assembly Instructions E by SIPLACE 31
► Route the tube [03102150
-
xx] from the air service unit to the indicated area in location 2.
► Connect the tube [03102150
-
xx] to the tube of the nozzle changer via the provided 6 to 4 reducer
fitting [00386293
-
xx].
► Refit all the removed covers.
