KGD_YV180Xg_MPL - 第21页
3 7 Locate-pin (After June 2003 Applicable) Conveyor KGD-0812 1 2 3 4 12 28 13 13 4 16 24 23 38 16 23 39 24 17 31 30 22 33 26 35 27 35 18 19 42 34 15 25 36 11 8 12 14 10 21 31 9 11 28 6 13 13 35 30 28 29 28 5 28 32 35 41…
2
7
Locate-pin (Before June 2003 Applicable)
Conveyor
KGD-0802
1
2
5
5
7
8
9
7
3
4
27
12
4
15
22
23
22
23
36
15
37
16
30
21
32
19
34
34
34
17
18
35
24
38
11
11
13
13
20
30
27
12
29
27
28
27
27
31
12
12
29
10
6
OLD
25
26
34
14
33
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KGD-M9215-00X PLATE 1,LOCATE 1 /
2 KGD-M9216-00X PLATE 2, LOCATE 1 /
3 KGD-M9189-00X GUIDE 1 B
4 KGD-M9212-00X GUIDE 2 B
5 KGD-M9172-00X HOLDER,LOCATION 2 /
6 KV1-M9174-01X PIN 1,LOCATION 1 A
6-1 Delete (2003/2/11) /
7 KV1-M9174-11X PIN 2,LOCATION 1 /
7-1 KV1-M9174-11X PIN 2,LOCATION 2 (2003/2/11) OK A
8
KGD-M9218-R0X BRKT.1 R,CYLINDER 1 R>L /
KGD-M9218-L0X BRKT.1 L,CYLINDER 1 L>R /
9
KGD-M9219-R0X BRKT.2 R,CYLINDER 1 R>L /
KGD-M9219-L0X BRKT.2 L,CYLINDER 1 L>R /
10
KGD-M9213-00X HOLDER R,GUIDE 1 R>L /
KGD-M9214-00X HOLDER L,GUIDE 1 L>R /
11 KV1-M9176-40X CYILINDER ASSY 2 B
12 KV1-M9167-01X NUT,JOINT 4 /
13 KV1-M9229-00X JOINT(M-5ALU-4) 4 /
14 KGD-M9211-00X PULLEY 1 /
15 KGB-M7167-00X PULLEY 2 /
16 KGD-M921D-01X BRACKET,PULLEY 1 /
17 KGD-M921F-00X HANDLE 1 /
18 KGD-M921G-00X SHAFT 3 1 /
19
KGD-M921H-00X HOUSING,SHAFT 1 /
20 KGD-M921J-00X PLATE,BELT 1 /
21 KGD-M921K-01X BELT 1,PULLEY 1 /
22 KGD-M921P-00X WASHER 1 2 /
23 KGD-M921R-00X COLLAR 2 /
24 KV1-M9193-00X LEVER,CLAMP 1 /
25 KJ2-M7157-00X BRG. 2 MF128ZZS /
25-1 90933-03J128 BEARING 2 (2001/7/6) OK /
26 KV8-M7115-00X SHAFT 1,TENSION 1 /
27 92D18-02004 BOLT HEX.SOCKET HEAD 4 /
27-1 90115-02J004 BOLT,HEX.SOCKET HEAD 4 (2002/8/21) OK /
28 91317-03012 BOLT HEX.SOCKET HEAD 16 /
29 91317-03006 BOLT HEX.SOCKET HEAD 8 /
30 91317-03008 BOLT HEX.SOCKET HEAD 3 /
31 91317-04012 BOLT HEX.SOCKET HEAD 2 /
32 91317-04020 BOLT HEX.SOCKET HEAD 1 /
33 91317-04035 BOLT HEX.SOCKET HEAD 2 /
34 92A08-03006 SET SCREW M3X6 3 /
34-1 92A08-03306 SCREW,SET 3 (2001/9/21) OK /
34-2 90990-02J003 SET SCREW 3 (2002/5/29) OK /
35 92907-08600 WASHER PLAIN 2 /
36 91317-05015 BOLT HEX. SOCKET HEAD 1 /
37 92017-05016 BOLT BUTTON HEAD 1 /
38
KGD-M921U-R0X PLATE,AIR HOSE 1 R>L /
KGD-M921U-L0X PLATE,AIR HOSE 1 L>R /
3
7

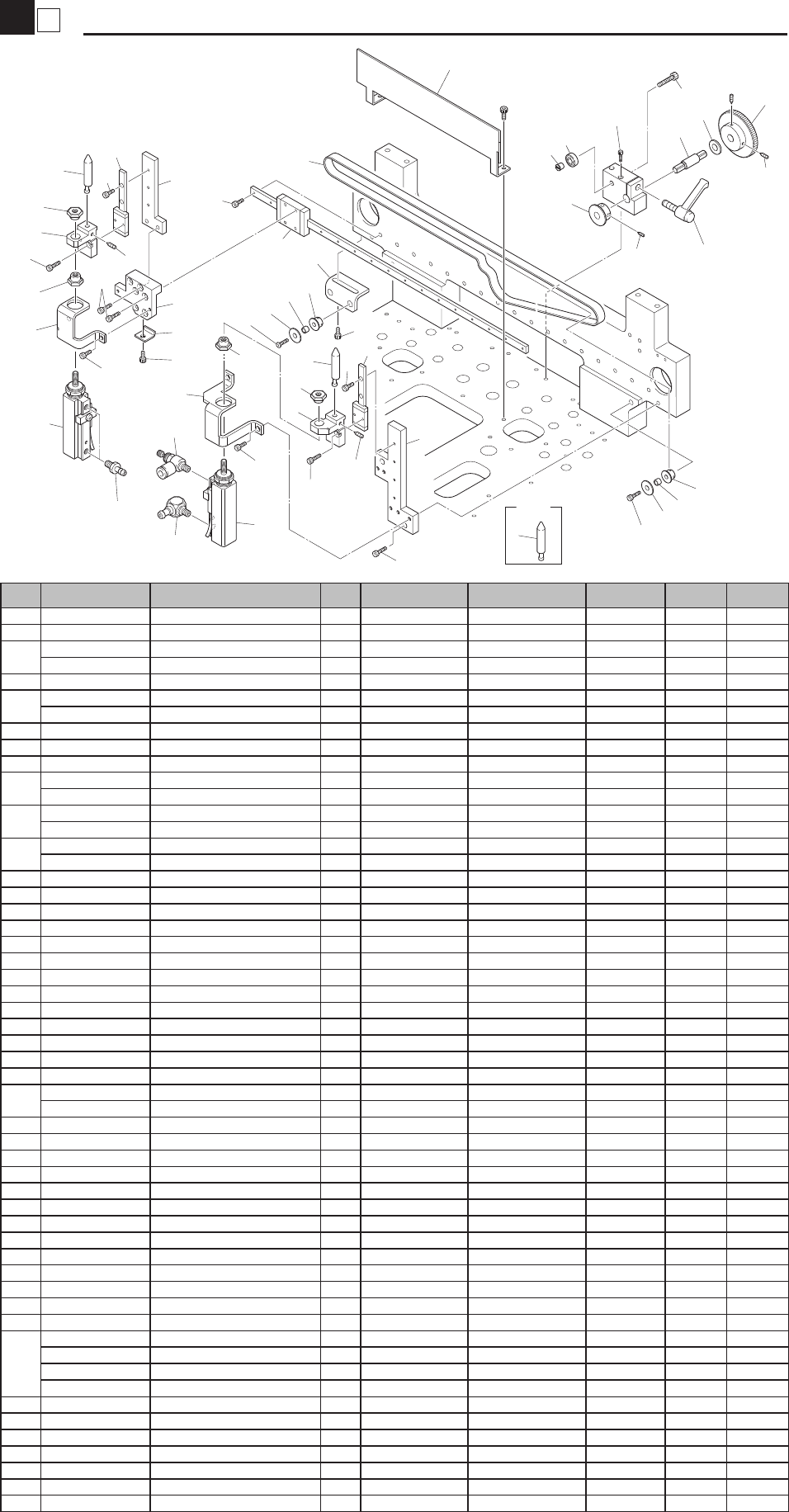

Locate-pin (After June 2003 Applicable)
Conveyor
KGD-0812
1
2
3
4
12
28
13
13
4
16
24
23
38
16
23
39
24
17
31
30
22
33
26
35
27
35
18
19
42
34
15
25
36
11
8
12
14
10
21
31
9
11
28
6
13
13
35
30
28
29
28
5
28
32
35
41
40
7
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KGD-M9215-01X PLATE 1, LOCATE 1 /
2 KGD-M9216-00X PLATE 2, LOCATE 1 /
3
KGD-M9189-00X GUIDE 1 L=318 M Type B
KGD-M9189-10X GUIDE 1 L=374 L Type B
4 KGD-M9212-00X GUIDE 2 B
5
KGD-M9172-R0X HOLDER 1, LOCATION 1 R>L /
KGD-M9172-L0X HOLDER 1, LOCATION 1 L>R /
6 KGD-M9173-00X HOLDER 2, LOCATION 1 /
7 KV1-M9174-01X PIN 1,LOCATION 1 A
7-1 Delete (2003/2/11) /
8
KGD-M9218-R1X BRKT.1 R,CYLINDER 1 R>L /
KGD-M9218-L1X BRKT.1 L,CYLINDER 1 L>R /
9
KGD-M9219-R1X BRKT.2 R,CYLINDER 1 R>L /
KGD-M9219-L1X BRKT.2 L,CYLINDER 1 L>R /
10
KGD-M9213-01X HOLDER R, GUIDE 1 R>L /
KGD-M9214-01X HOLDER L, GUIDE 1 L>R /
11 KV1-M9174-11X PIN 2,LOCATION 1 /
11-1 KV1-M9174-11X PIN 2,LOCATION 2 (2003/2/11) OK A
12 KGC-M9179-A0X CYLINDER ASSY 2 B
13 KGC-M9167-00X NUT, JOINT 4 /
14 $SSU4 SPEED CONTROLLER 2 /
14-1 $SC4-M5A SPEED CONTROLLER 2 (2003/5/26) OK /
15
KGD-M9211-00X PULLEY 1 /
16 KGB-M7167-00X PULLEY 2 /
17 KGD-M921D-01X BRACKET, PULLEY 1 /
18 KGD-M921F-00X HANDLE 1 /
19 KGD-M921G-00X SHAFT 3 1 /
20 KGD-M921H-00X HOUSING, SHAFT 1 /
21 KGD-M921J-00X PLATE, BELT 1 /
22
KGD-M921K-01X BELT 1, PULLEY 1 678-1.5GT-4 /
KGD-M921K-11X BELT 1, PULLEY 1 762-1.5GT-4 /
23 KGD-M921P-00X WASHER 1 2 /
24 KGD-M921R-00X COLLAR 2 /
25 KV1-M9193-00X LEVER, CLAMP 1 /
26 90933-03J128 BEARING 2 /
27 KV8-M7115-00X SHAFT 1, TENSION 1 /
28 90115-02J004 BOLT, HEX. SOCKET HEAD 4 /
29 91317-03012 BOLT HEX. SOCKET HEAD 16 /
30 91317-03006 BOLT HEX. SOCKET HEAD 10 /
31 91317-03008 BOLT HEX. SOCKET HEAD 3 /
32 91317-04012 BOLT HEX. SOCKET HEAD 2 /
33 91317-04020 BOLT HEX. SOCKET HEAD 1 /
34 91317-04035 BOLT HEX. SOCKET HEAD 2 /
35 90990-02J003 SET SCREW 6 /
36
KGD-M921U-R0X PLATE, AIR HOSE 1 R>L L=243.3 M Type /
KGD-M921U-L0X PLATE, AIR HOSE 1 L>R L=243.3 M Type /
KGD-M921W-R0X PLATE, AIR HOSE 1 R>L L=293.3 L Type /
KGD-M921W-L0X PLATE, AIR HOSE 1 L>R L=293.3 L Type /
38 91317-05015 BOLT HEX. SOCKET HEAD
1 /
39 92017-05016 BOLT BUTTON HEAD 1 /
40 KV1-M8502-00X JOINT 2 /
40-1 KV1-M8502-00X JOINT 4 (2004/1/5) OK /
41 KV1-M9229-00X JOINT 2 M-5ALU-4 /
41-1 90990-42J023 JOINT 2 (2008/6/17) OK /
42 92907-03600 WASHER PLAIN 2 /
4
7

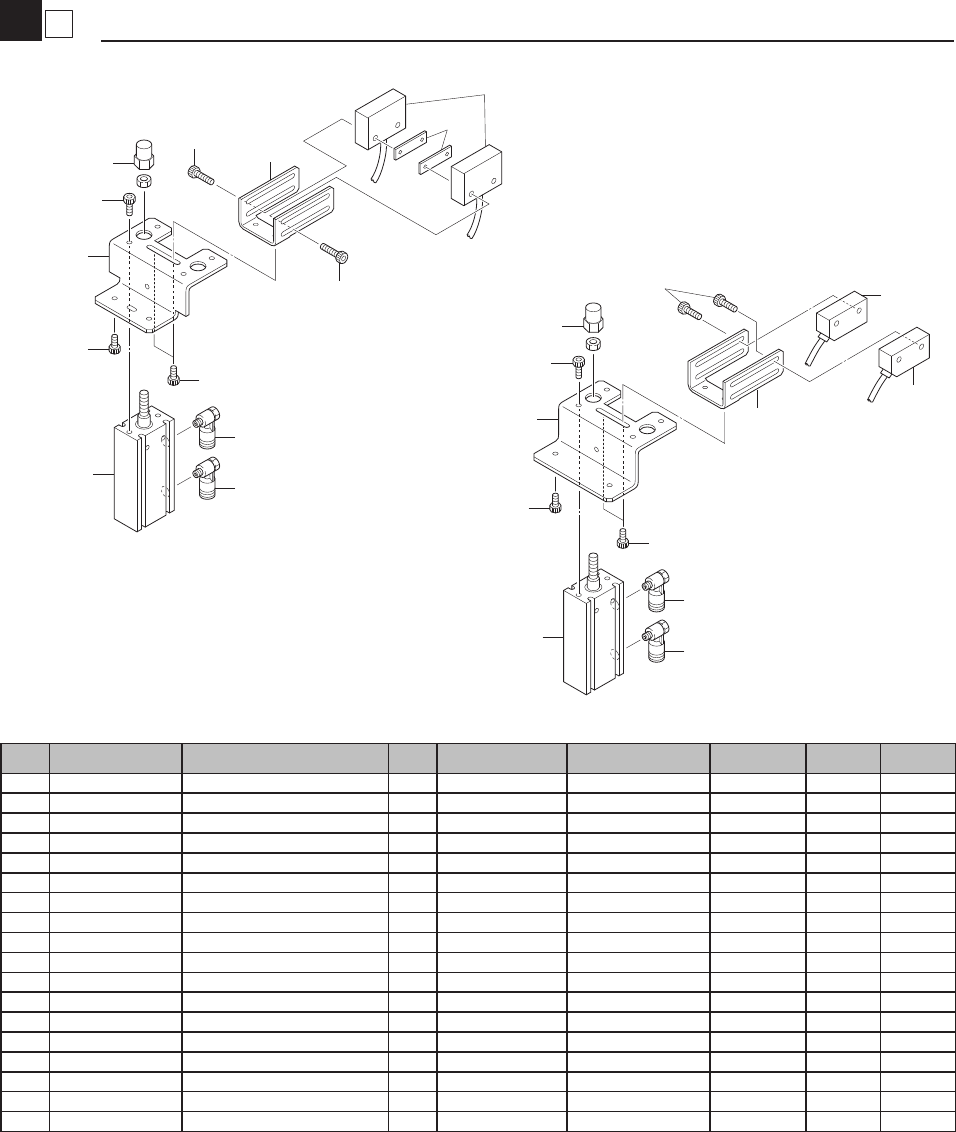

Stopper
Convyor
KGD-0801
Sub Stopper
EXIT Stopper
7
2
8
1
7
3
4
5
17
17
6
7
6
5
10
18
9
16
11
12
15
16
15
13
14
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Rank Level
1 KV1-M9271-00X PLATE, EXIT STOPPER 1 /
2 KV7-M9282-00X STOPPER, SUB 1 /
3 KV7-M9283-00X CYL 1 YMDA16X35 B
4 KV1-M912A-00X BRACKET, SENSOR 1 /
5 KU0-M655F-20X SENSOR, 1-3 2 L=1400 B
6 $SL4-M5 JOINT 2 /
7 91317-03006 BOLT HEX. SOCKET HEAD 8 /
8 91317-04008 BOLT HEX. SOCKET HEAD 2 /
9 KGD-M9271-00X PLATE, SUB STOPPER 1 /
10 KV7-M9282-00X STOPPER, SUB 1 /
11 KV7-M9283-00X CYL 1 YMDA16X35 B
12 KV1-M912A-00X BRACKET, SENSOR 1 /
13 KM0-M655F-10X SENSOR 1-3 2 L=1150 B
14 KV7-M9284-10X NUT PLATE, SENSOR 2 /
15 $SL4-M5 JOINT 2 /
16 91317-03006 BOLT HEX. SOCKET HEAD 4 /
17 91317-03015 BOLT HEX. SOCKET HEAD 4 /
18 91317-04008 BOLT HEX. SOCKET HEAD 2 /
