KGD_YV180Xg_MPL - 第27页
9 7 Fixed Conveyor 1 Conveyor KGD-0801 1 40 44 3 29 33 26 24 25 40 38 40 34 35 19 48 41 2 25 24 22 40 20 41 43 38 47 15 39 12 38 16 25 24 38 34 29 38 29 44 14 25 24 24 26 22 14 31 13 18 6 41 11 40 12 39 24 25 38 17 29 20…
8
7

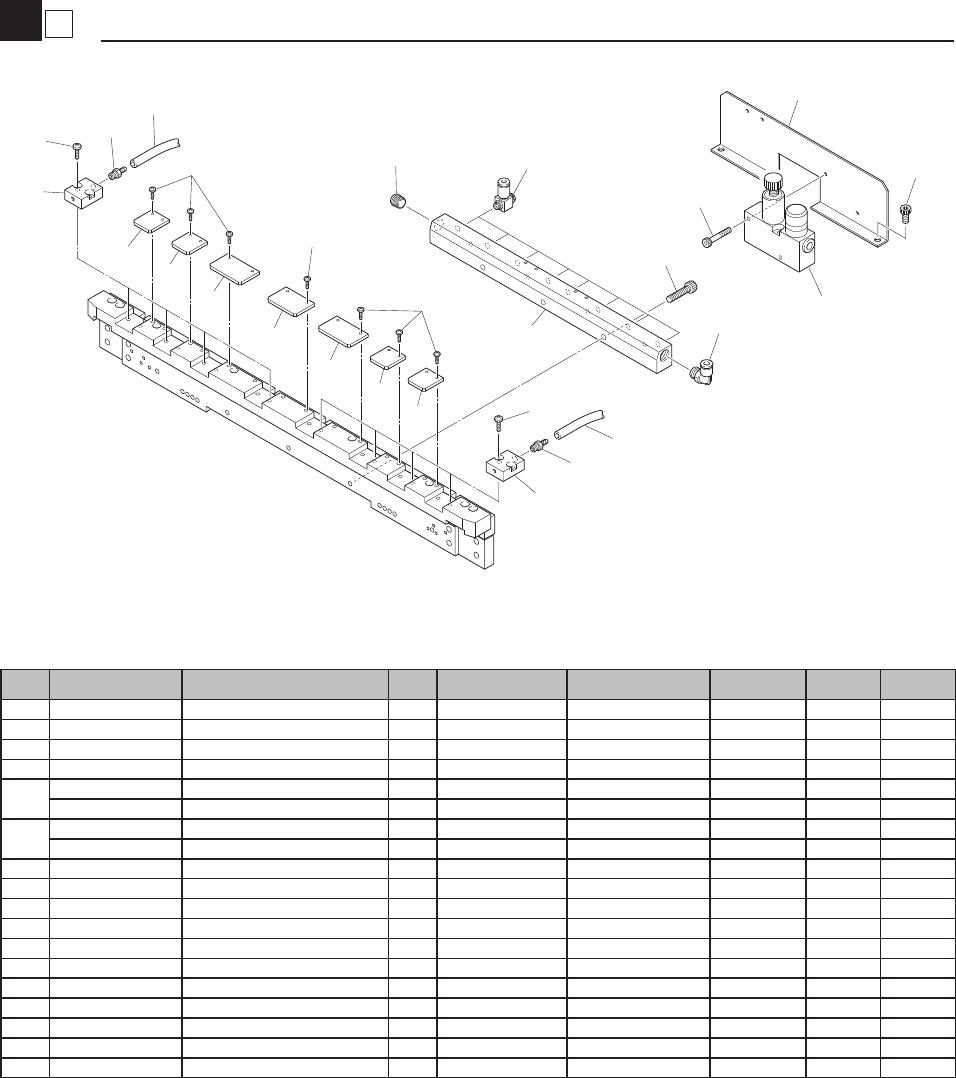

Edge Clamp (After June 2003 Applicable)
Conveyor
KGD-0801
1
1
11
7
11
11
2
5
2
2
2
3
4
4
12
12
17
9
6
10
14
15
8
13
7
16
16
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KGD-M9244-00X CYLINDER 8 B
2 KGC-M9239-00X PLATE, EDGE 1 4 /
3 KGD-M9241-00X PLATE, EDGE 2 1 /
4 KGC-M9243-00X PLATE, EDGE 5 2 /
5
KGD-M9245-00X MANUFOLD 1 L=231 M Type /
KGD-M9245-10X MANUFOLD 1 L=281 L Type /
6
KGD-M9246-00X BRACKET 1 L=200 L Type /
KGD-M9247-00X BRACKET 1 L=158 M Type (2003/5/26) OK /
7 $BF4BU-M3 JOINT 8 /
8 $TL4-01 JOINT 1 /
9 $SLH4-M5 JOINT 8 /
10 KM5-M8504-00X REGULATOR : RVUM4-4 1 B
11 98980-03006 SCREW BINDING HEAD 14 /
12 98980-03012 SCREW BINDING HEAD 16 /
13 91317-04016 BOLT HEX. SOCKET HEAD 3 /
14 91317-03018 BOLT HEX. SOCKET HEAD 2 /
15 91317-04006 BOLT HEX. SOCKET HEAD 2 /
16 KG2-M9283-00X AIR HOSE : SPS-4-10 1 /
17 K40-M8598-00X PLUG 1 1 /
9
7

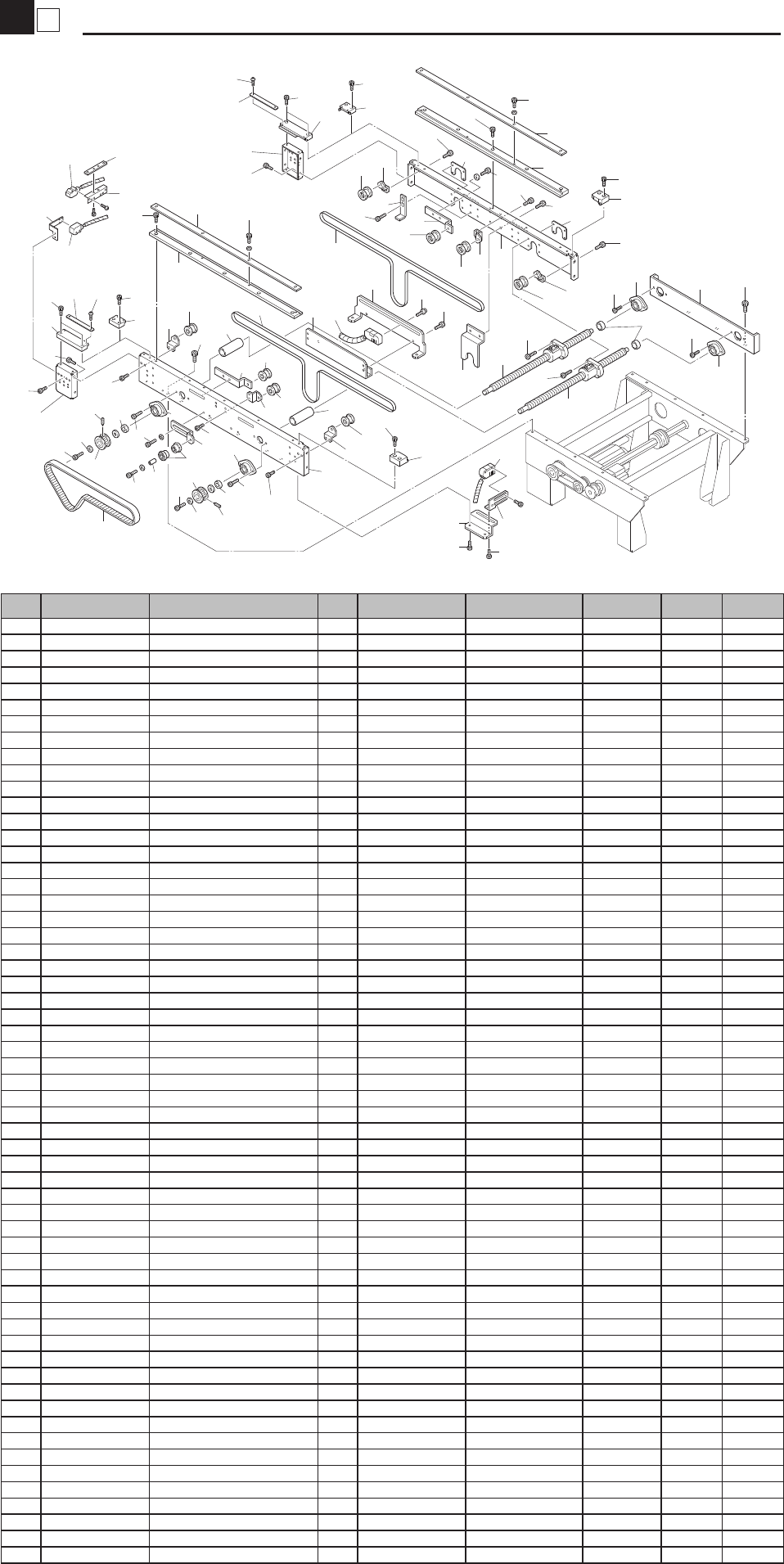

Fixed Conveyor 1
Conveyor
KGD-0801
1
40
44
3
29
33
26
24
25
40
38
40
34
35
19
48
41
2
25
24
22
40
20
41
43
38
47
15
39
12
38
16
25
24
38
34
29
38
29
44
14
25
24
24
26
22
14
31
13
18
6
41
11
40
12
39
24
25
38
17
29
20
7
37
24
25
11
5
42
21
46
38
6
40
28
45
32
38
9
31
43
39
38
40
8
39
27
42
28
23
21
46
40
4
40
36
41
19
48
49
30
30
10
38
33
24
41
50
41
51
The right side Conveyor
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV1-M9106-01X PLATE 1, CONV. 2 /
2 KV1-M9107-01X PLATE 2, CONV. 2 /
3 KV1-M9108-00X PLATE 3, CONV. 2 /
4 KV1-M9109-00X PLATE, TENSION IDLER 2 /
5 KV1-M910B-00X BELT 2 666-3GT-9 B
6 KV1-M9110-00X COLLAR, BALL SCREW 4 /
7 KV1-M9111-01X BRKT., COLLAR 2 /
8 KV1-M9113-00X DOG, ORG CONV. 2 /
9 KV1-M9114-00X BRKT. 1, SENSOR 1 /
10 KGD-M9143-00X BRKT. 2, SENSOR 2 /
11 KV1-M9116-00X GUIDE 1 4 /
12 KV1-M9117-00X GUIDE 1-1 4 /
13 KV1-M9118-01X DAMPER 1, W 4 /
14 KV1-M9119-00X DAMPER 2, W 4 /
15 KV1-M9121-00X STAY, MID. SENSOR 1 /
16 KV1-M9122-00X COVER, MID. SENSOR 1 /
17 KGA-M9113-00X GUIDE 1,END 2 /
18 KGA-M9114-00X GUIDE 2,END 2 /
19 KW8-M9125-00X PLATE, GUIDE END 4 /
20 KW8-M9126-00X BALL SCREW F-CONV. 4 A
21 KV1-M9137-00X WASHER 4 M4 13D 2T /
21-1 90990-28J070 WASHER,PLAIN 4 (2007/12/18) OK /
22 KV1-M913J-10X BELT 1, CONVEYOR 4 E
23 90933-03J608 BEARING
4 /
24 KV1-M9140-A0X PULLEY, CONV. ASSY 16 A
25 KG2-M9120-01X PLATE PULLEY CON 12 /
26 KG2-M9121-00X PLATE TENSION PULLEY 4 /
27 KG7-M912A-00X BRACKET, SENSOR 1 /
28 KH2-M9105-11X PULLEY, MOTOR 8 P30-3GT /
29 KH2-M9121-00X BEARING 12 /
30 KV5-M1134-B0X SENSOR, 1-3 2 B
31 KU0-M655F-20X SENSOR, 1-3 2 L=1400 B
32 KV7-M9149-00X COLLER, BRG 2 /
33 KV1-M910C-00X NUT PLATE 4 /
34 KGD-M9140-00X PLATE 4, CONV. 4 /
35 KW8-M9141-00X GUIDE 3, END 2 M Type /
35-1 KW8-M9141-01X GUIDE 3,END 2 L=80mm (2002/5/13) OK /
35-2 KGD-M9141-00X GUIDE 3,END 2 L=82.5mm (2002/6/5) NG /
36 KW8-M9142-00X GUIDE 4, END 2 M Type /
36-1 KW8-M9142-01X GUIDE 4,END 2 L=80mm (2002/5/13) OK /
36-2 KGD-M9142-00X GUIDE 4,END 2 L=82.5mm (2002/6/5) NG /
37 KW8-M9130-00X PLATE, SENSOR 2 /
38 91317-03006 BOLT HEX. SOCKET HEAD 43 /
39 91317-03008 BOLT HEX. SOCKET HEAD 44 /
40 91317-04006 BOLT HEX. SOCKET HEAD 52 /
41 91317-04008 BOLT HEX. SOCKET HEAD 18 /
42 91317-04010 BOLT HEX. SOCKET HEAD
2 /
43 91317-04014 BOLT HEX. SOCKET HEAD 16 /
44 91317-05008 BOLT HEX. SOCKET HEAD 44 /
45 91317-05020 BOLT HEX. SOCKET HEAD 2 /
46 92A08-04006 SET SCREW 20 M4X6 /
47 97604-03306 SCREW, PAN HEAD W/W 2 /
48 98907-03005 SCREW BINDING HEAD 8 /
49 KGD-M9129-00X BRACKET 2, SENSOR 2 /
50 KM7-M9113-01X GUIDE 1,END 2 L=30mm L Type /
50-1 KGD-M9124-00X GUIDE 1,END 2 L=32.5mm (2002/6/5) NG /
51 KM7-M9114-01X GUIDE 2,END
2
L=30mm L Type /
51-1 KGD-M9125-00X GUIDE 2,END 2 L=32.5mm (2002/6/5) NG /
10
7

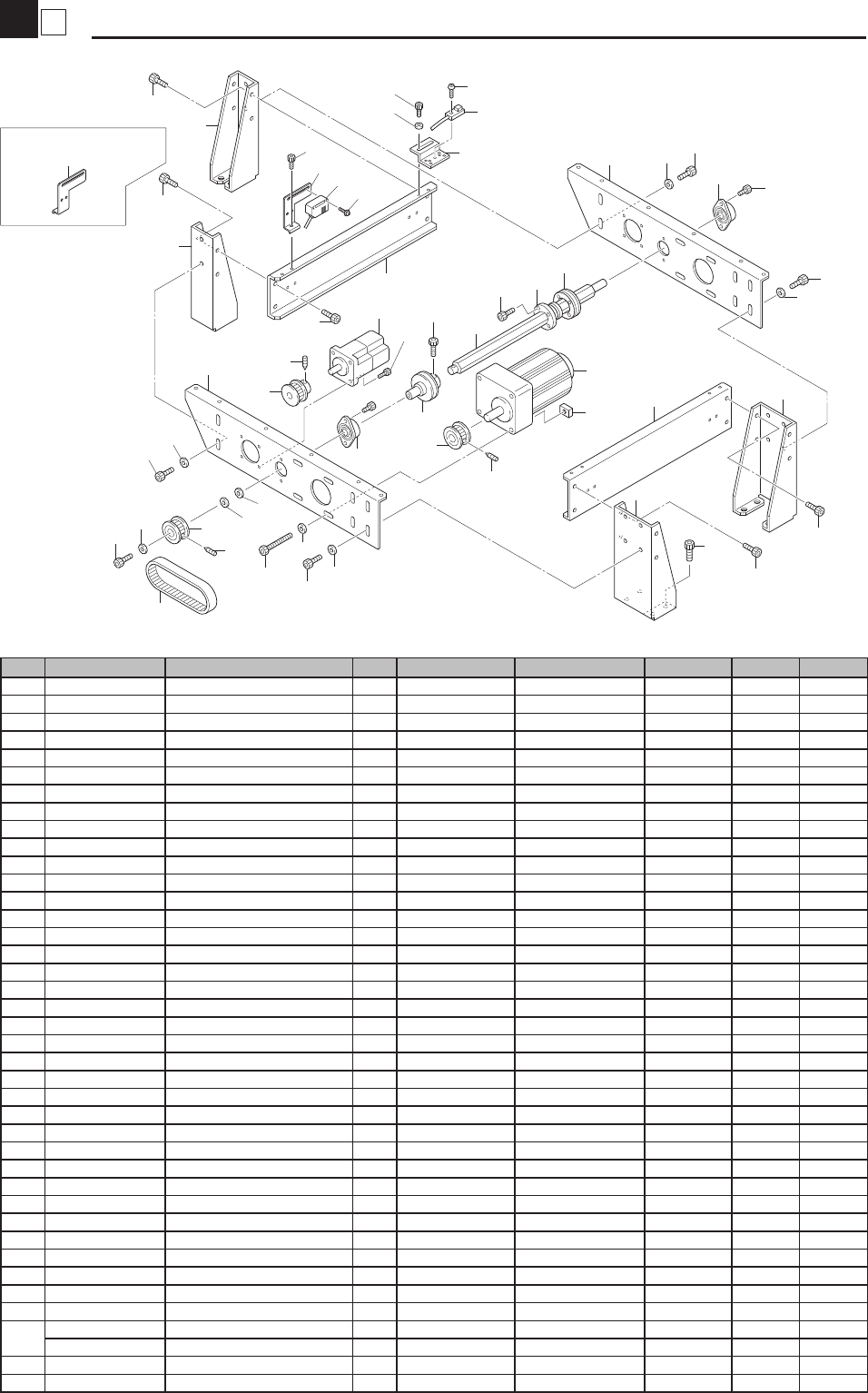

Fixed Conveyor 2
Conveyor
KGD-1110
2
2
22
25
16
15
22
31
20
34
3
13
21
28
10
19
14
9
4 (5)
22
31
17
3
1
1
4 (5)
16
25
33
32
18
26
27
27
35
35
Right Side Conveyor
The Left Side Conveyor
36
37
30
7
22
31
29
8
12
24
6
23
31
22
31
17
11
25
22
22
22
22
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KV1-M9101-01X STAND 1 4 /
2 KV1-M9102-01X STAND 2 4 /
3 KW8-M9103-00X FRAME 1 4 /
4 KV1-M9104-00X FRAME 2 2 L Side /
5 KV1-M9105-00X FRAME 3 2 R Side /
6 KV1-M910A-00X BELT 2 246-3GT-9 B
7 KV1-M9112-00X BRKT., SENSOR ORG 2 /
8 KV1-M4886-00X MOTOR ASSY 6-1 2 B
9 KV1-M9135-00X PULLEY 1, SPLINE 2 /
10 KW8-M913B-00X SPLINE 2 /
11 KV1-M913C-00X PULLEY, MOTOR 2 /
12 KV1-M914G-00X NUT, SQUARE 8 /
13 90K55-4W076W AC SERVO MOTOR 2 B
14 KG2-M9108-11X COLLAR, CONVEYOR 2 /
15 KG7-M9113-01X PULLEY 3 2 /
16 KH2-M9105-11X PULLEY, MOTOR 4 P30-3GT /
17 KH2-M9121-00X BEARING 4 /
18 KV7-M653A-20X SENSOR, 1 ASSY 2 L=300 B
18-1 KGA-M260A-00X SENSOR, ORG 2 L=300 (2002/11/12) OK B
19 91317-03010 BOLT HEX. SOCKET HEAD 8 /
20 91317-04010 BOLT HEX. SOCKET HEAD 6 /
21 91317-04012 BOLT HEX. SOCKET HEAD 2 /
22 91317-05008
BOLT HEX. SOCKET HEAD 40 /
23 91317-05050 BOLT HEX. SOCKET HEAD 8 /
24 91317-06010 BOLT HEX. SOCKET HEAD 32 /
25 92A08-04006 SET SCREW 20 M4X6 /
26 98907-03008 SCREW BINDING HEAD 2 /
27 91317-03006 BOLT HEX. SOCKET HEAD 4 /
28 91317-03008 BOLT HEX. SOCKET HEAD 8 /
29 91317-04006 BOLT HEX. SOCKET HEAD 8 /
30 92907-03200 WASHER, PLAIN 20 /
31 92907-05200 WASHER, PLAIN 34 /
32 92907-10200 WASHER, PLAIN 2 /
33 KV1-M9110-00X COLLAR, BALL SCREW 2 /
34 KV1-M9137-00X WASHER,M4 13D 2T 2 M4 13D 2T /
34-1 90990-28J070 WASHER,PLAIN 2 (2007/12/18) OK /
35
KW8M9146-00X BRKT.3,SENSOR R 1 R>L L Type /
KW8M9147-00X BRKT.3,SENSOR L 1 L>R L Type /
36 KU0-M655F-20X SENSOR, 1-3(L=1400) 1 L Type B
37 97604-03306 SCREW, PAN HEAD W/W 2 /
