1 9 Main Box Controller KGD-090312 2 18 3 3 6 8 9 14 15 5 10 13 19 10 1 1 10 12 1 7 4 16 17 17 OLD No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level 1 KGA-M4110-00X BOX ASSY . C/R 1 / 2 KGA-M451…
1
8
Multi Camera & Light Assy.
Camera
KGD-090901
3
2
3
2
4
1
4
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1
KGA-M73C0-37X C+L FOV35-H266-F-NON 1 Without side light B
KGA-M73C0-38X C+L FOV35-H266-F-FIX 1 With side light B
2 91317-06020 BOLT HEX. SOCKET HEAD 4 /
3 92907-06200 WASHER, PLAIN 4 /
4 KGA-M66F0-01X C. CABLE ASSY 1 B
1
9

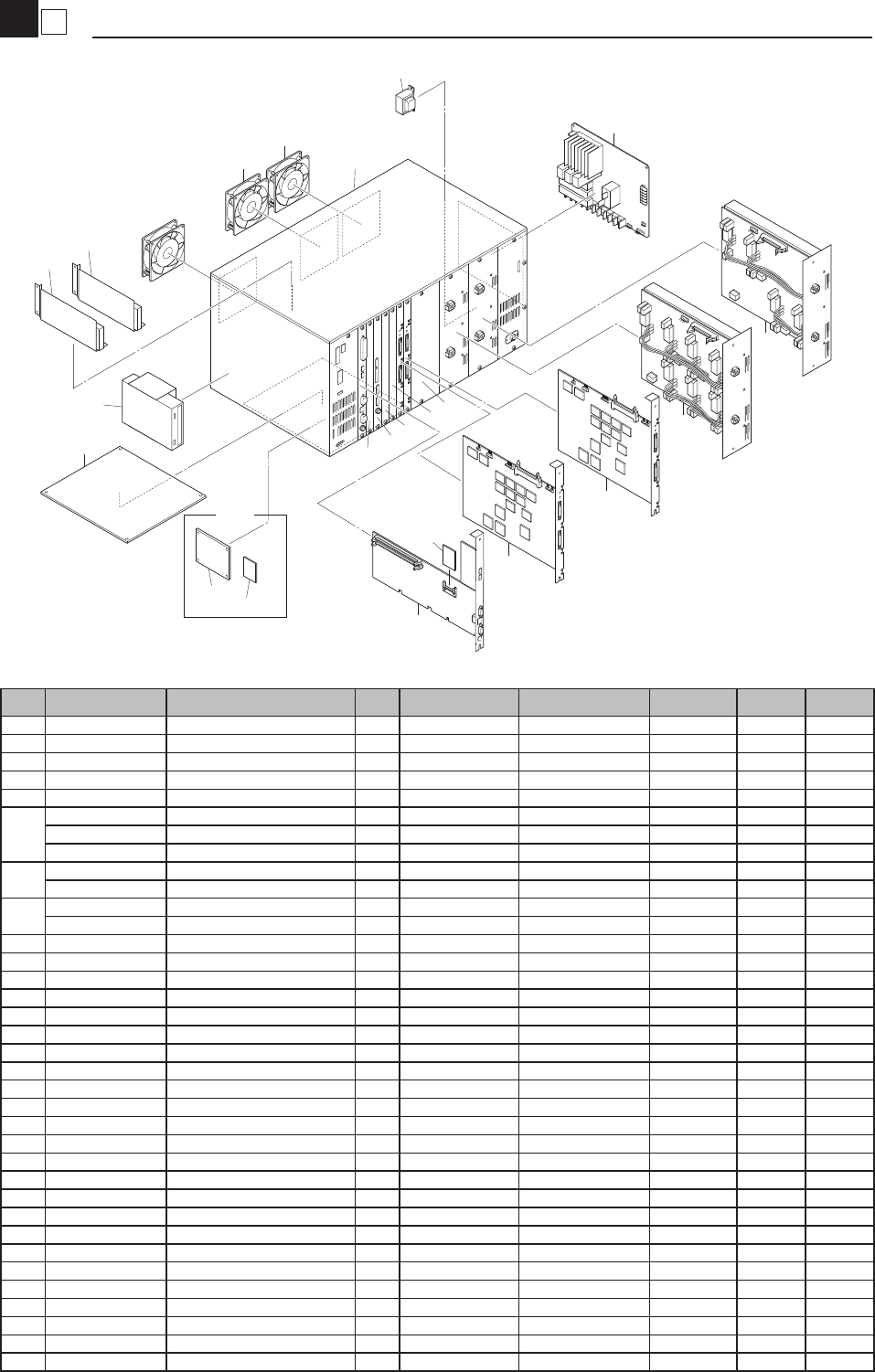

Main Box
Controller
KGD-090312
2
18
3
3
6
8
9
14
15
5
10
13
19
10
11
10
12
1
7
4
16
17
17
OLD
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KGA-M4110-00X BOX ASSY. C/R 1 /
2 KGA-M4510-00X MOTHER BOARD ASSY. 1 B
3 KM5-M5840-03X SERVO BOARD ASSY 2 B
3-1 KM5-M5840-04X SERVO BOARD ASSY 2 2002/5/9 OK B
3-2 KM5-M5840-05X SERVO BOARD ASSY 1 H010235 (2007/1/12) SET B
4
KW3-M4209-00X SYSTEM UNIT ASSY. 1 S.T.D (2003/9/24) B
KW3-M4209-10X SYSTEM UNIT ASSY. 1 IT OP without CLI (2003/9/24) B
KW3-M4209-21X SYSTEM UNIT ASSY. 1 IT OP with CLI (2004/2/10) B
4-1
KW3-M4209-30X SYSTEM UNIT ASSY. 1 IT OP without CLI 2007/6/6 NG B
KW3-M4209-40X SYSTEM UNIT ASSY. 1 IT OP with CLI (2007/3/22) NG B
4-2
KW3-M4209-C0X SYSTEM UNIT ASSY. 1 IT OP without CLI (2007/3/27) B
KW3-M4209-D0X SYSTEM UNIT ASSY. 1 IT OP with CLI (2007/3/27) B
5 KJ0-M5810-L4X DRIVER BOARD ASSY. 1 (1A) B
5-1 KJ0-M5810-L5X DRIVER BOARD ASSY. 1 H010235 (2007/1/12) SET B
6 KJ0-M5810-K4X DRIVER BOARD ASSY. 1 (1B) B
6-1 KJ0-M5810-K5X DRIVER BOARD ASSY. 1 H010235 (2007/1/12) SET B
7 KM5-M5882-11X D. POWER ASSY. 1 B
8 KJ0-M4134-10X PANEL NO SERVO 1 /
9 KJ0-M4132-10X PANEL .NO DRIVER 1 /
10 KGA-M4185-10X FAN MOTOR ASSY 3 B
11 KGA-M5303-00X SW POWER DC5 1 PAA150F-5 B
11-1 KGS-M5303-00X SW POWER DC5 1 PBA150F-5 2007/6/27 NG B
12 KW7-M5303-10X SW POWER DC12 1 PAA150F-12 B
12-1 KGS-M5303-10X SW POWER DC12 1 PBA150F-12 2007/6/27 NG B
13 KGA-M53E2-00X TRANS 1 ASSY KGA 1 B
14 KV1-M441H-17X VISION UNIT ASSY. 1 B
14-1 KV1-M441H-18X VISION UNIT ASSY. 1 (2009/3/9) OK B
15 KW3-M4220-10X APPLE BOARD ASSY. 1 B
16 KGA-M4136-10X PANEL, NO VISION 1 /
17 KW3-M4255-00X FLASH DISK 1 B
17-1 KGN-M4255-00X FLASH DISK 1 With ADAPTER 2003/6/27 OK B
17-2 KGN-M4255-20X FLASH DISK 1 Without ADAPTER (2003/11/13) NG B
18 KW3-M4256-00X CD-ROM DRIVE 1 B
19 KW3-M4230-00X FLASH BOARD ASSY 1 B
19-1 KGN-M4230-00X FLASH BOARD ASSY 1 (2003/11/13) B
19-2 Delete (2007/3/27)
1
10

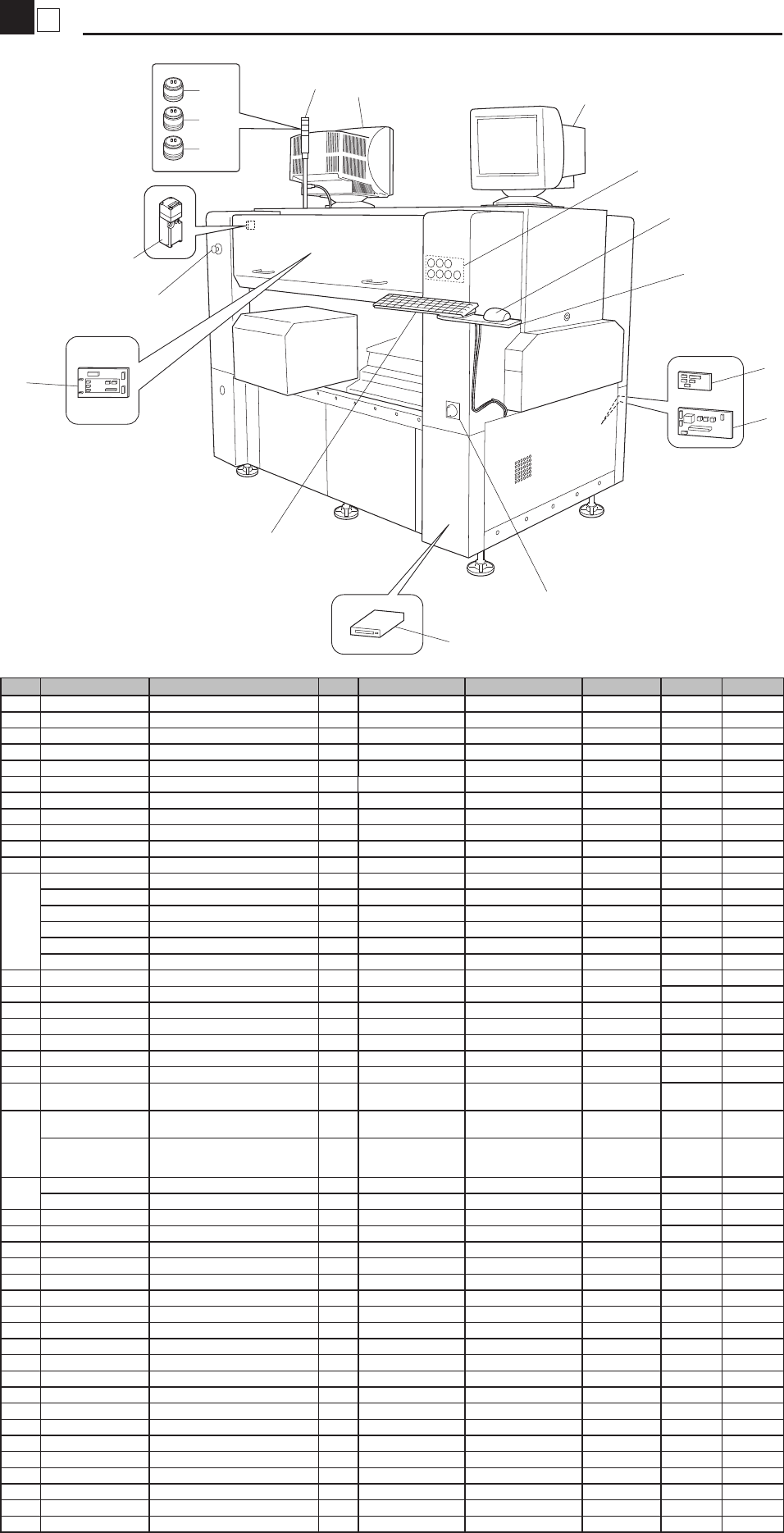

Monitor, etc.
Exterior, etc
KGD-1012
1,23
1,23
2,11
3
4
5
6
9
8
7
10
12
13
14
15
16
17-22
No. Part No. Part Name Q'ty Remarks Date of change Compati. Rank Level
1 KW8-M5119-00X MONI.15"COLOR ASSY 1 S.T.D A
1-1 KW8-M5119-01X MONI.15"COLOR ASSY 1 2005.07.18 OK A
1-2 KW8-M5119-02X MONI.15"LCD ASSY 1 (2005/11/11) OK A
1-3 KW8-M5119-03X MONI.15"LCD ASSY 1 (2006/6/20) OK A
1-4 KW8-M5119-04X MONI.15LCD ASSY" 1 AC100V (2008/5/29) OK A
1-5 KGT-M5106-B0X SMT OPE.PANEL ASSY 1 DC12V (2012/12/20) NG B
2 KW3-M5150-00X KEYBOARD J 1 Japanese A
2-1 KW3-M5150-01X KEYBOARD J 1 Japanese (2003/09/26) OK A
2-2 KW3-M5150-50X KEYBOARD J 1 Japanese (2005/11/30) OK A
3 KW7-M5126-00X SAFETY SWICTH 2 B
3-1 KW7-M5126-H0X SAFETY SW UNIT ASSY 2 (2009/12/1) OK B
4
KV7-M4899-10X LIGHT 1 ASSY (L=300) 1 (L=300) STD /
KV7-M4899-20X LIGHT 1 ASSY (L=350) 1 (L=350) /
KV7-M4899-30X LIGHT 1 ASSY (L=450) 1 (L=450) /
KV7-M4899-40X LIGHT 1 ASSY (L=550) 1 (L=550) /
KV7-M4899-50X LIGHT 1 ASSY (L=650) 1 (L=650) /
KV7-M4899-60X LIGHT 1 ASSY (L=750) 1 (L=750) /
5 KH1-M5138-00X SWITCH EMG ASSY 1 B
5-1 KGK-M5138-00X SWITCH EMG ASSY 1 (2003/04/25) OK B
6 KM5-M6554-10X MAIN SWITCH 1 B
7 KG7-M530H-01X FLOPPY DISK DRIVE 1 B
7-1 KG7-M530H-02X FLOPPY DISK DRIVE 1 (2006/1/6) OK B
8 KM5-M4580-02X I/O CONV. UNIT ASSY. 1 B
9 KGA-M4550-10X CONNECTION BOARD ASSY 1 B
10 KV8-M4570-XXX I/O HEAD UNIT ASSY. 1
Service information
No.230 reference
B
10-1
KV8-M4570-10X I/O HEAD UNIT ASSY. 1
spare parts for old
machine
(2005/10) OK B
KV8-M4570-01X I/O HEAD UNIT ASSY. 1
parts for new
machine ban on use
to an old machine
(2005/10) NG B
10-2
KV8-M4570-11X I/O HEAD UNIT ASSY. 1 for old machine (2009/10/8) OK B
KV8-M4570-02X I/O HEAD UNIT ASSY. 1 for new machine (2009/10/8) OK B
10-3 KV8-M4570-02X I/O HEAD UNIT ASSY. 1 machine all ok (2010/2/1) OK B
11 KW3-M5150-10X KEYBOARD E 1 English A
11-1 KW3-M5150-11X KEYBOARD E 1 English (2003/09/26) OK A
11-2 KW3-M5150-60X KEYBOARD E 1 English (2005/11/30) OK A
12 KW3-M5169-00X MOUSE 1 (2002/02/20) OK A
12-1 KW3-M5169-01X MOUSE 1 (2003/08/05) OK A
12-2 KW3-M5169-02X MOUSE 1 (2004/02/10) OK A
12-3 KW3-M5169-03X MOUSE 1 (2005/04/19) OK A
12-4 KW3-M5169-04X MOUSE 1 (2006/7/26) OK A
13 KGB-M1391-00X MOUSE PAD 1 A
14 KV7-M4887-00X LED UNIT R-R 1 A
15 KV7-M4887-10X LED UNIT Y-Y 1 A
16 KV7-M4887-20X LED UNIT G-G 1 A
17 KGA-M669V-04X HNS,SWITCH ACTIVE 2 B
18 KGA-M669V-14X HNS,SWITCH READY 2 B
19 KGA-M669V-24X HNS,SWITCH START 2 B
20 KGA-M669V-32X HNS,SWITCH STOP 2 B
21 KGA-M669V-42X HNS,SWITCH ERR.CLR. 2 B
22 KGA-M669V-54X HNS,SWITCH RESET 2 B
23 KGT-M5119-A0X TOUCH LCD SPARE KIT 1 SI-No.261 B
