8

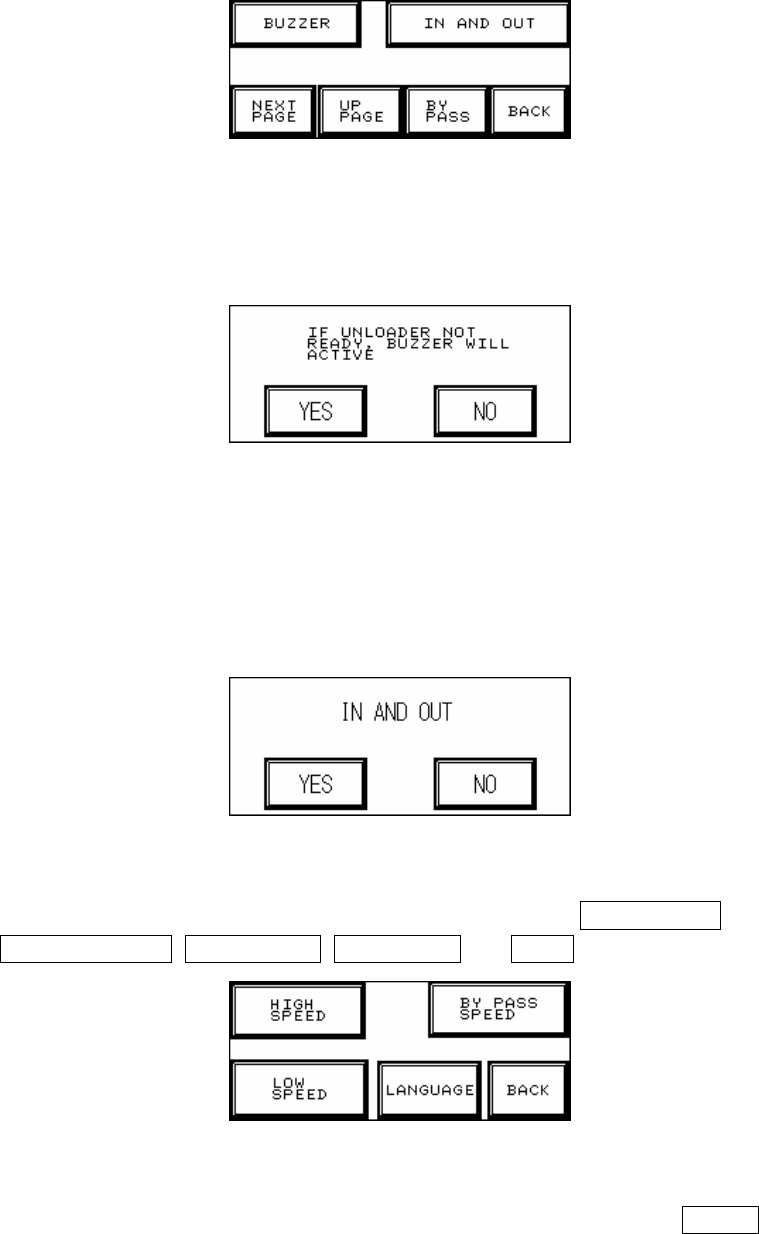

Figure 1.13 Setting – Page 2
1.3.4.1. BUZZER (Figure 1.14): Confirm if an alarm buzzer will sound to warn the operator if the
Unloader is not ready to avoid causing a board blockage at the Loader.
Figure 1.14 BUZZER
1.3.4.2. IN AND OUT (Figure 1.15): If you choose simultaneous In and Out a board can be
unloaded while another one is loaded (the test board length must be less than 200mm or
there may be an issue with board overlap); if NO is chosen then a board must be fully
unloaded before another is loaded.
Figure 1.15 IN AND OUT
1.3.4.3. NEXT PAGE (Figure 1.16): The five options available are: HIGH SPEED,
BYPASS SPEED, LOW SPEED, LANGUAGE and BACK.
Figure 1.16 Setting – Page 3
1.3.4.3.1. HIGH SPEED (Figure 1.17): This is the normal I/O speed, press ENTER at Figure
1.17 to set this speed. The speed range has an upper limit of 2600PPS and lower
limit of 100PPS.
9
Figure 1.17 High Speed Setting
1.3.4.3.2. BYPASS SPEED (Figure 1.18): This is the bypass speed, press ENTER at Figure
1.18 to set this speed. The speed range has an upper limit of 2600PPS and lower
limit of 100PPS.
Figure 1.18 Bypass Setting
1.3.4.3.3. LOW SPEED (Figure 1.19): This is the reduced speed, press ENTER at Figure 1.19
to set this speed. The speed range has an upper limit of 1000PPS and lower limit of
20PPS.
Figure 1.19 Low Speed Setting
1.3.4.3.4. LANGUAGE (Figure 1.20): Choose Chinese or English user interface at Figure 1.20.
Once selection has been made it will be automatically saved and does not need to
be set again the next time the machine is turned on.
Figure 1.20 LANGUAGE
u Type and Barcode Testing Setting: Press the hidden buttons located in Figure
1.22 separately (within a 2 second interval) to display the machine type and
barcode setting display as shown in Figure 1.20.
Hidden Button (For
Choosing Machine
Type.)
10
u Type Setting: There are currently Five machine types, if this is the first time a
new machine has been set up, the Figure 1.21 display will be shown at the
start for the machine type to be set. Use Figure 1.22 to set the machine type.
Once setting is done, to change the settings again at the Figure 1.20
Language selection display there are two hidden buttons on either side, press
both simultaneously to jump to the Figure 1.22 display to make the selection.
Once setting is complete the TR-**** position in Figure 1.22 and Figure 1.23
will show the set machine type.
u Barcode Sampling Setting: This setting is used to stop board loading if
reading of the barcode fails. If this function is not used please set the PC
software to not sample the barcode, or press to highlight the BARCODE in
Figure 1.22, otherwise the board won’t load.
u 2D Barcode: If 2D Barcode is used, 2D needs to be highlighted. .
u Dual Screw Conveyor Belt: If the conveyor belt uses dual screws, 2S needs to
be highlighted.
u Three Stage Conveyor Belt: If the conveyor belt uses three stages, the 3_COV.
needs to be highlighted.
*If it is a single stage conveyor belt then this setting must not be selected or the
PLC may crash. If a crash occurs, reset the main power and then deselect this
setting.
Figure 1.21 Initial Startup Display
Figure 1.22 Set Machine Type
