completed press BACK. The system will lock the CONV. WIDTH adjustment function and

return to the Debug display Figure 2.1.

2.3 Three Colored Lights (Figure 2.4): Press the RED LIGHT, YELLOW LIGHT, GREEN LIGHT,

BUZZER or LASER to test that each is operating correctly; press BACK to return to the

Debug display Figure 2.1.

2.3.1 Automatic Laser Testing:

l The Laser is ON when: The Loader program begins testing (hold board).

l The Laser is OFF when:

n The testing complete (release board) signal is received.

n Reset is pressed during testing.

n Emergency stop is pressed.

Figure 2.4 Three Colored Lights

2.4 I/O Display (Figure 2.5): From the options in Figure 2.5, the options INPUT(X), OUTPUT(Y),

STEP(S) and INLINE can be selected to monitor the execution status of the PLC program.

Figure 2.5 I/O Display

2.4.1 INPUT(X): The X80~X9F values from Figure 2.6 and Figure 2.7 can be compared against

Table 2.1 to monitor the PLC to see if the input points are normal.

Figure 2.6 Input 1

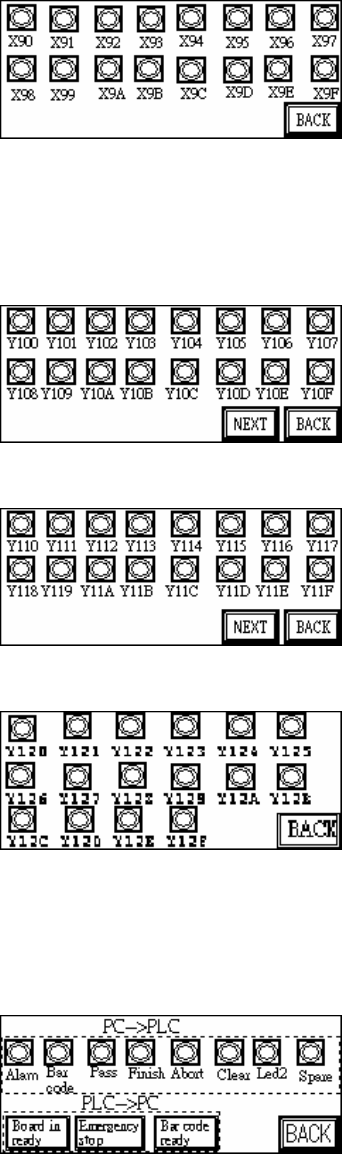

Figure 2.7 Input 2

2.4.2 OUTPUT(Y): The Y100~Y120 values from Figure 2.8 ~ Figure 2.10 can be compared

against Table 2.1 to monitor the PLC to see if the output points are normal.

Figure 2.8 Output 1

Figure 2.9 Output 2

Figure 2.10 Output 3

2.4.3 PC & PLC I/O: Use this function and co-operate with the I/O testing function in main

program to review the Input and Output signal.

Figure 2.11 PC&PLC I/O

2.4.4 STEP (S): When step by step operation is selected, the step at which the system’s

operation experiences a problem can be identified; this is shown during system Reset,

Bypass and normal operations.

Figure 2.12 Stepping

2.4.5 INLINE: Port1 and Port2 can be used to perform a self-diagnostic check. Connect Port1

and Port2 connectors that have the same color and at Figure 2.13 press Y*** (Output) to

see if the corresponding X*** (Input) is shown.

Figure 2.13 Inline
