24 S t e p 5 : A f t e r ba c k up , c l o s e t he o r i g i n a l HC I i n t e r f a c e s o f t w a r e . T h en c li c k o n F il e t o O p en t he HC I i n t e r f a c e p r og r a m ( * . i o p ) y o u w i s h t o …

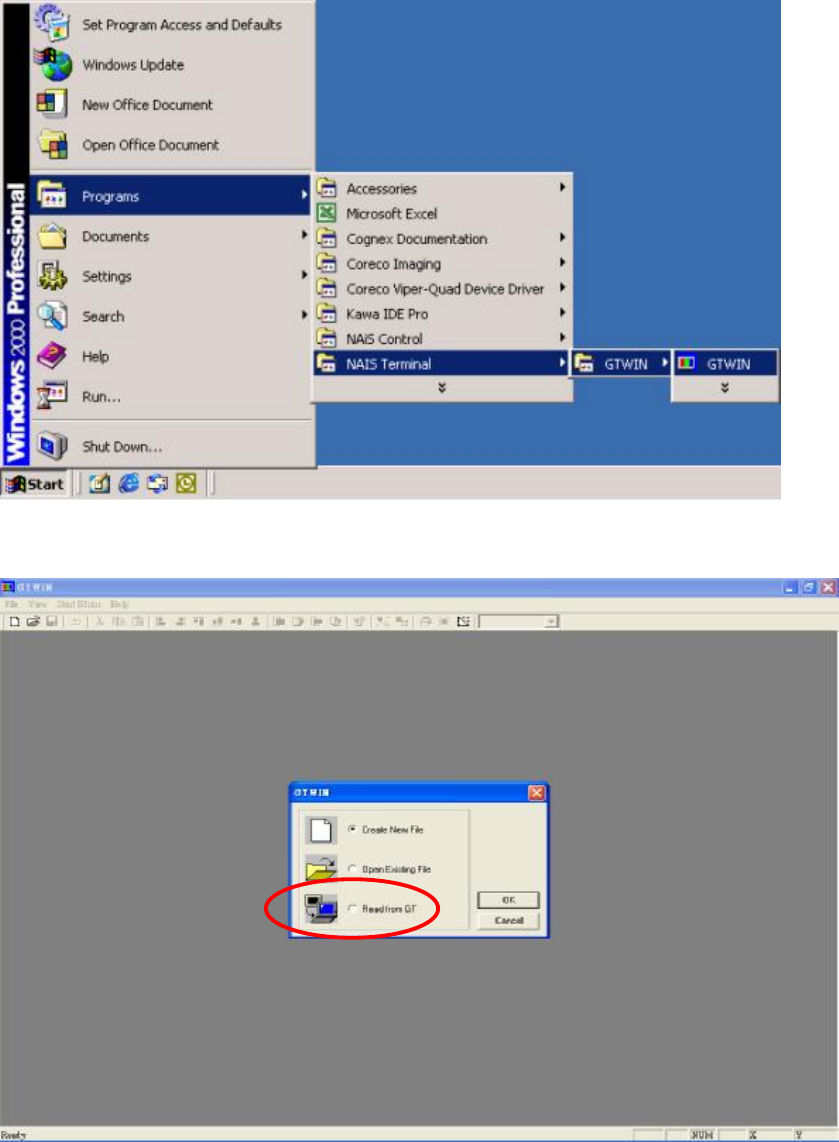

Step 3: Enter the GTWIN software program and as shown in the figure below, select Read

from GT (Read HCI data).

Step 4: After loading (this takes some time, please wait patiently), click on the File and select

Save so as to make a backup of the original files as shown in the picture below.

Step 5: After backup, close the original HCI interface software. Then click on File to Open the

HCI interface program (*.iop) you wish to update as shown in the figure below.

Step 6: Click on the File and select Transfer. In the Transfer Data dialog, select All Data &

Select the program file to use for update (*.iop)

GTWIN->GT. Click OK as shown in the figure below.

Step 7: Wait for the PC to transfer the data to the HCI (this may take some time, please wait

patiently), and the program will be updated.

1.5 PLC Program Replacement

The Steps are as follows:

Step 1: First connect the PLC-PC data cable properly, with the PS2 connector connected to

the rear of the PCI, and the RS232 connected to Main PC COM1.

Step 2: Open the Program Files and select FPWIN GR.
