41 4 . 1 .7 T R7 50 0 Po w e r B oa r d Lay o u t N FB N E T P O RT F AN F i l t e r S M E M A P O RT P O WE R P L UG
40
4.1.6 TR7500 Lighting Control Box
FAN LED Control Board
41
4.1.7 TR7500 Power Board Layout
NFB
NET PORT
FAN
Filter SMEMA PORT
POWER PLUG
42

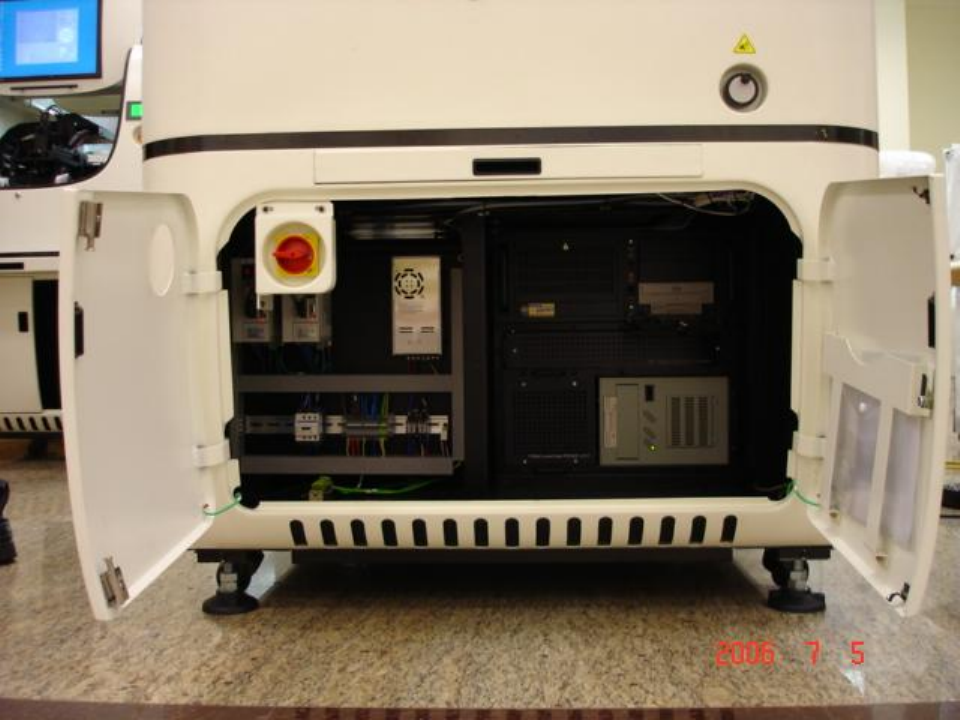

4.1.8 TR7500 Chassis Casing
