CM602-L
Service Manual
12

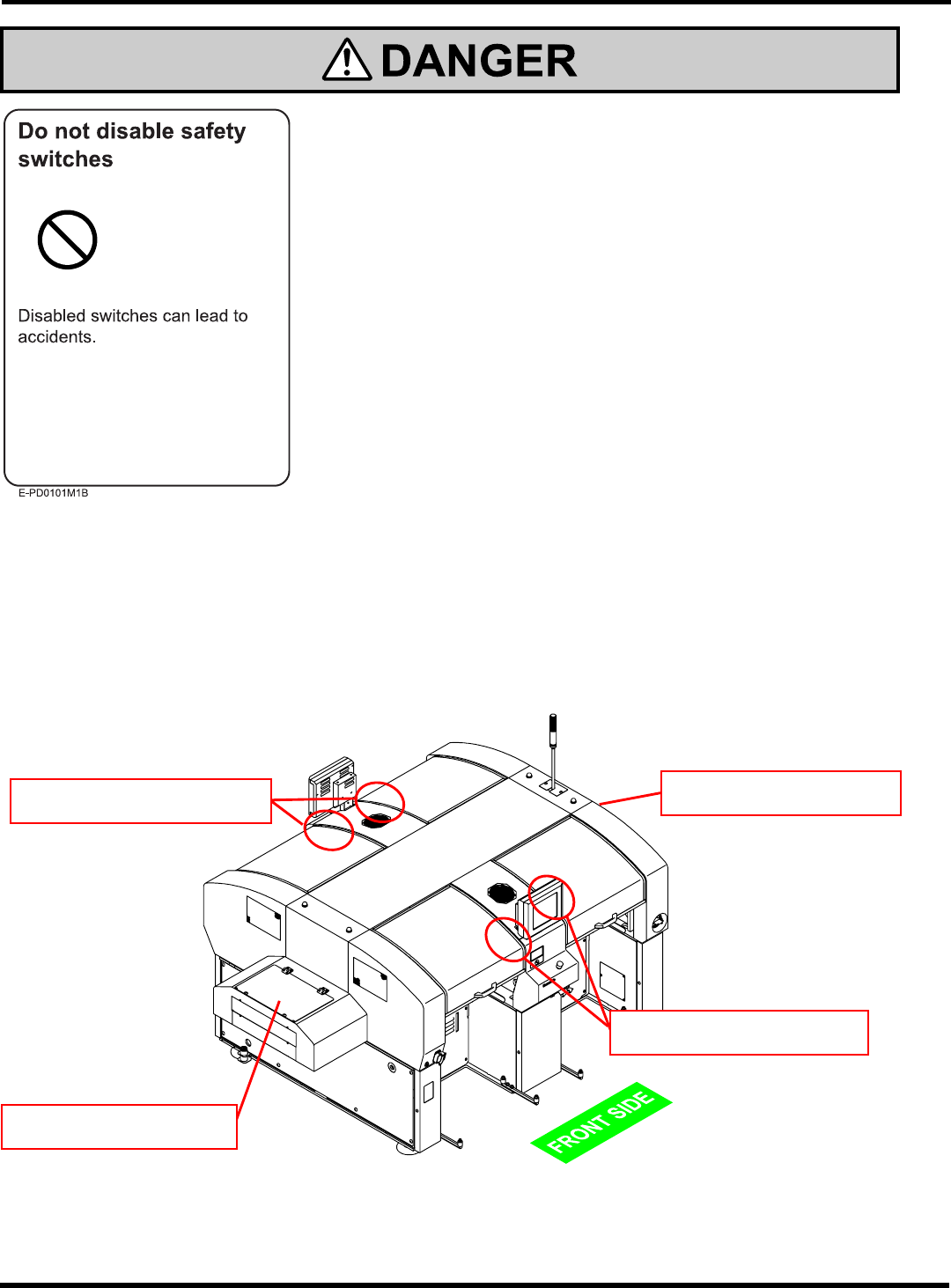

Locations of safety switches
This machine has four safety switches on the front/rear safety covers and two ones on the
optional extension conveyors.
EJM8A-E-XXA00-A03-00
EJM4A-AG01
Safety switch
on the front safety cover
Safety switch
on the rear safety cover
Safety switch
on the extension conveyor
Safety switch
on the extension conveyor
CM602-L
Service Manual
13
If you sense any danger or abnormality, press an emergency stop button to
stop operation.
If you continue to operate the machine in a dangerous or abnormal state, a breakdown or
an accident will occur.
CM602-L has two emergency stop buttons. Pressing any one of them stops operation.
Press the nearest one.
Eliminate the cause of danger or abnormality, and then restart operation.
To reset, pull the emergency stop button.
Emergency stop button
(At the rear side)
Emergency stop button
(At the front side)
M107B
EJM8A-E-XXA00-A03-00
EJM4A-AA01
CM602-L
Service Manual
14
Observe the following matters if putting your hands or part of body into the
moving parts of the machine in the case of production material supply,
changeover, or adjustments.
You may be injured if the machine is actuated.
And also you may receive an electric shock.
There are three levels of steps as follows, according to each kind of work.
Repairing such as a control BOX-------------------------------------------------
-
Cut off the power supplying to
the machine.
Turning OFF the power supply routinely----------------------------------------
-
Replacing a control part such as a sensor
Disassembling or replacing parts
Turn OFF the power and stop
the air supply.
Lock the power supply switch
and the main air valve.
Changeover or working for daily check -----------------------------------------
-
Setting the nozzles in the nozzle changer
Maintenance of the inside of the machine
Turn OFF the servo switch, and
then open the safety cover.
Turn OFF (O) the servo
switch, and then open
the safety cover.
Cut off the power
supplying to the
machine.
Rear panel
OFF ( )
ON ( )
SERVO
STOP
UNLOCK
STEP
START
LIGHT ON
SELECT
KEY LOCK BACK LIGHT OFF
Turn OFF the breaker
that is connected to the
machine.
Turn OFF the power supply.
Turn OFF (O) the servo
switch, and then open
the safety cover.
Stop the air supply.
EJM4A-132E
Front panel
OFF ( )
ON ( )
SERVO
STOP
UNLOCK
STEP
START
LIGHT ON
SELECT
KEY LOCK BACK LIGHT OFF
M73C
