Jigs and Tools Tools Vacuum Grease Maker: NOK Kluber T y pe: Barrierta IEL/V Purpose: ・ Nozzle shaft ・ Nozzle clamp ・ Nozzle holder section ・θ rotation-section baring ・ EJM8A-E-SMA030202-A01-00 Page 3-2-2-4

Jigs and Tools Tools

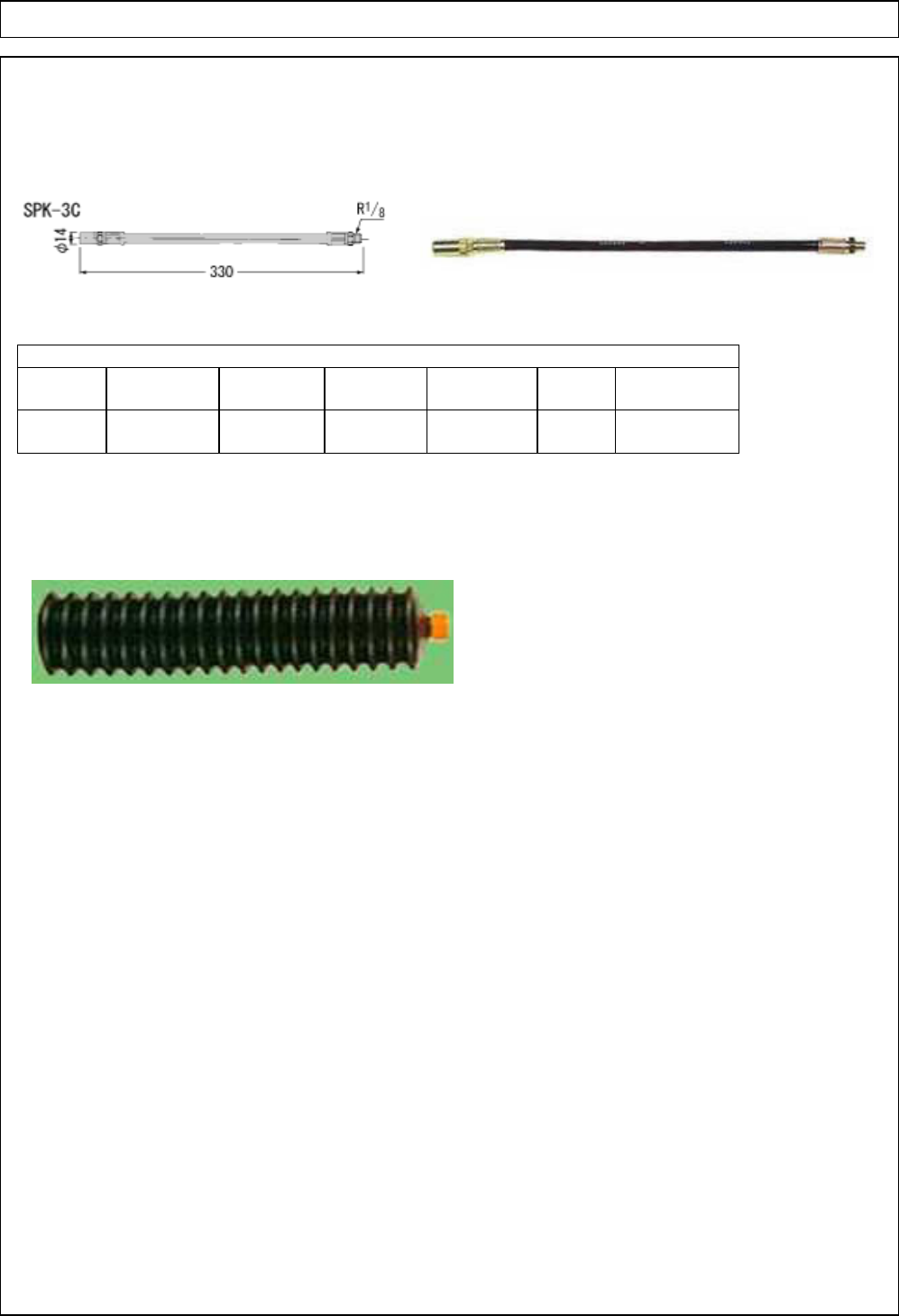

Grease hose (Joint)

Maker

Type: SPK-30

Grease

Maker: Showa Shell Sekiyu KK

Type: Stamina RL2

Length Connection

Maximum

pressure

Weight

330mm R 1/8 25MPa 200g

Item No.

850666

Type

SPK-3C

Purpose

Hydrolytic

nipple

Specifications

Purpose:

・X and Y-axis linear sliders

・Z- and ball screws

・Z-axis linear bearings

・Z-axis bearing

・Cutter fulcrum pin

・Cutter linear bearing

・Cutter cylinder rod end

・Z clamp linear sliders

・Nozzle changer slide bearing

・

EJM8A-E-SMA030202-A01-00 Page　3-2-2-3

Jigs and Tools Tools

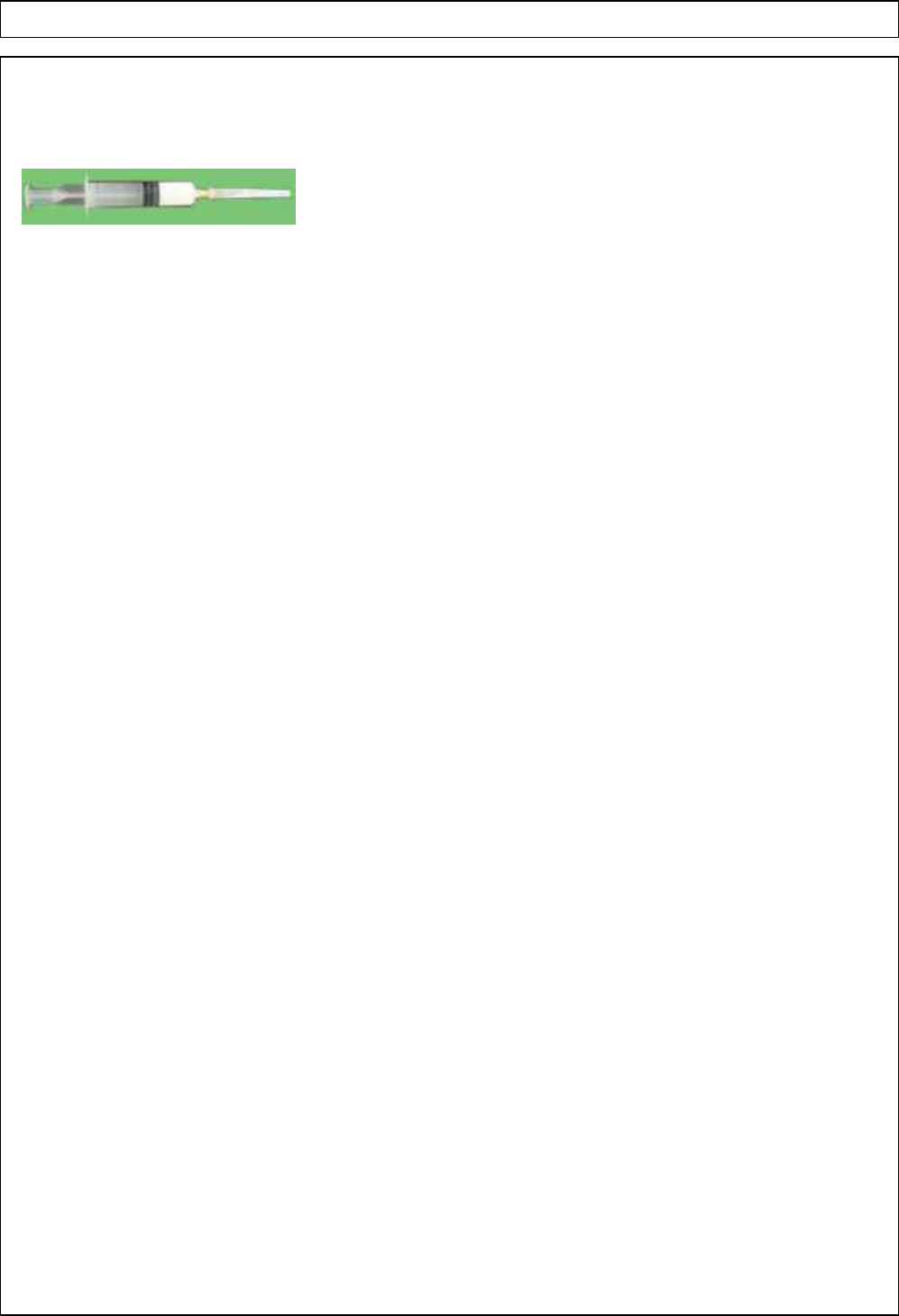

Vacuum Grease

Maker: NOK Kluber

pe: Barrierta IEL/V

Purpose:

・Nozzle shaft

・Nozzle clamp

・Nozzle holder section

・θrotation-section baring

・

EJM8A-E-SMA030202-A01-00 Page　3-2-2-4

4 Maintenance Adjustment

This chapter describes the maintenance adjustment.
